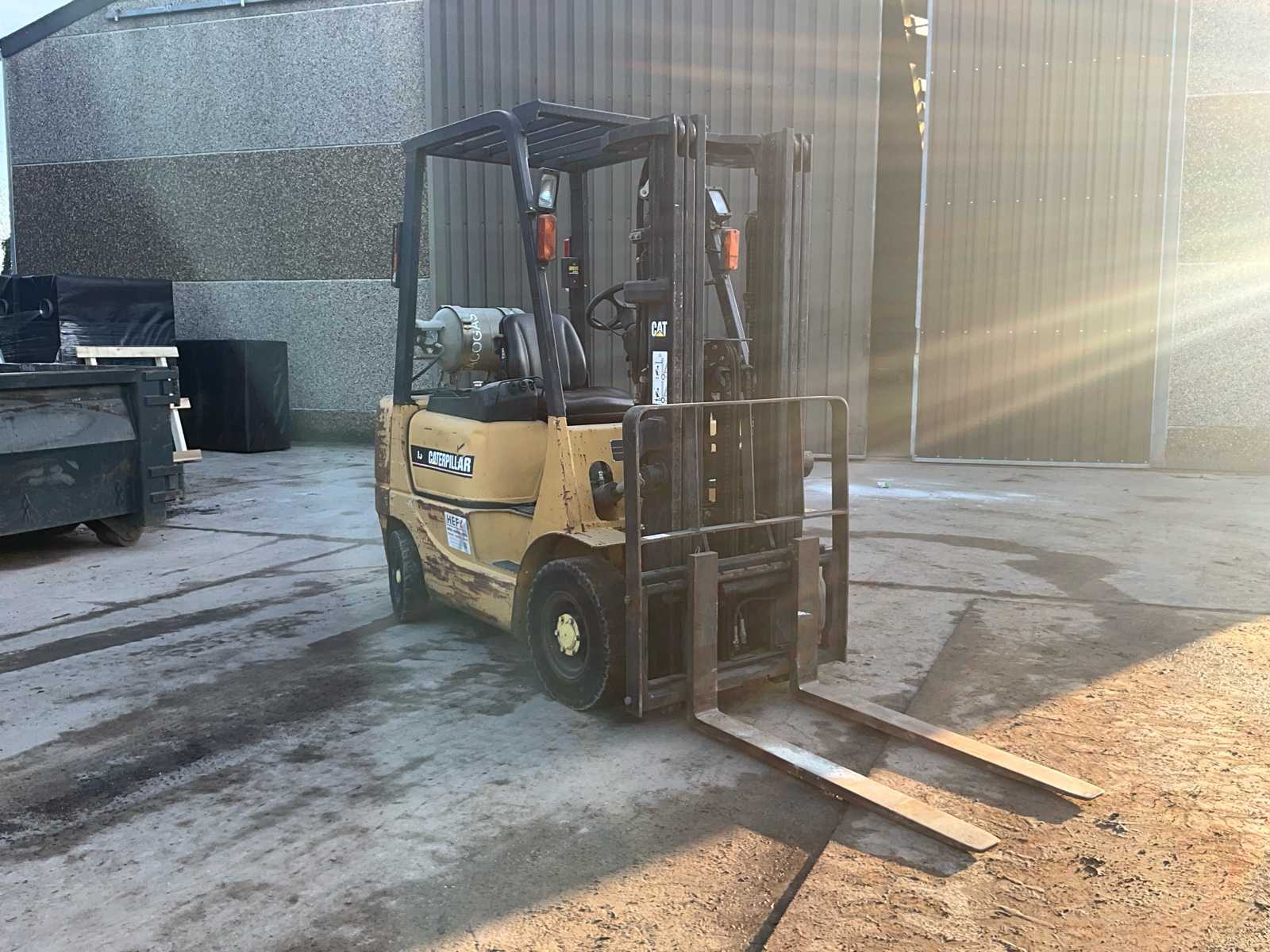

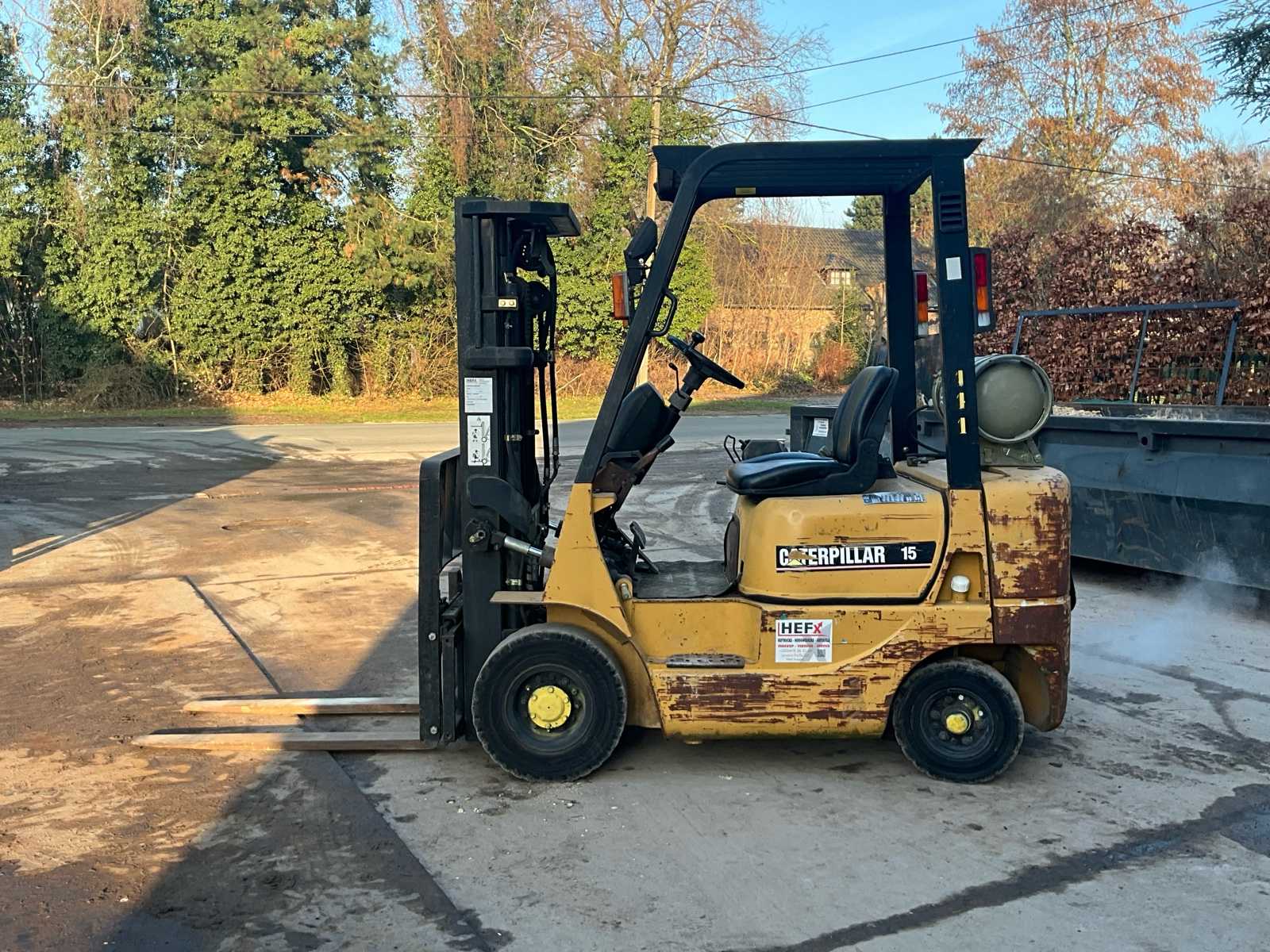

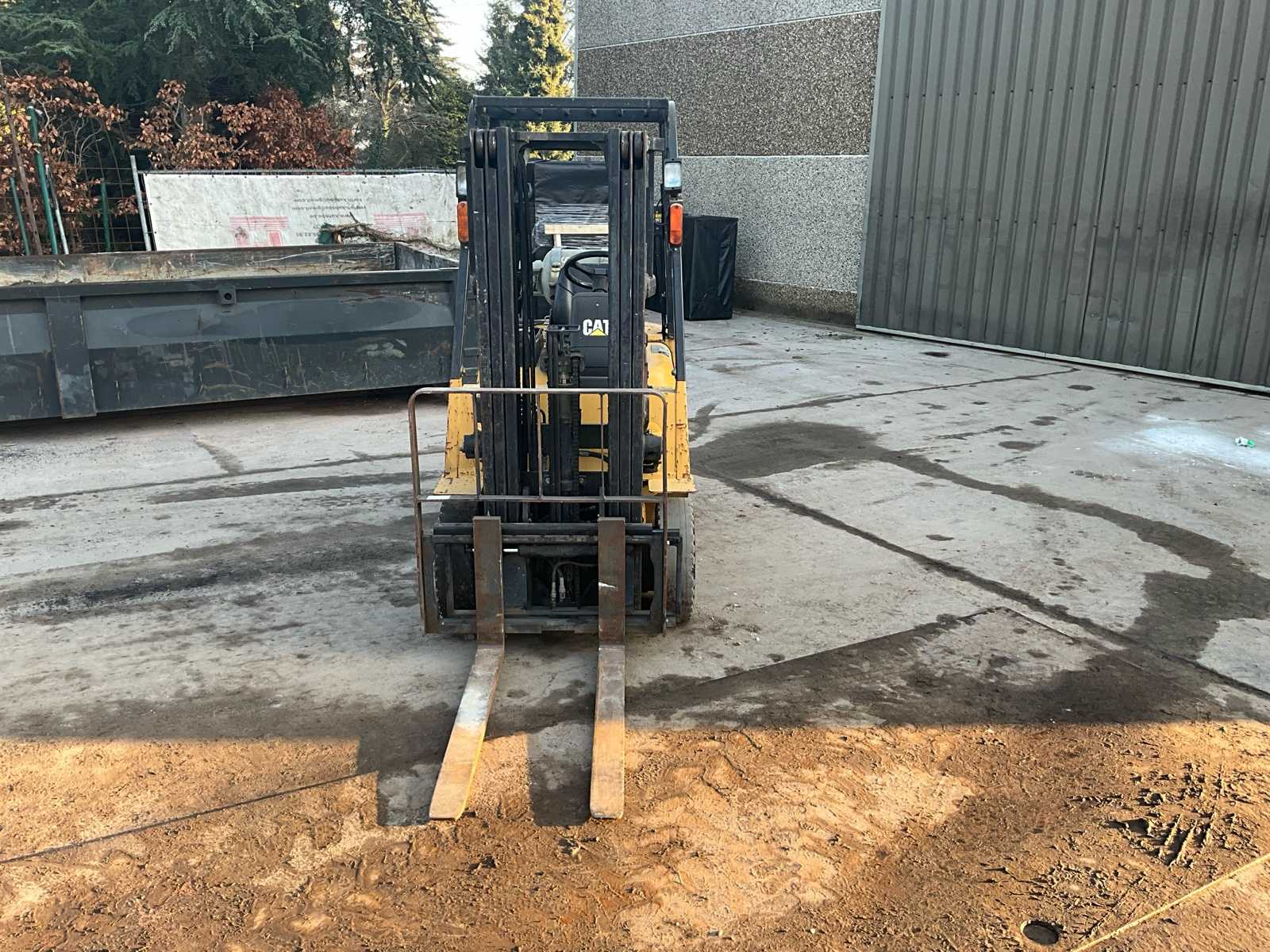

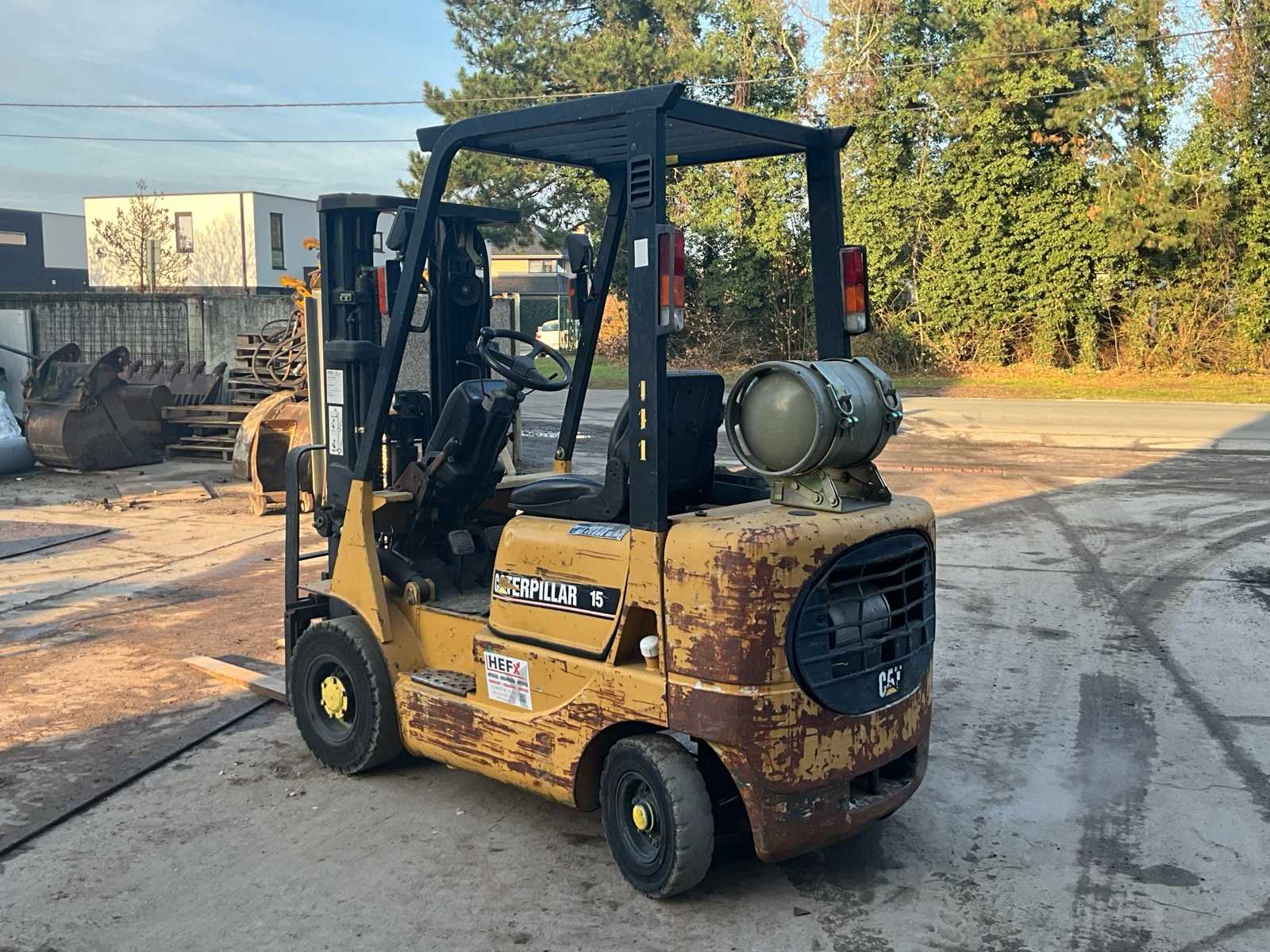

2002 Caterpillar GP15K Forklift

Brand: Caterpillar
Type/Model: GP15K
Type: Chariot élévateur automoteur = forklift (thermal, LPG/petrol)
CE marking: Yes

⸻

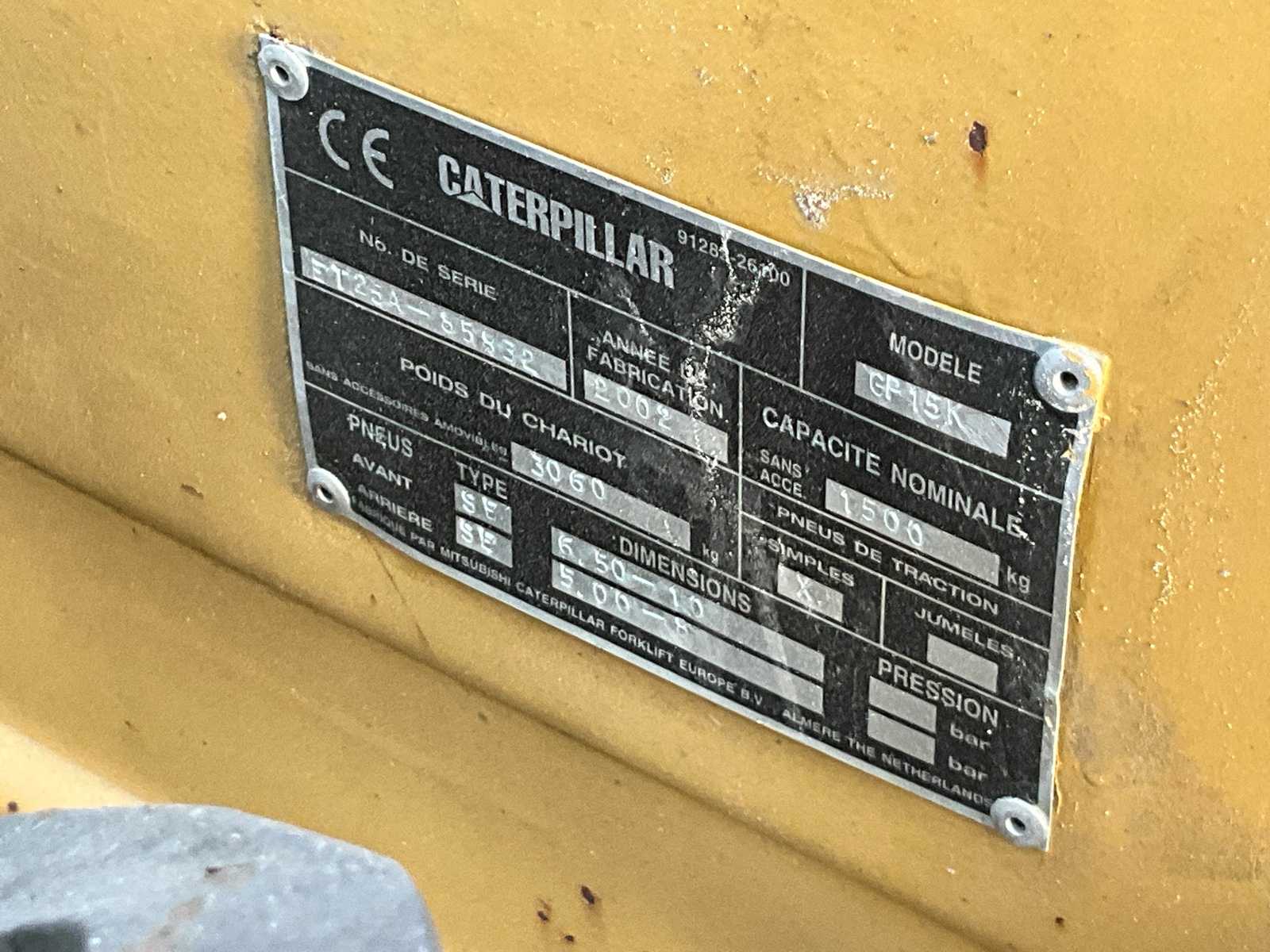

🆔 Identification
• Serial Number: FT25A 85552
• Year of construction: 2002
• Manufacturer: Mitsubishi Caterpillar Forklift Europe B.V. (Almere, The Netherlands)

⸻

⚖️ Weights & Capacities
• Nominal lifting capacity: 1,500 kg
(measured at 500 mm load center of gravity)
• Rated Lift Height: 3,300 mm
• Maximum lifting height: 4,330 mm
• Empty weight of the forklift truck (ready for operation): 2,630 kg

⸻

📊 Lifting capacity (according to load diagram)

🔹 Mast vertical

Distance from the load centre (Pm):
• 500 mm → 1,390 kg
• 600 mm → 1,250 kg
• 700 mm → 1,150 kg

At maximum height (4,330 mm):
• 500 mm → 1,290 kg
• 600 mm → 1,170 kg
• 700 mm → 1,070 kg

⸻

🔹 Mast tilted forward

Distance from the load centre (Pm):
• 500 mm → 970 kg
• 600 mm → 900 kg
• 700 mm → 850 kg

At maximum height:
• 500 mm → 840 kg
• 600 mm → 780 kg
• 700 mm → 730 kg

⸻

🛞
