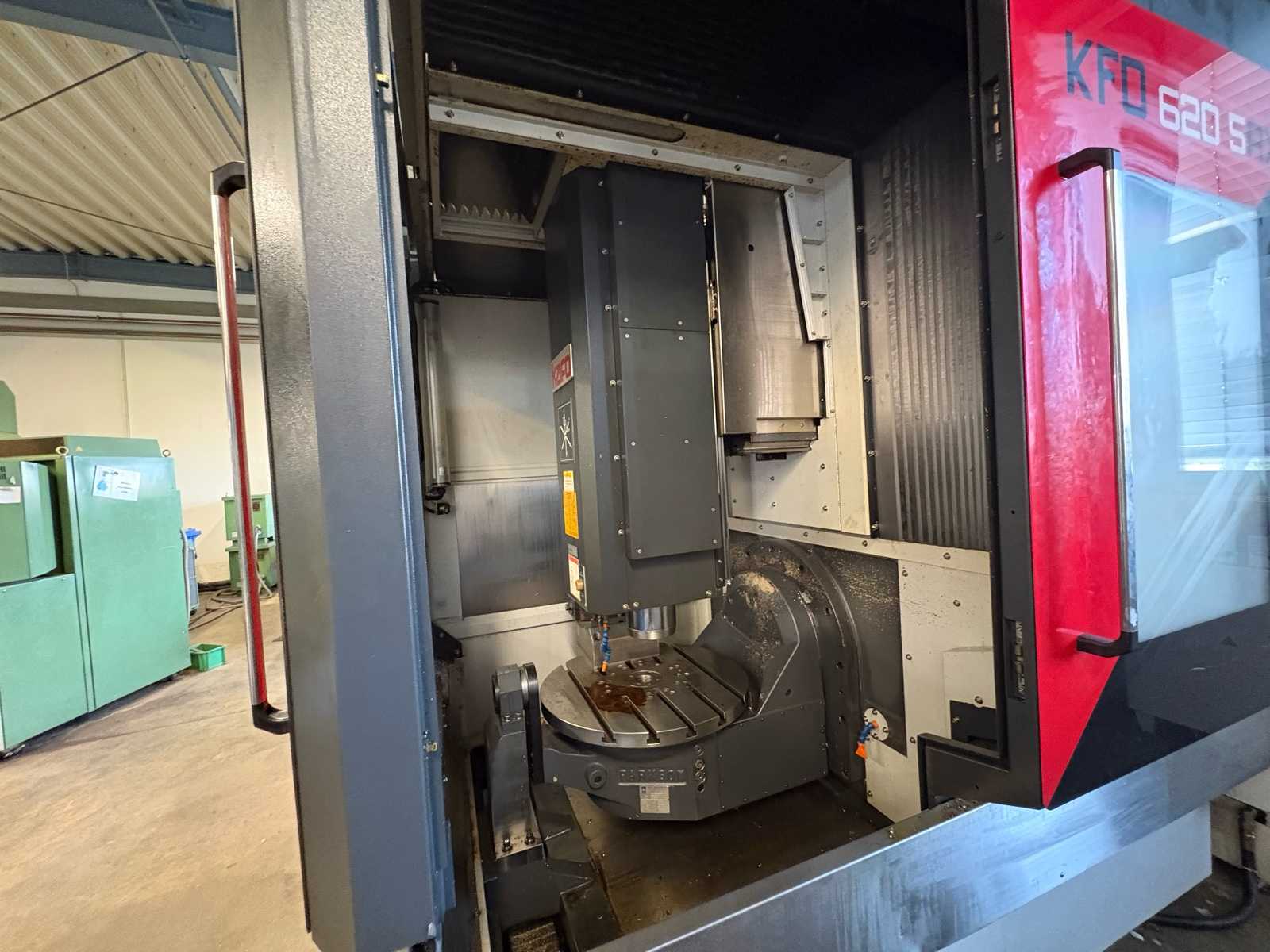

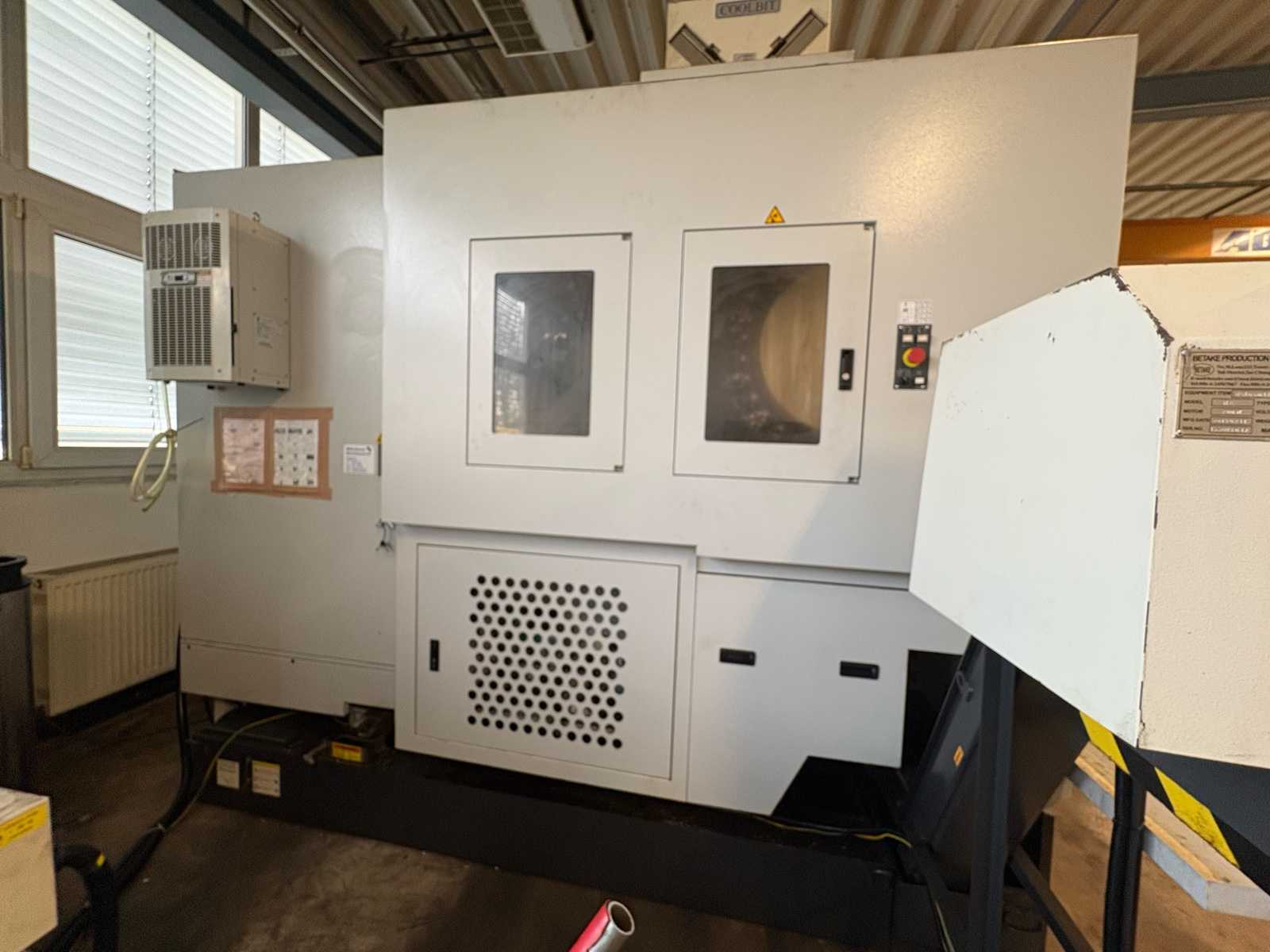

2019 KAFO KFO 620 5AX Vertical Machining Centers

5-axis machining center KAFO KFO 620 5AX, built in 2019
• Equipped with Heidenhain TNC 640 control
• Travel paths X/Y/Z: 620 x 520 x 460 mm

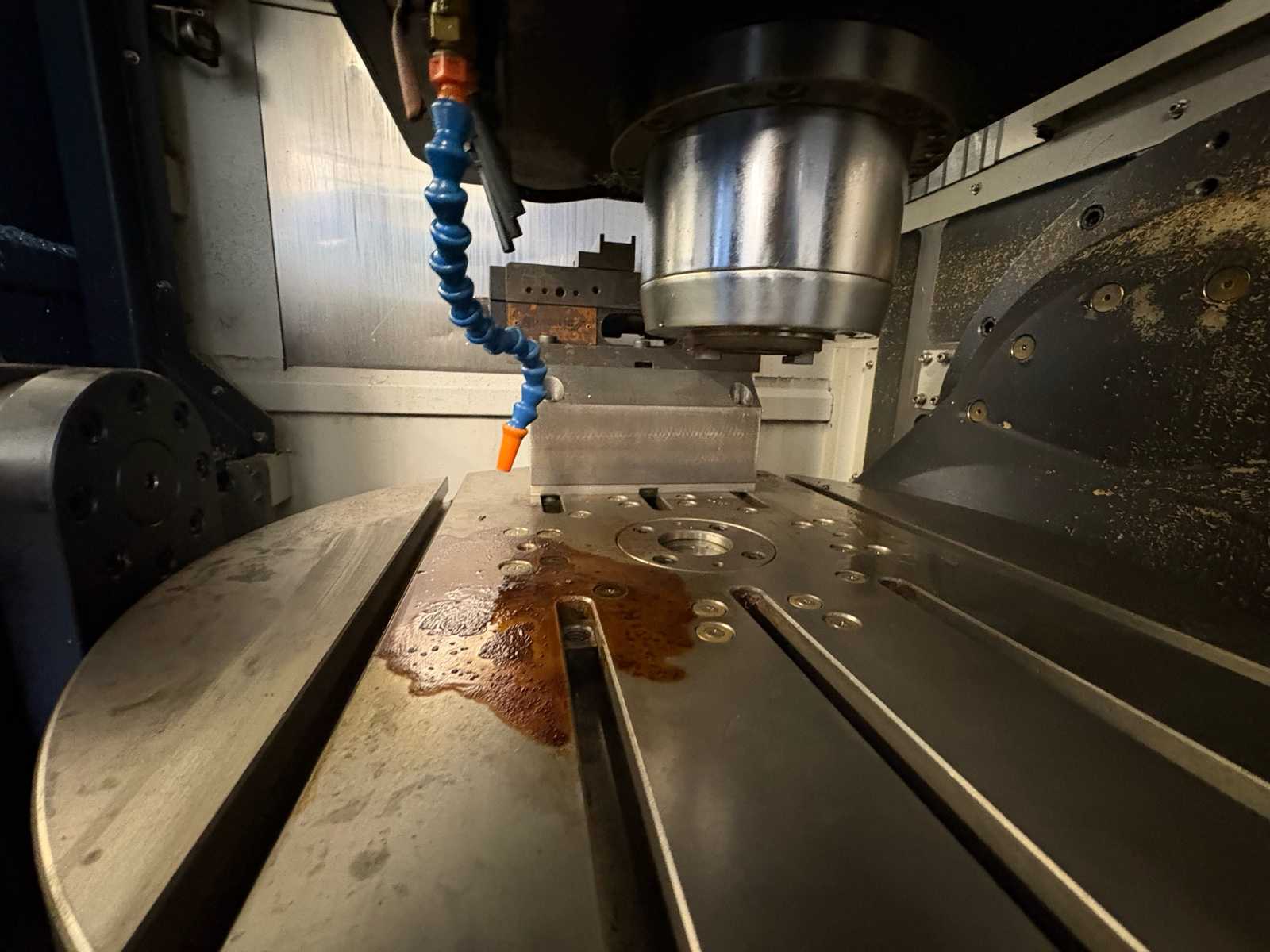

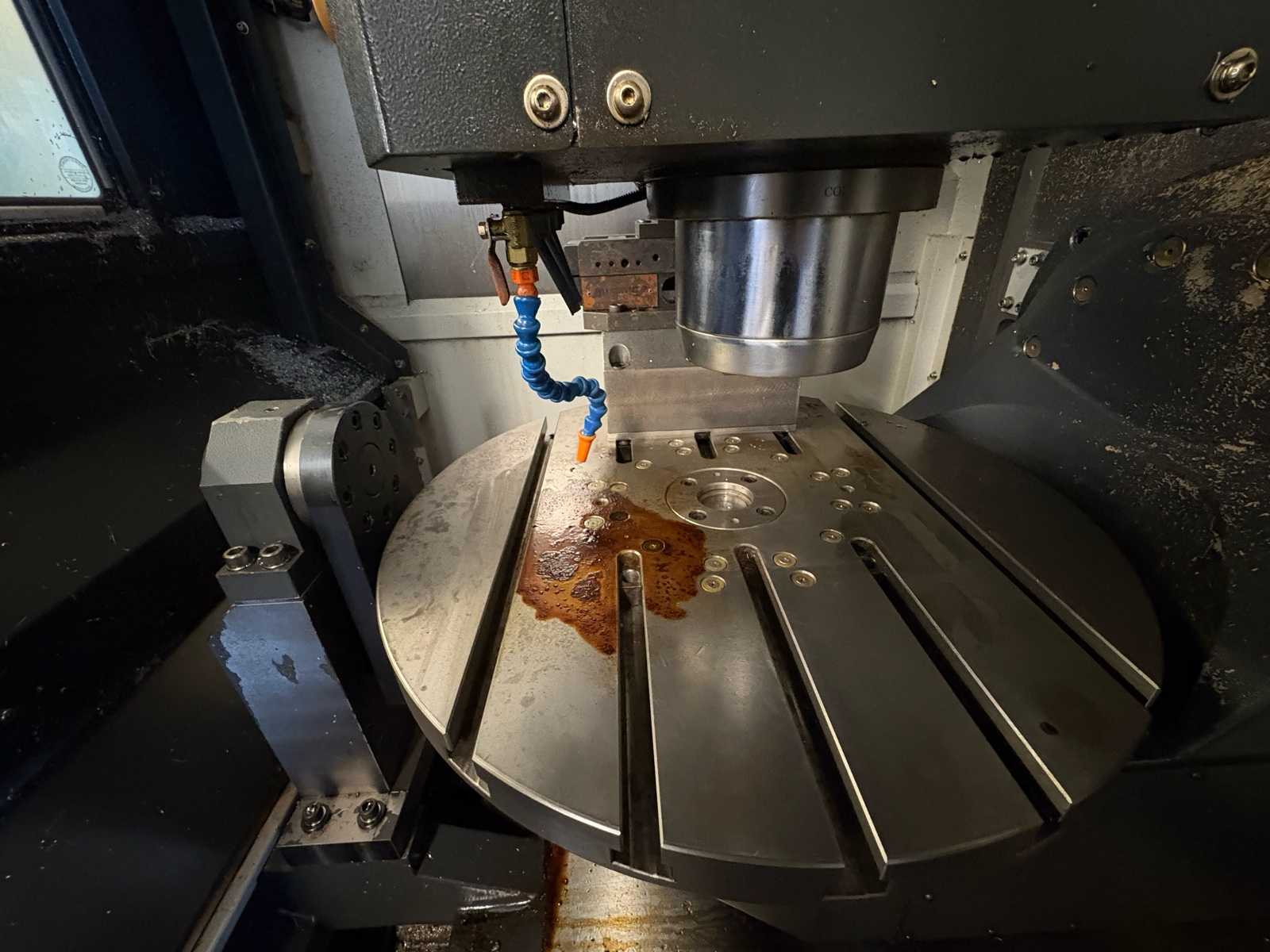

• Rotary table Ø650 mm, 5-axis simultaneous capability (B-/C-axis integrated)
• Max. workpiece weight: 300 kg
• Spindle: Direct drive, 12,000 rpm, SK40, 10 kW (S1), 15 kW (S6)
• Tool changer: 30-fold, automatic round magazine changer
• Coolant system with high pressure (IKZ 20 bar)
• Machine weight: approx. 7,800 kg
• Dimensions (LxWxH): approx. 4300 x 2400 x 3200 mm

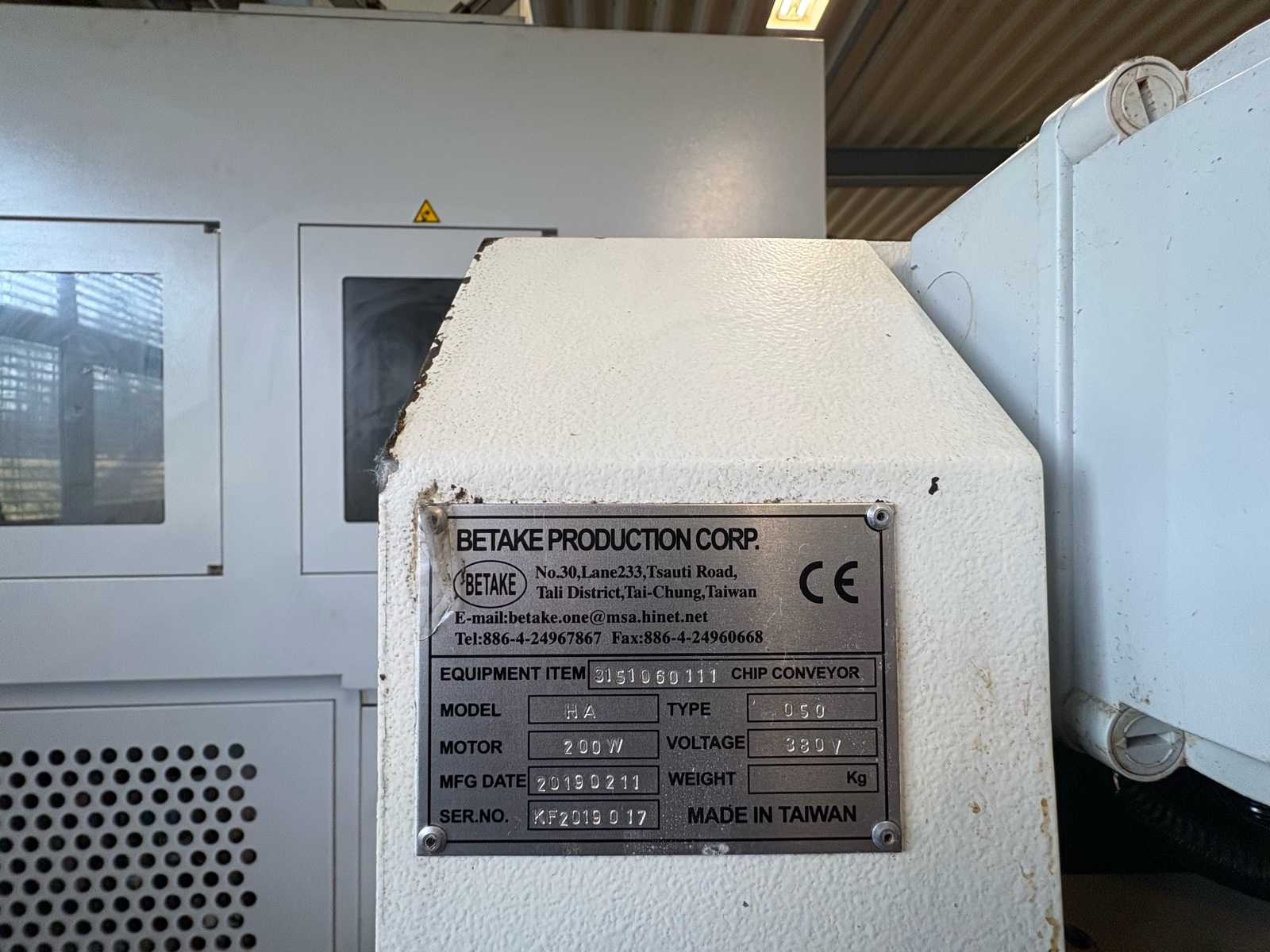

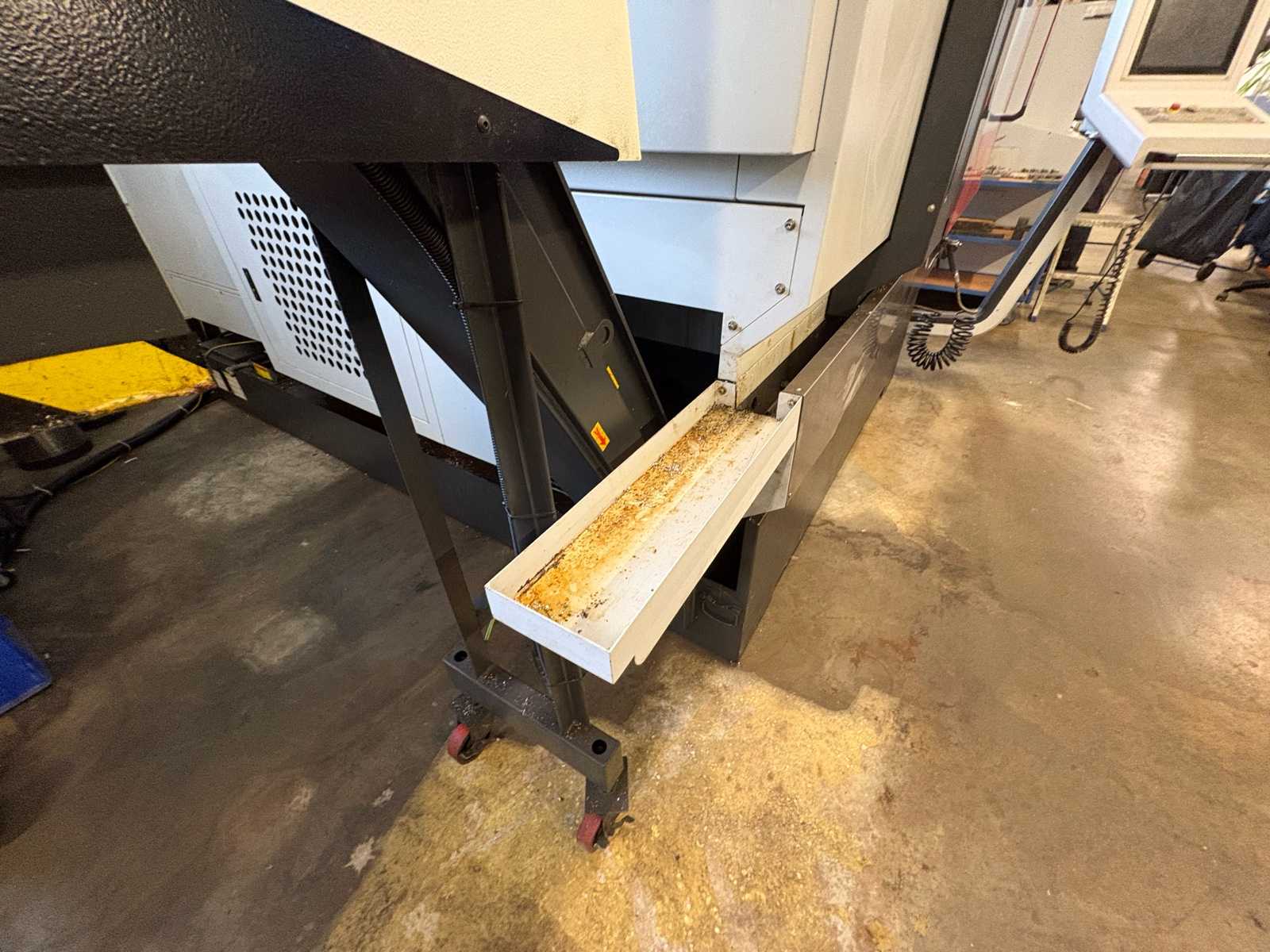

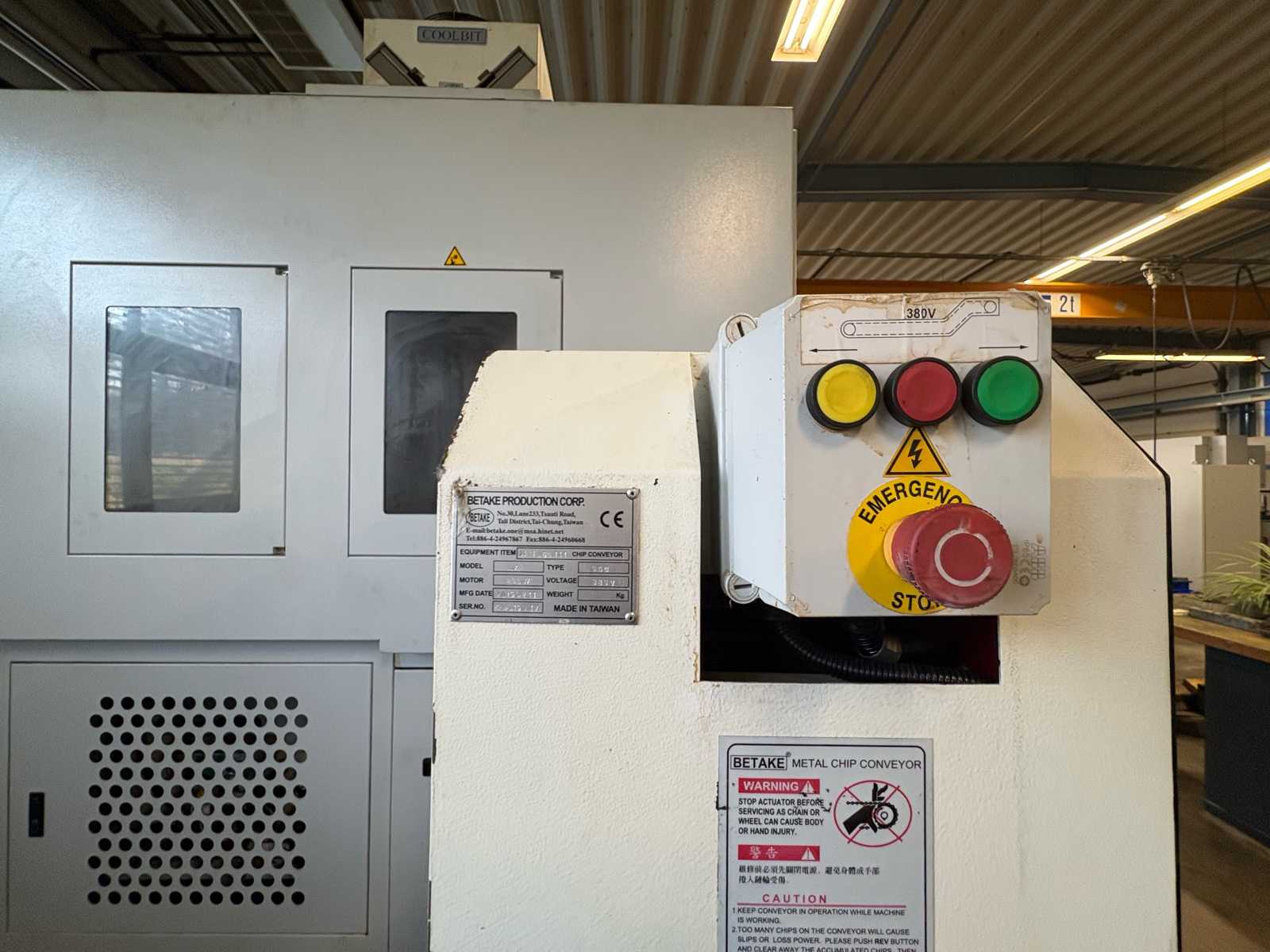

• Chip conveyor and coolant pump integrated
• Machine hours (display):
• Spindle time: approx. 1,989 h
• Machine running time: approx. 7,187 h
• Program run: approx. 2,728 h
• Condition: Very well maintained, ready for immediate use, visually and technically good
• Solid Taiwan machine, high precision, good alternative to DMG, Hermle etc.

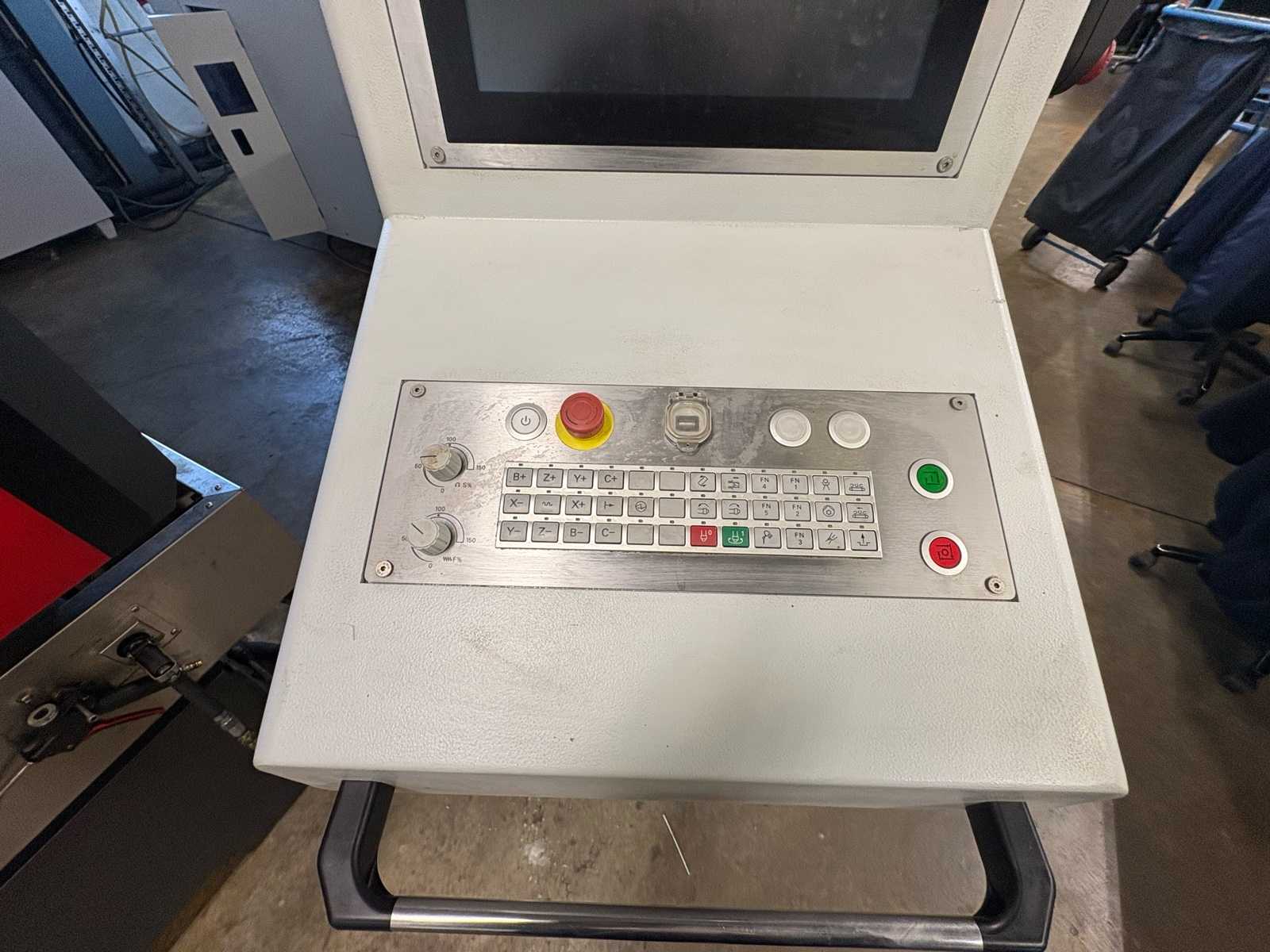

• Sale incl. control panel, cabling, without clamping devices or
