ANGELINI – OSCAR – 2003 – CNC lathe

Last recorded bid	€0,00
Time left	00 dagen 00 uren 00 min 00 sec
Location	Germany
Auction house
Description	CNC lathe Angelini Oscar Year of Make: 2003 Control: GE Fanuc Series 21i-T Technical data Permissible diameter on the slide: 320 mm Recommended turning diameter: 220 mm Maximum turning diameter: 320 mm Turning length with chuck: 600 mm X-axis travel: 270 mm Travel Z-axis: 720 mm C-axis: available Tool turret: 12-speed VD30 Rapid traverse X-axis: 24 m/min Rapid traverse Z-axis: 32 m/min Spindle nose: ASA 5″ Spindle bore: 61 mm Bar Passage: 52 mm Power spindle motor: 15 kW Maximum spindle speed: 4,500 rpm Diameter hydraulic chuck: 210 mm Tailstock quill
Legal info	europe-auctions.com is not the seller. The platform serves solely as an aggregator website that lists items from various auction houses. The information on this page may not be fully accurate, as our listings are updated once per day. Please visit the auction house's website for up-to-date information.

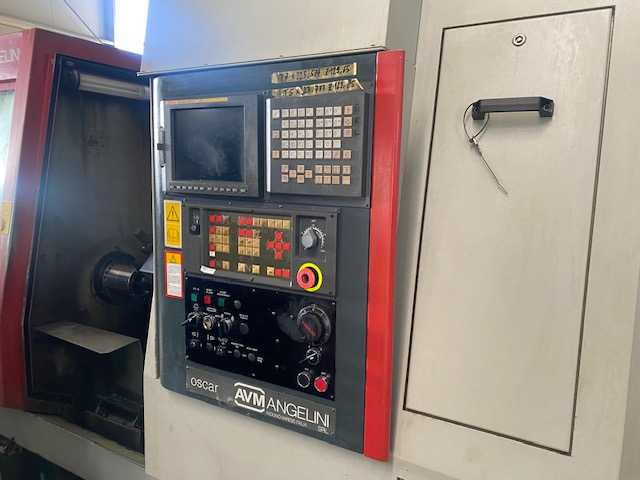

CNC lathe Angelini Oscar
