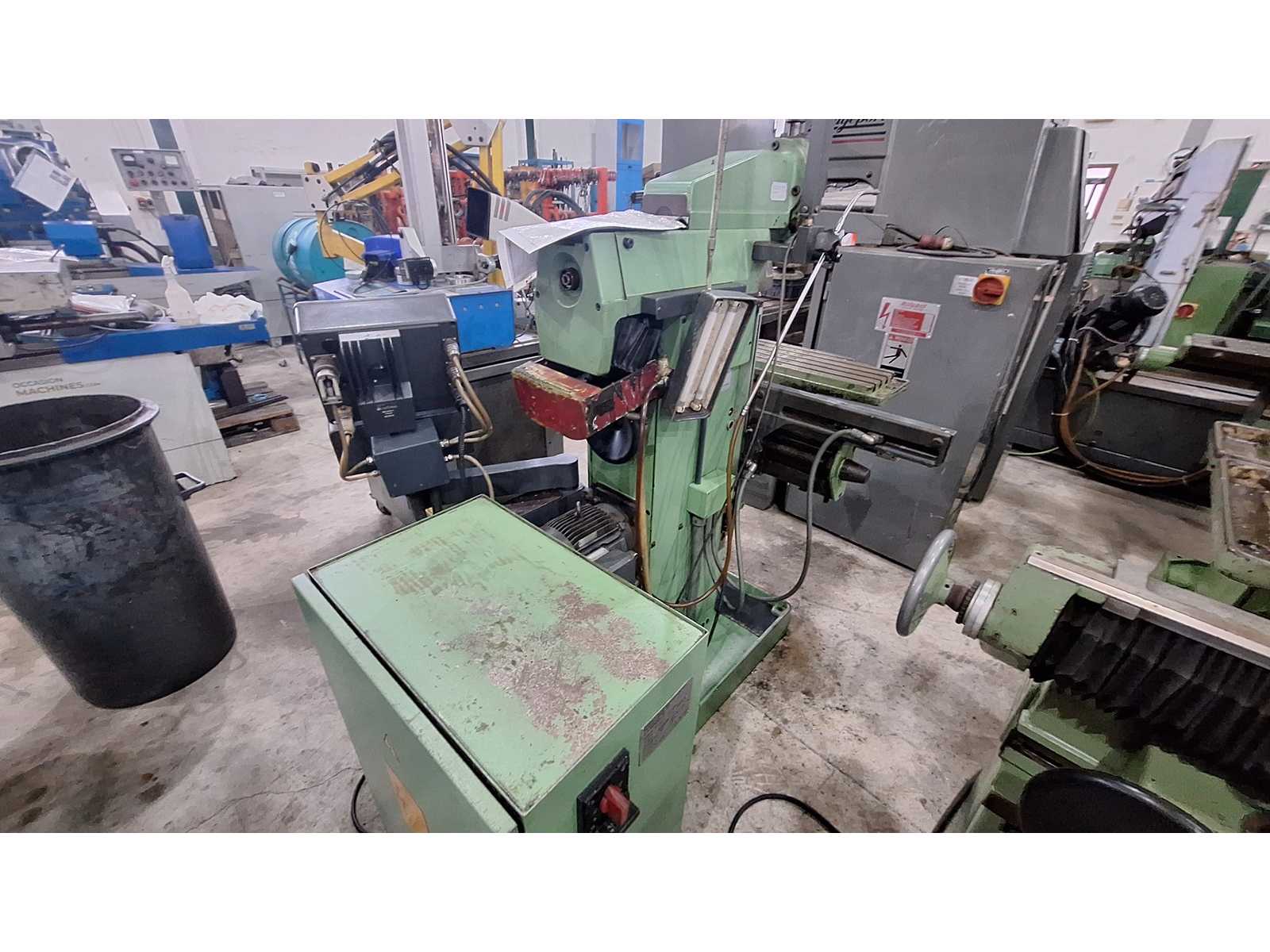

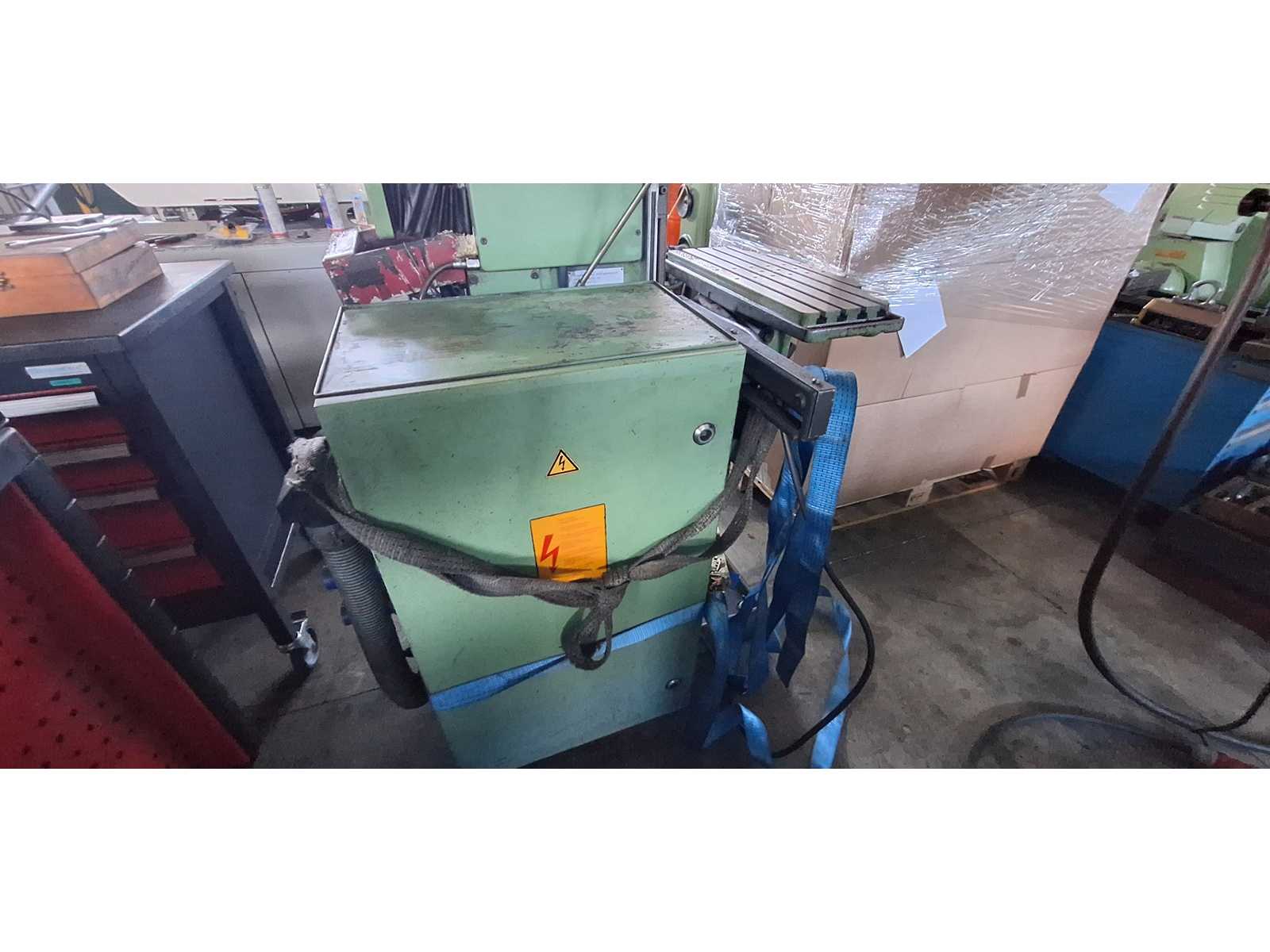

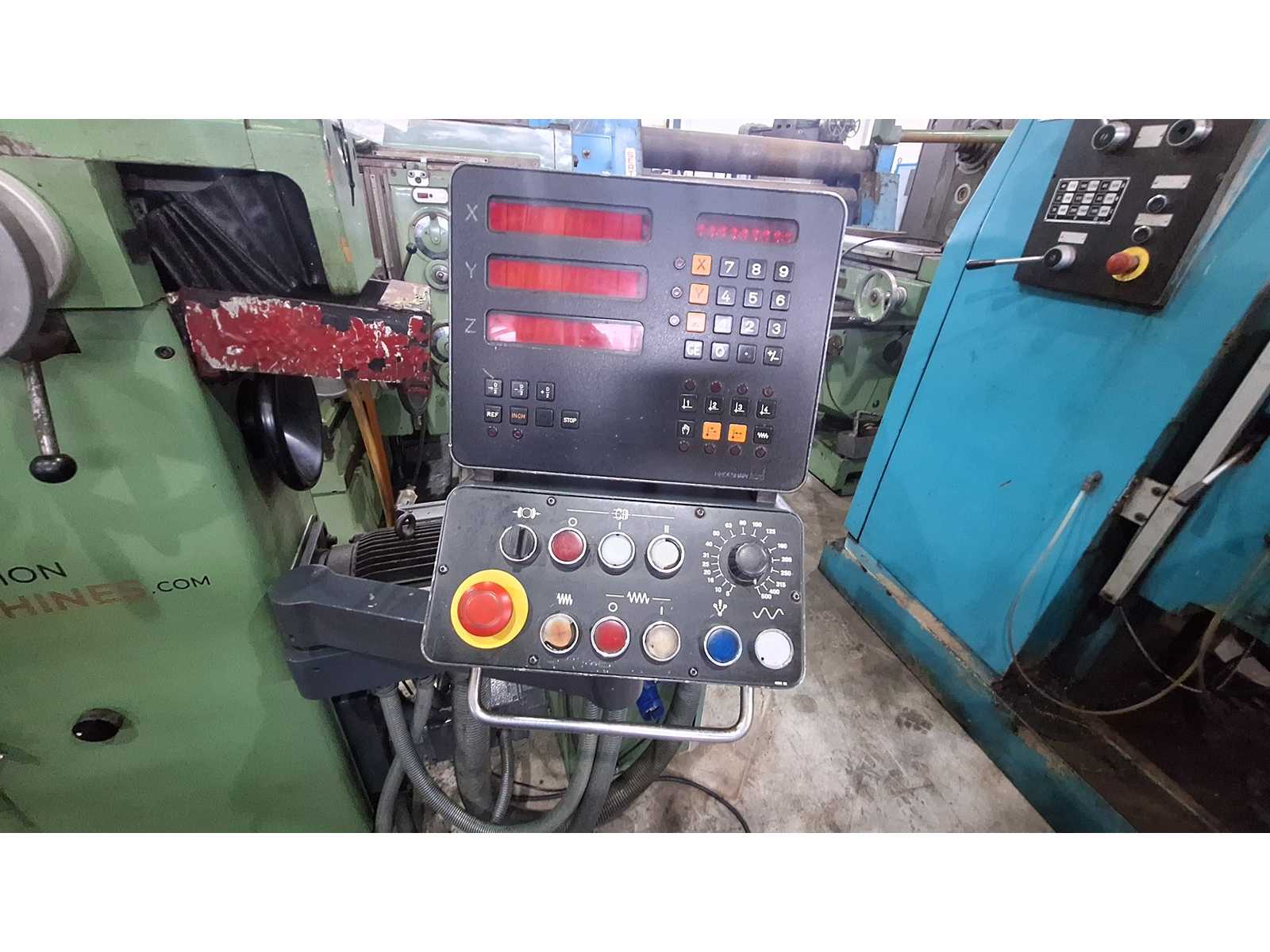

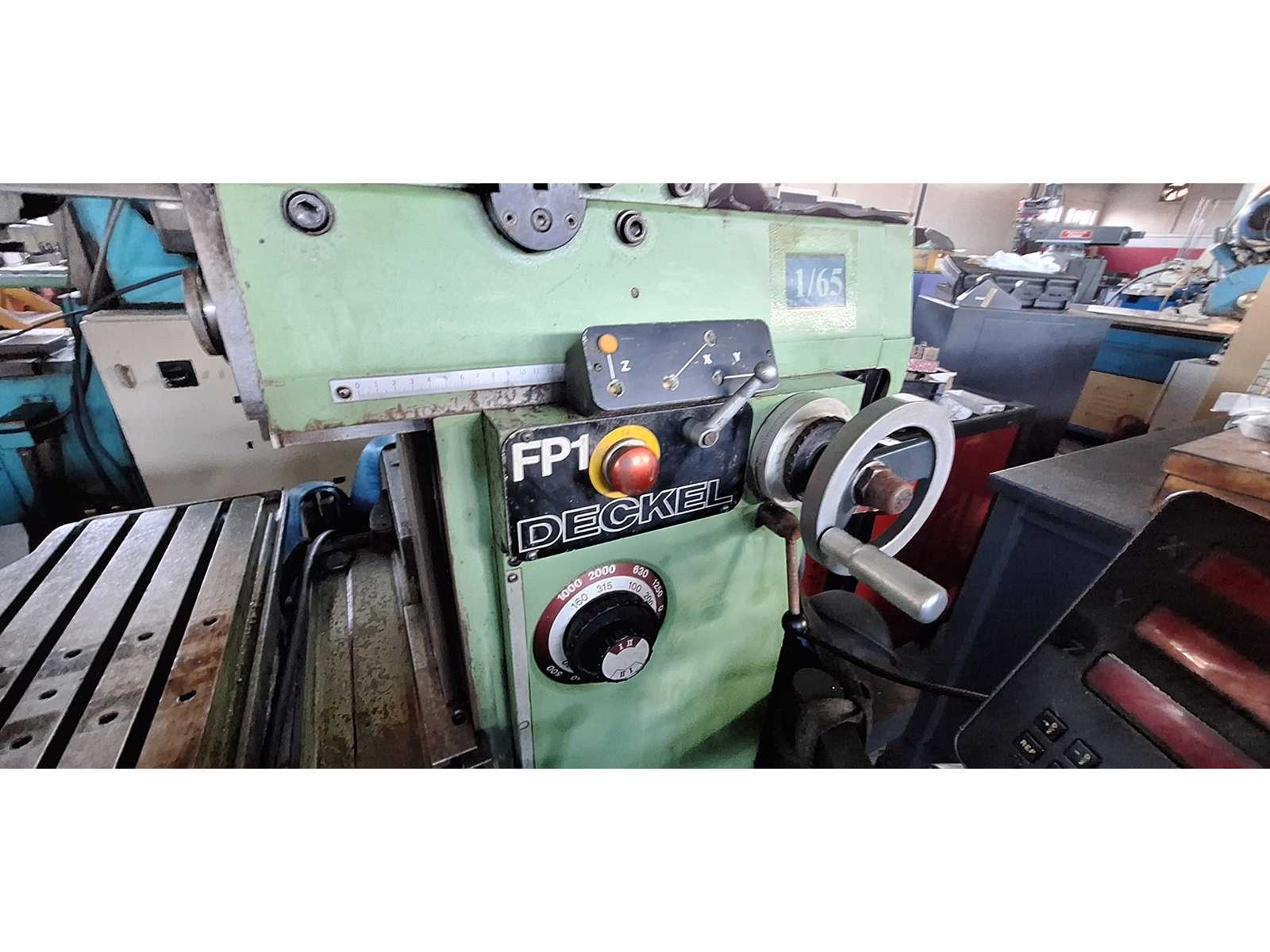

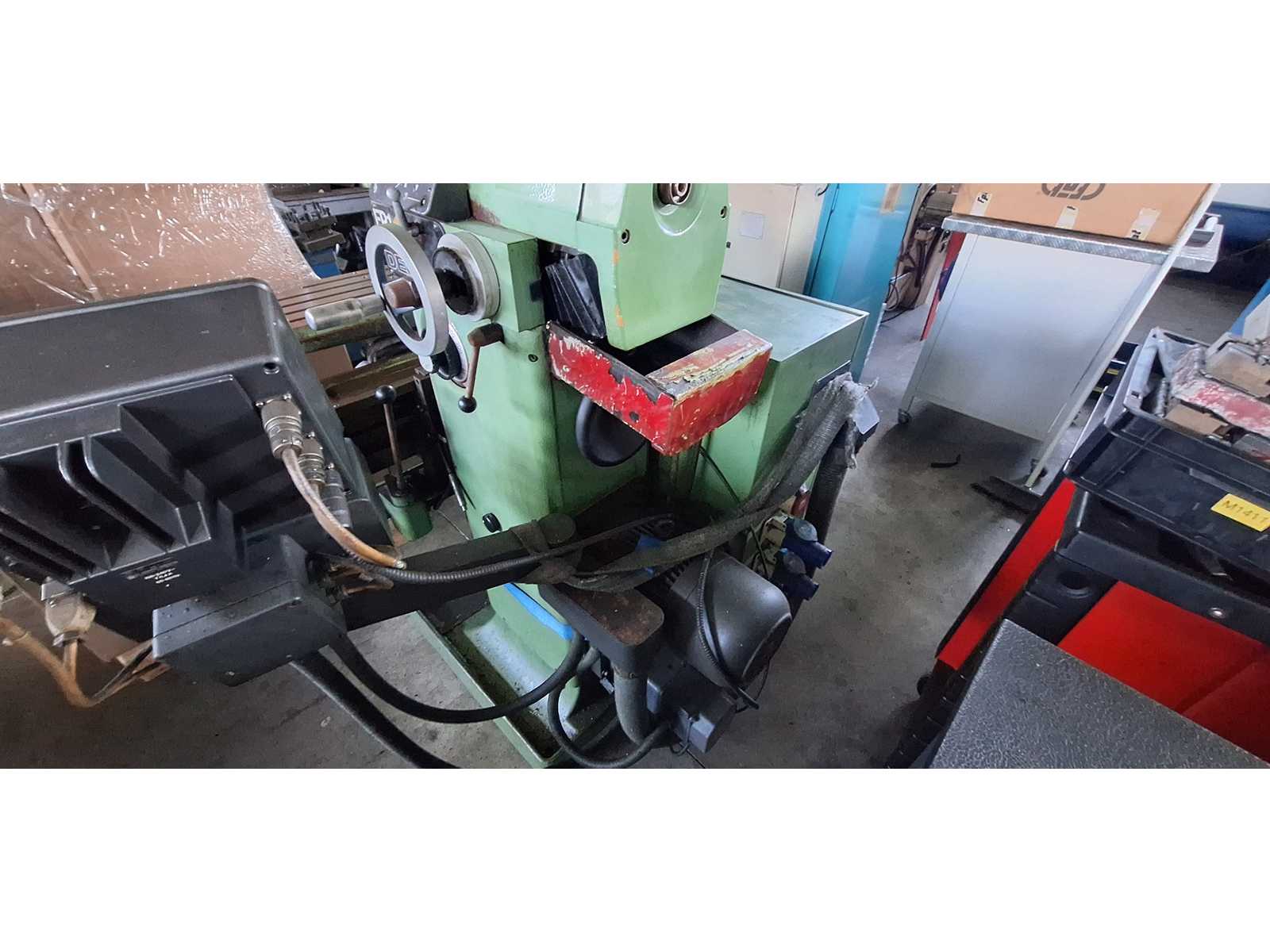

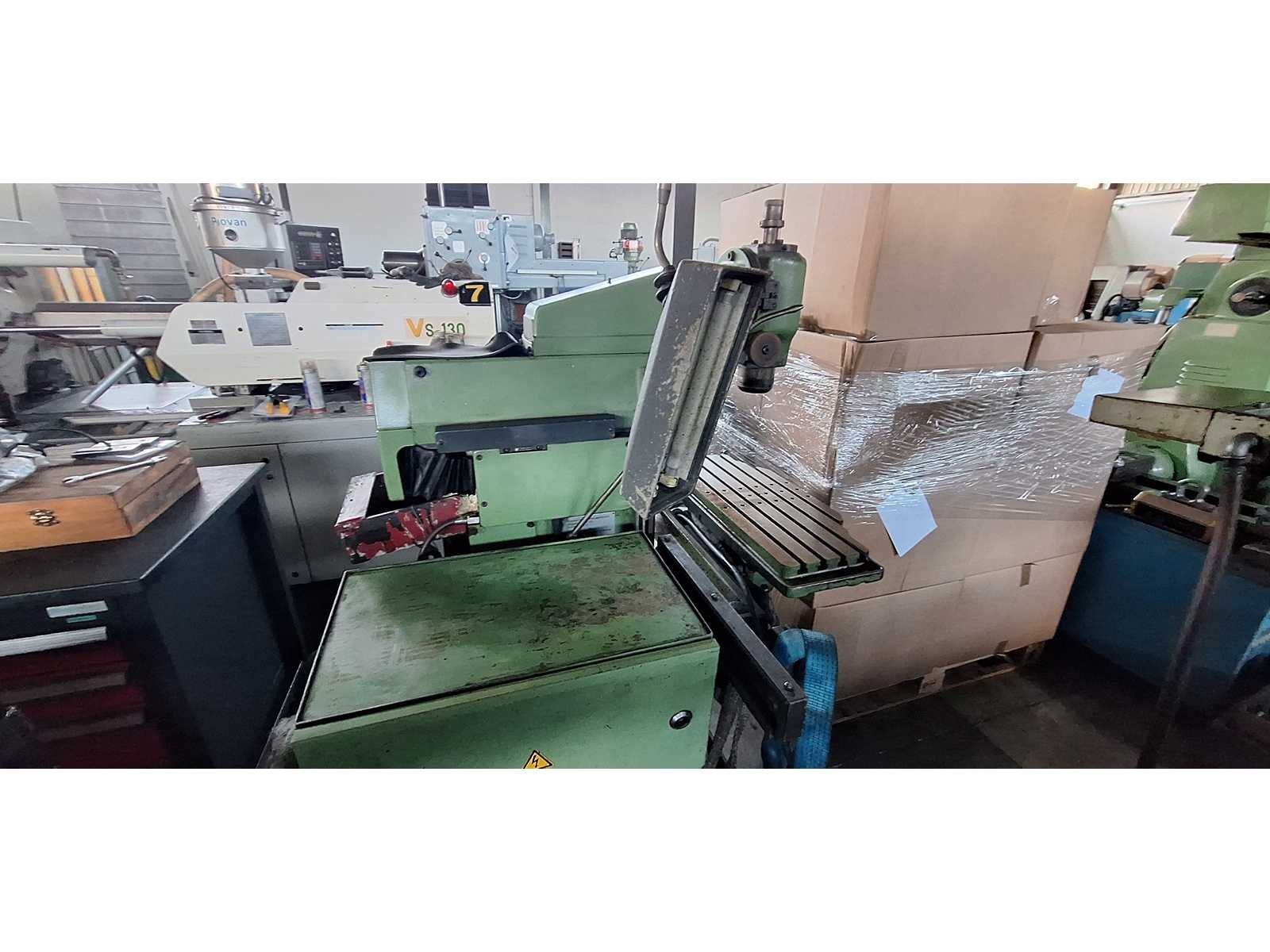

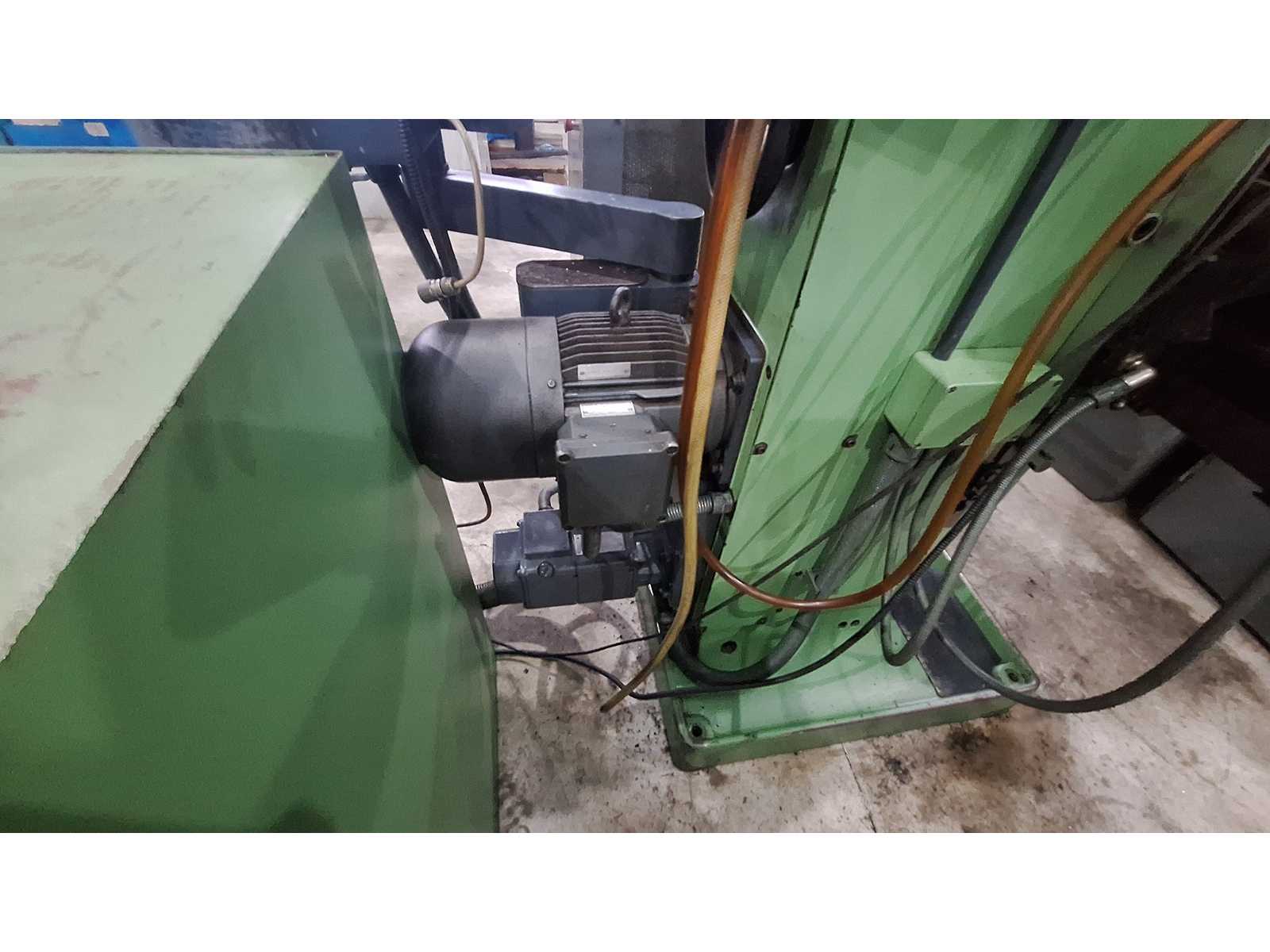

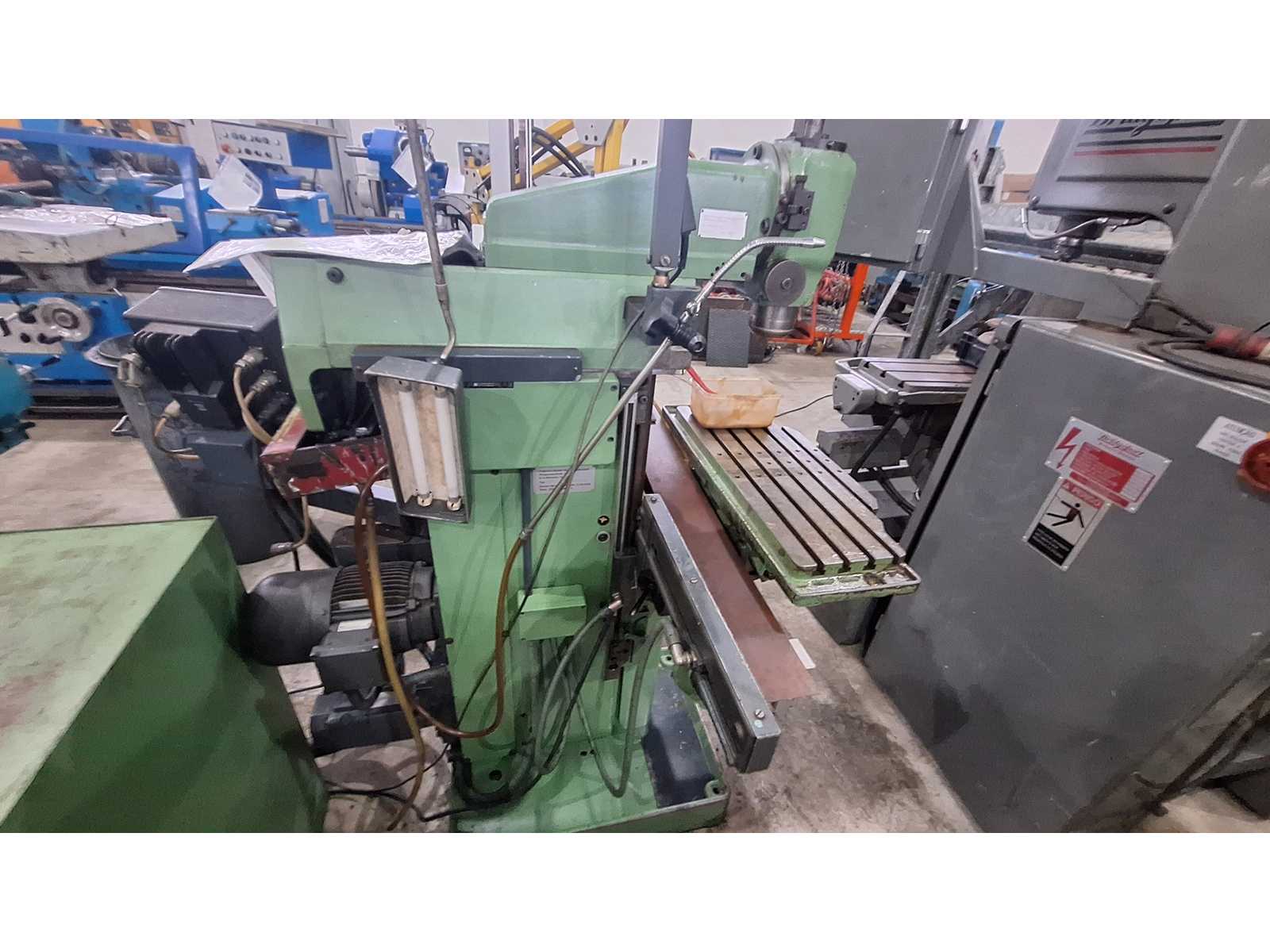

Deckel – FP1G – Milling machine – 1964

Longitudinal travel: 300 mm Cross travel:150 mm
Vertical travel:340 mm
Distance between vertical spindle and table:380 mm
Distance between horizontal spindle and table:400 mm
Horizontal spindle from – up to:40-2000 U/min.
Vertical milling spindle taper in spindle: 40 ISO
Vertical milling spindle vertical quill travel:60 mm
Vertical milling spindle speeds no:16
Vertical milling spindle from – up to: 40-2000 U/min.
Feeds longitudinal number:16
Feeds from – up to:10-500 mm/min.
Feeds vertical no:16
Vice width of jaw:100 mm
Universal milling table manufacture: GRESSEL
Collets: ISO40
Drill chuck no: 1x
Milling arbors no:8x
Universal milling table number:12x
