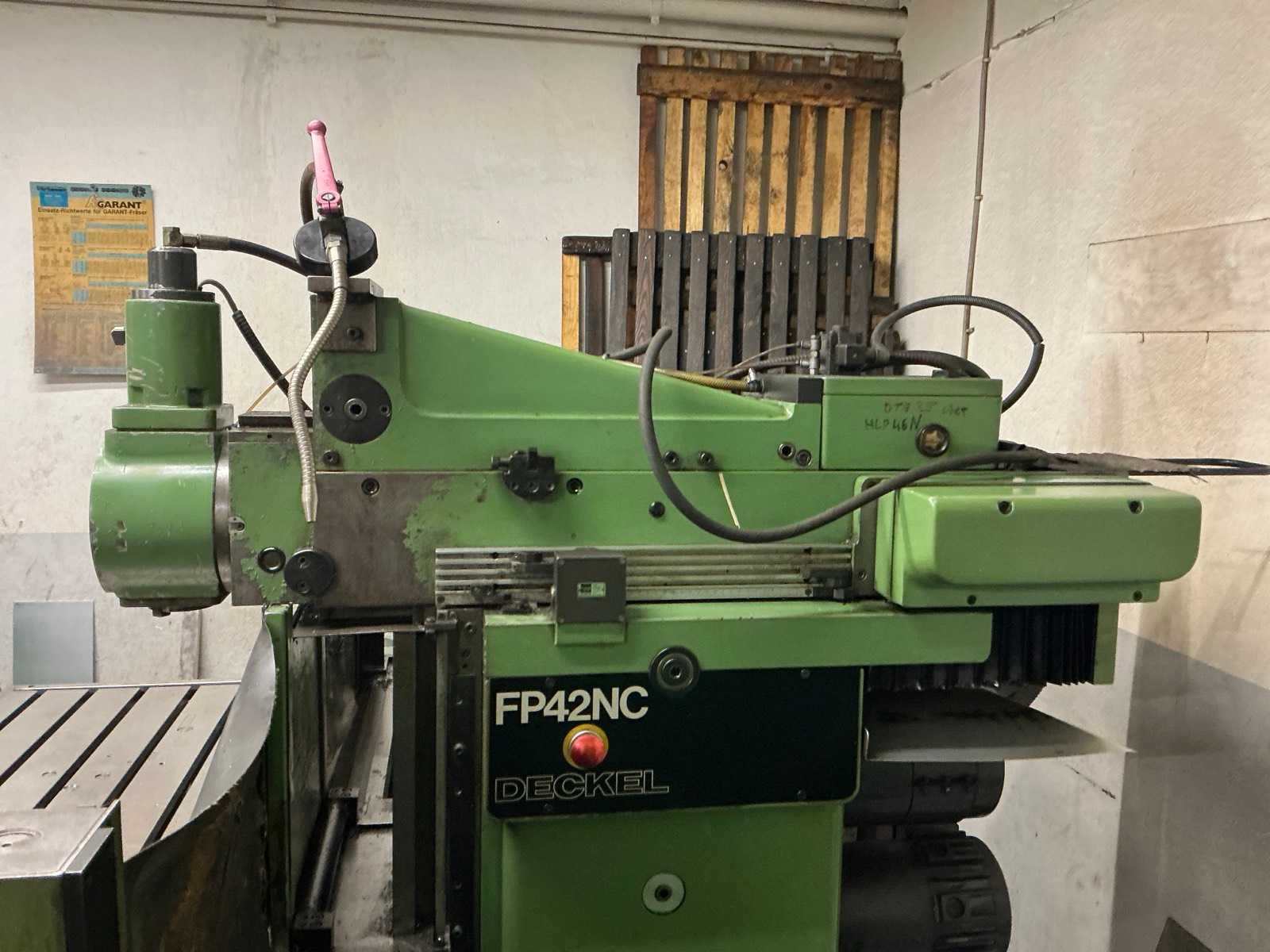

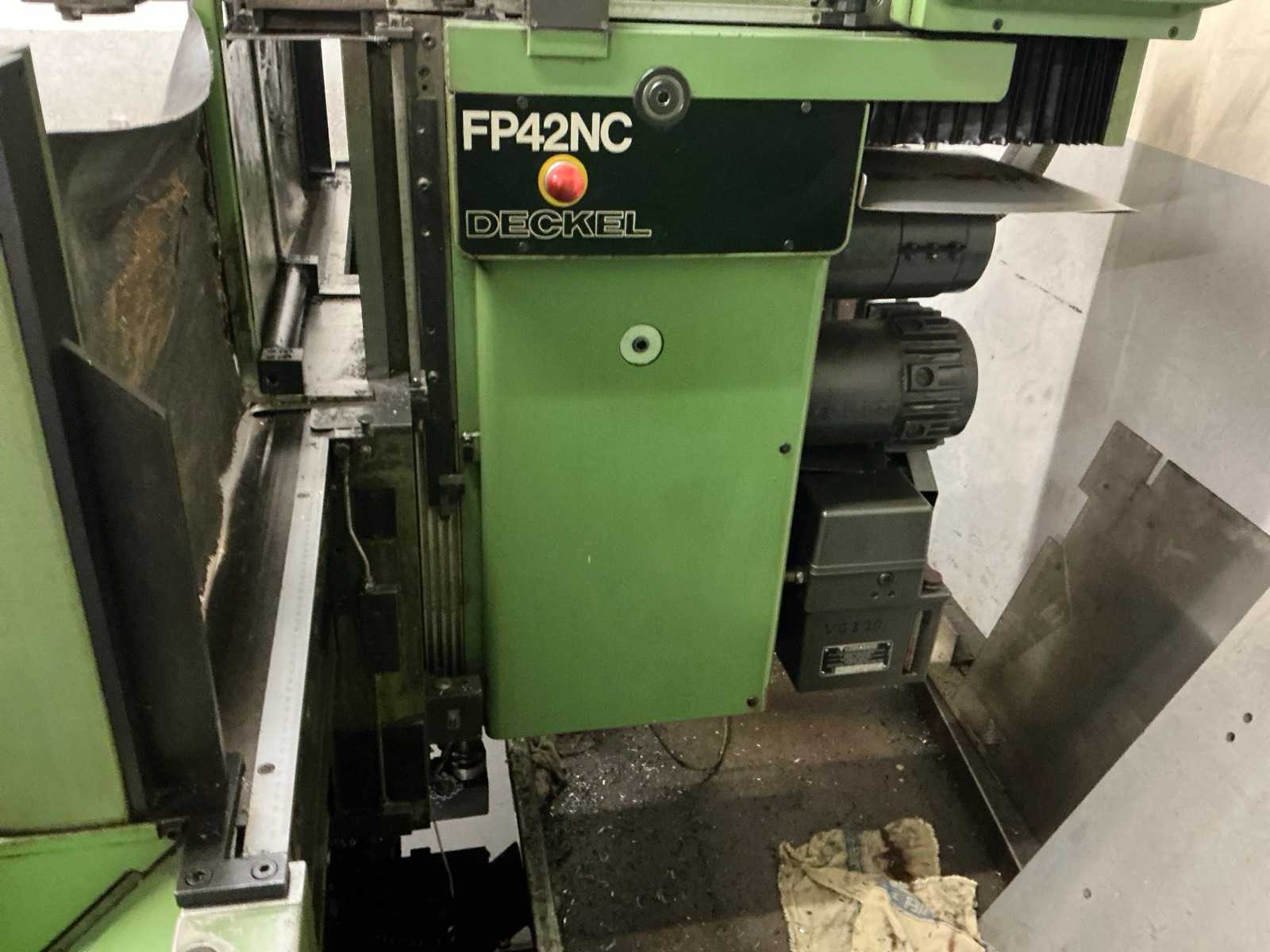

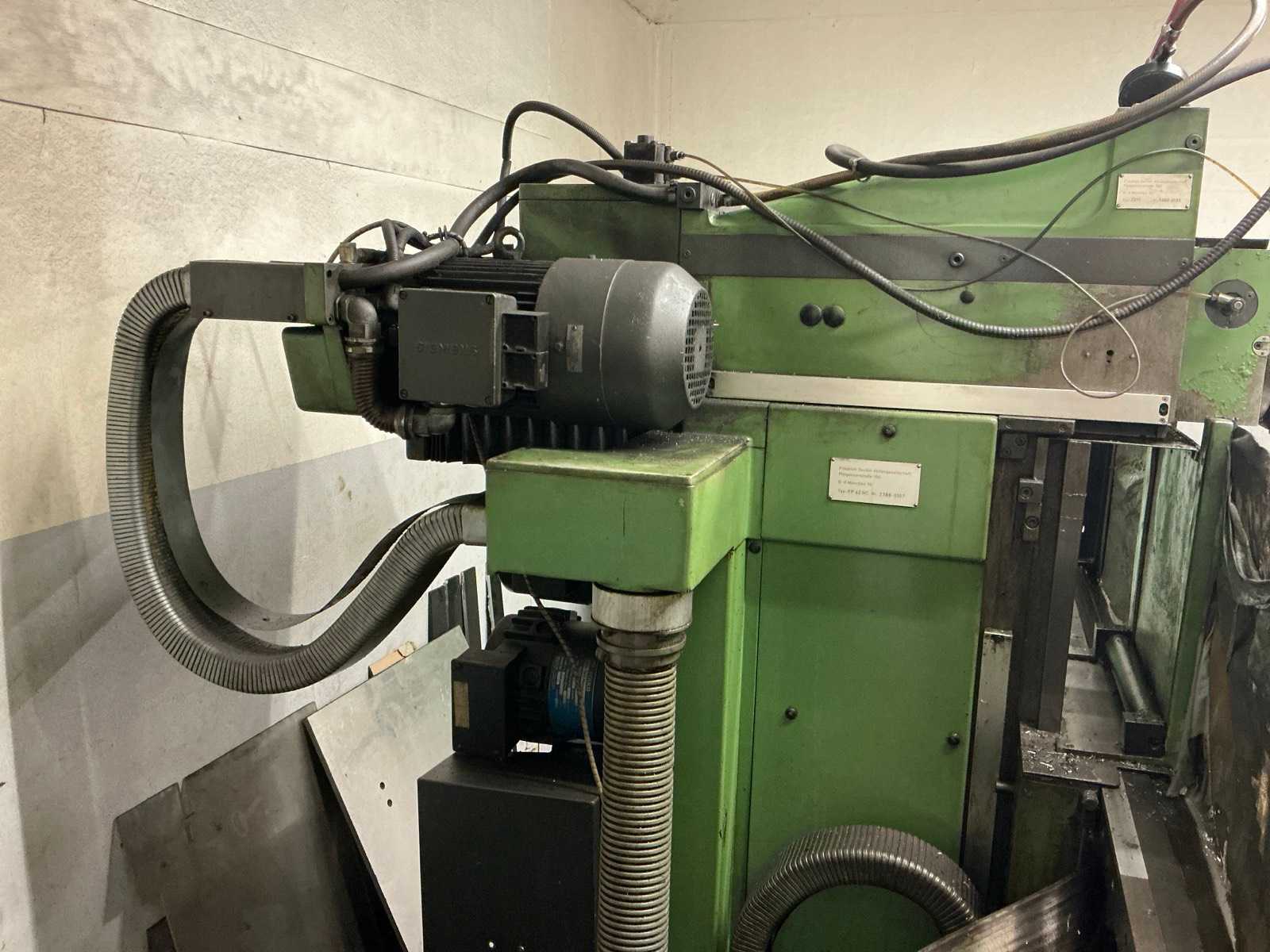

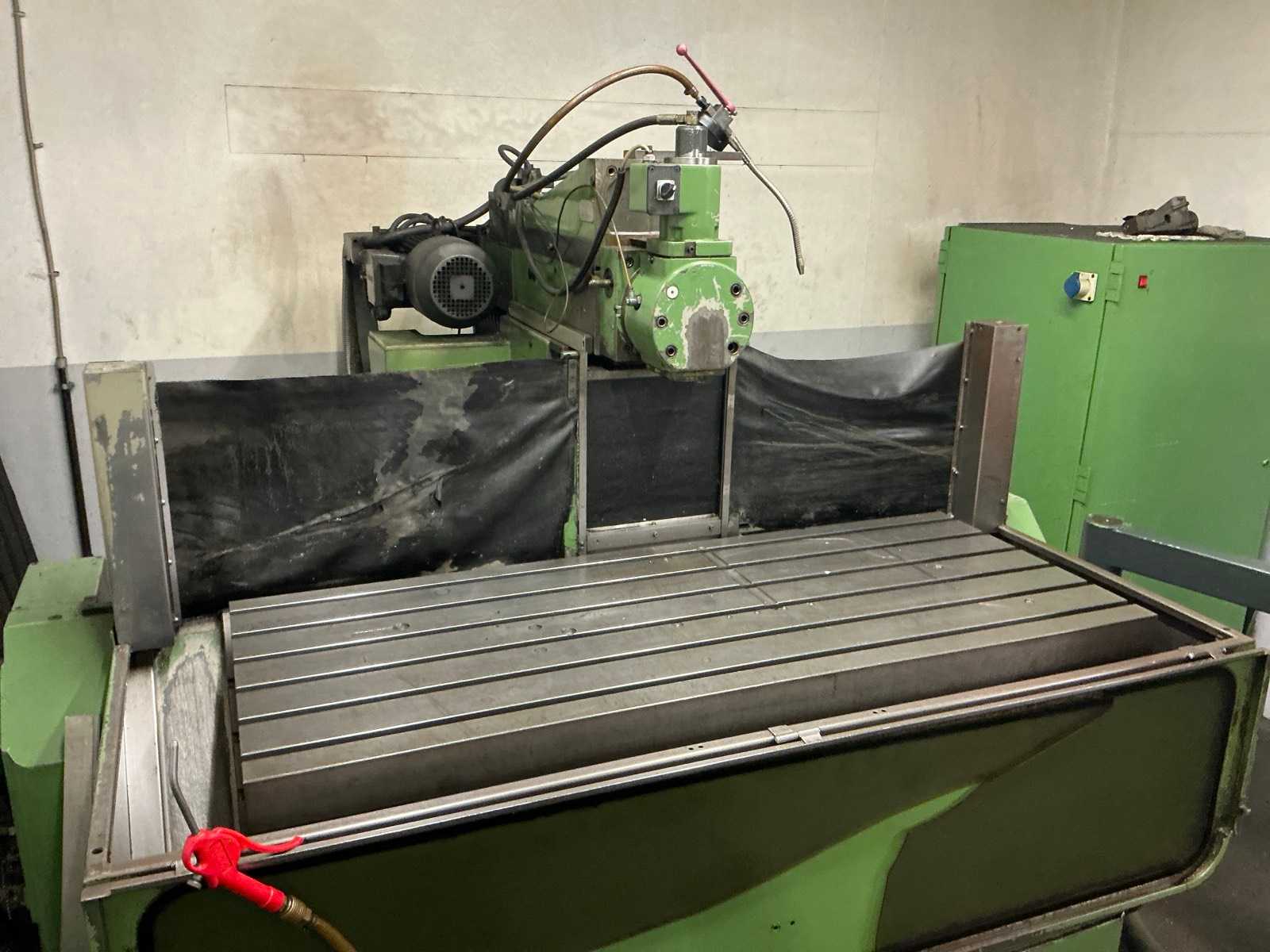

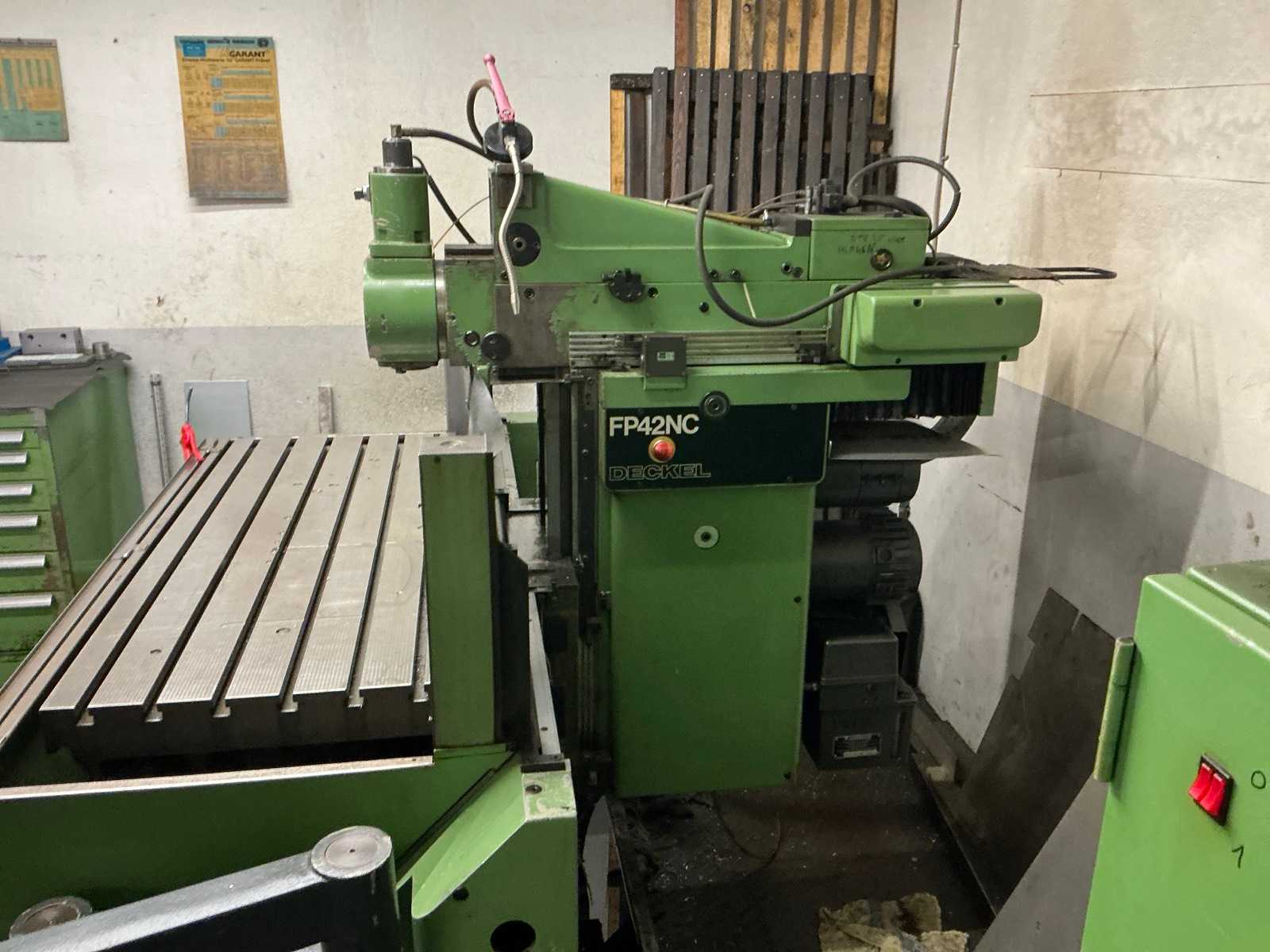

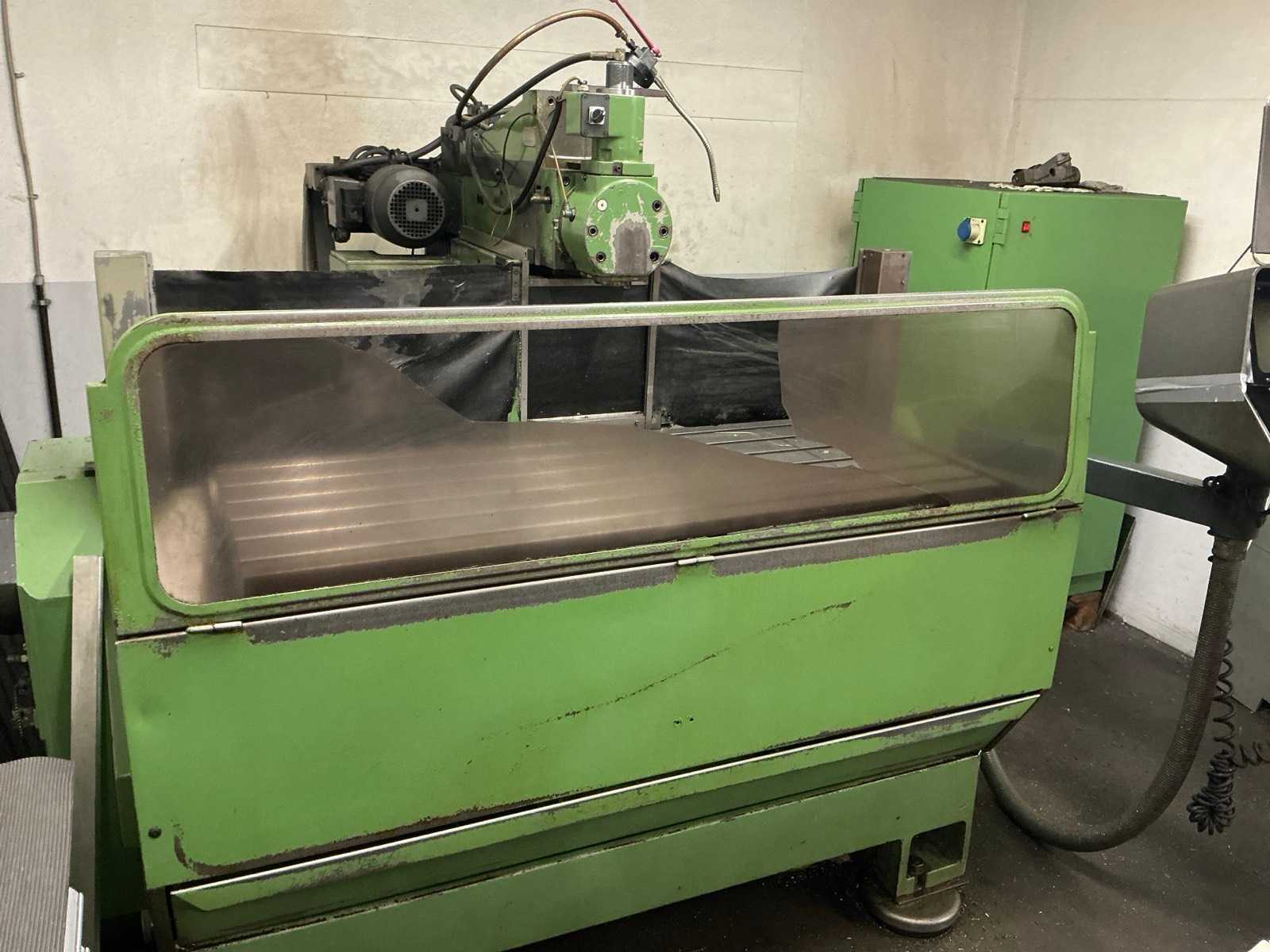

DECKEL – FP42NC – Universal Milling Machine

Current bid	€0,00
Time left
Location	Germany
Auction house

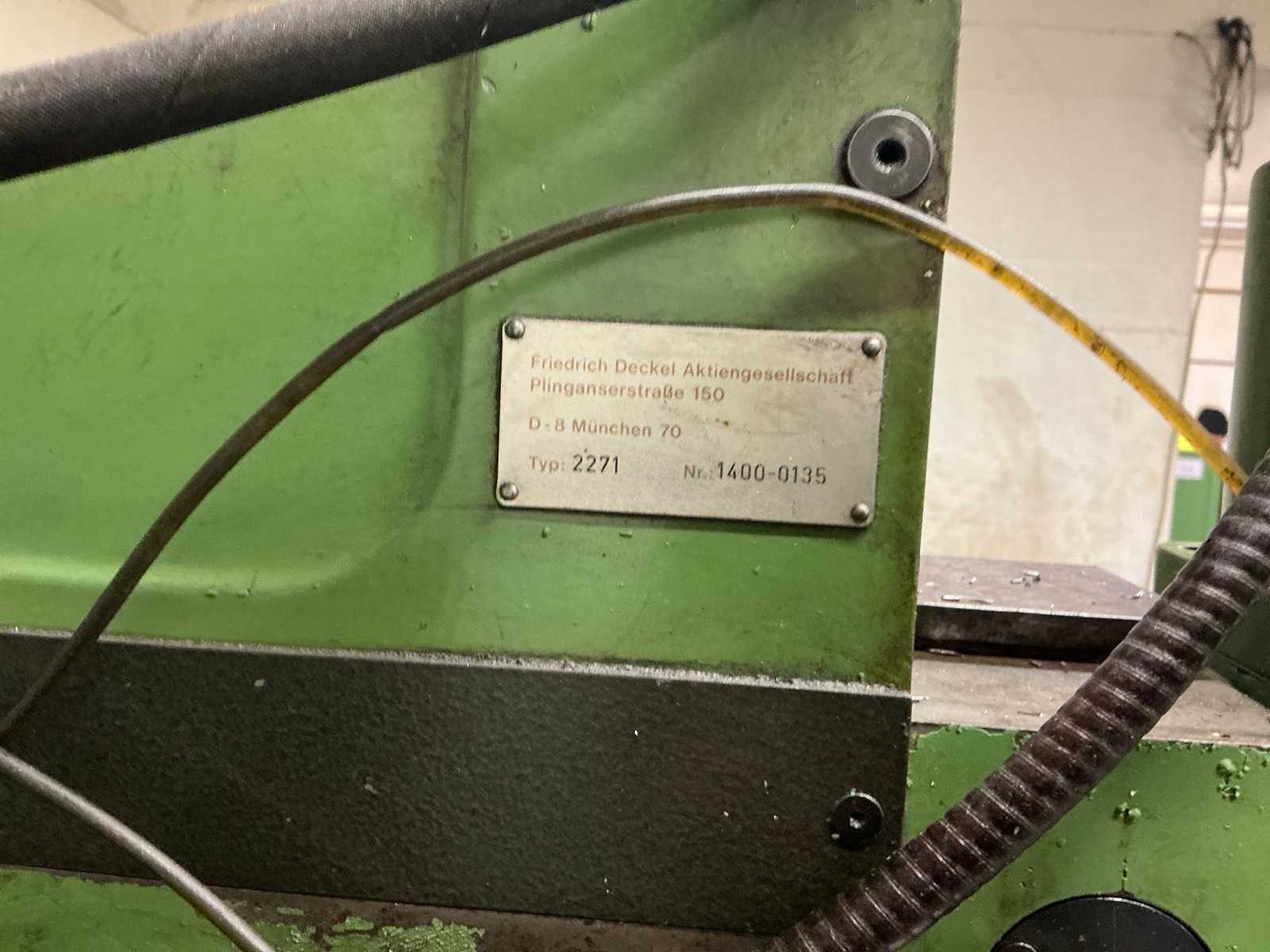

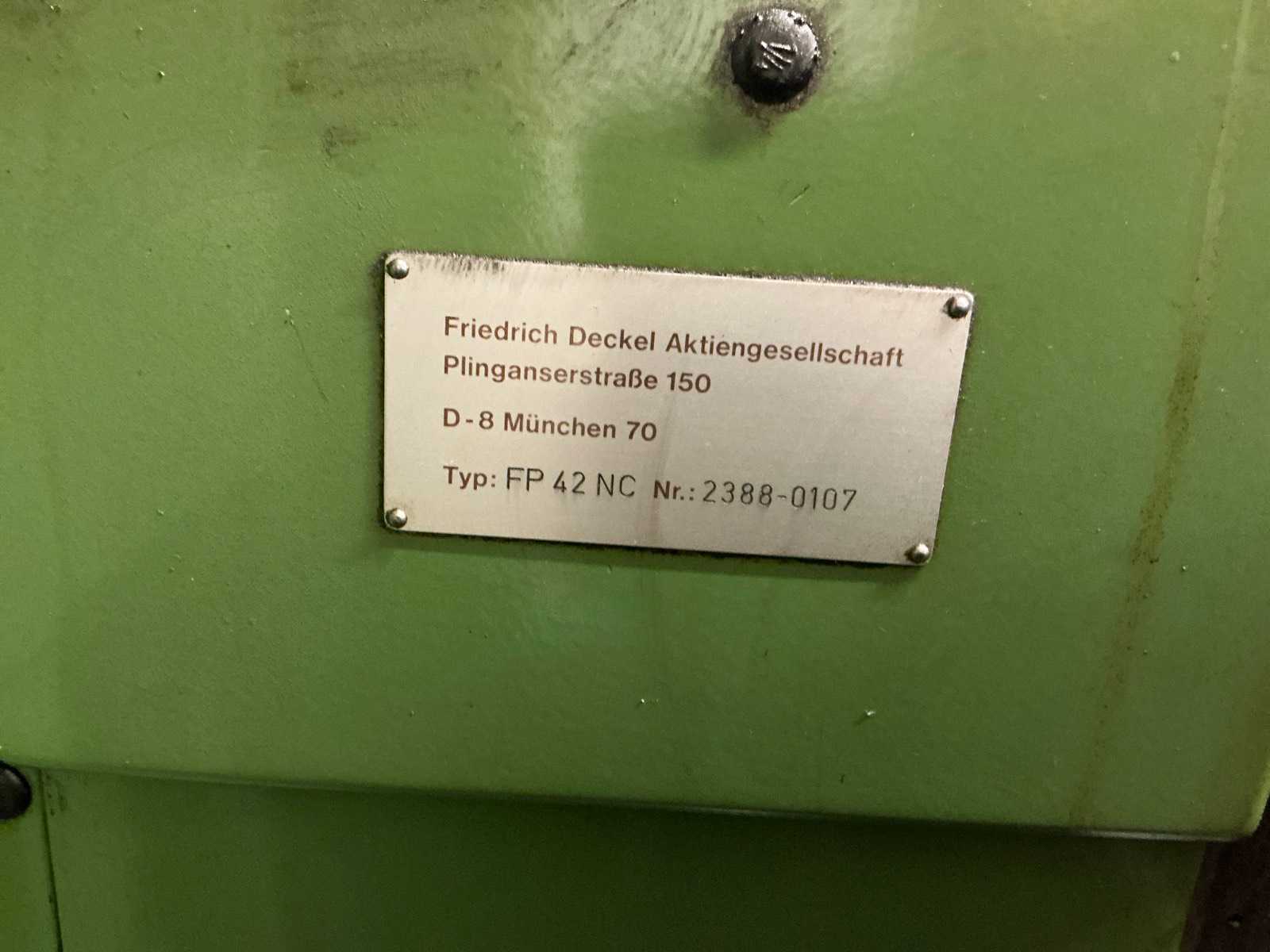

Description	Technical data Manufacturer: Friedrich Deckel AG, Munich Model: FP4NC Engine No.: 2838-0301 Table size: 530 × 900 mm T-slots: 8 pieces, 14H7, spacing 63 mm Travel (X / Y / Z): 560 / 500 / 450 mm Quill stroke: 80 mm Max. passage height: 531 mm (spindle nose – table top) Permissible table load: 450 kg Clamping weight: 260 kg Spindle holder: SK40 according to DIN 69871 Speed range: 31.5 – 5000 rpm (two-stage transmission) Feed range: 2 – 6000 mm/min Rapid traverse: 6000 mm/min Drive power: 7.5 kW Coolant tank: 60 litres Coolant pump: 15 l/min, automatic Operating voltage: 380 V / 50 Hz Rated current: 20 / 22 / 24 A Control voltage: 24 V DC / 42–48 V AC Fuse: max. 35 A Connected load: 15 kVA Machine weight: approx. 2650
