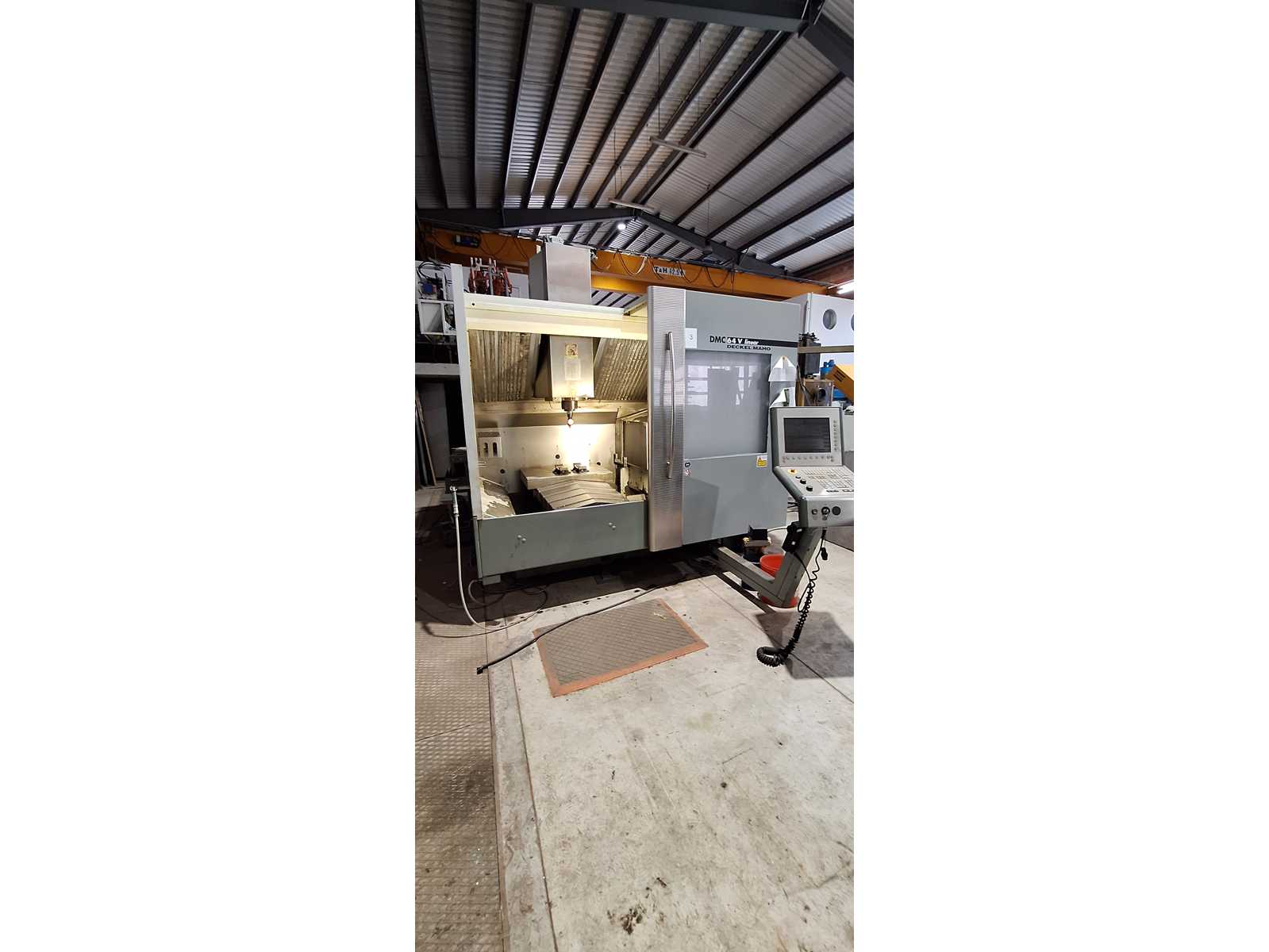

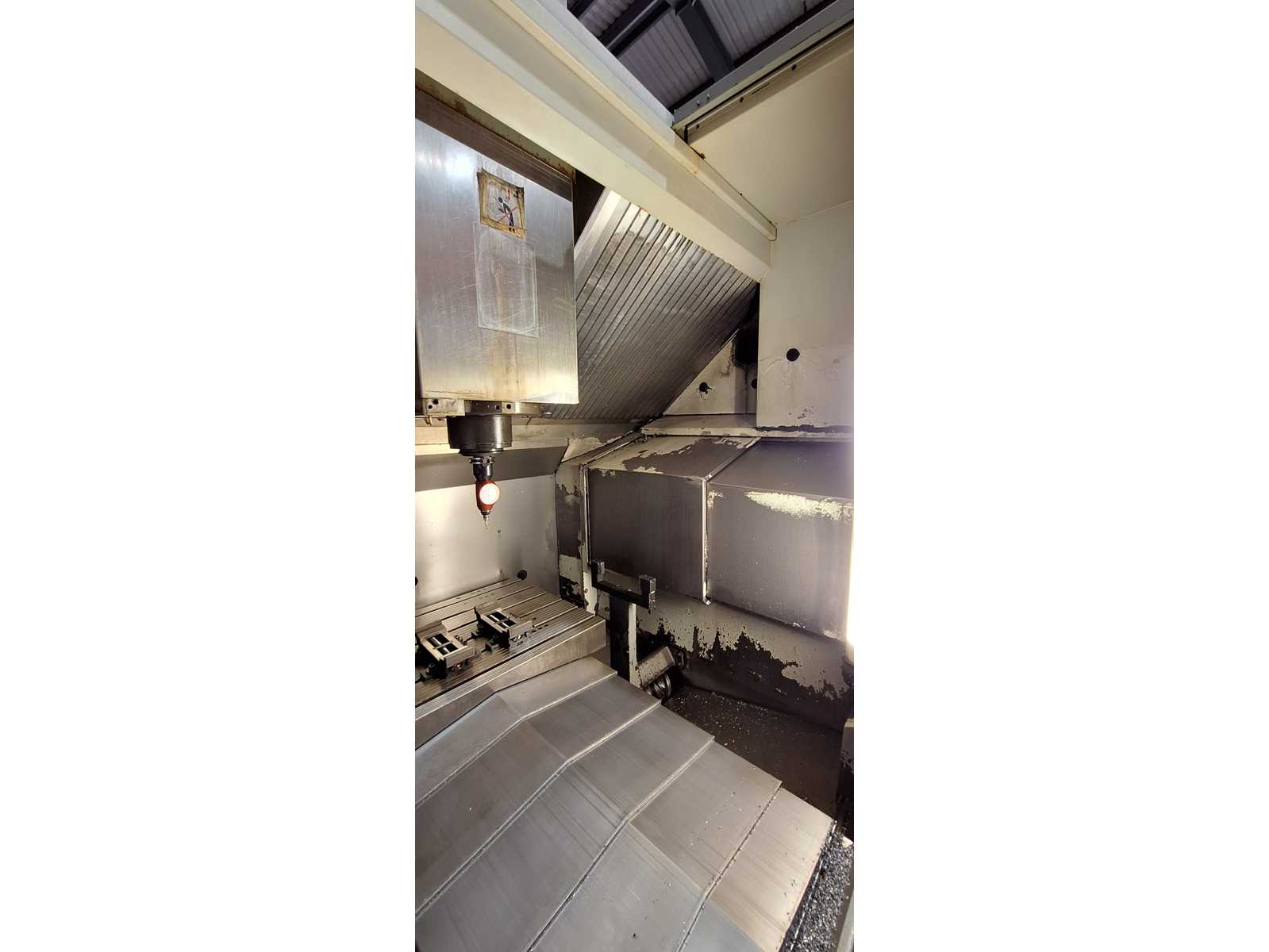

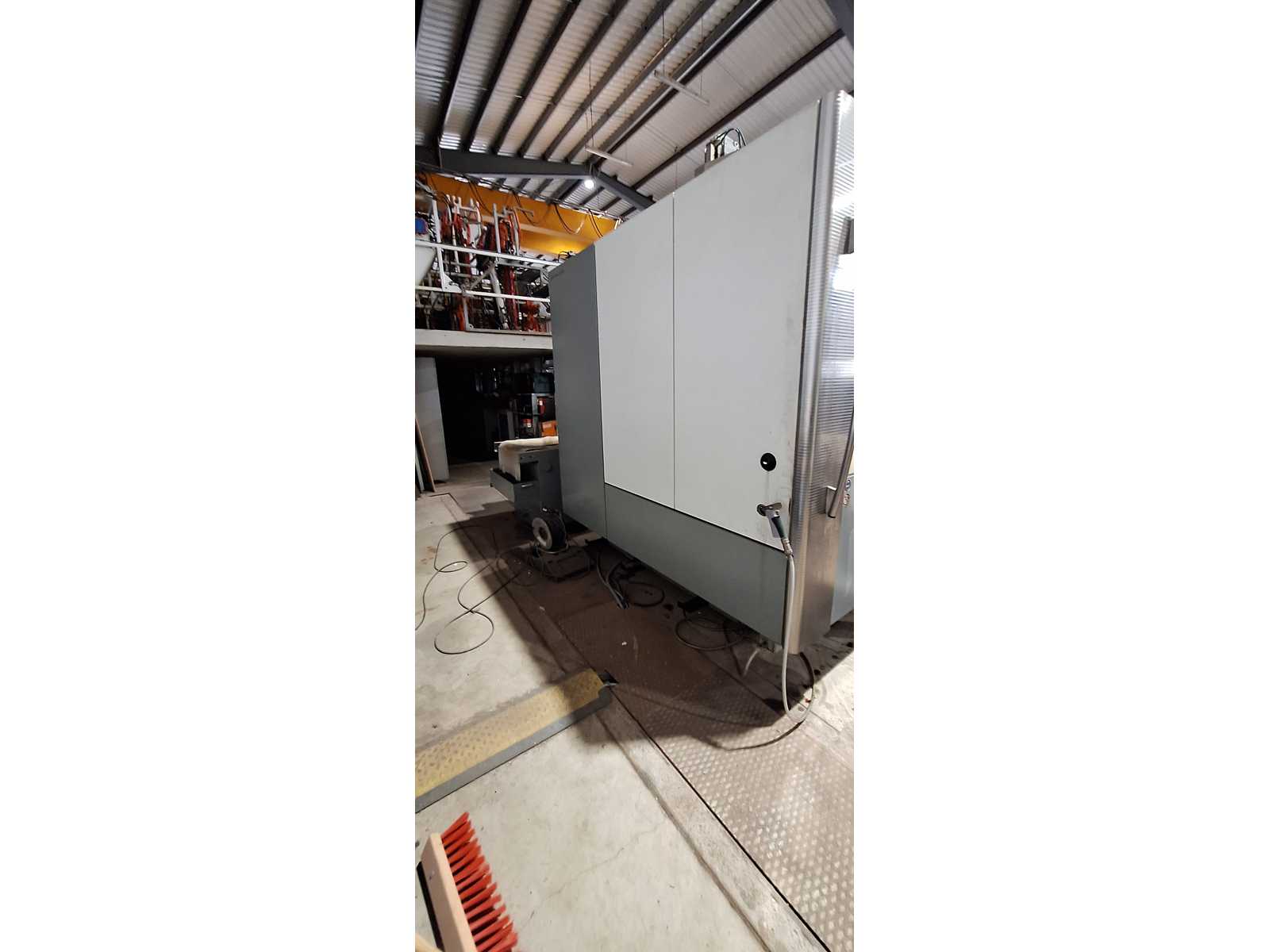

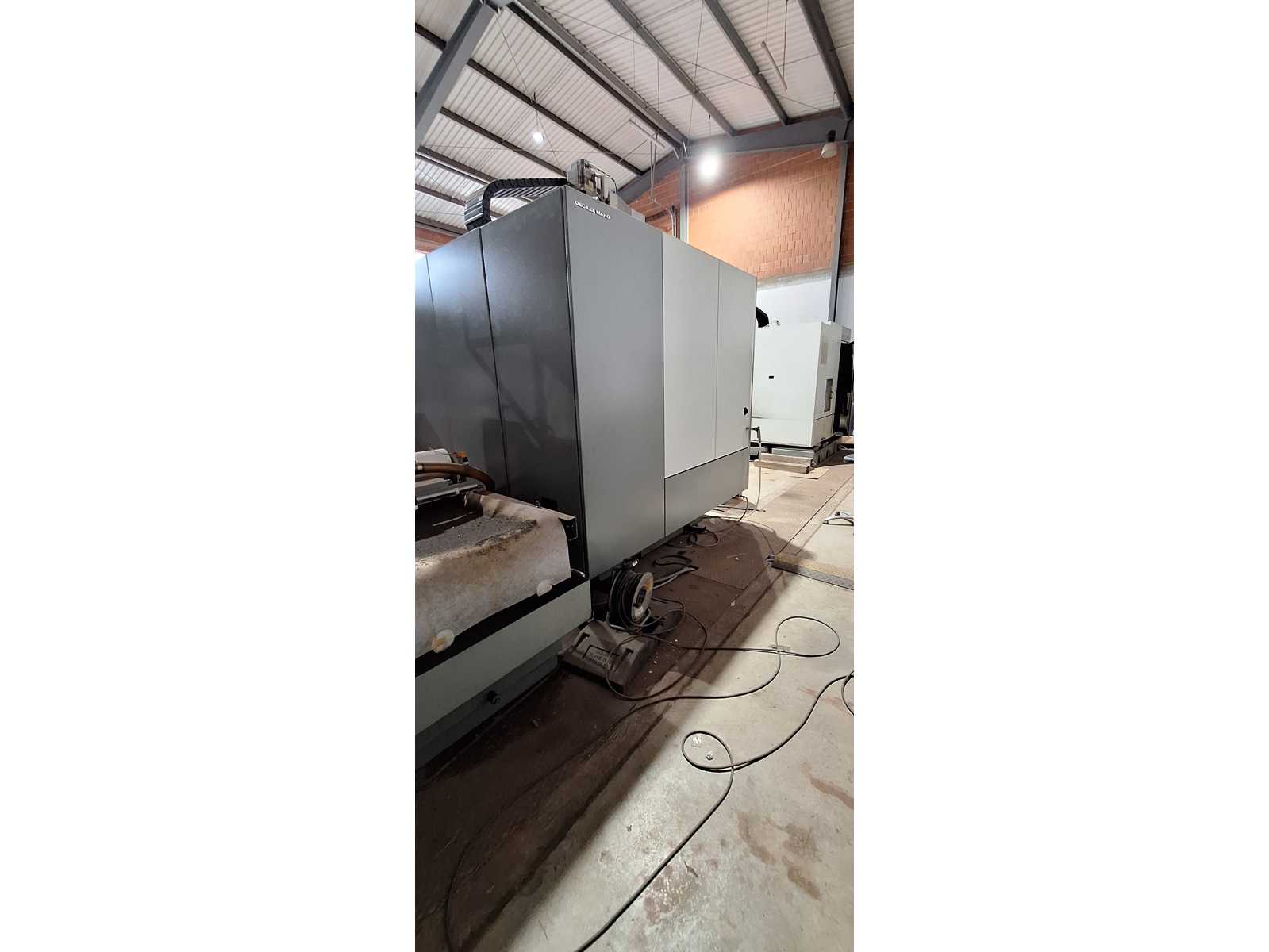

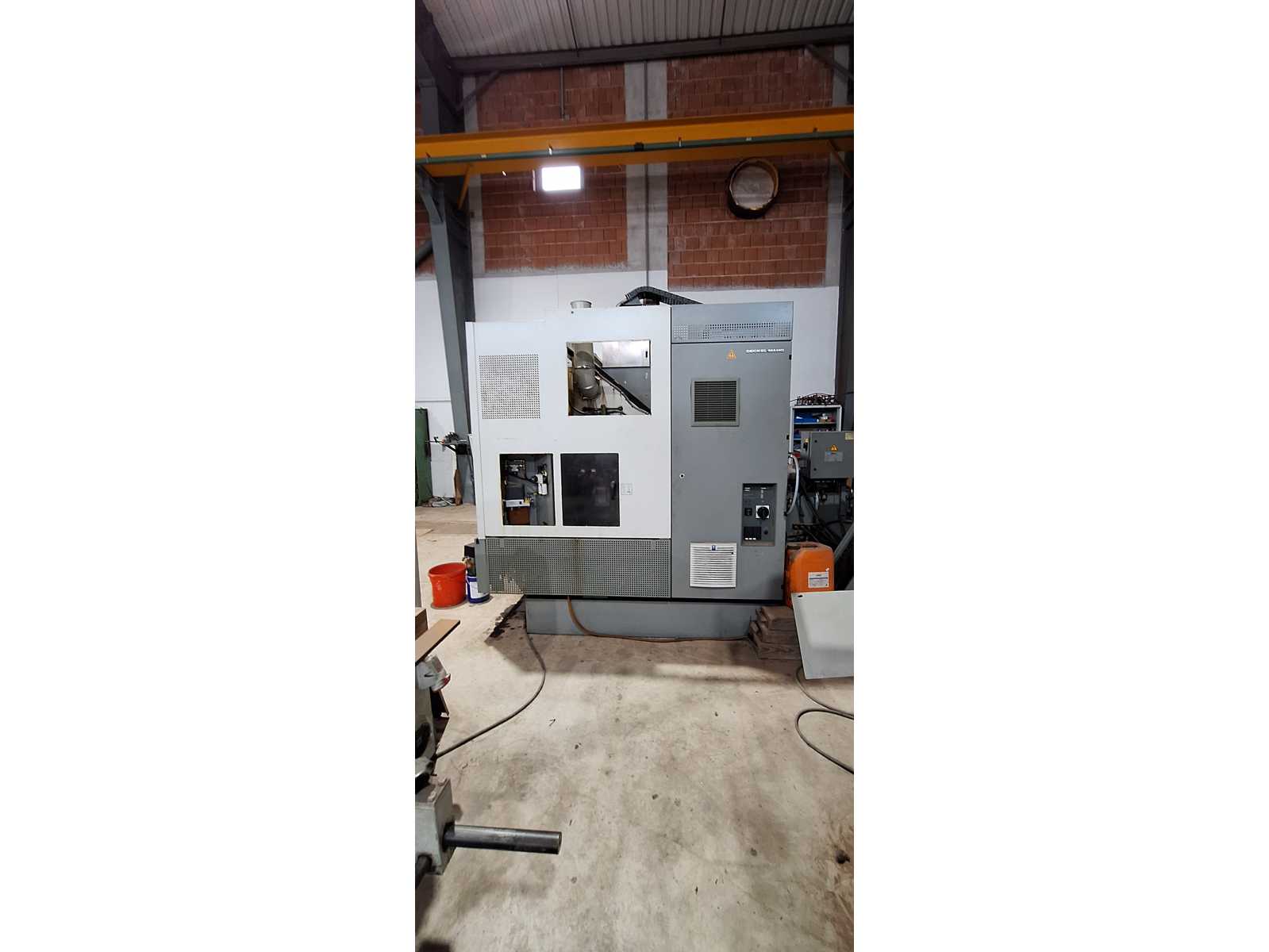

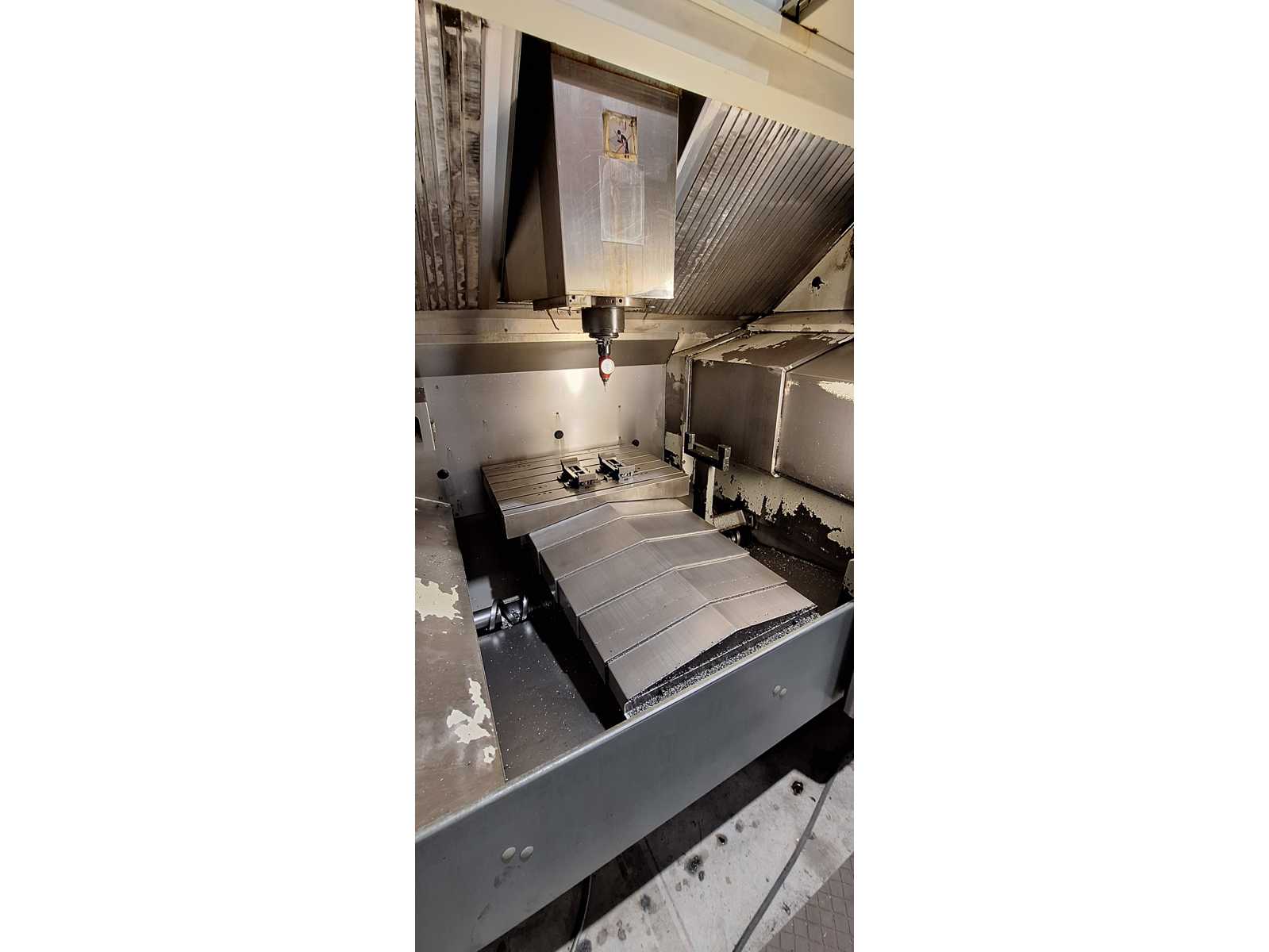

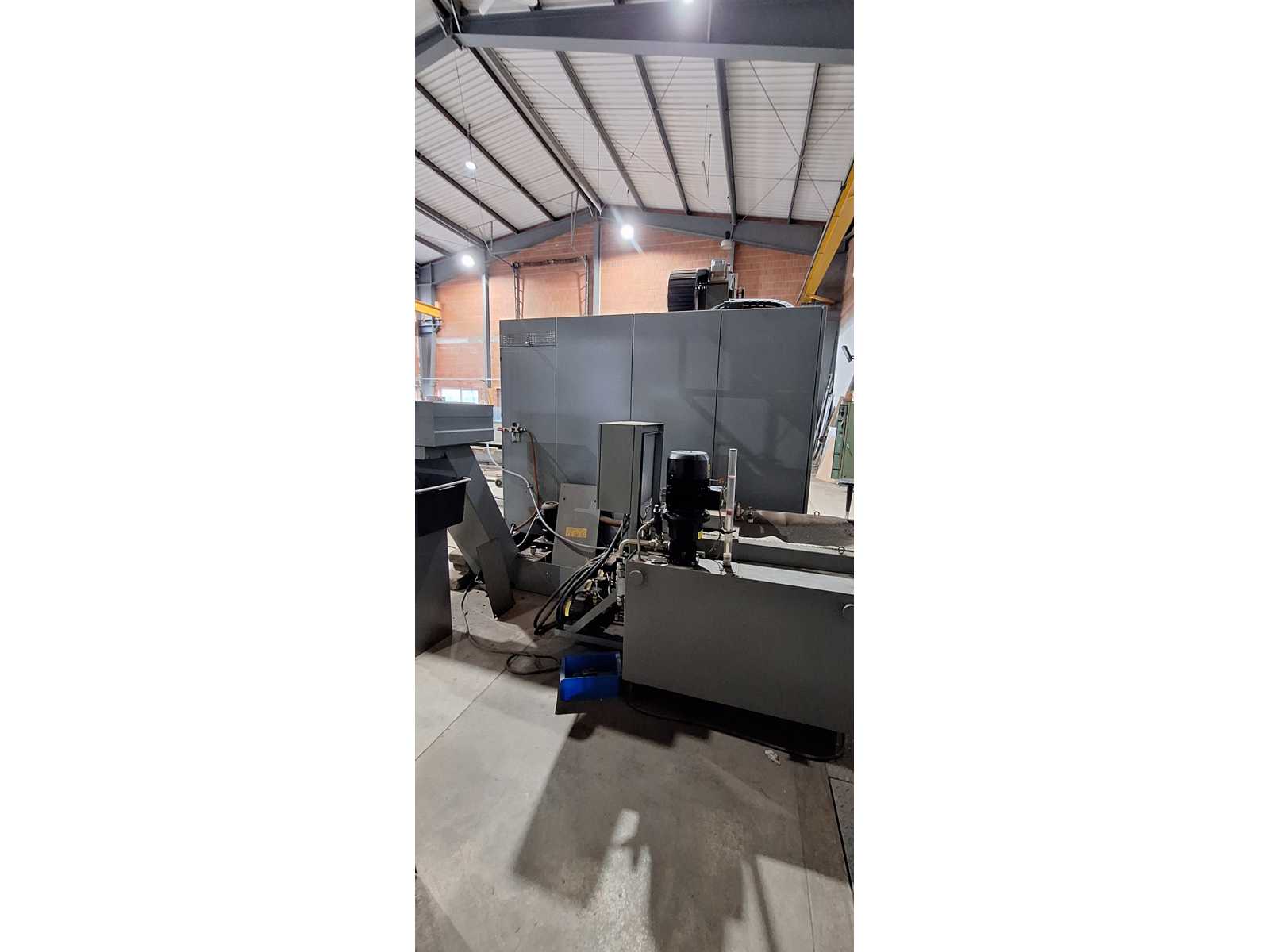

DMG MORI – DMC 64 V Linear – 2005 – Tool Milling Machines

Control: Siemens 810
Main drive
Number of spindles: 1
Spindle speed range: 12000 1/min
Tool holder: Sk 40
Movement
X-axis movement: 640 mm
X-axis feed: 0-40 m/min
X-axis feed force: 7000 N
X-axis rapid traverse: 60 m/min
X-Axis Precision: 0.027
Y-axis movement: 600 mm
Y-axis feed: 0-40 m/min
Y-axis feed force: 7000 N
Y-axis rapid traverse: 40 m/min
Y-Axis Precision: 0.024
Z-axis movement: 500 mm
Z-axis feed: 0-40 m/min
Z-axis feed force: 7000 N
Z-axis rapid traverse: 40 m/min
Workpiece
Workpiece Z: 500 mm
Max. table load: 600 kg

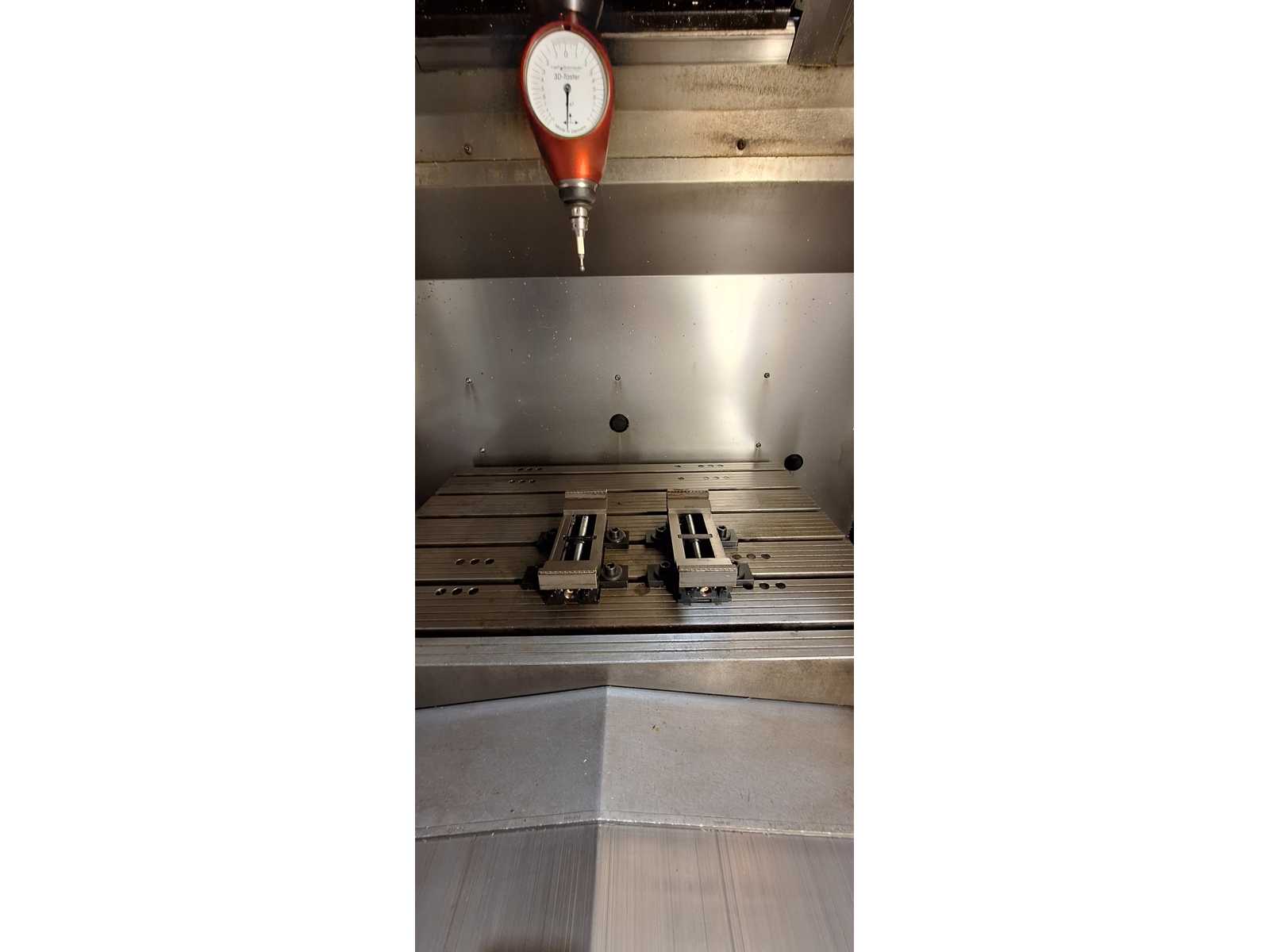

Work table

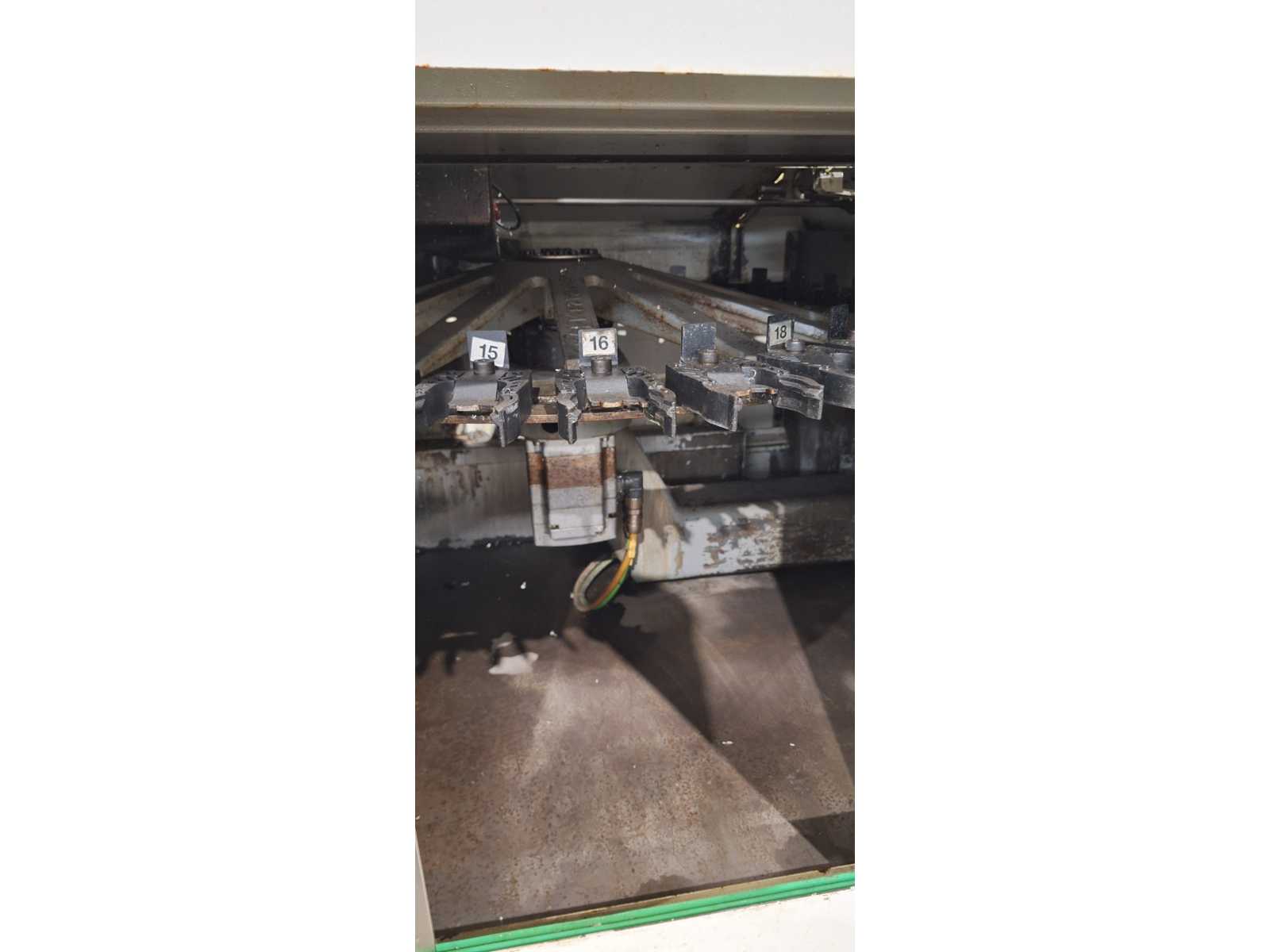

Tool Changer
Available grooves: 30
Max. weight of tools: 7 kg
Max. diameter of the tools: 140 mm

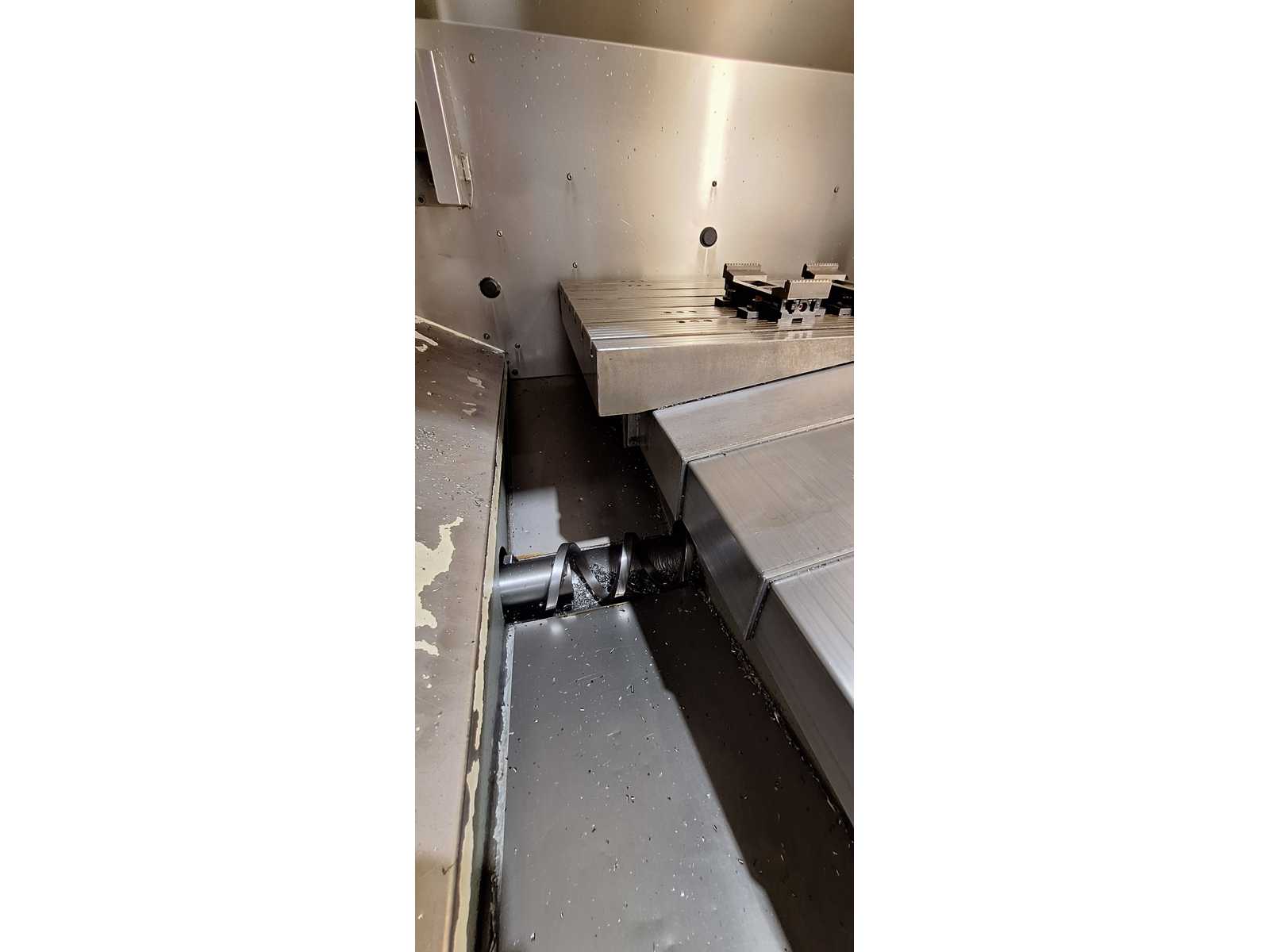

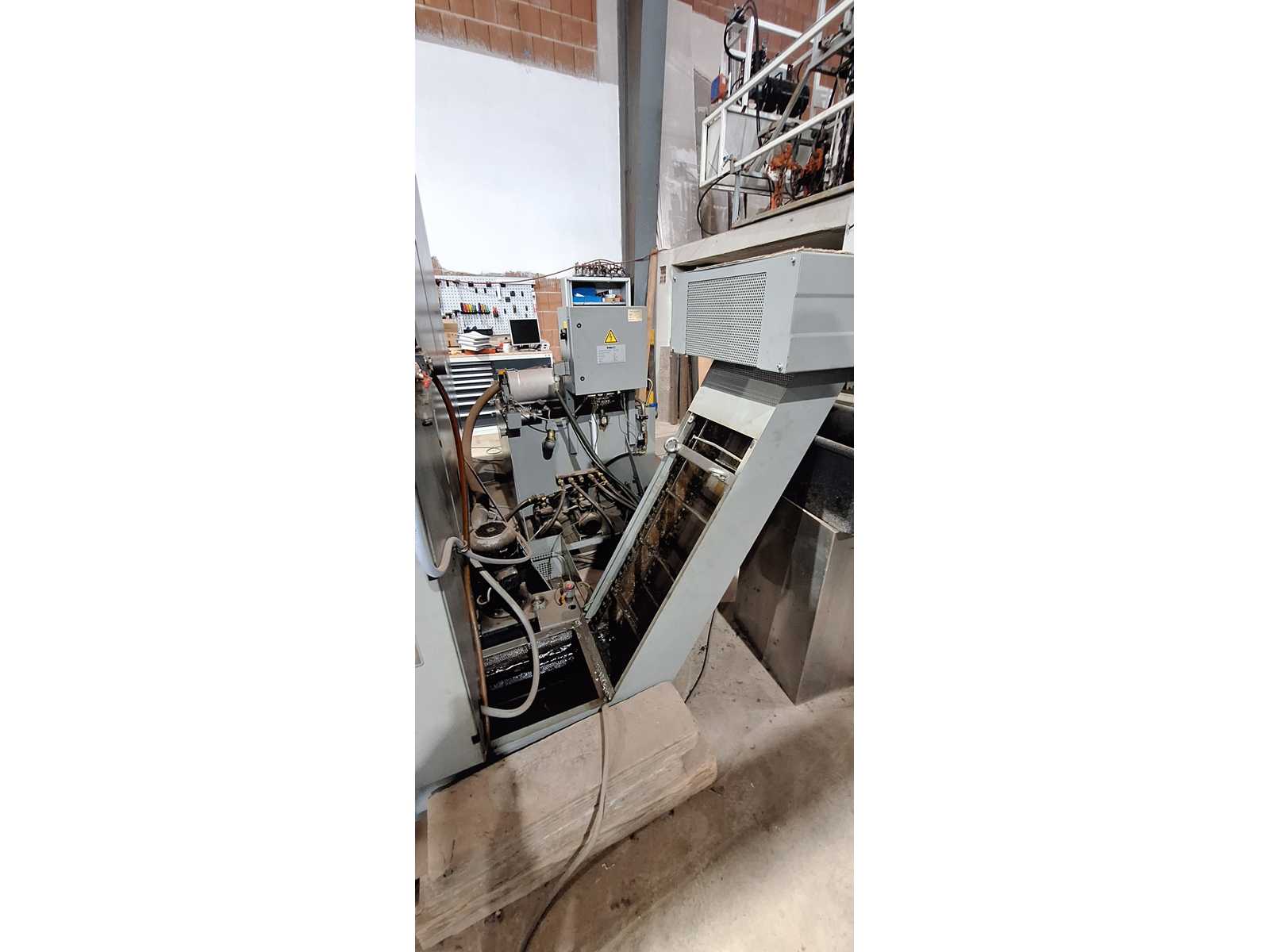

Chip Conveyor: Yes

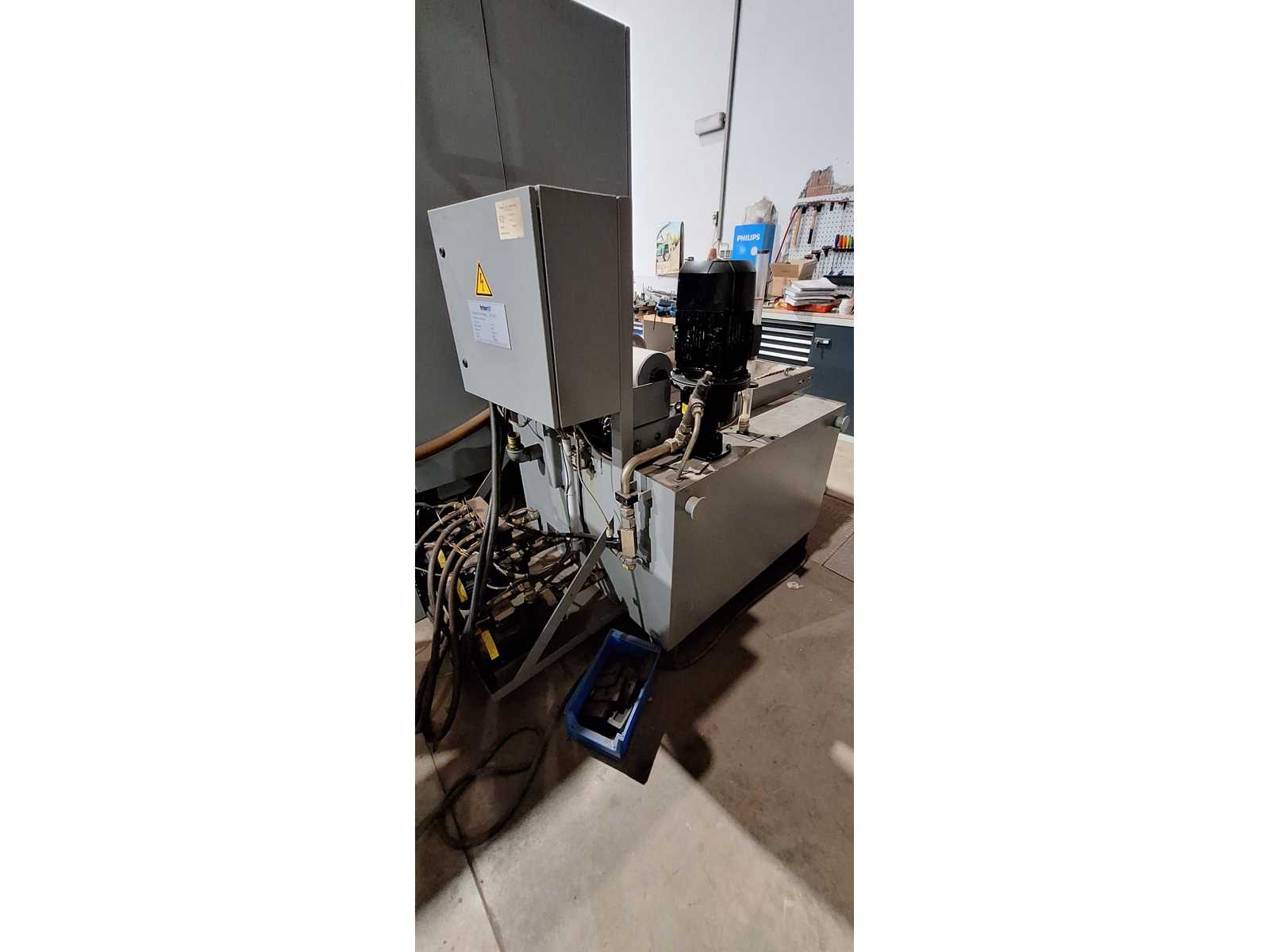

Internal Cooling: Yes
