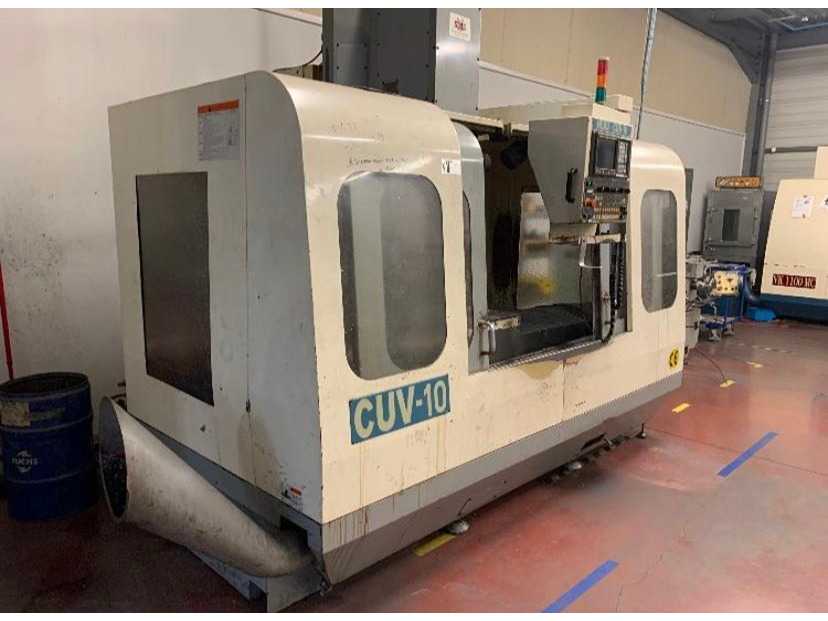

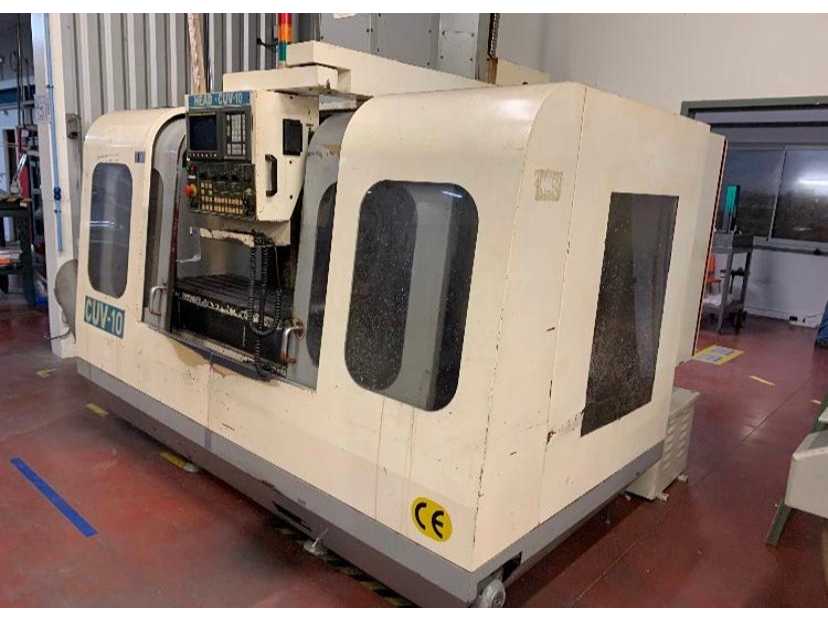

HEAD / KENT CUV-10 CNC Vertical Machining Center

Manufacturer: HEAD / KENT
Model: CUV-10 (KMV 10)

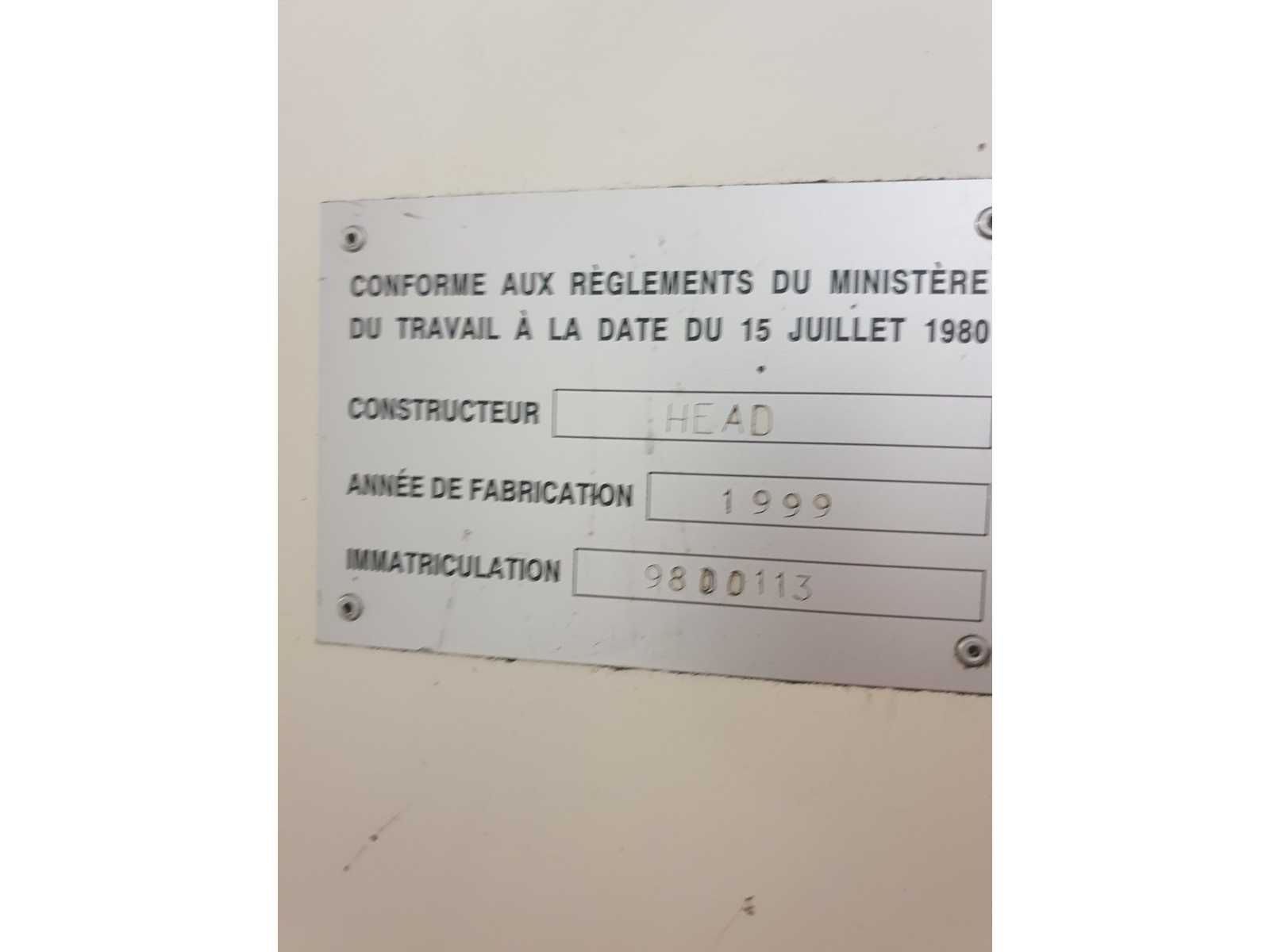

Year: 1999

Robust CNC vertical machining center, Meehanite cast iron construction, suitable for machining single parts and small to medium series.

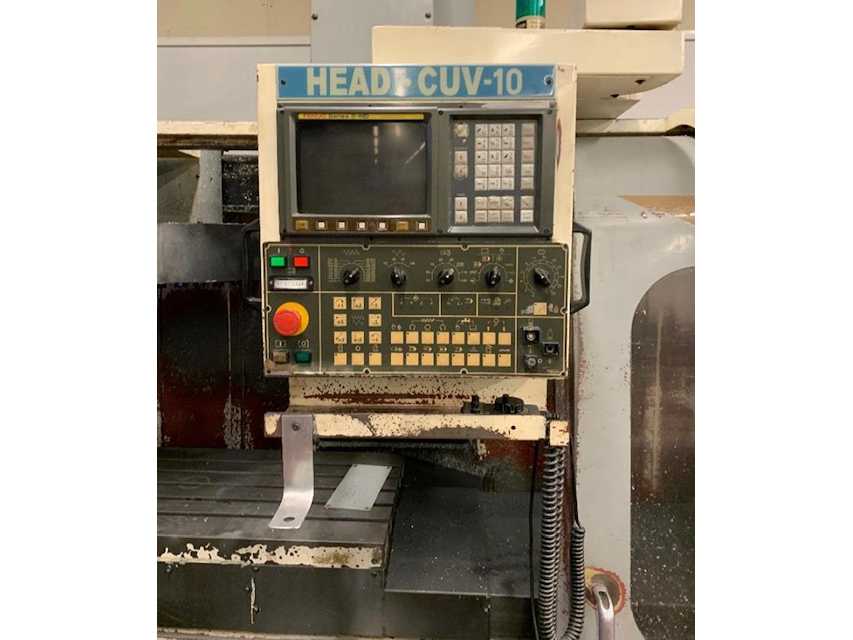

Numerical control: FANUC OMD
Structure: Meehanite cast iron
Turcite B-coated slides
Rigid thread
Portable electronic crank
Full protective guard
Sprinkler system
Work light and end-of-cycle lamp
Toolbox

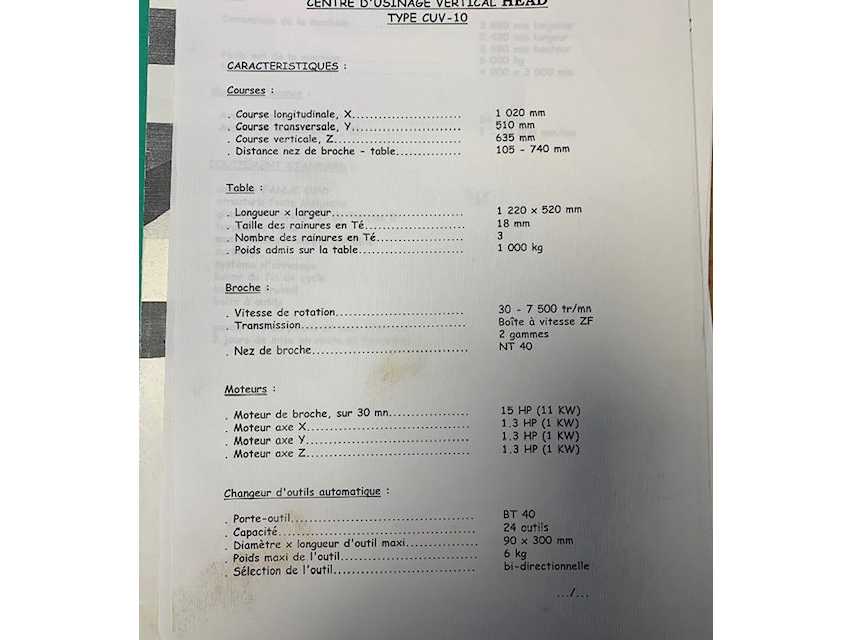

Races:
X: 1,020 mm
Y: 510 mm
Z: 510 mm
Distance between spindle nose and table: 105 to 740 mm

Table:
Dimensions: 1,200 × 600 mm
T-slots: 18 mm – 3 grooves
Max. permissible load: 1,000 kg

Spindle:
Speed: 30 – 7,500 rpm
Transmission: ZF gearbox – 2 ranges
Cone: BT 40
Engine power: 11 kW

Feeds:
Fast feed (X,Y,Z): 24 m/min
Working feed: 1 – 10,000 mm/min Tool

changer:
Capacity: 20 tools
Max. tool weight: 6 kg
Bidirectional selection

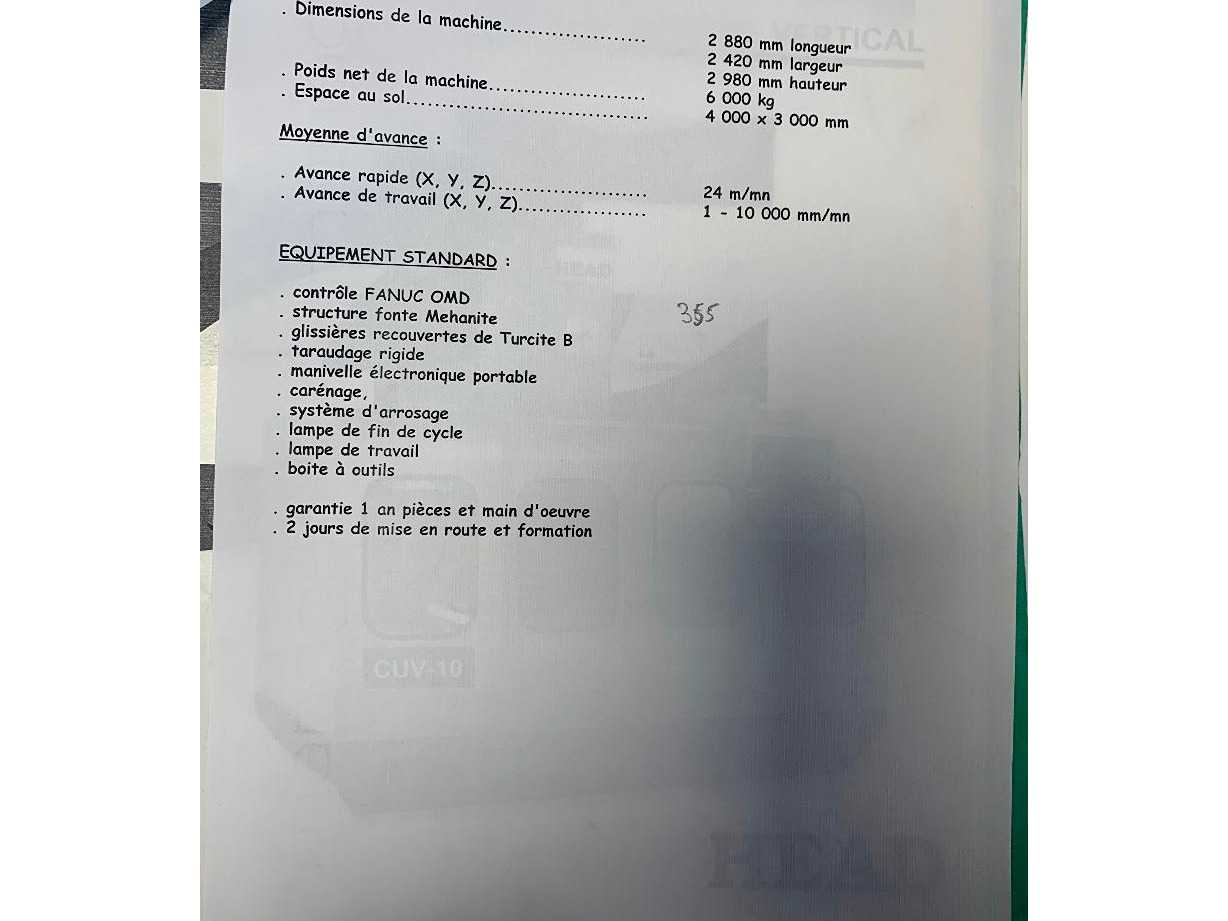

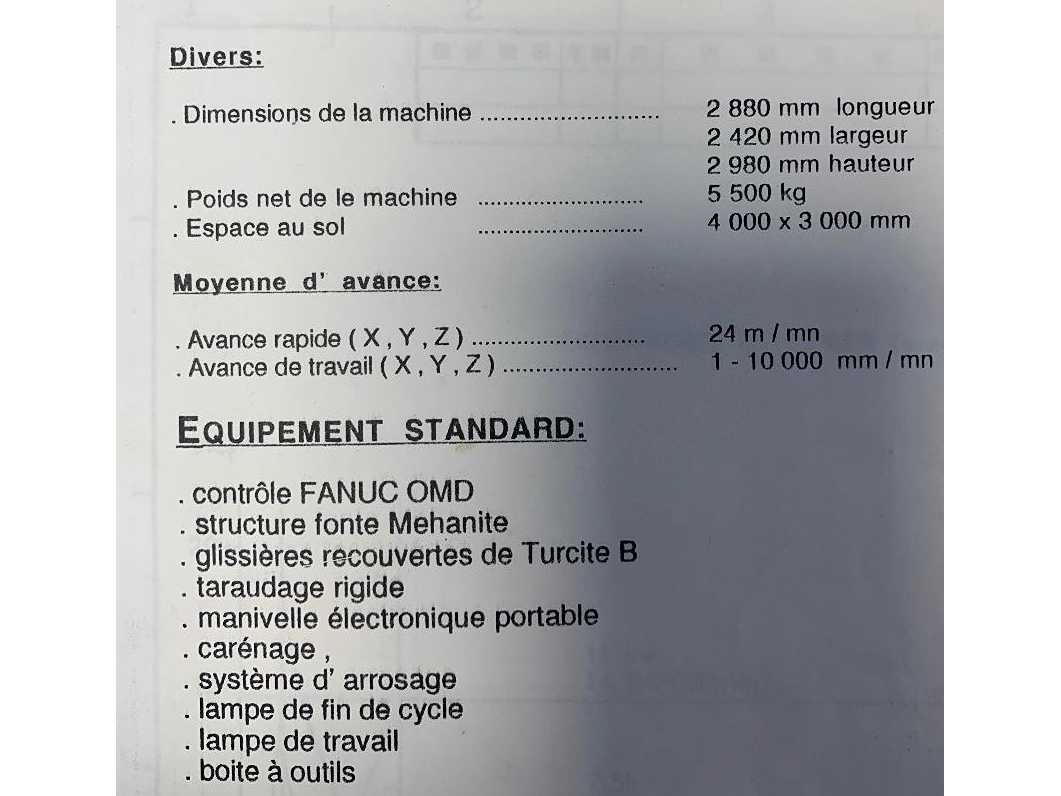

Machine dimensions: 2,880 ×
