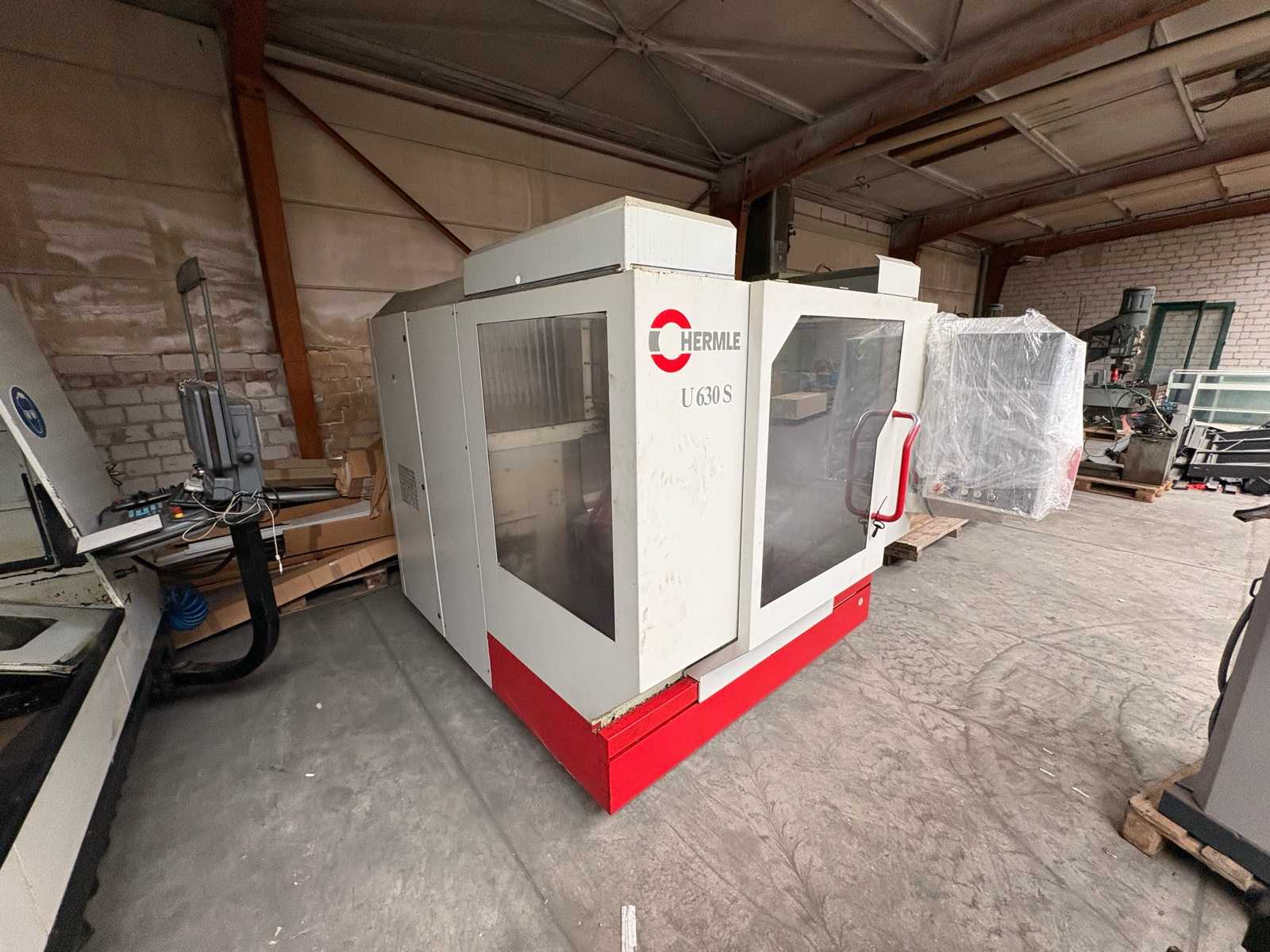

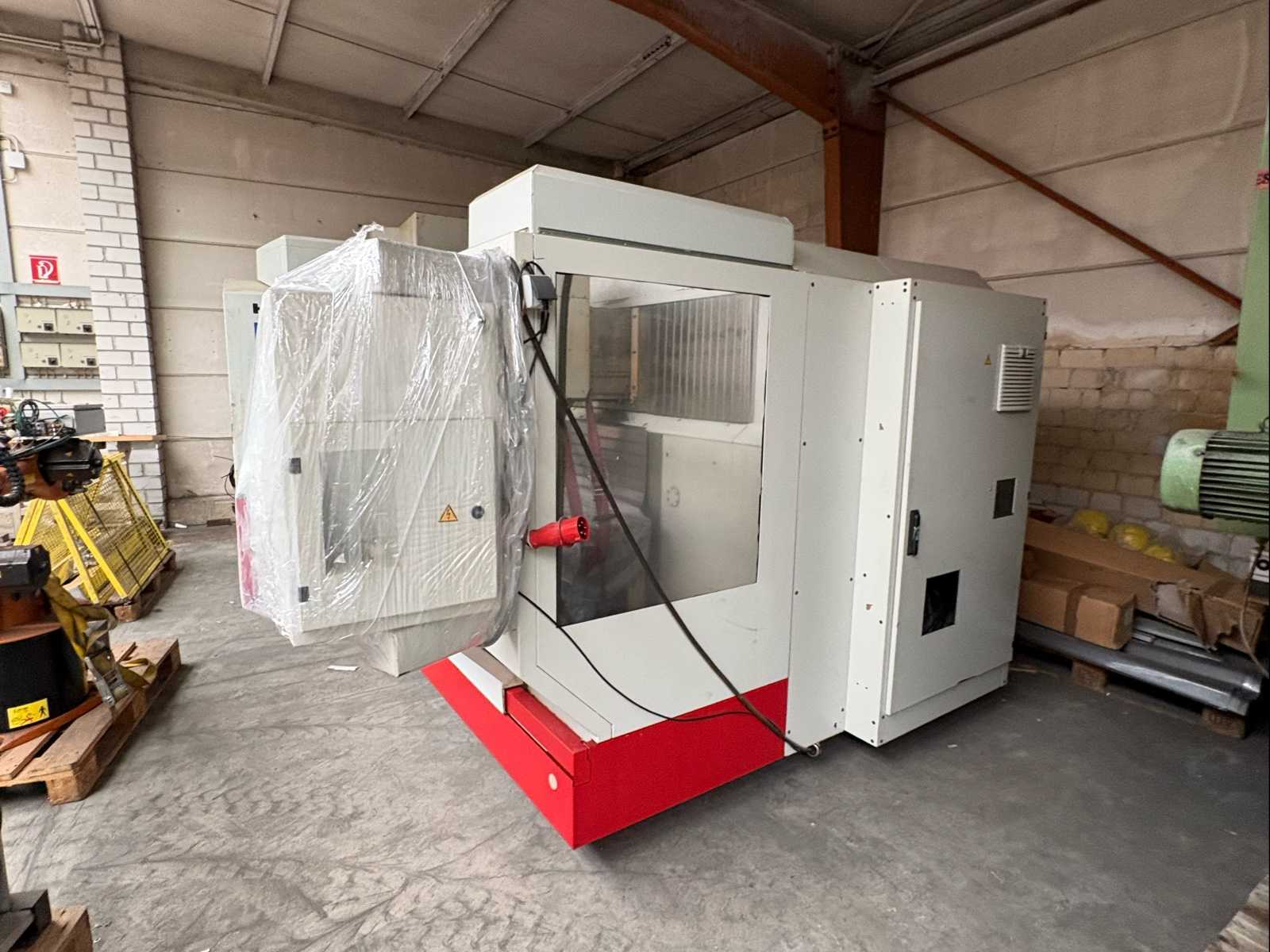

HERMLE AG U 630 S CNC universal milling machine

Hermle U 630 S

Machine Type: CNC Universal Milling Machine / Vertical Machining Center
Manufacturer: Hermle AG, Gosheim, Germany
Model: U 630 S
Year of Make: 2002
Serial Number: 15224

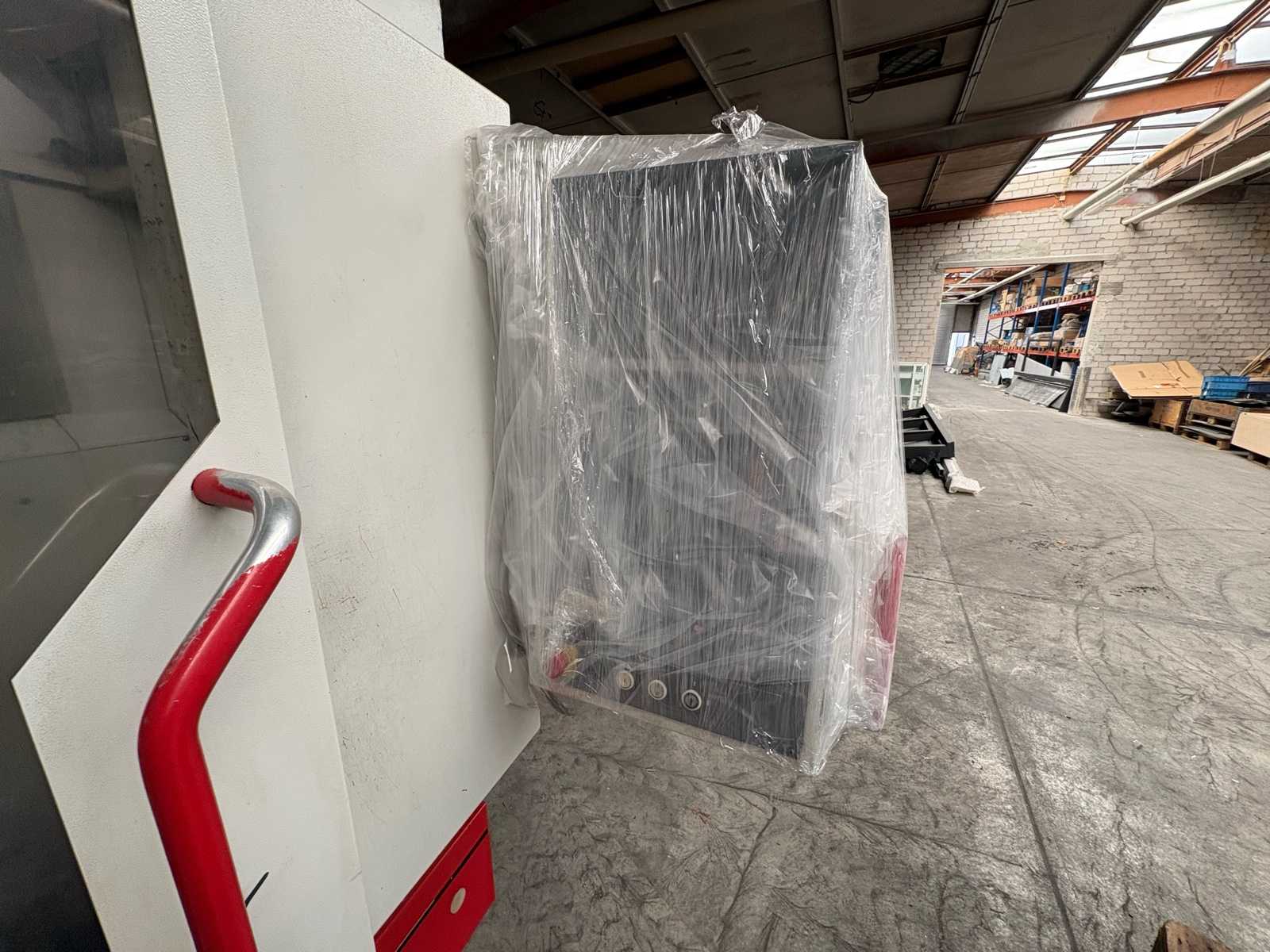

Control: Heidenhain TNC 426
Axes: 3-axis (optional 4th axis with rotary table possible)
Travel:
X = 630 mm
Y = 500 mm
Z = 450 mm

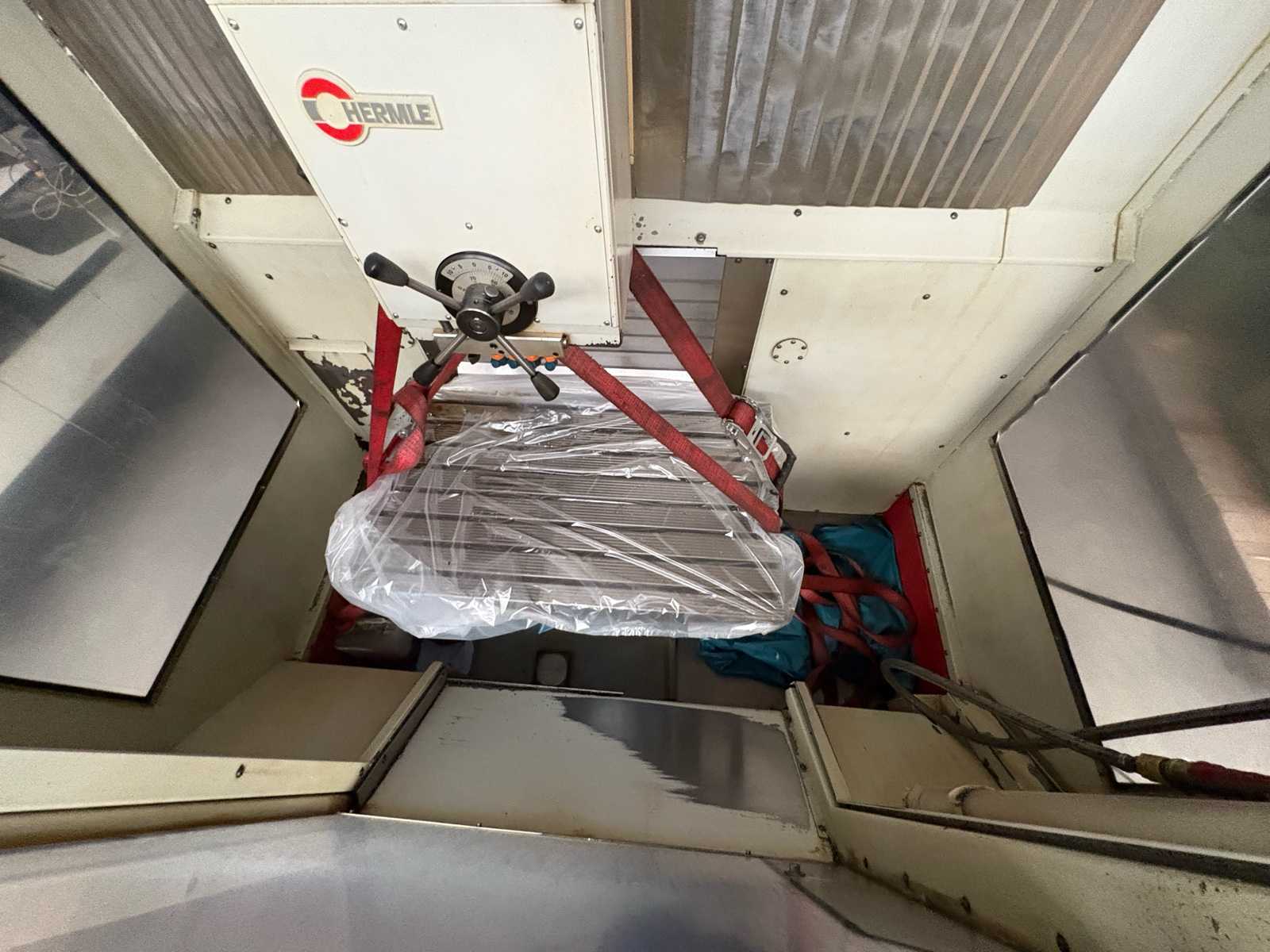

Table size: approx. 800 × 500 mm
Max. workpiece weight: approx. 300 kg
Spindle:
Speed range up to 12,000 rpm
Tool holder SK40 or HSK-A63
Drive power approx. 10–15 kW

Tool changer: Automatic magazine changer, approx. 20–30 places
Cooling: Integrated cooling lubricant system

Accuracy:
Positioning accuracy ±0.005 mm
Repeatability ±0.002 mm

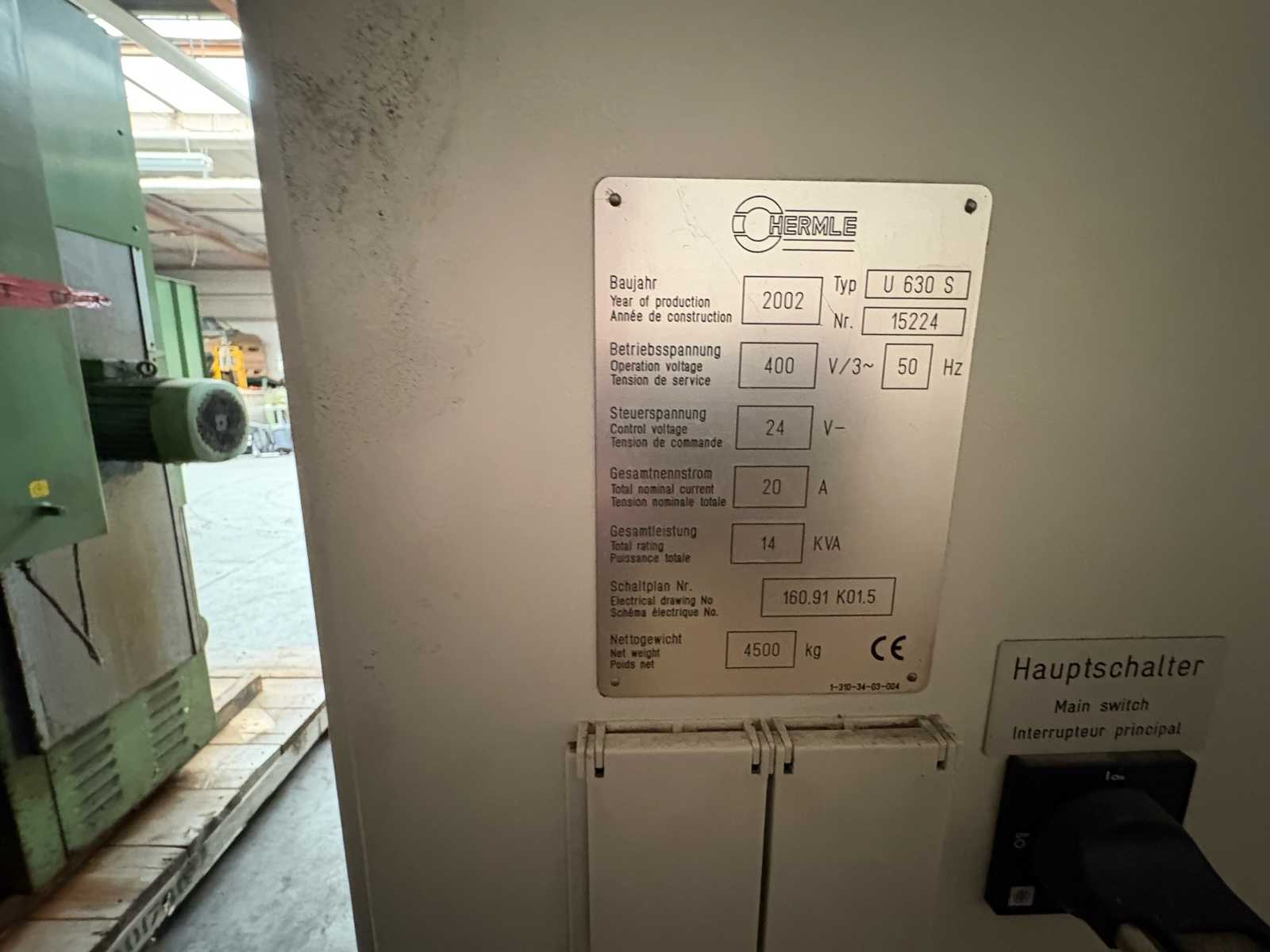

Supply:

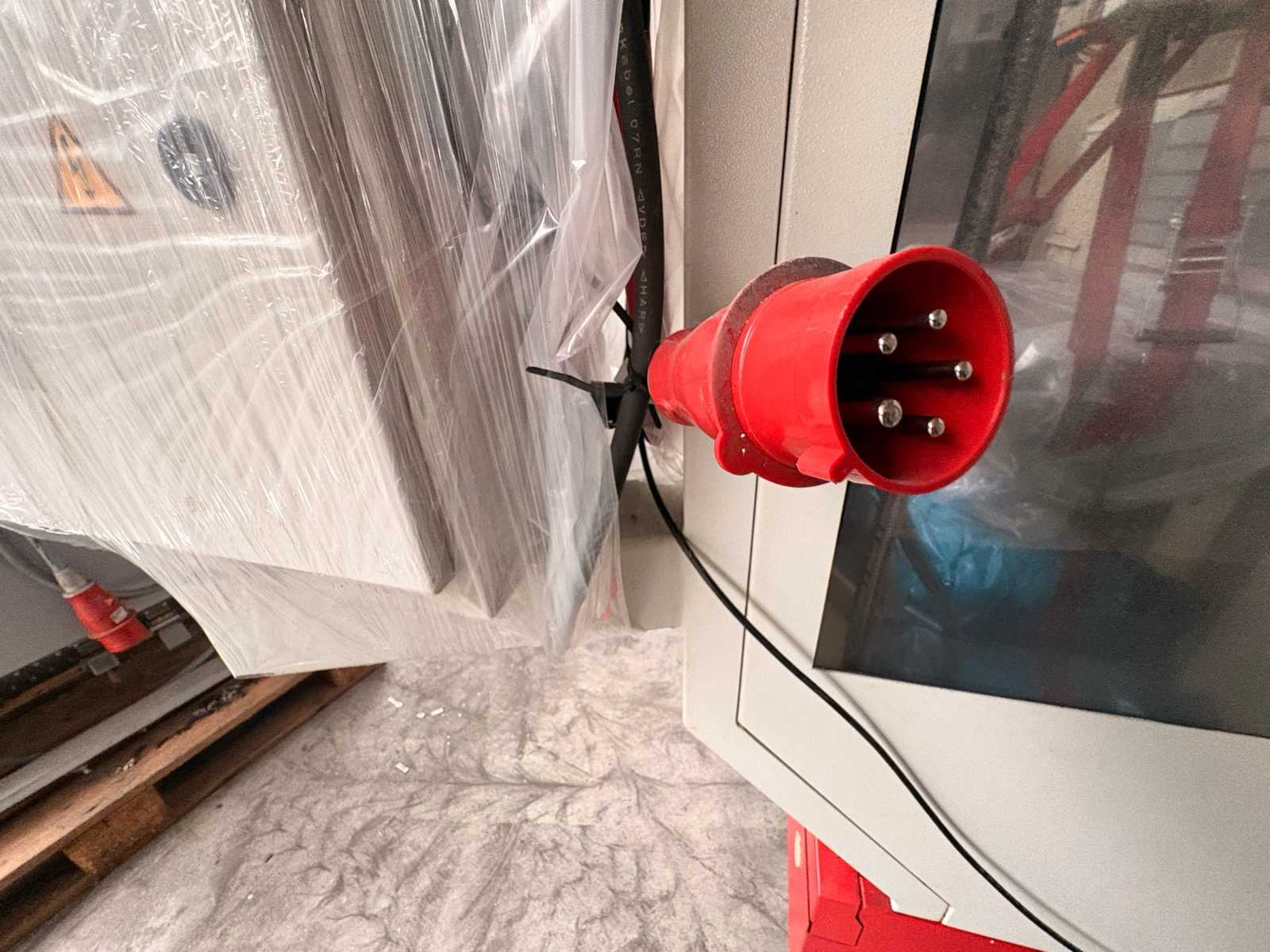

Operating voltage 400 V / 50 Hz
Control voltage 24 V
Rated current 20 A
Connected load 14 kVA

Machine weight: approx. 4,500 kg
Safety equipment:
Emergency stop button
Door
lock
Full
