| Description |

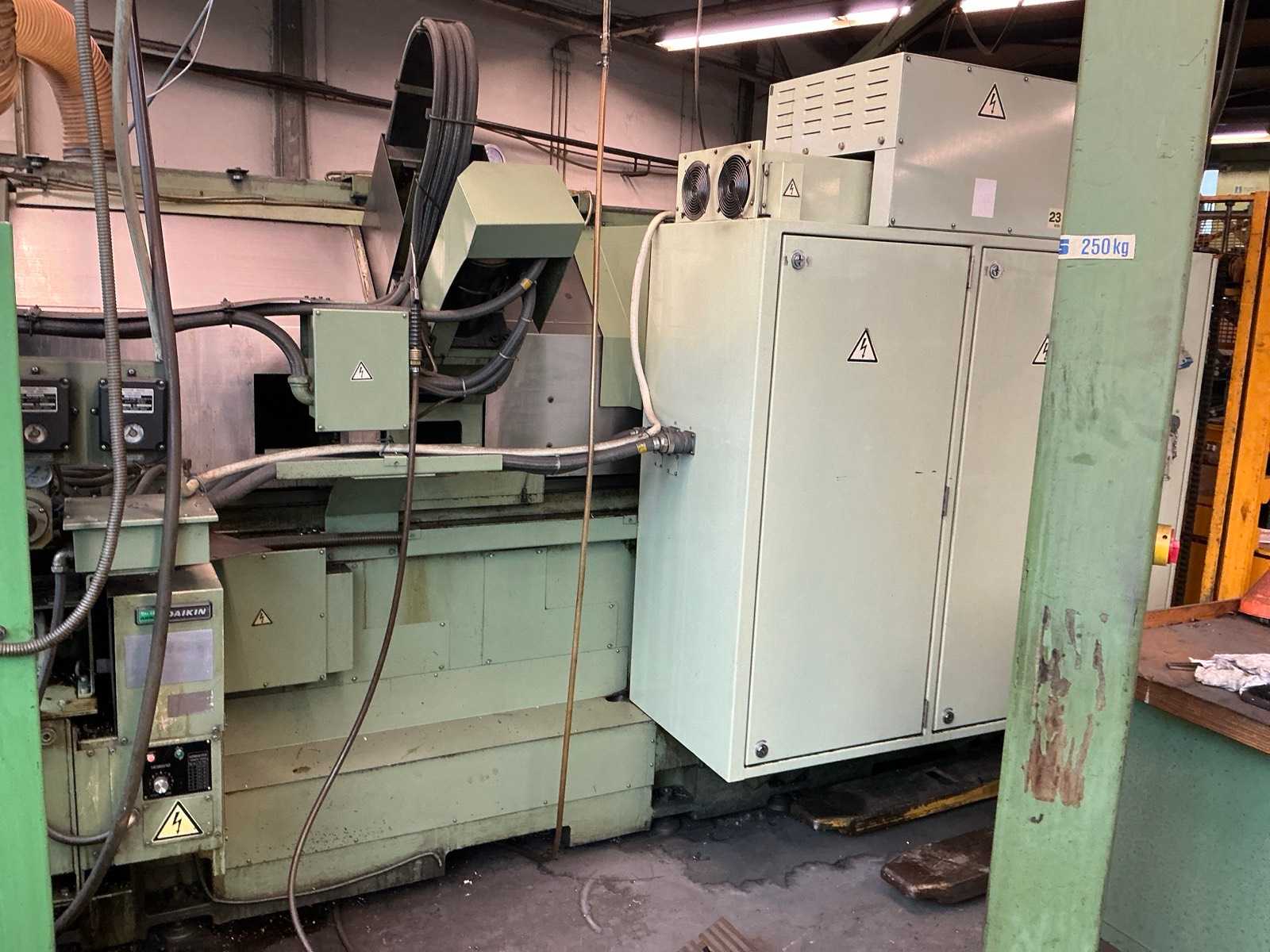

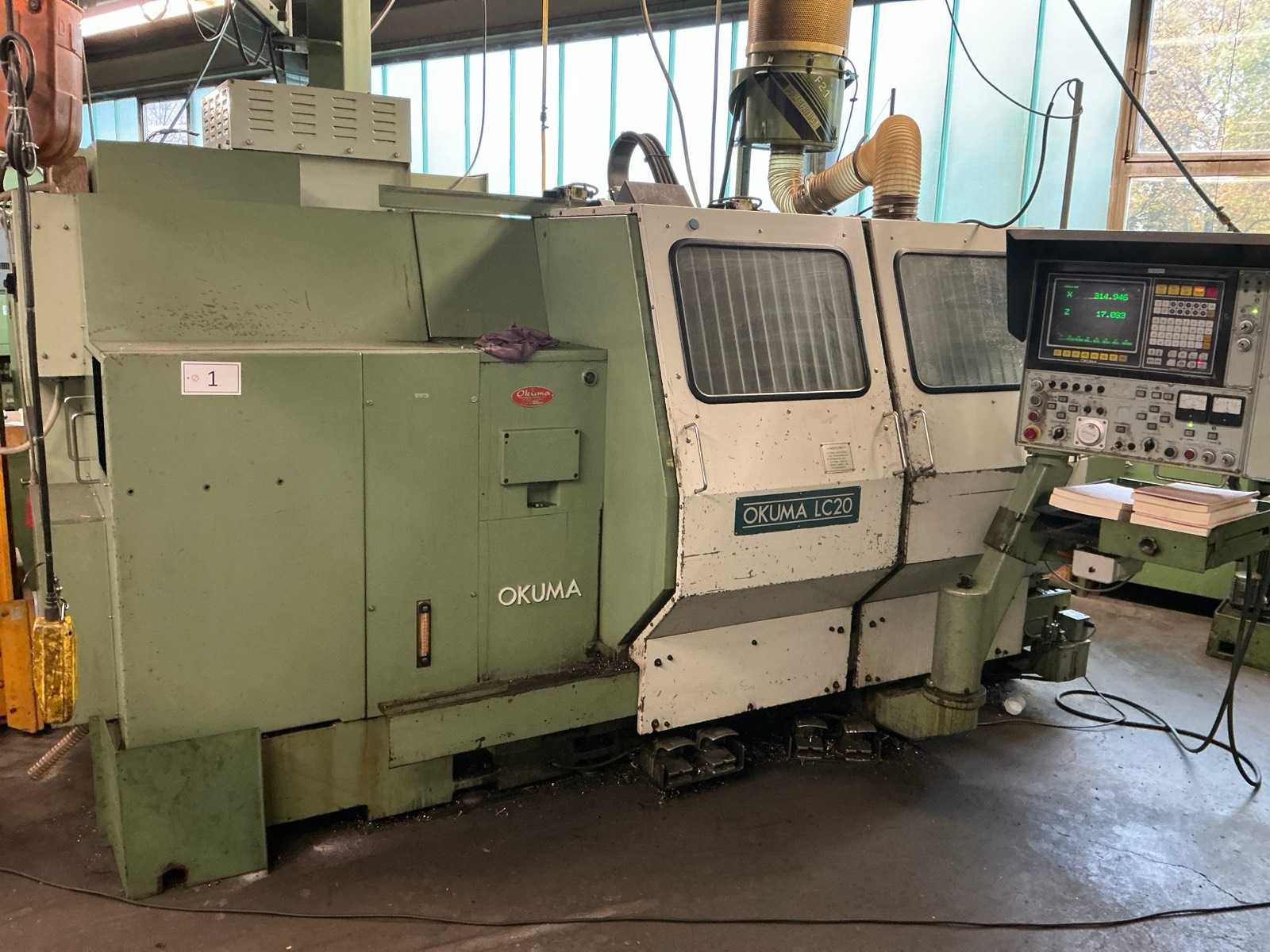

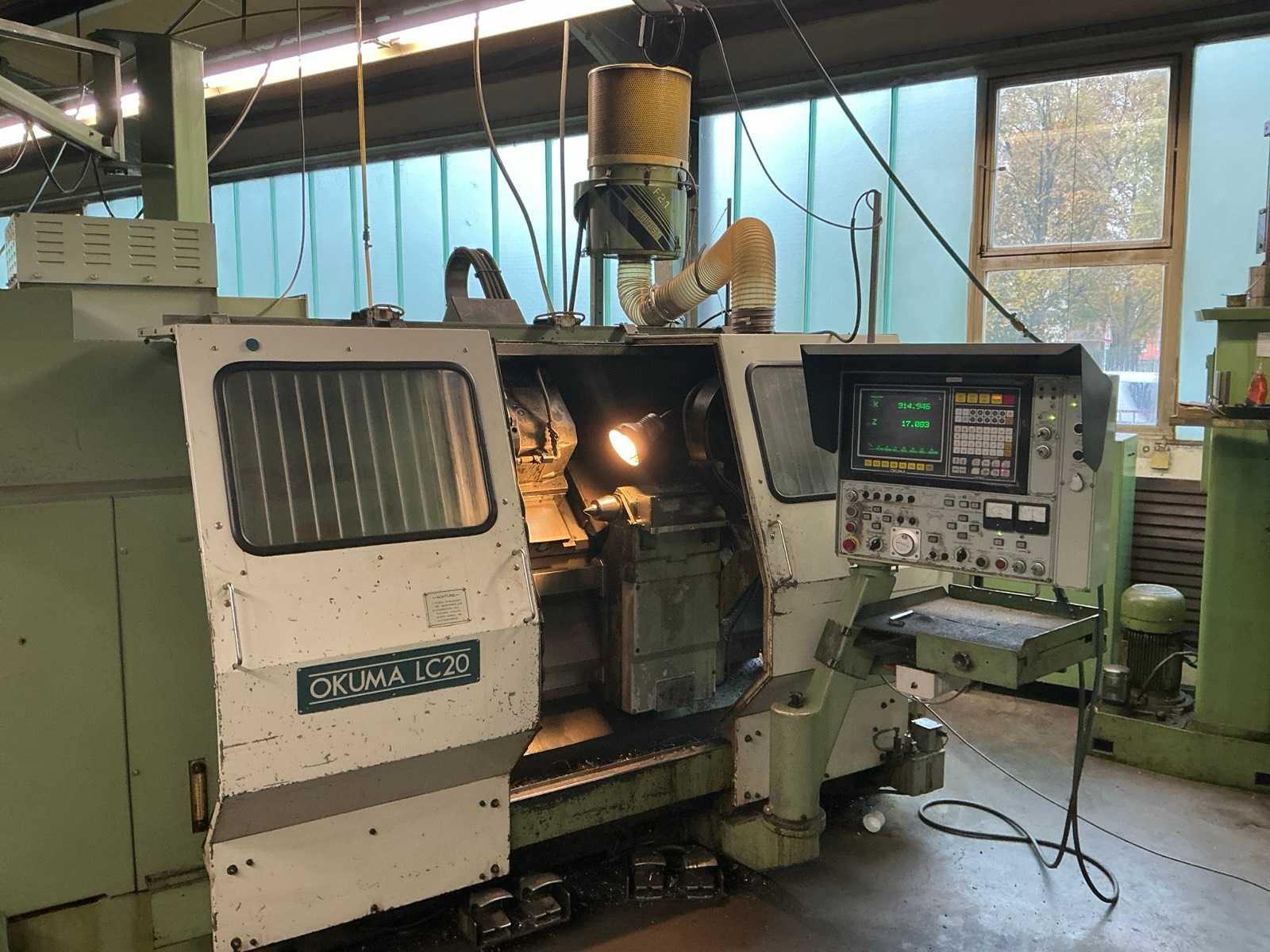

machine

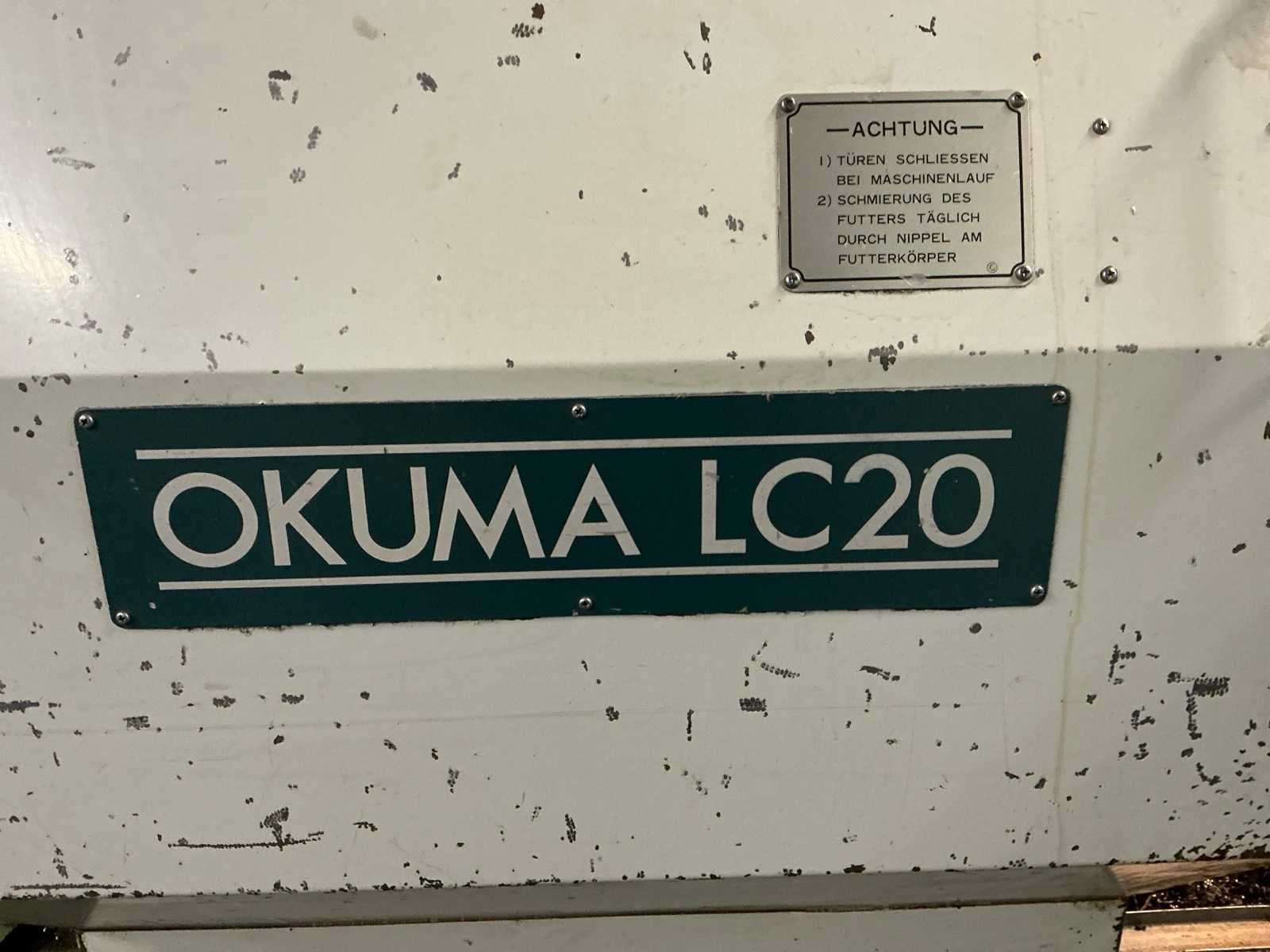

- Manufacturer: Okuma

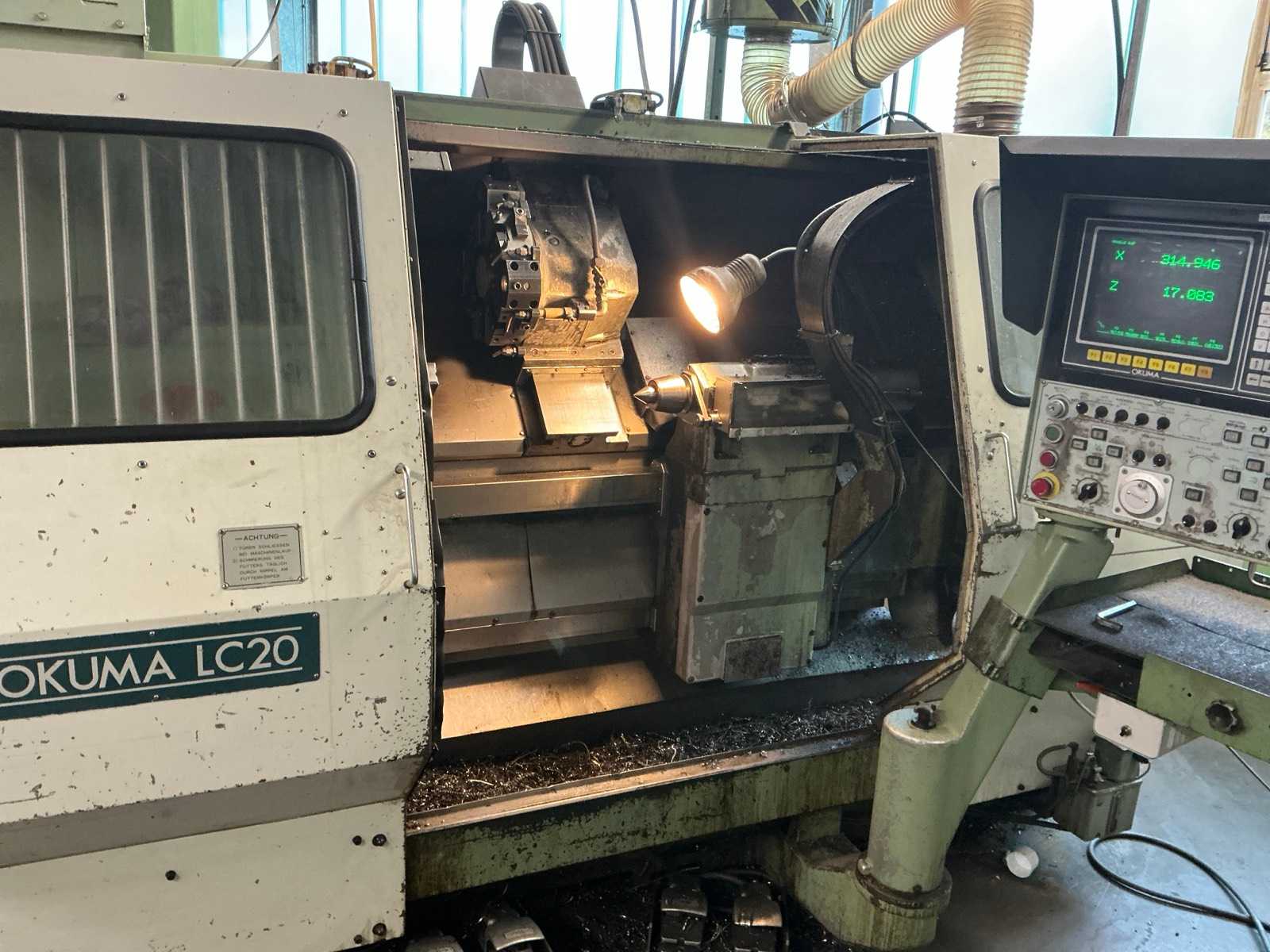

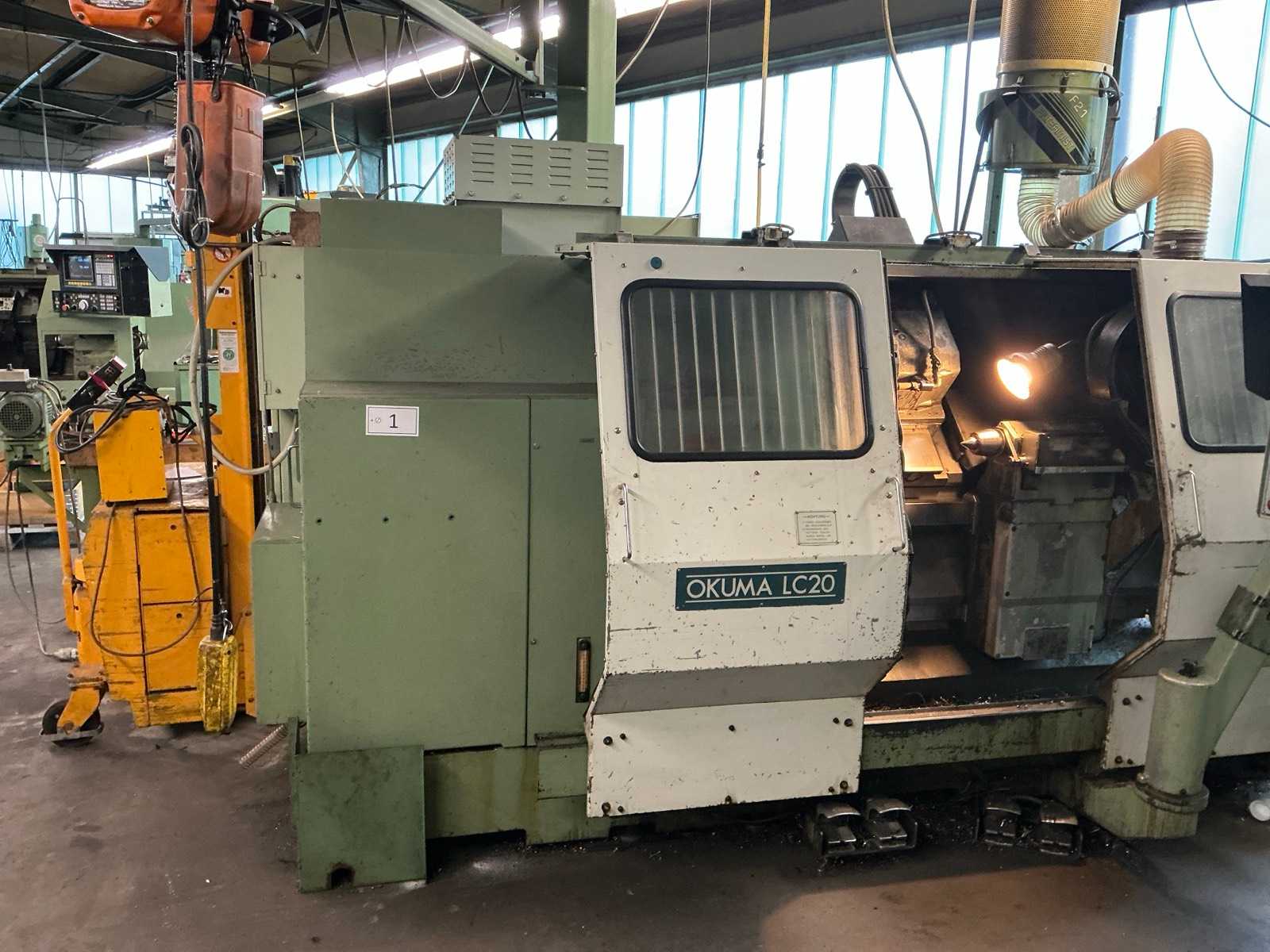

- Type: LC20-1S with tailstock
- Machine Type: CNC Lathe (Slant Bed)
- Year of construction: approx. 1986 – 1988

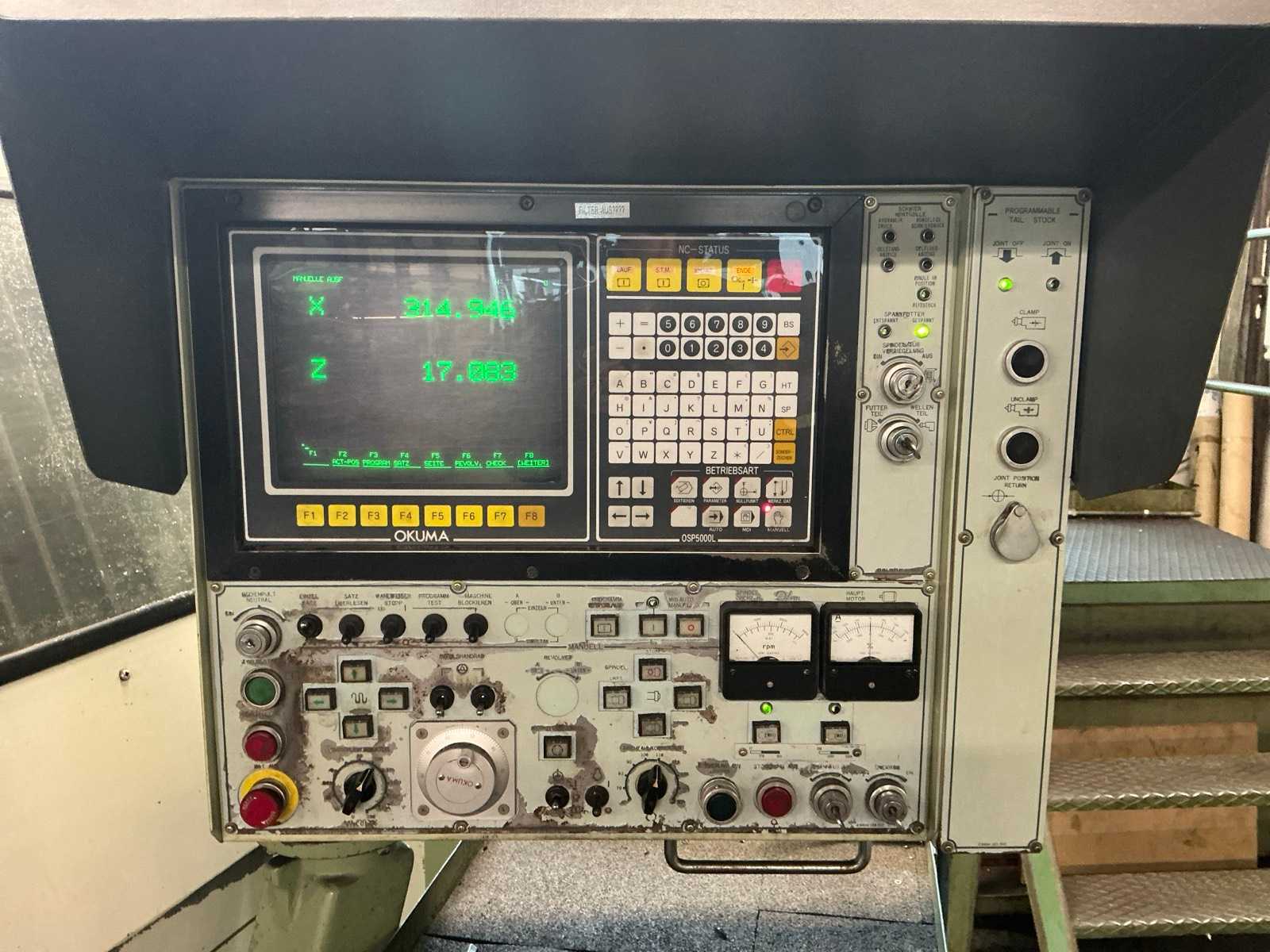

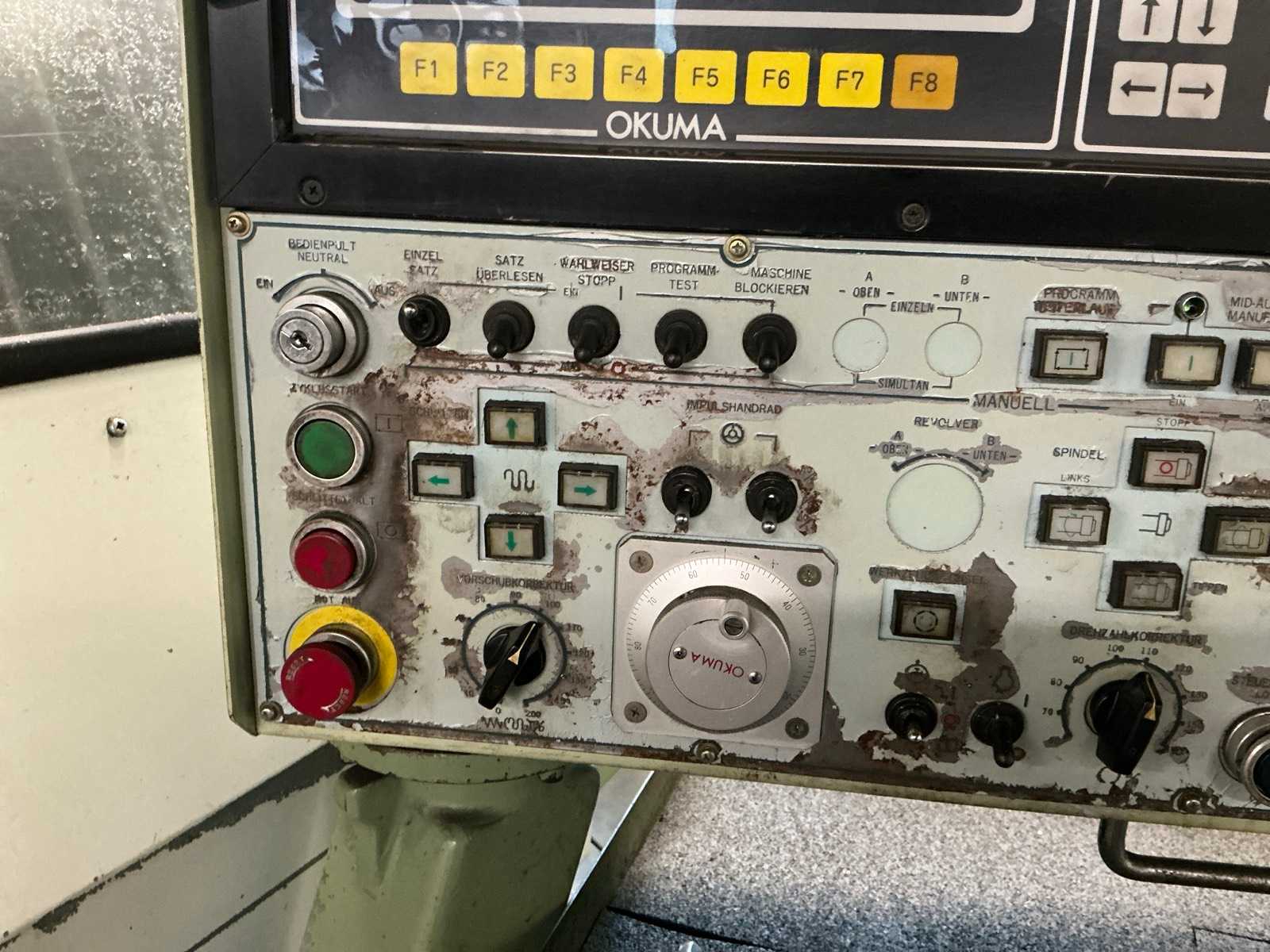

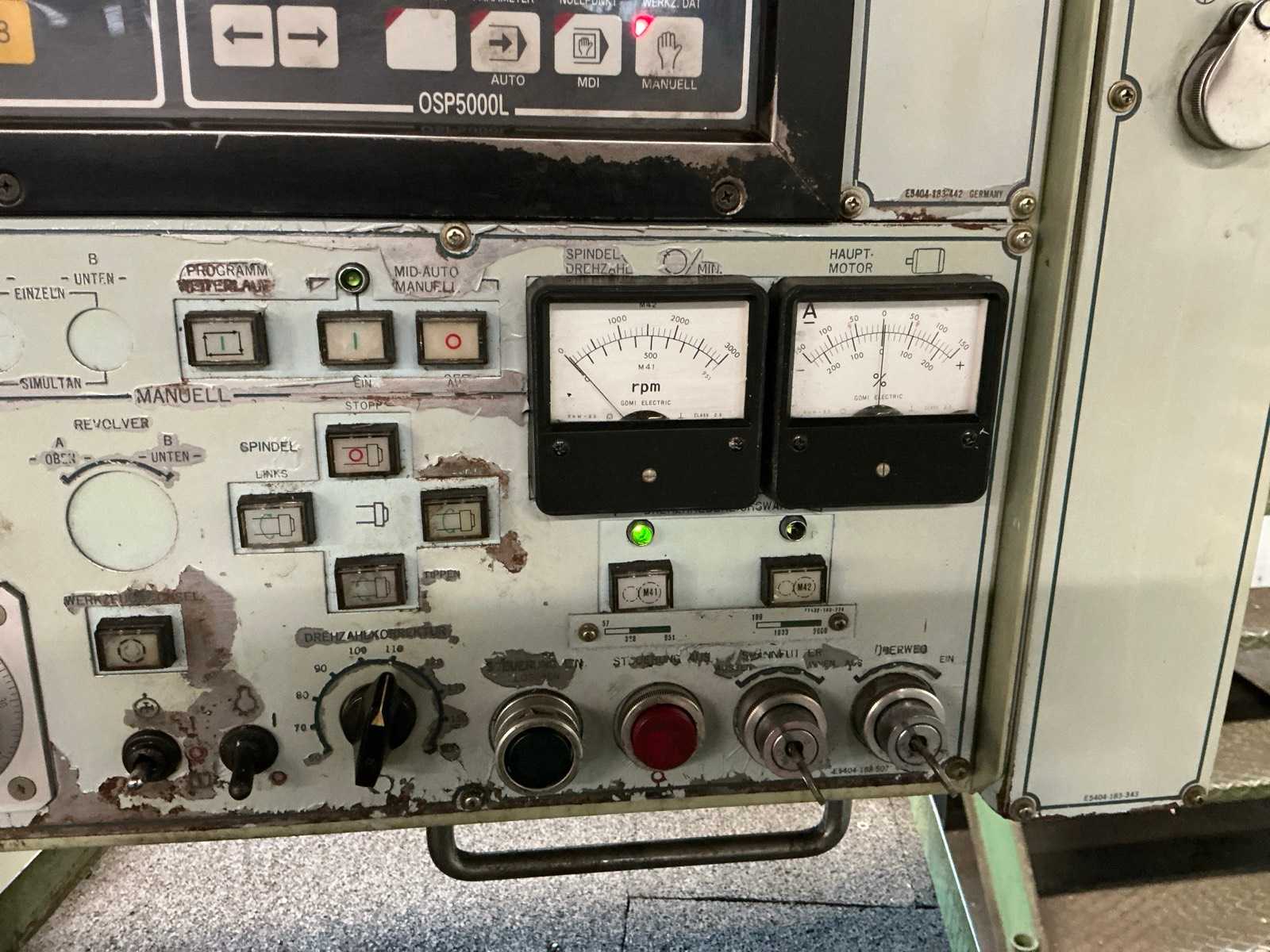

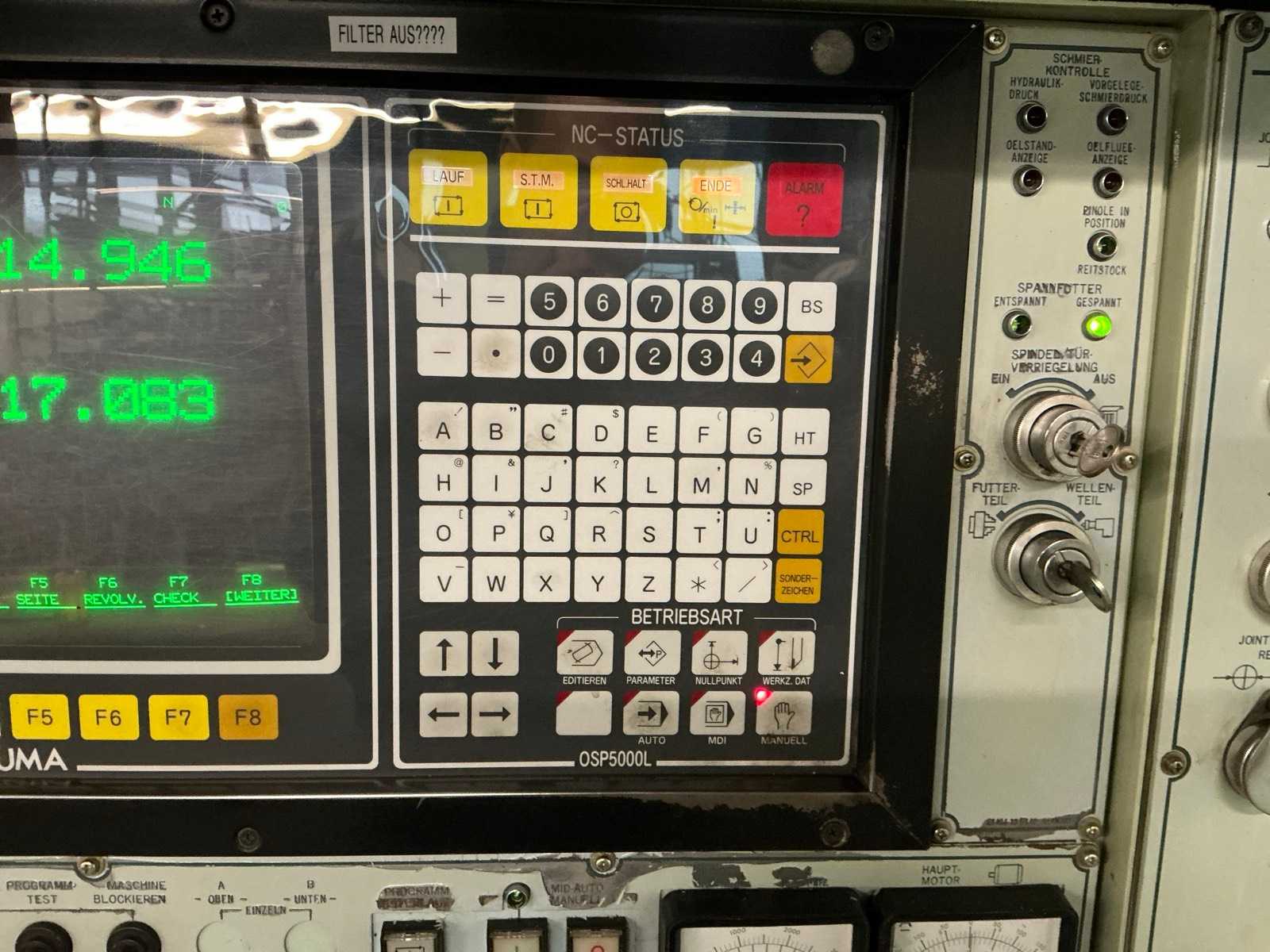

- Control: Okuma OSP5000L

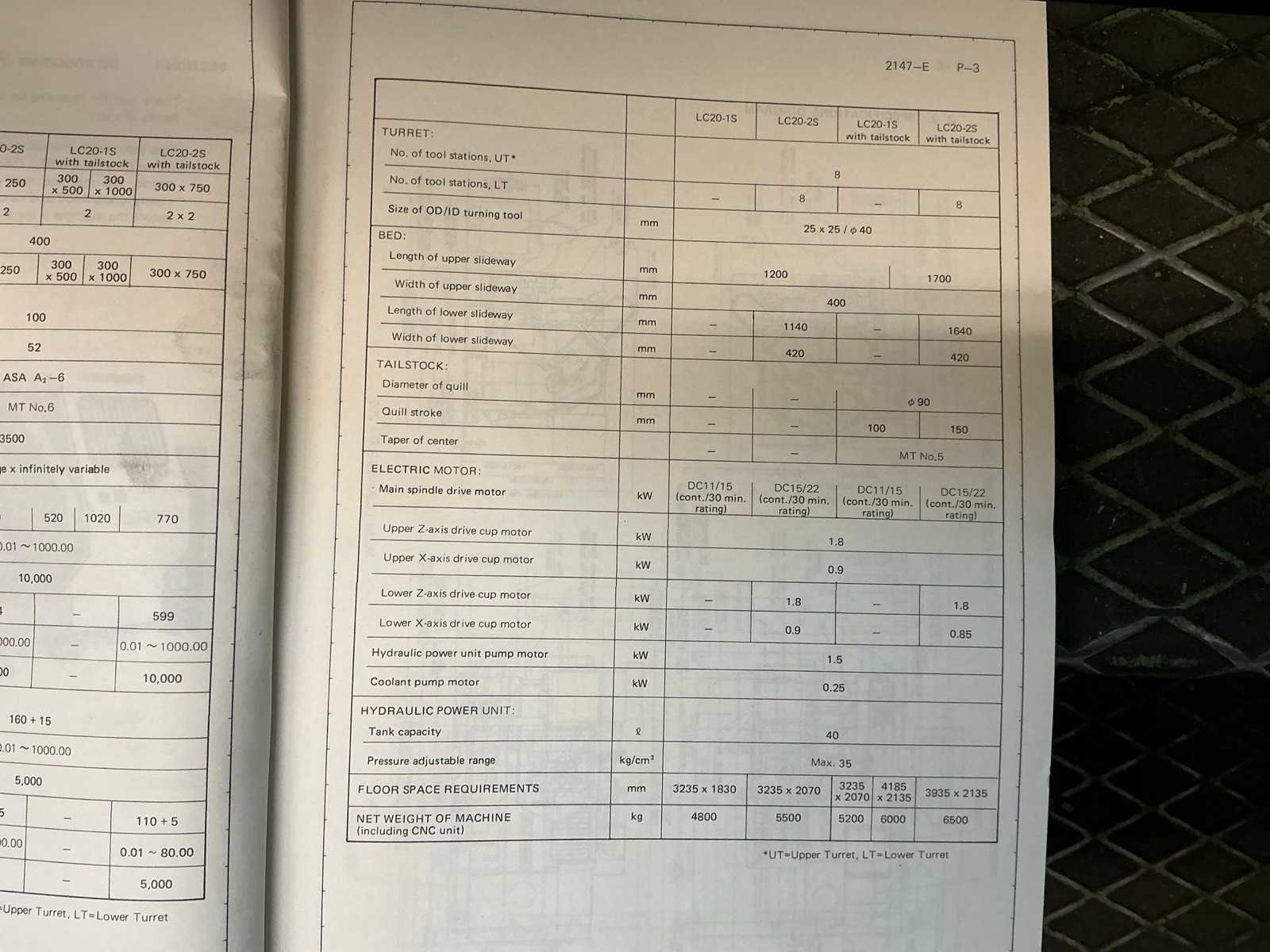

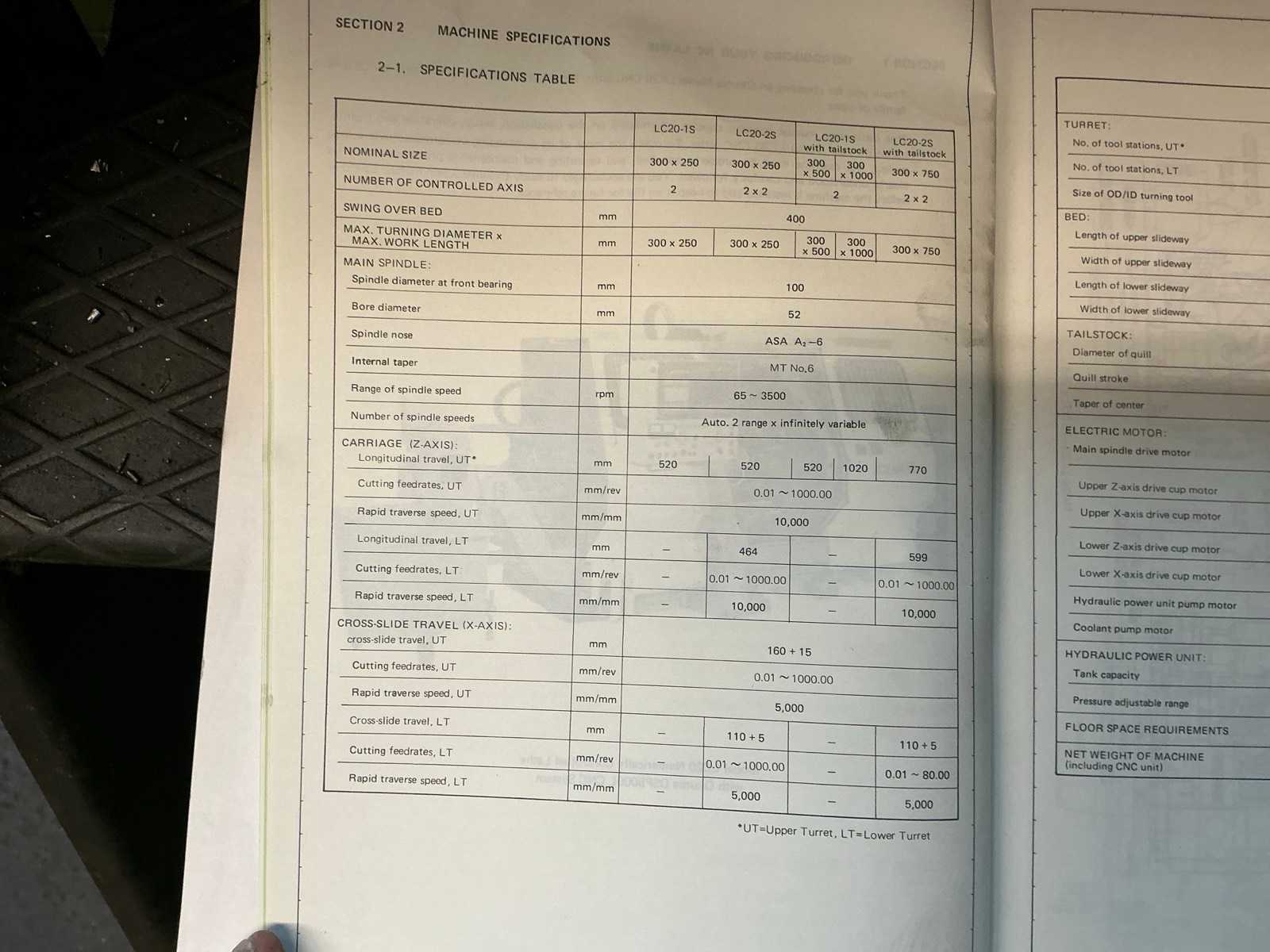

data
- Turning diameter over bed: 400 mm
- Max. turning diameter: 300 mm
- Max. workpiece length: 520 mm
- Spindle speed: 65 – 3500 rpm
- Spindle bore: 52 mm
- Spindle Nose: ASA A6
- Drive power main spindle: 11 / 15 kW

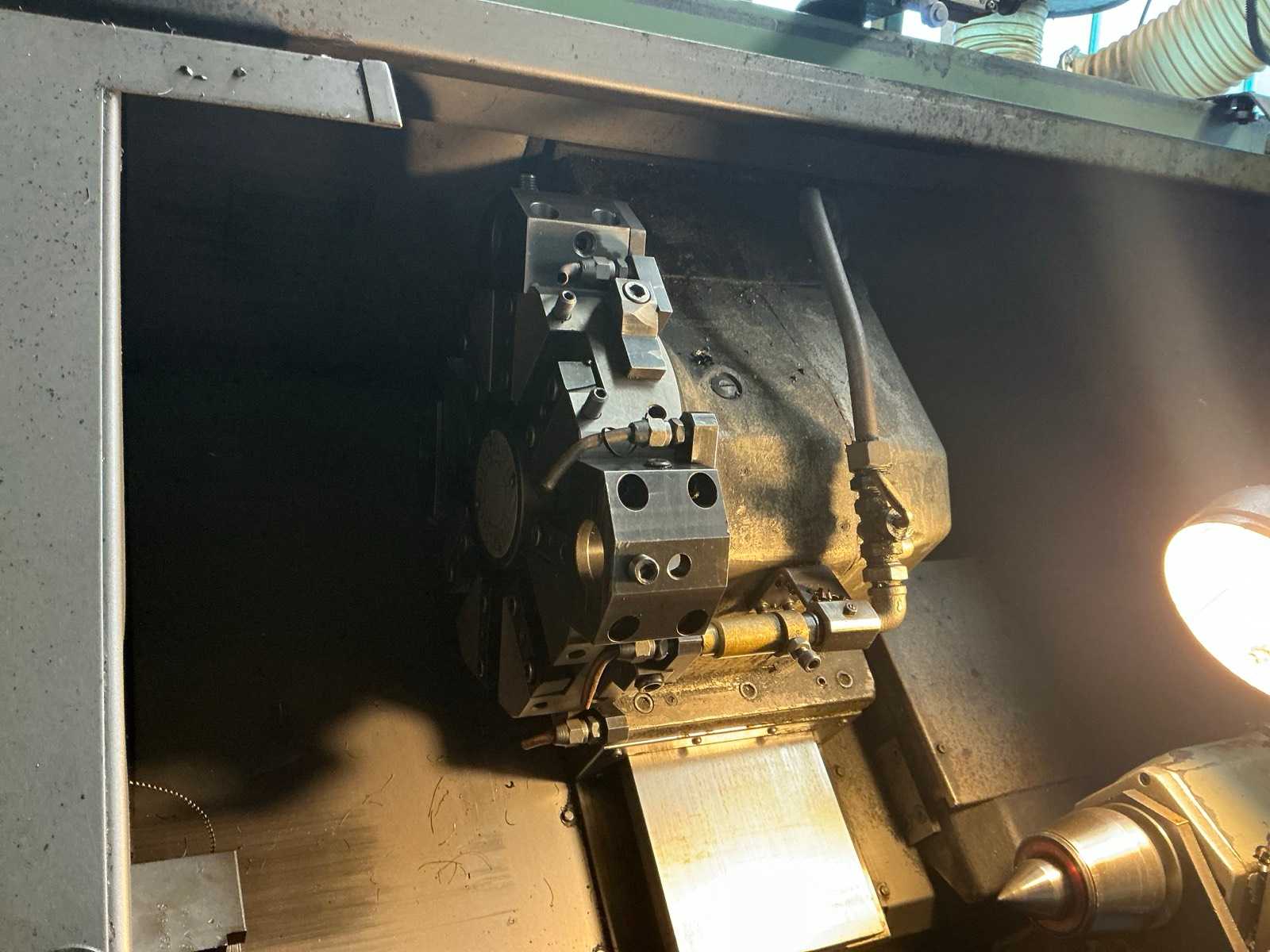

- Number of tool stations: 8
- Travel Z-axis: 520 mm
- X-axis travel: 160 mm
- Rapid traverse (Z / X): 10 m/min / 5 m/min

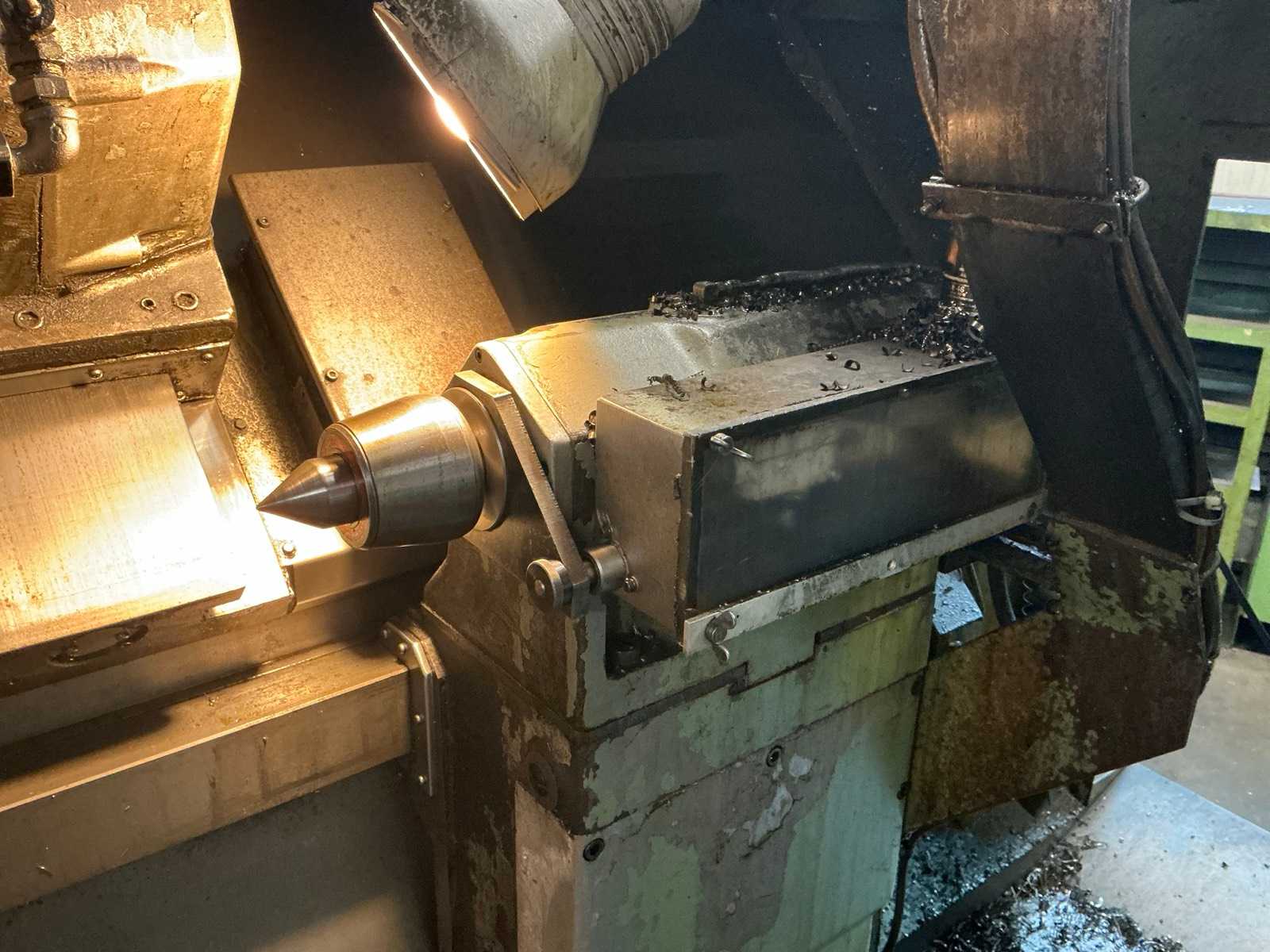

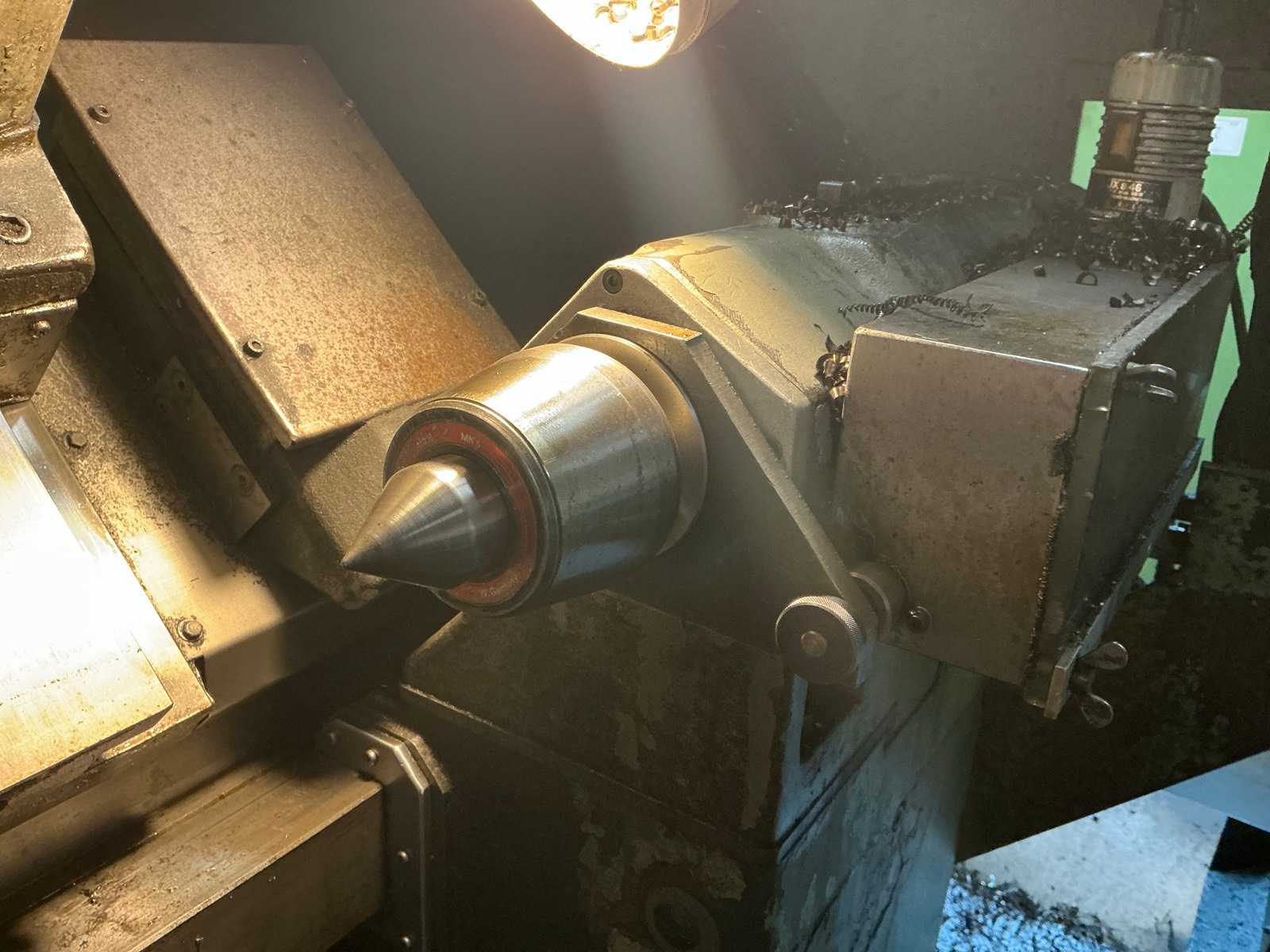

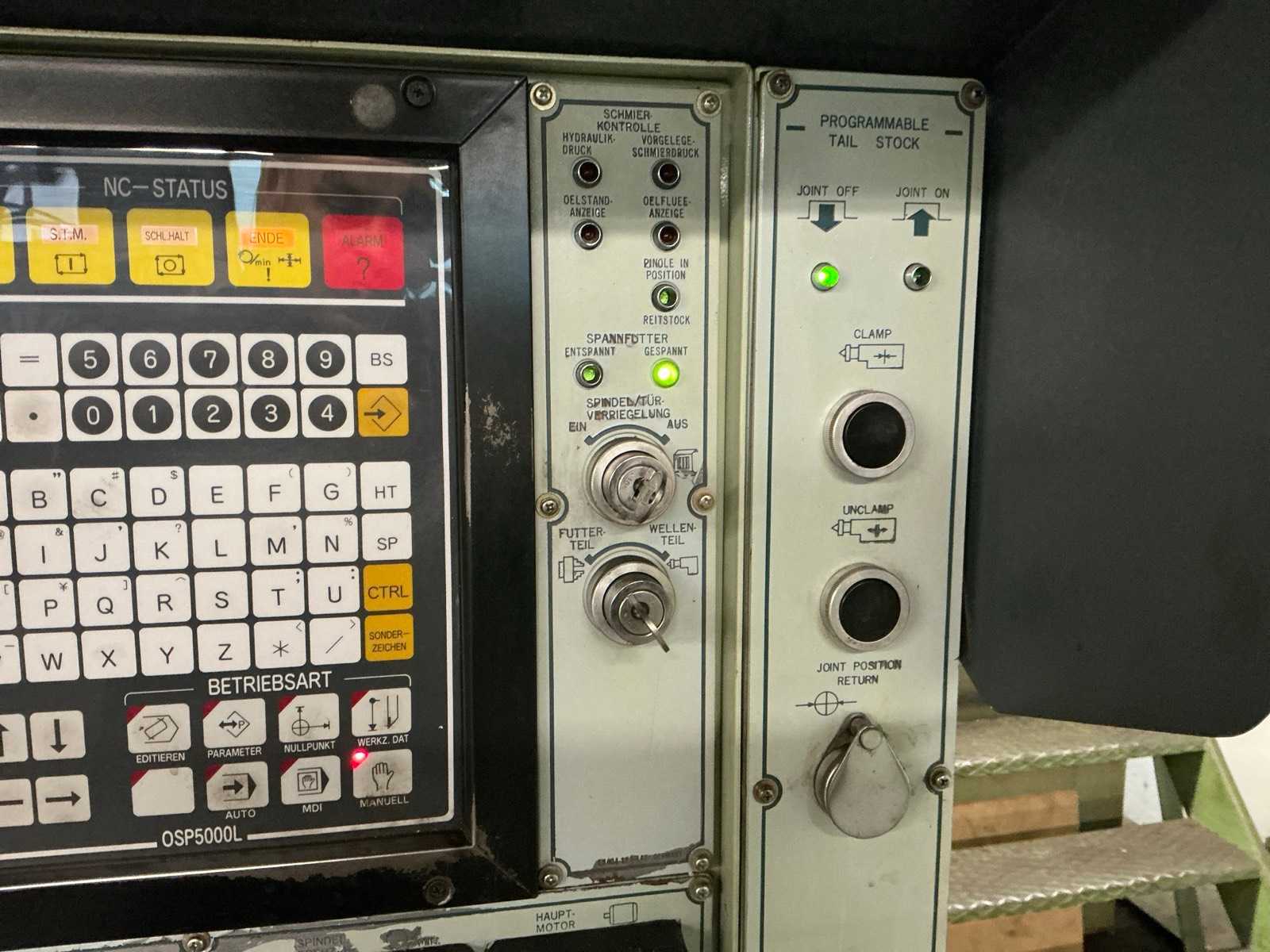

- Tailstock: Quill Ø 90 mm, Stroke 150 mm, Taper MT No. 5
|
Germany
