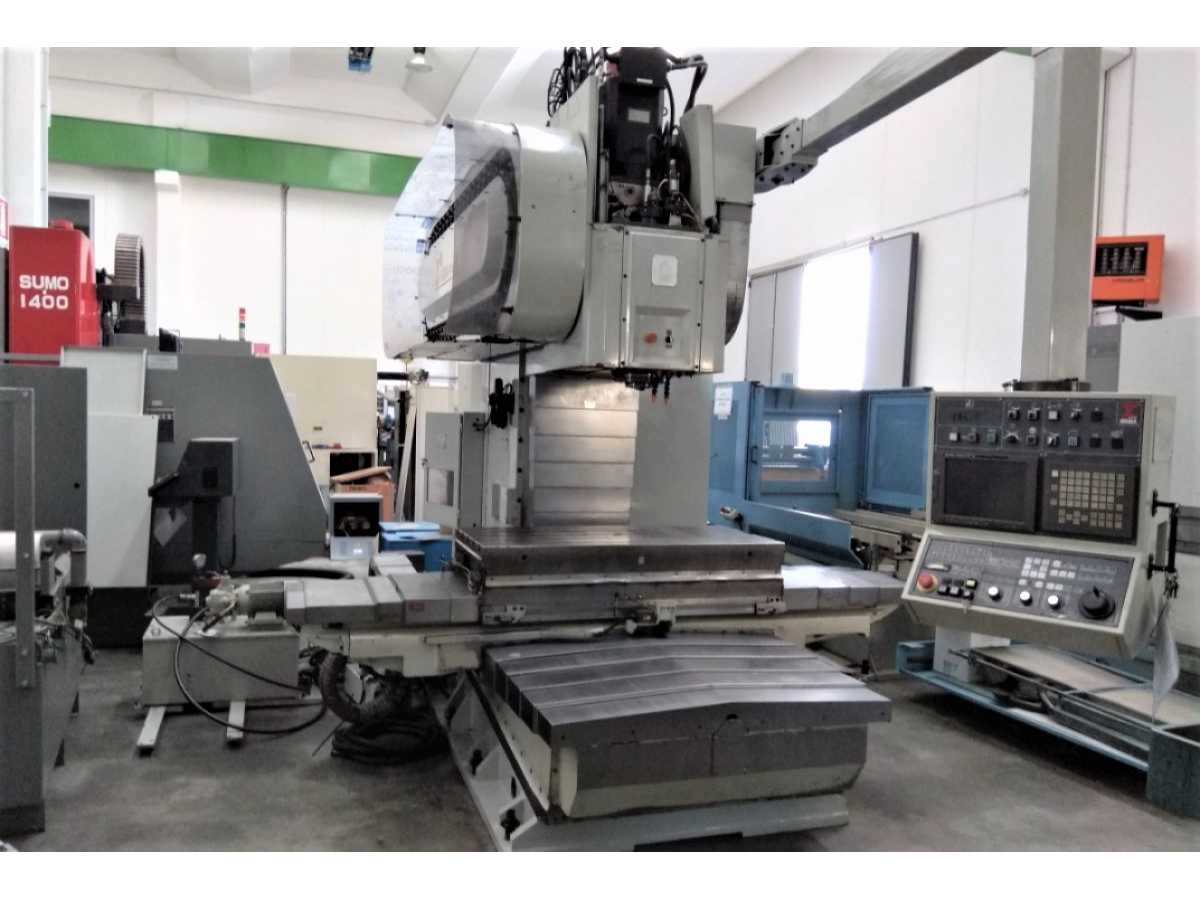

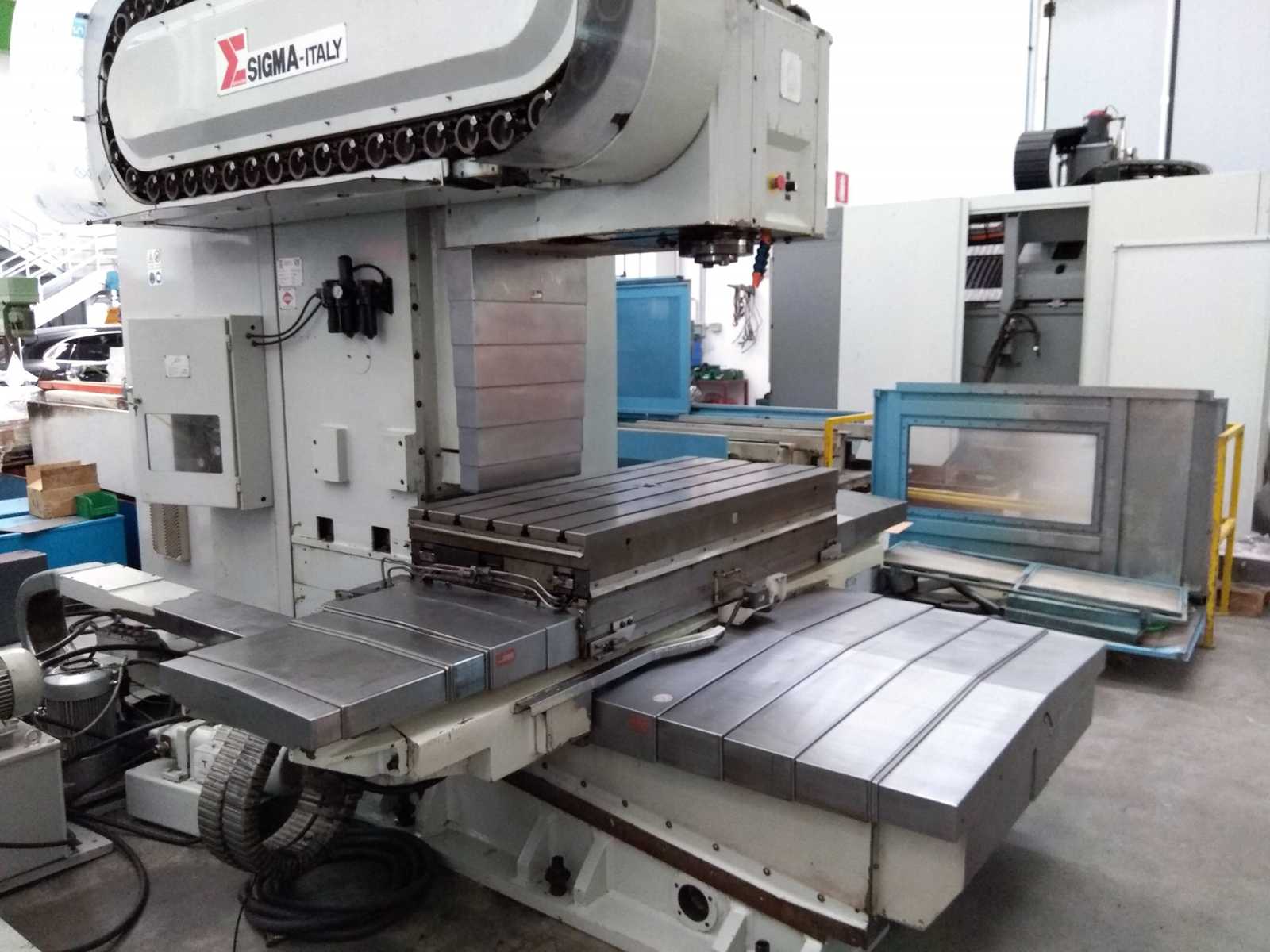

SIGMA EK 110/50 3-axis vertical machining center with pallet changer

X AXIS TRAVEL 1250 mm
Y-AXIS STROKE 700 mm
Z AXIS TRAVEL 750 mm
SPINDLE NOSE DISTANCE TABLE TABLE 100 – 850 mm
RAPID FEEDS X-Y-Z 15 m/min

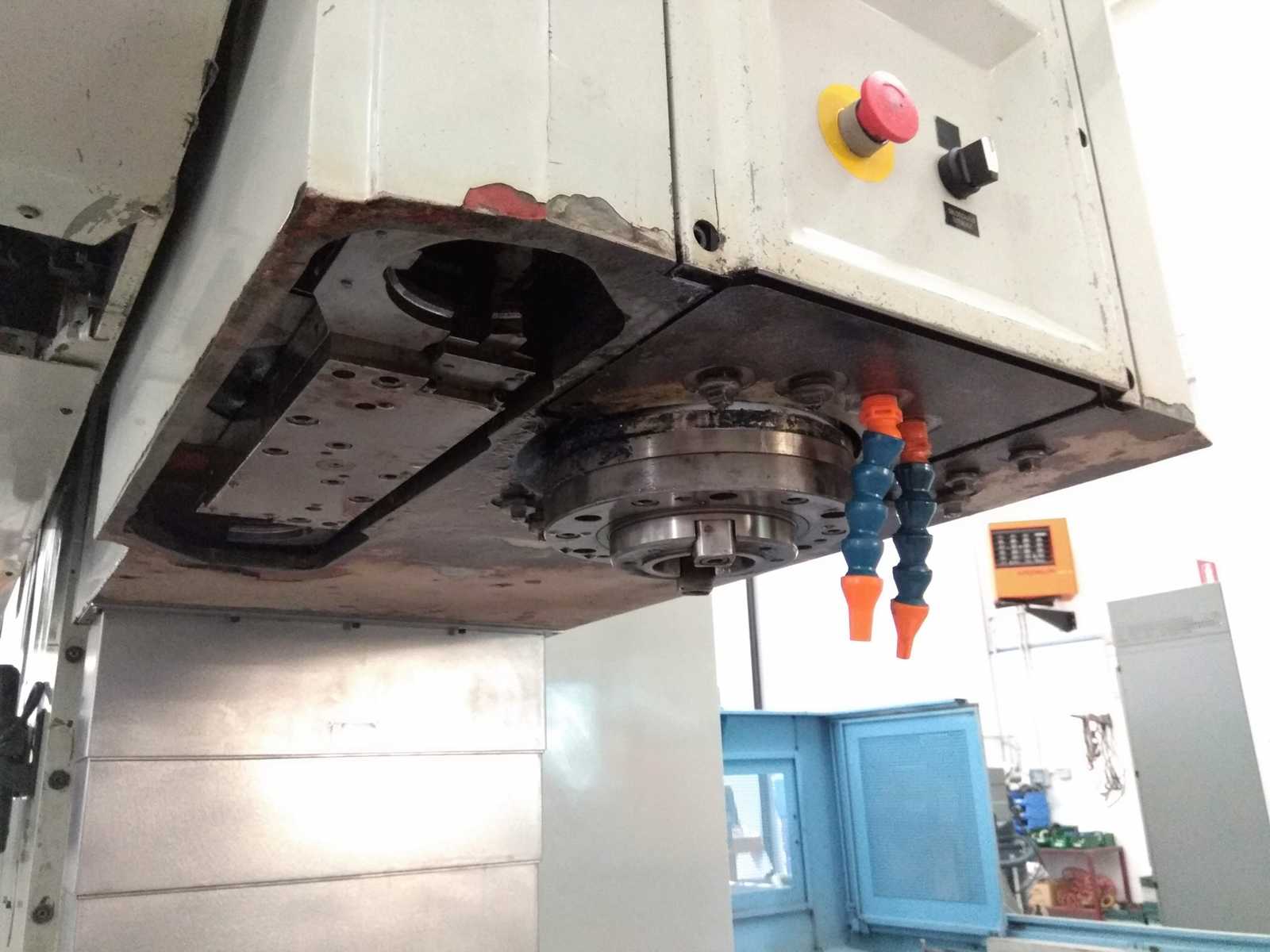

SPINDLE 4000 rpm; 26 kW; ISO 50 – DIN
PALLET N.2

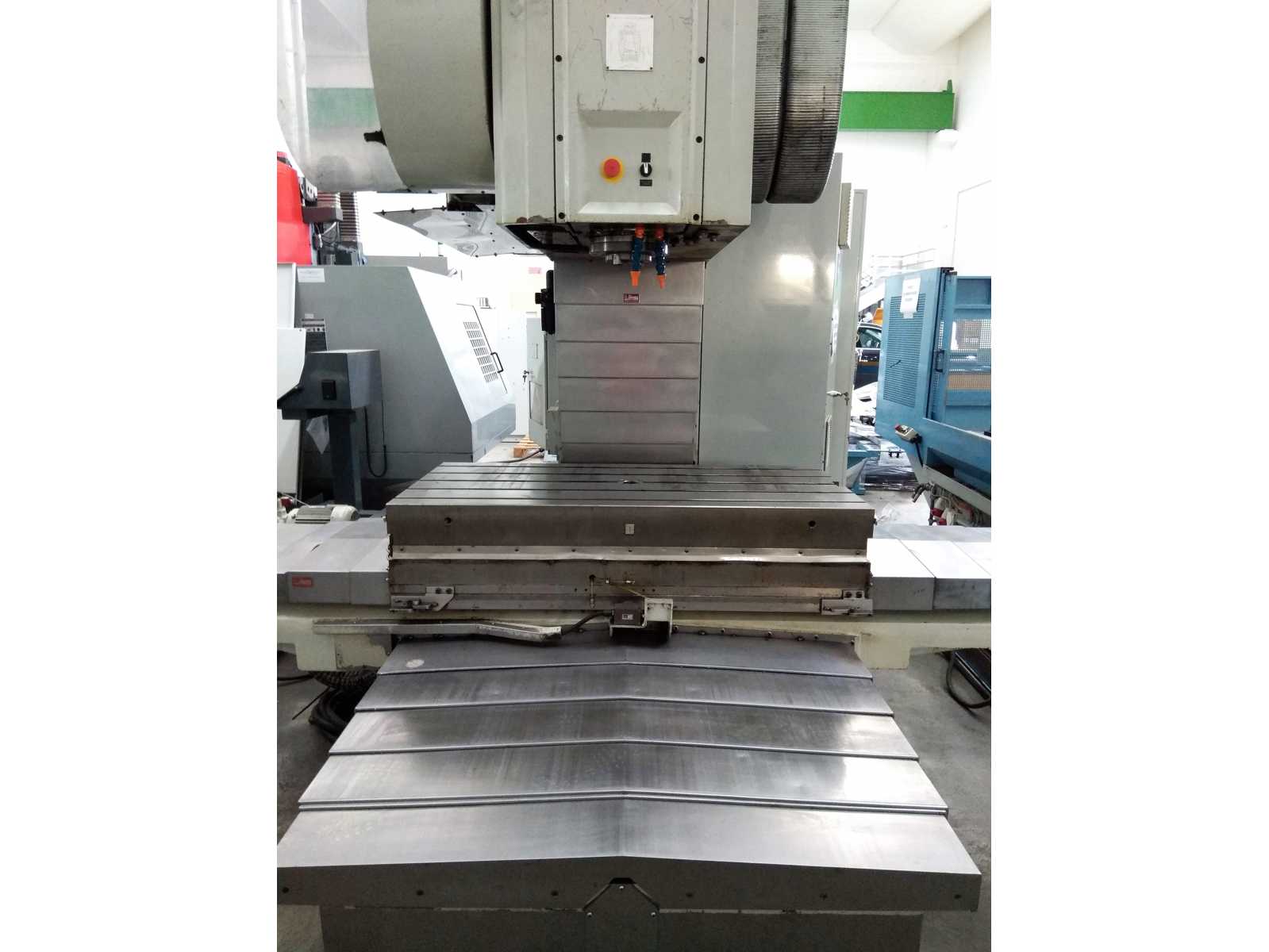

TABLE SIZE 650 x 1400 mm
MAX PERMISSIBLE LOAD 1500 Kg
HIGH PRESSURE 30 Bar

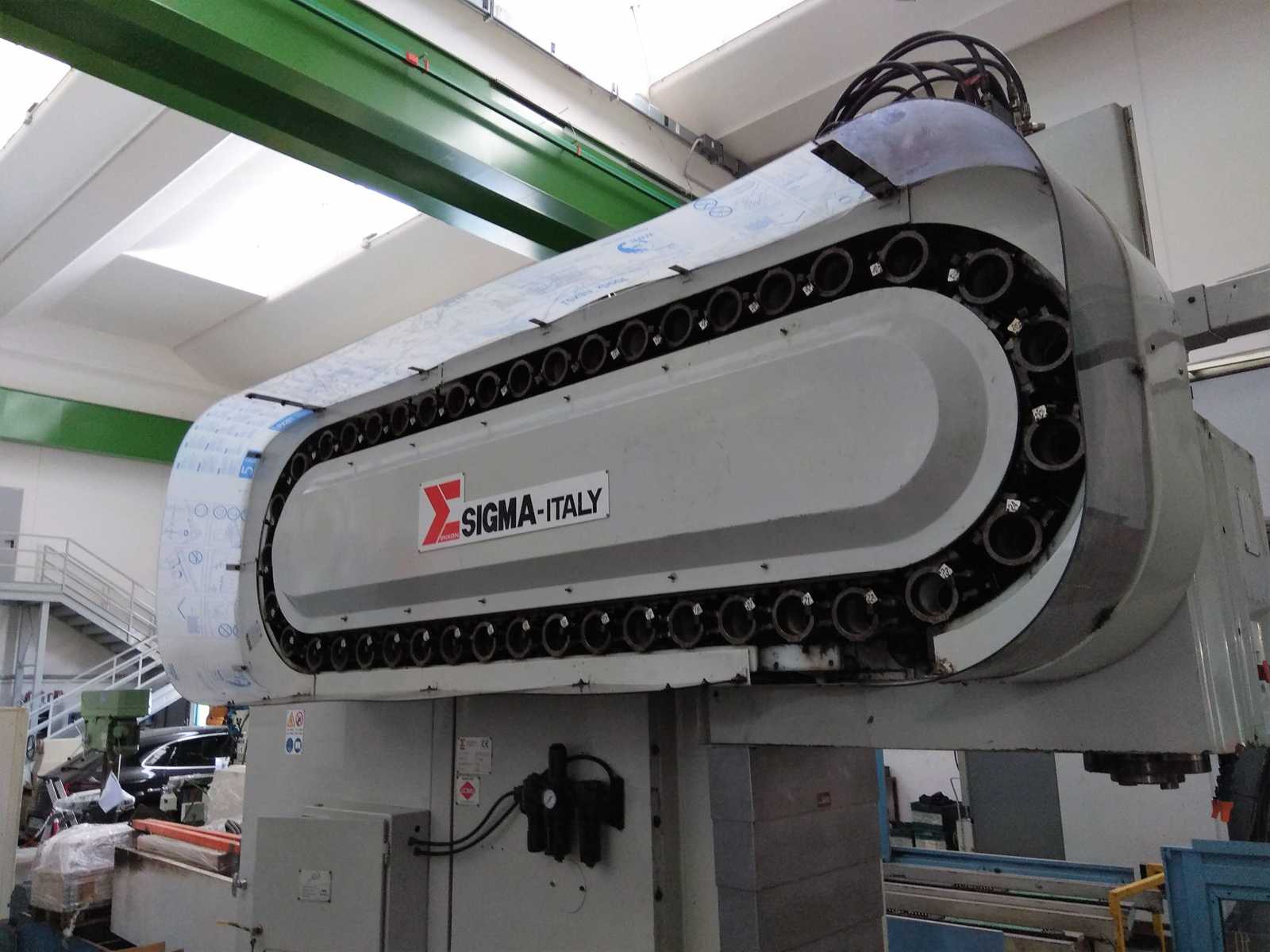

RANDOM TOOL MAGAZINE WITH 41 POSITIONS
MAX TOOL DIAMETER 120 (200) mm
MAX TOOL LENGTH 400 mm
MAX TOOL WEIGHT 20 Kg

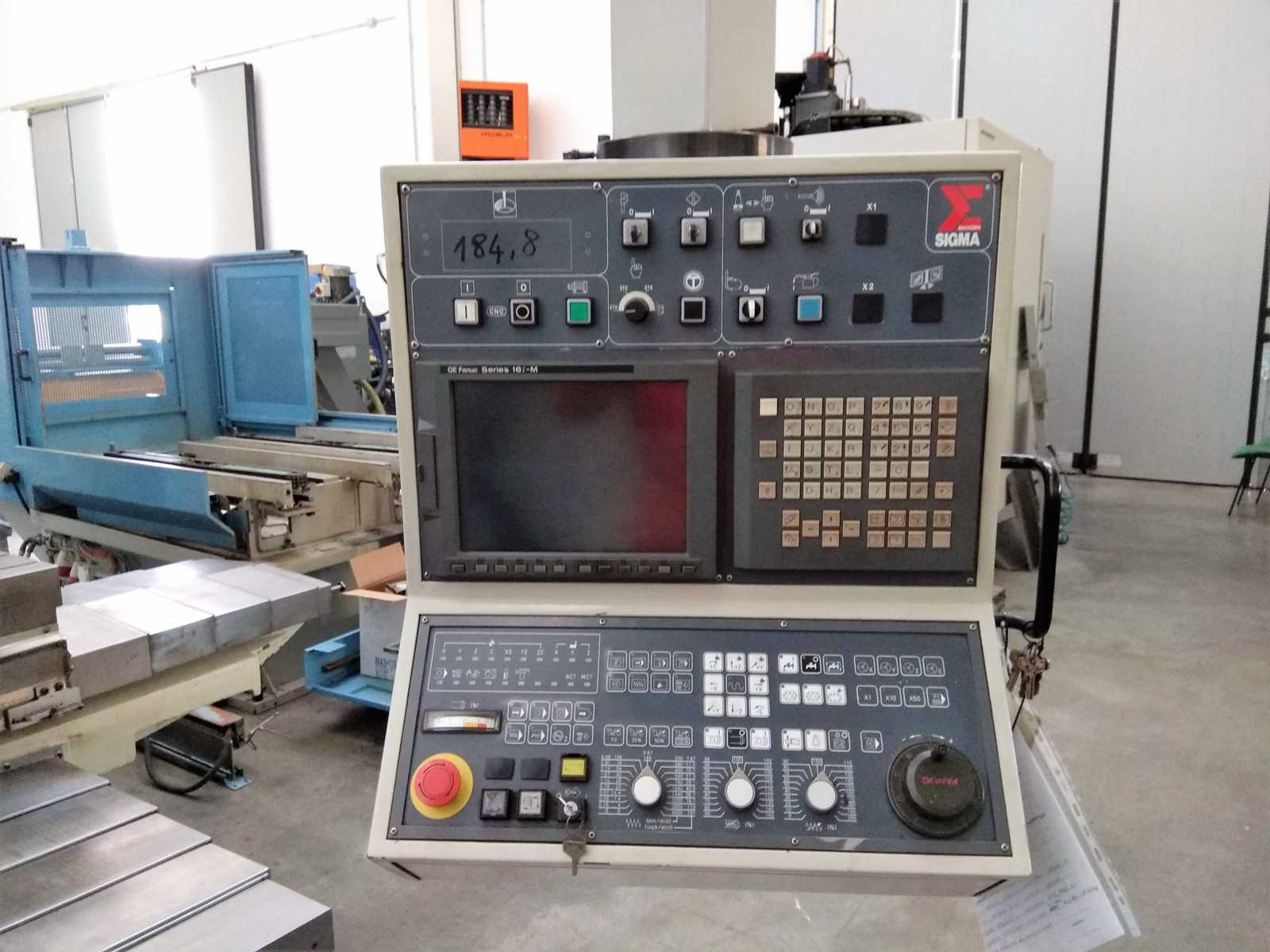

FANUC 16i-M
CONTROL
CHIP EVACUATOR; RANGE CHANGE

WEIGHT 16750 Kg
OVERALL DIMENSIONS 7135 x 5300 x 3426 mm
