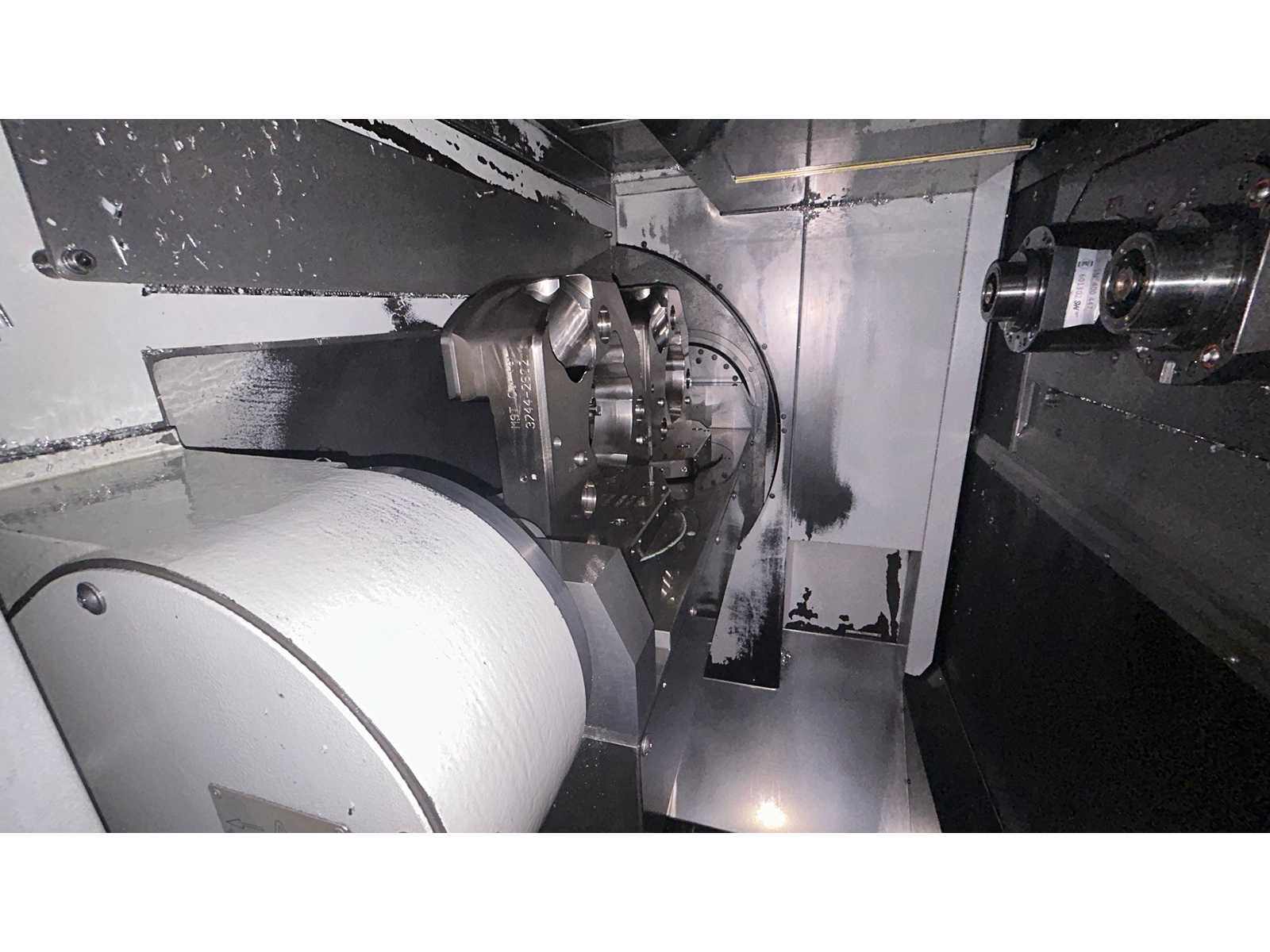

SW (SCHWÄBISCHE WERKZEUGMASCHINEN) BA322 High Precision 5-Axis Double-Spindle Horizontal CNC Machining Center – Solution Line

Last recorded bid	€0,00
Time left	00 dagen 00 uren 00 min 00 sec
Location	France
Auction house

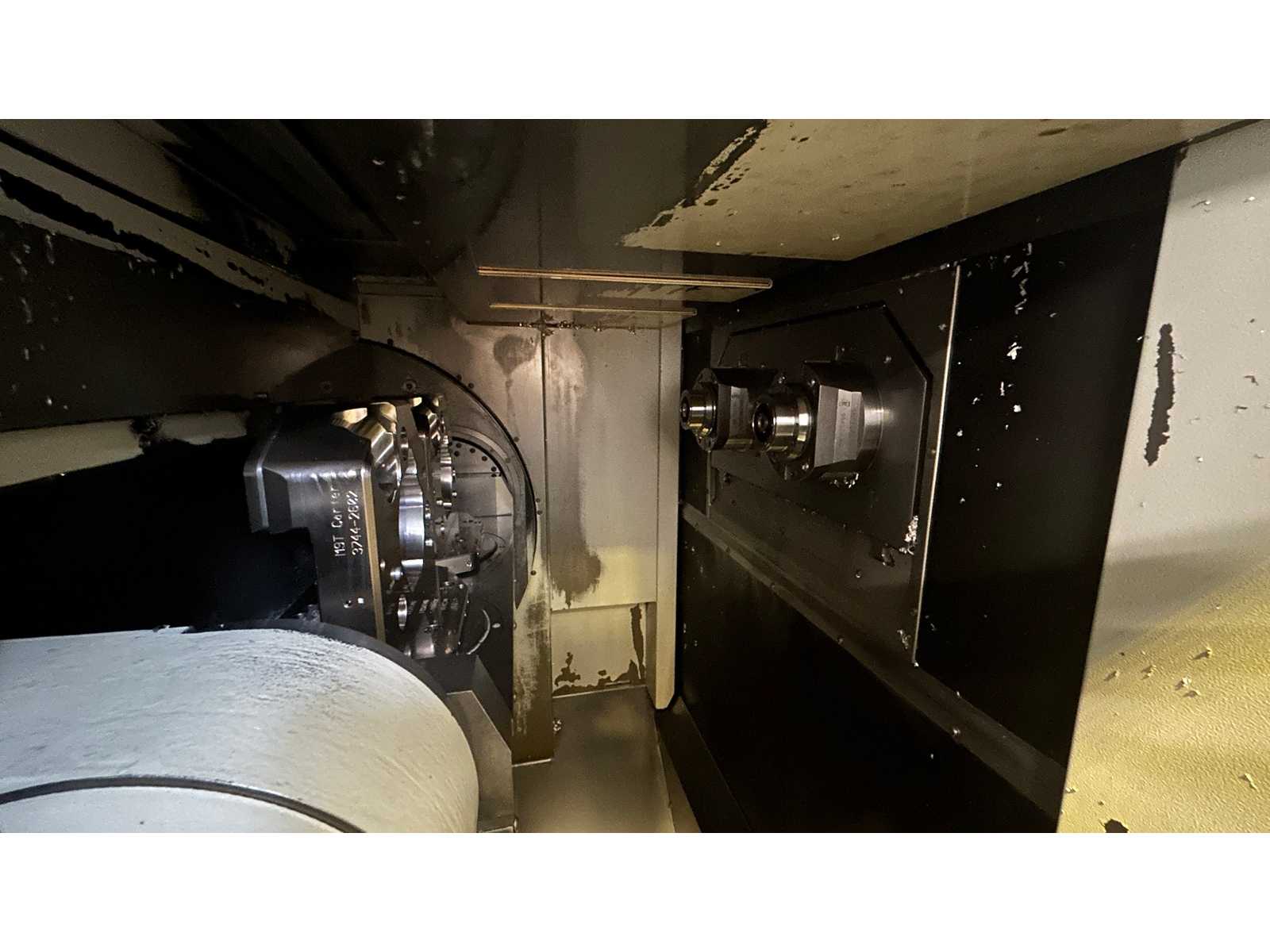

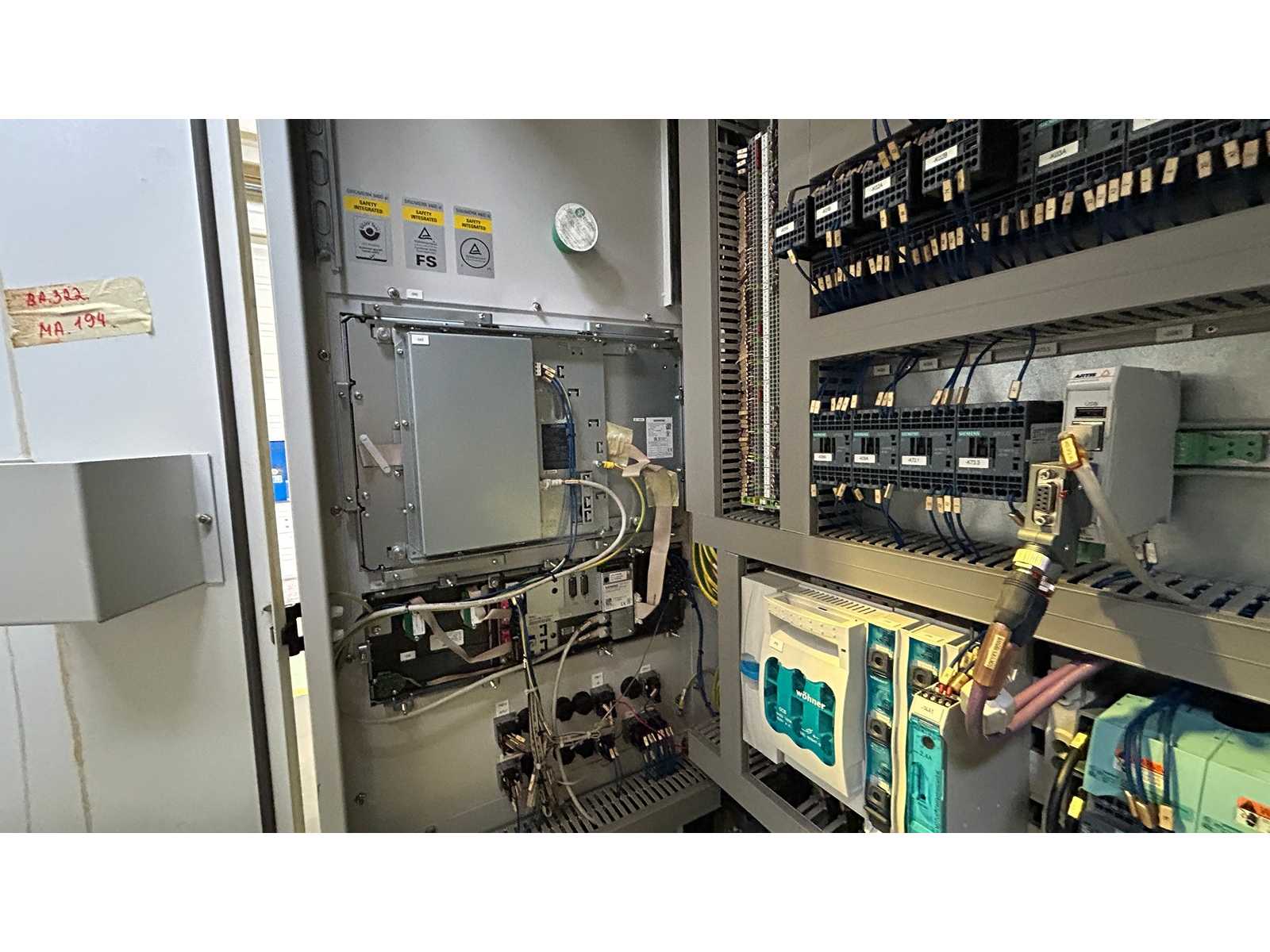

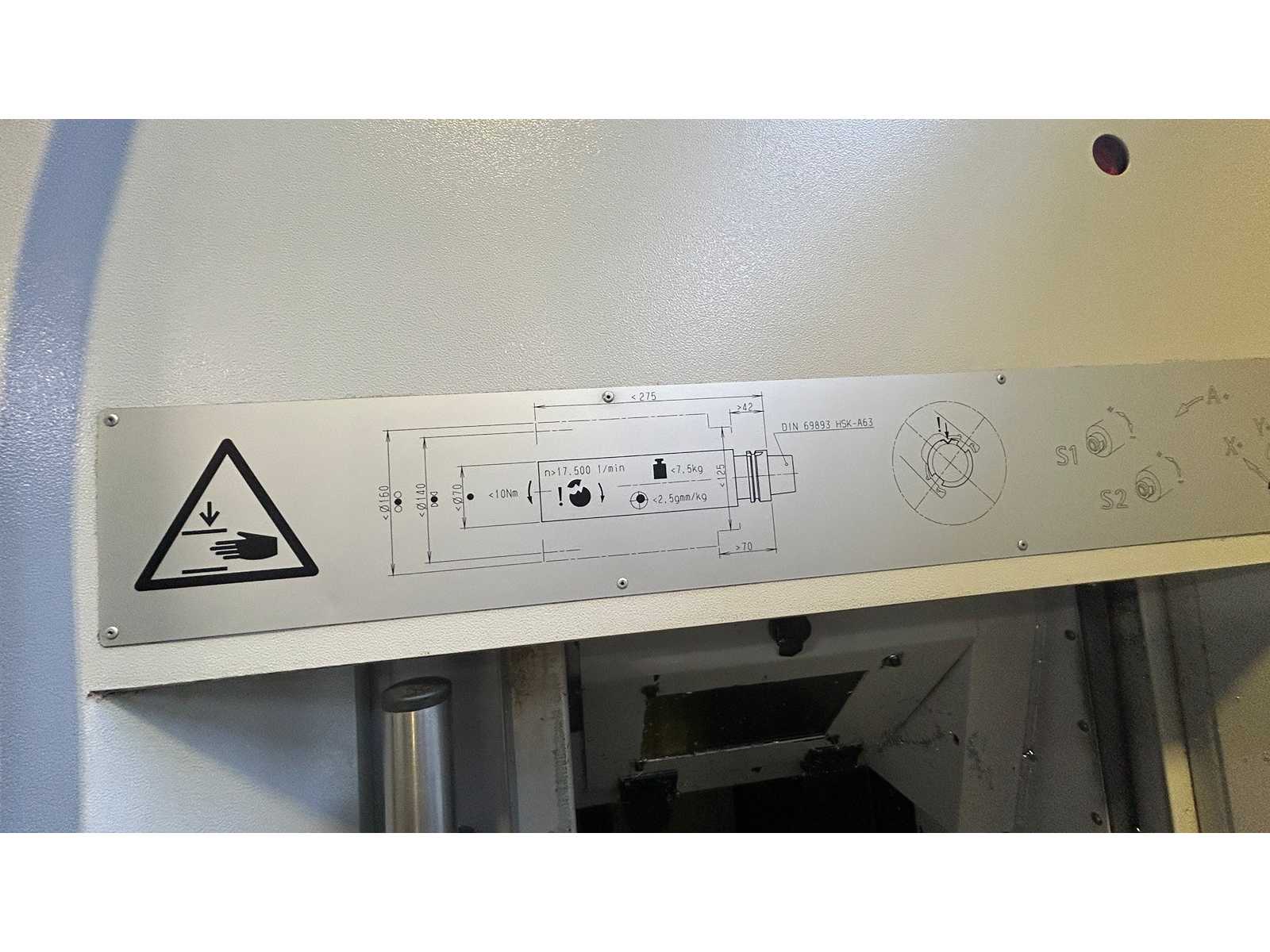

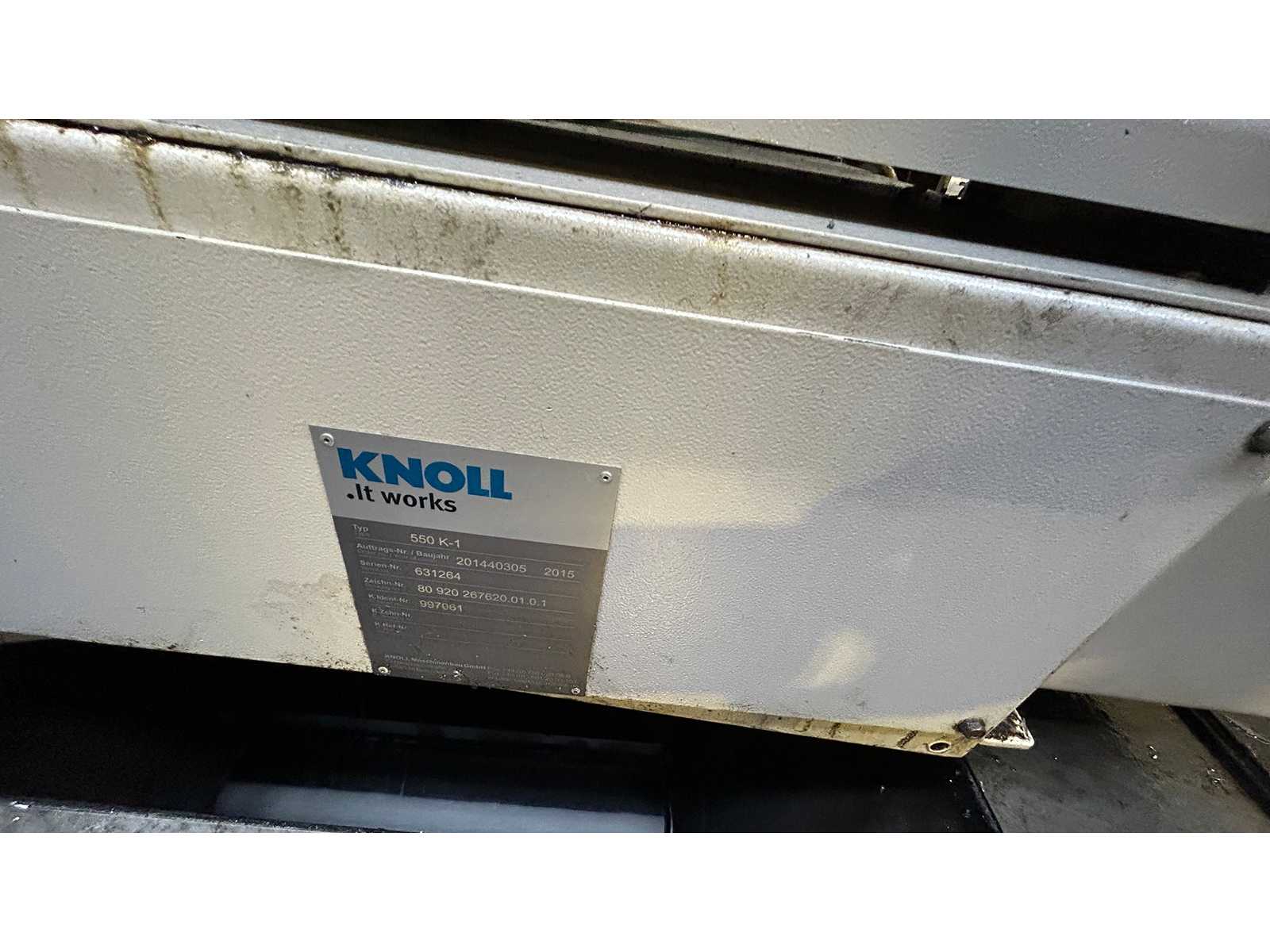

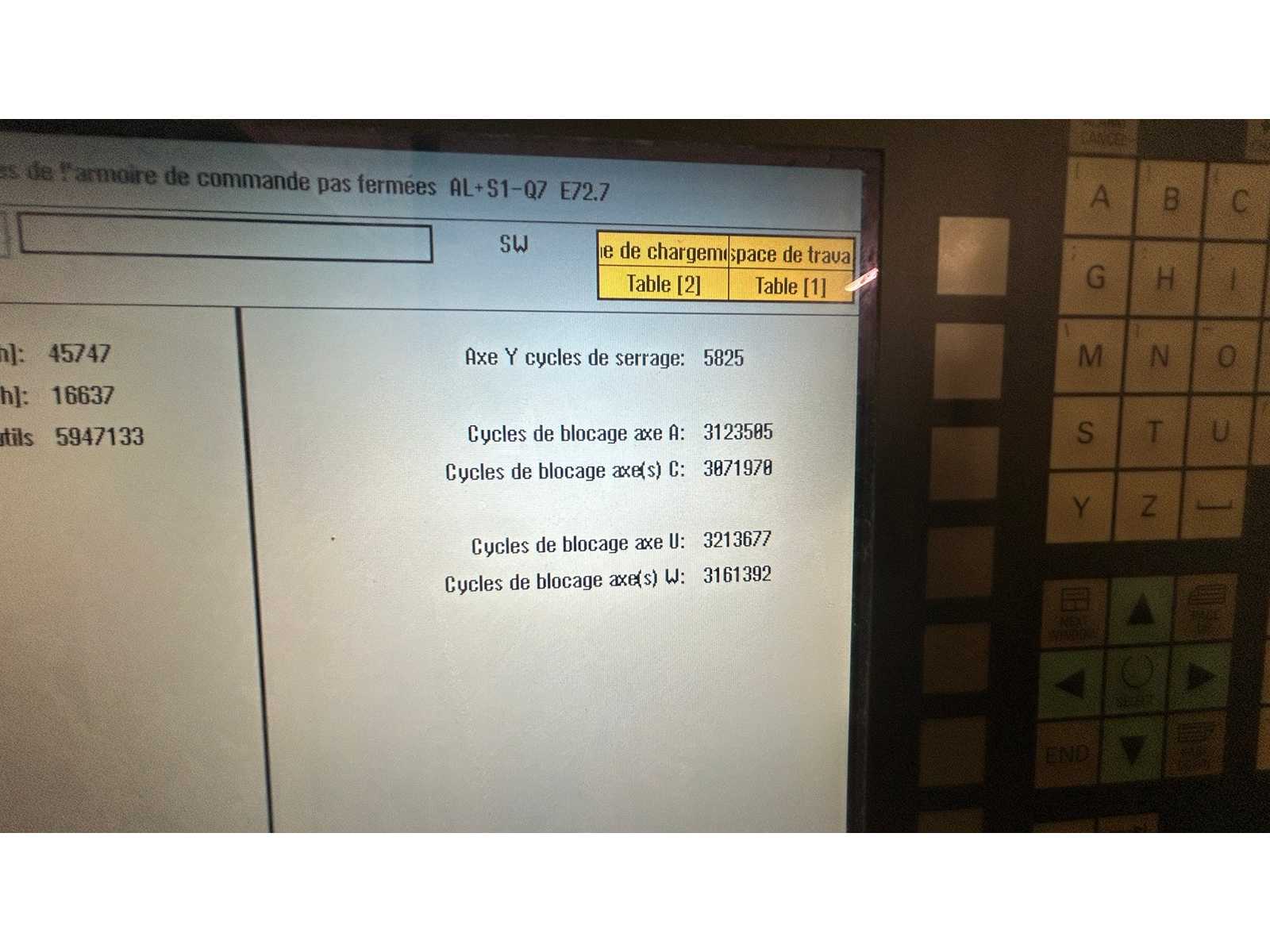

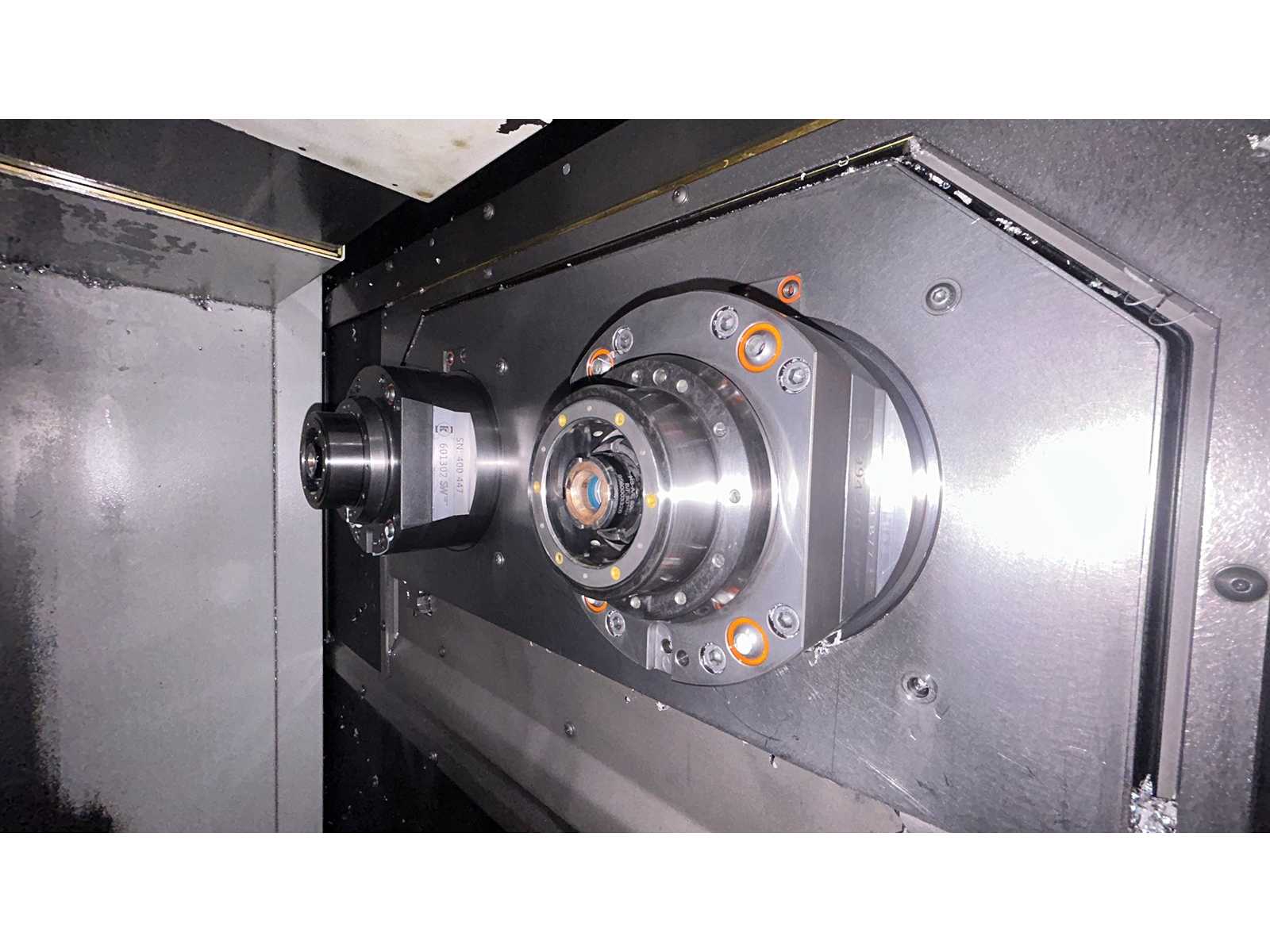

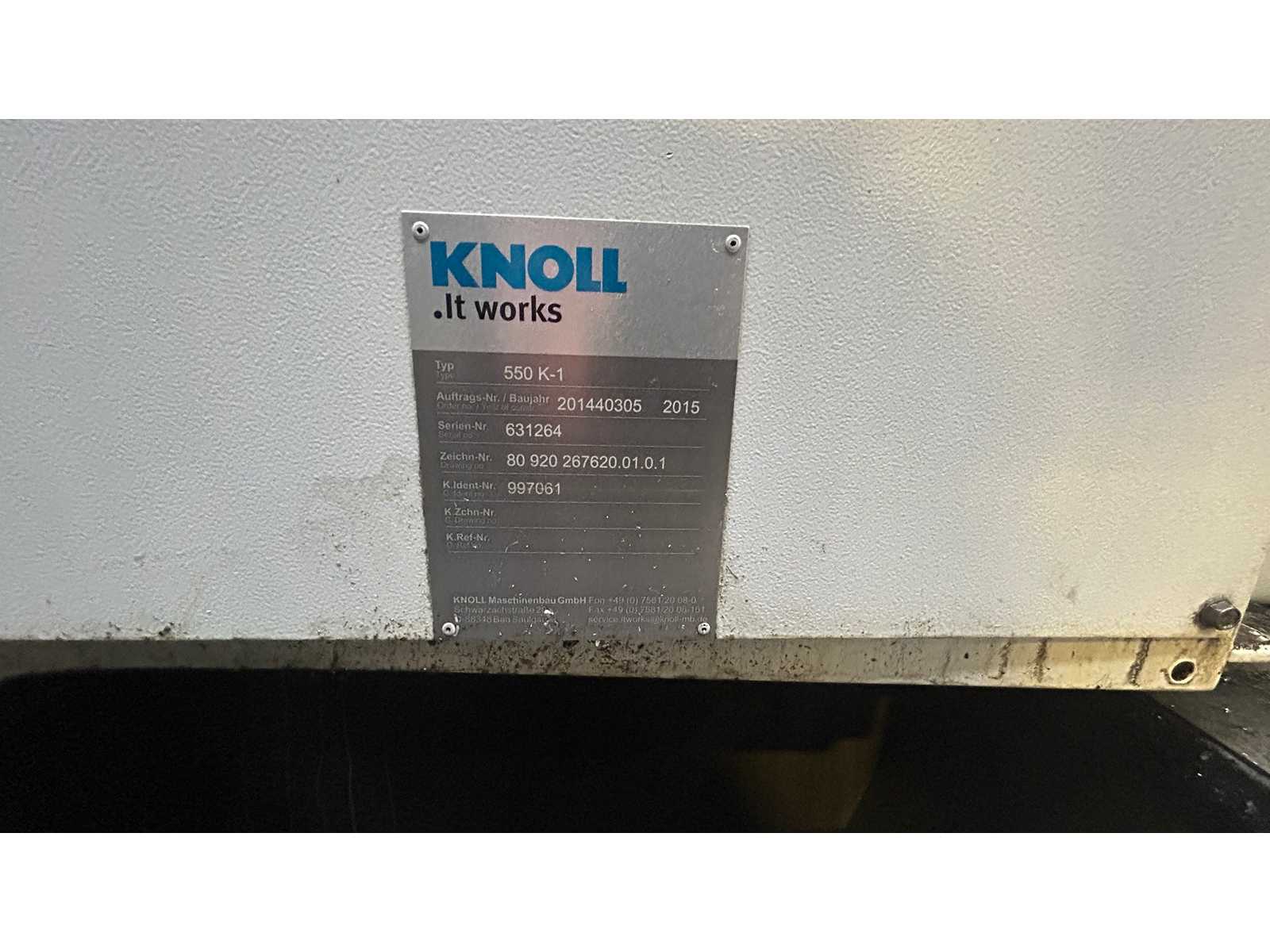

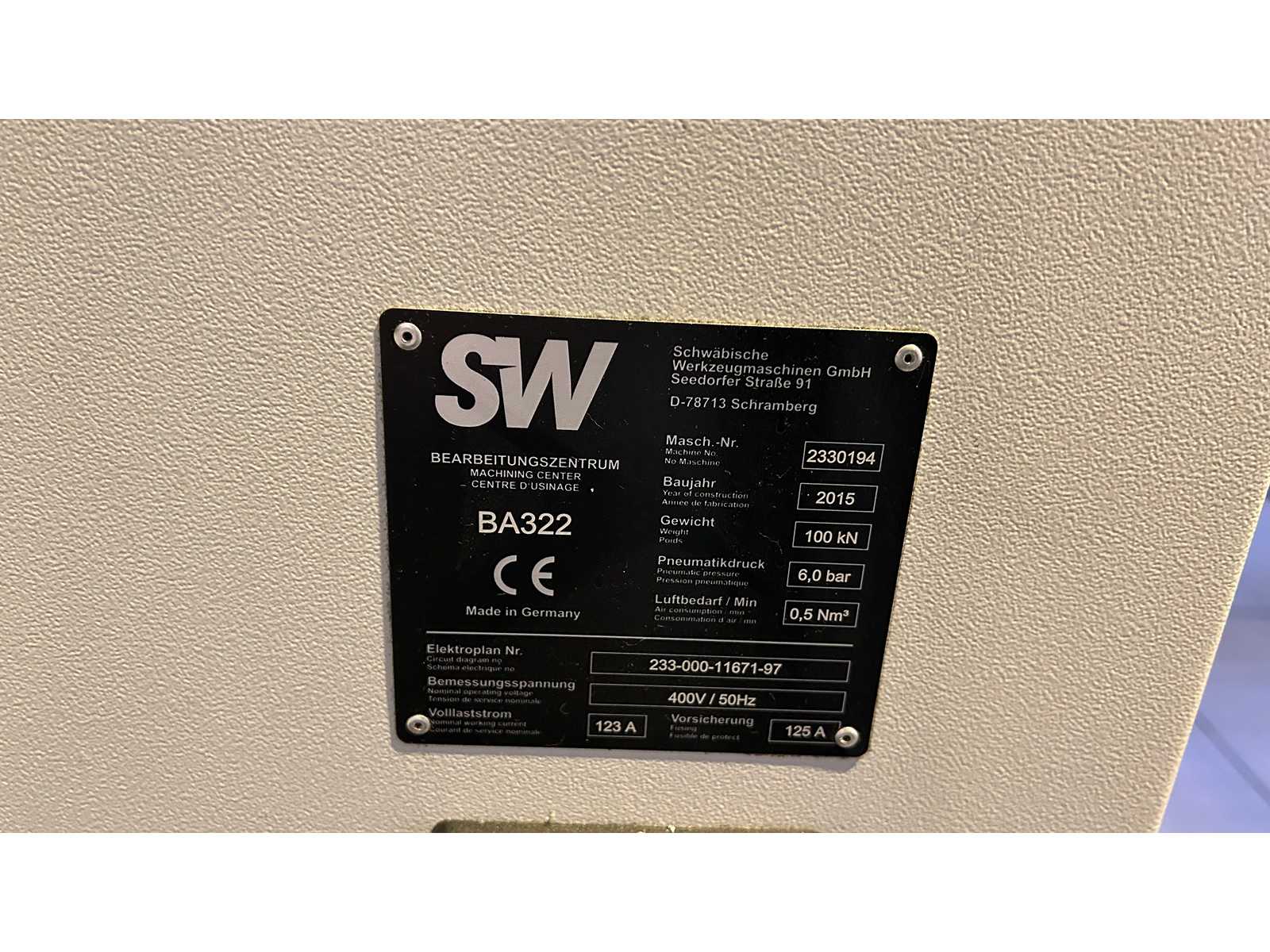

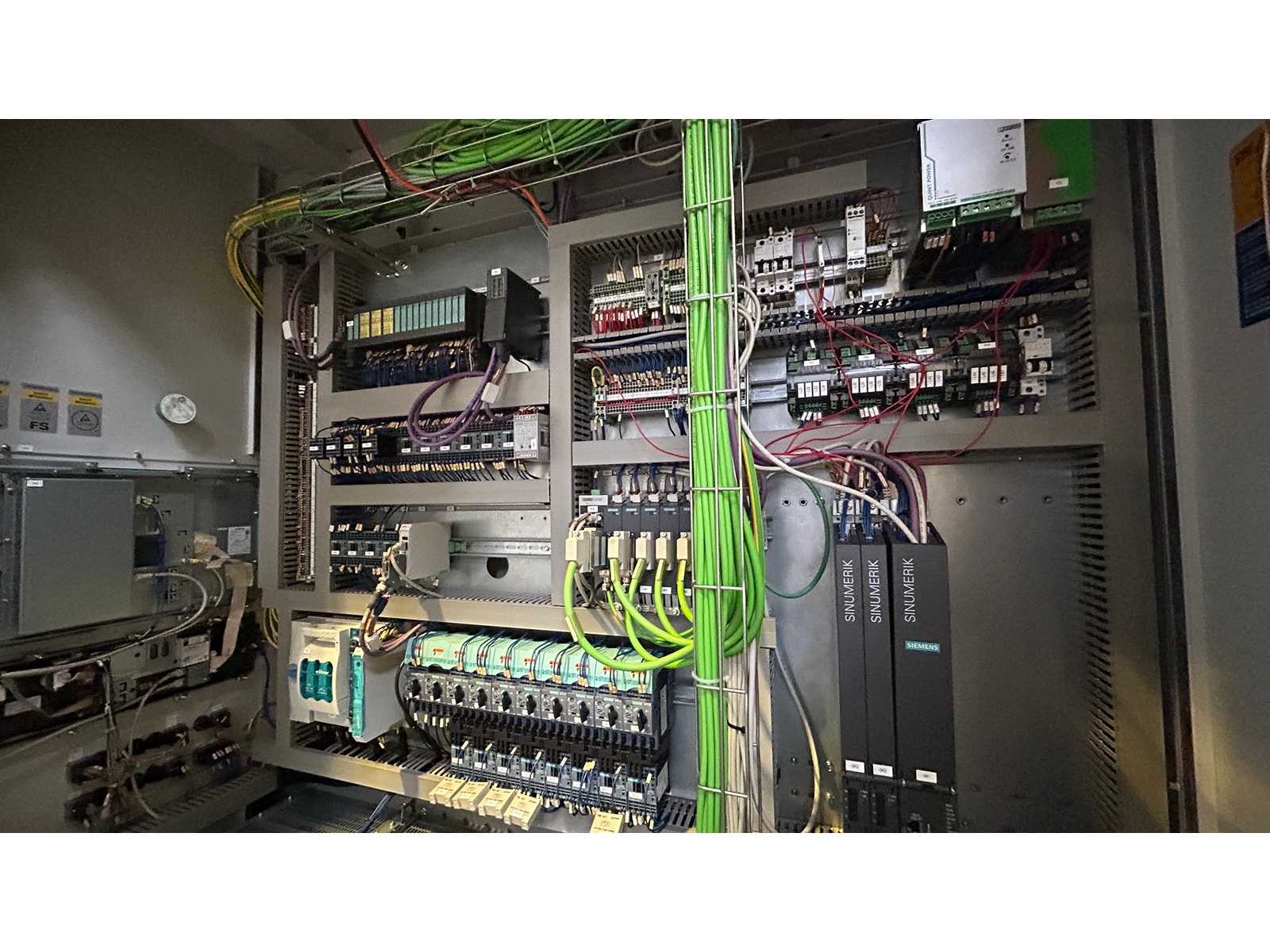

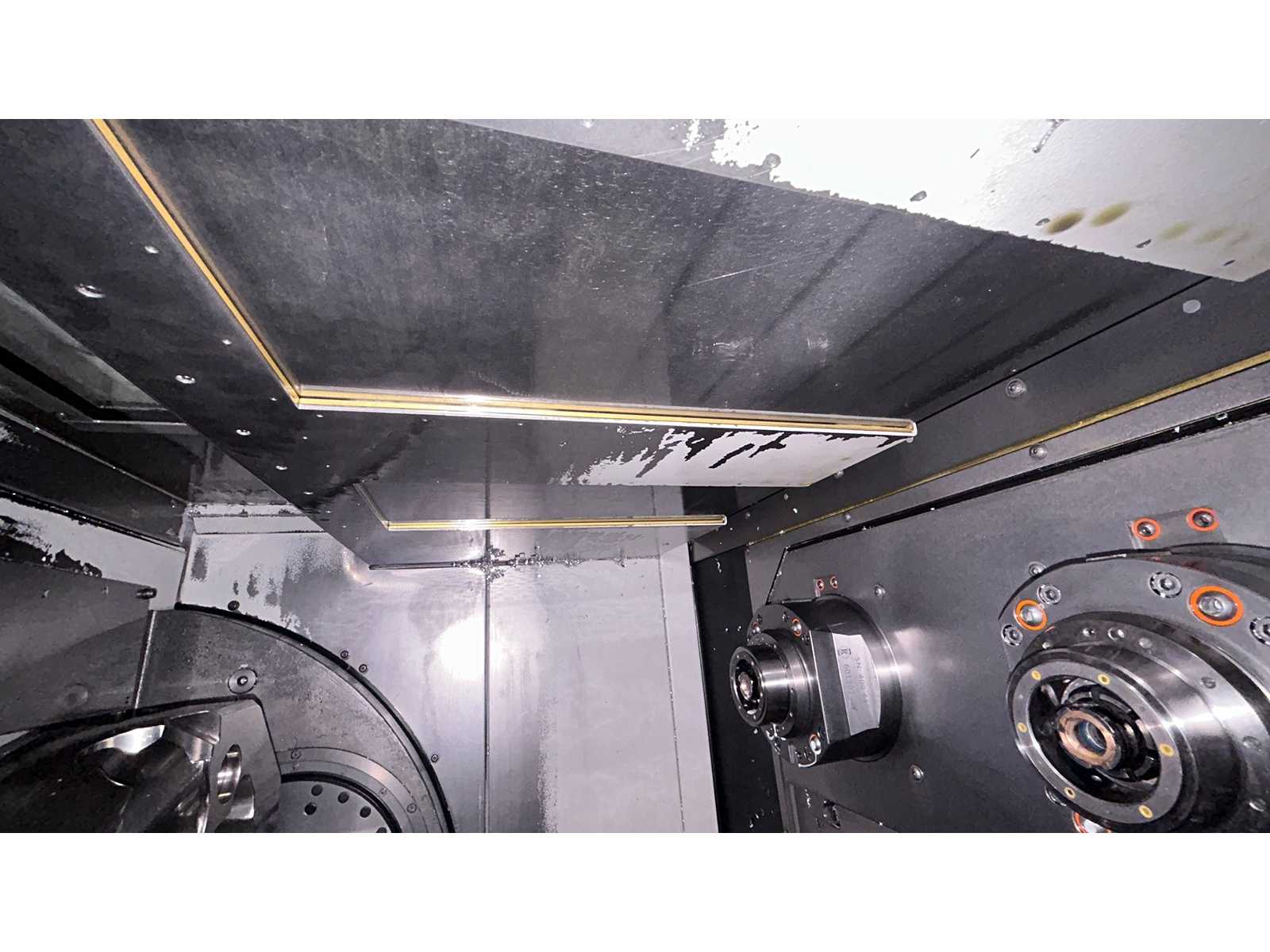

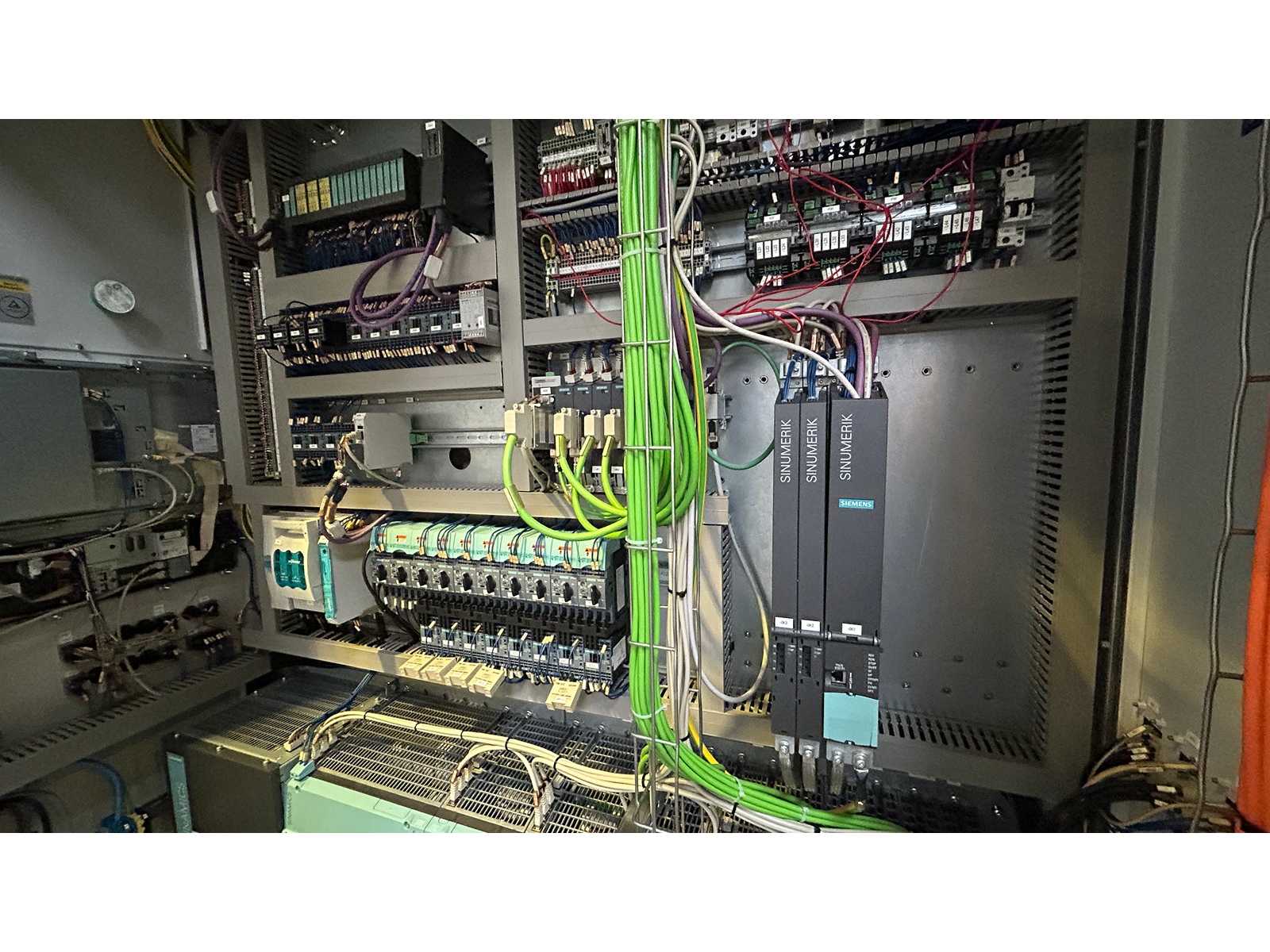

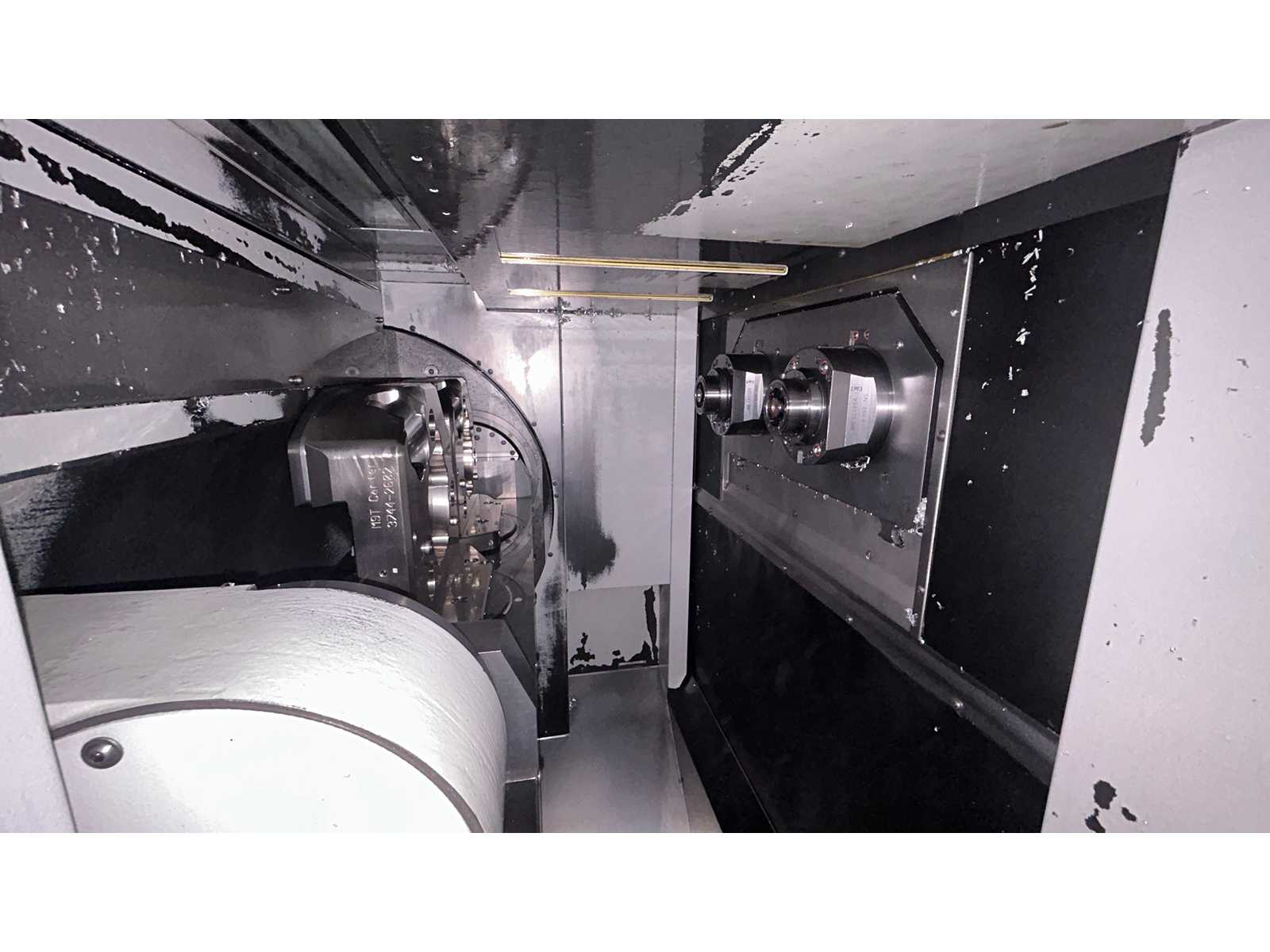

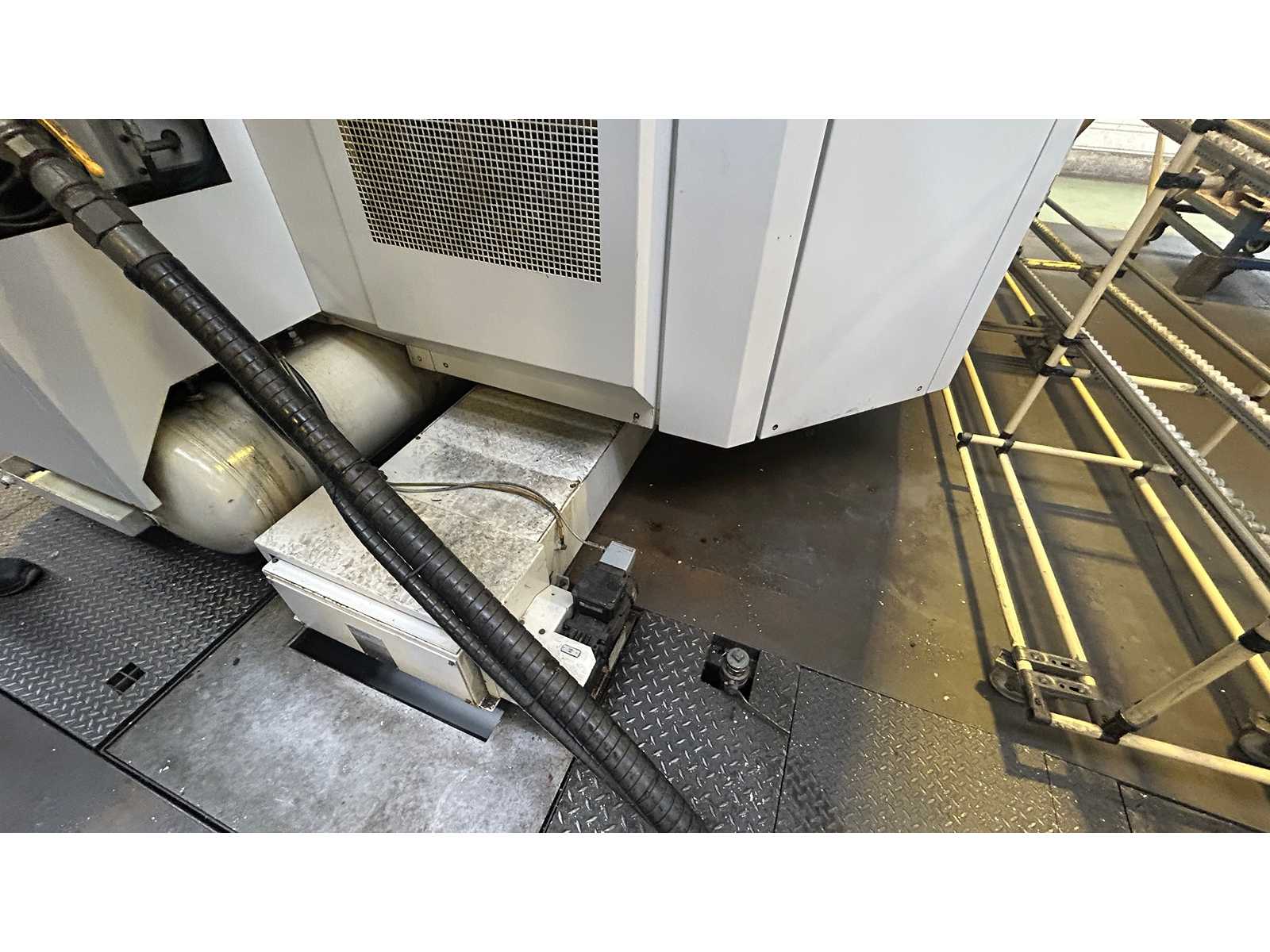

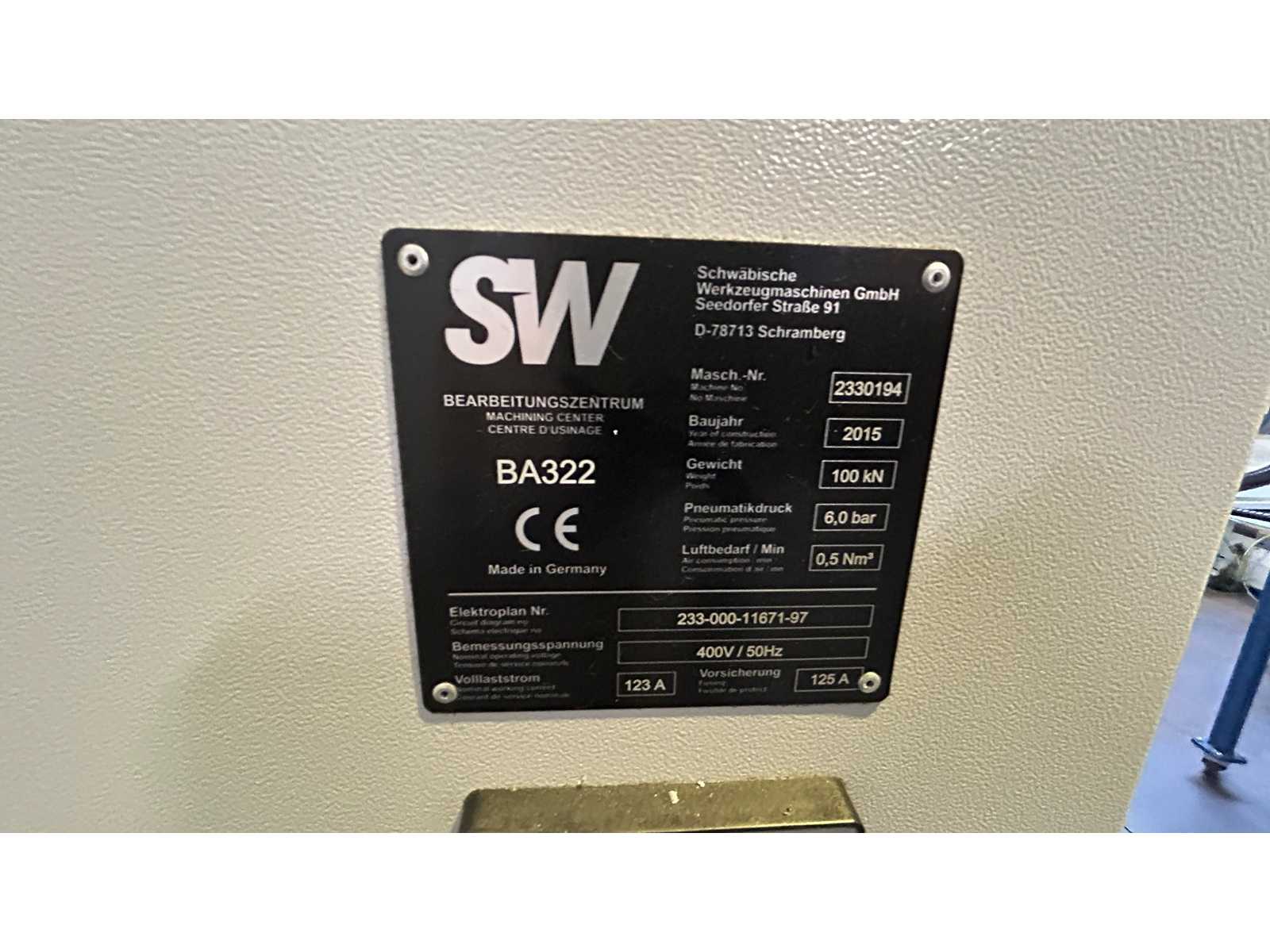

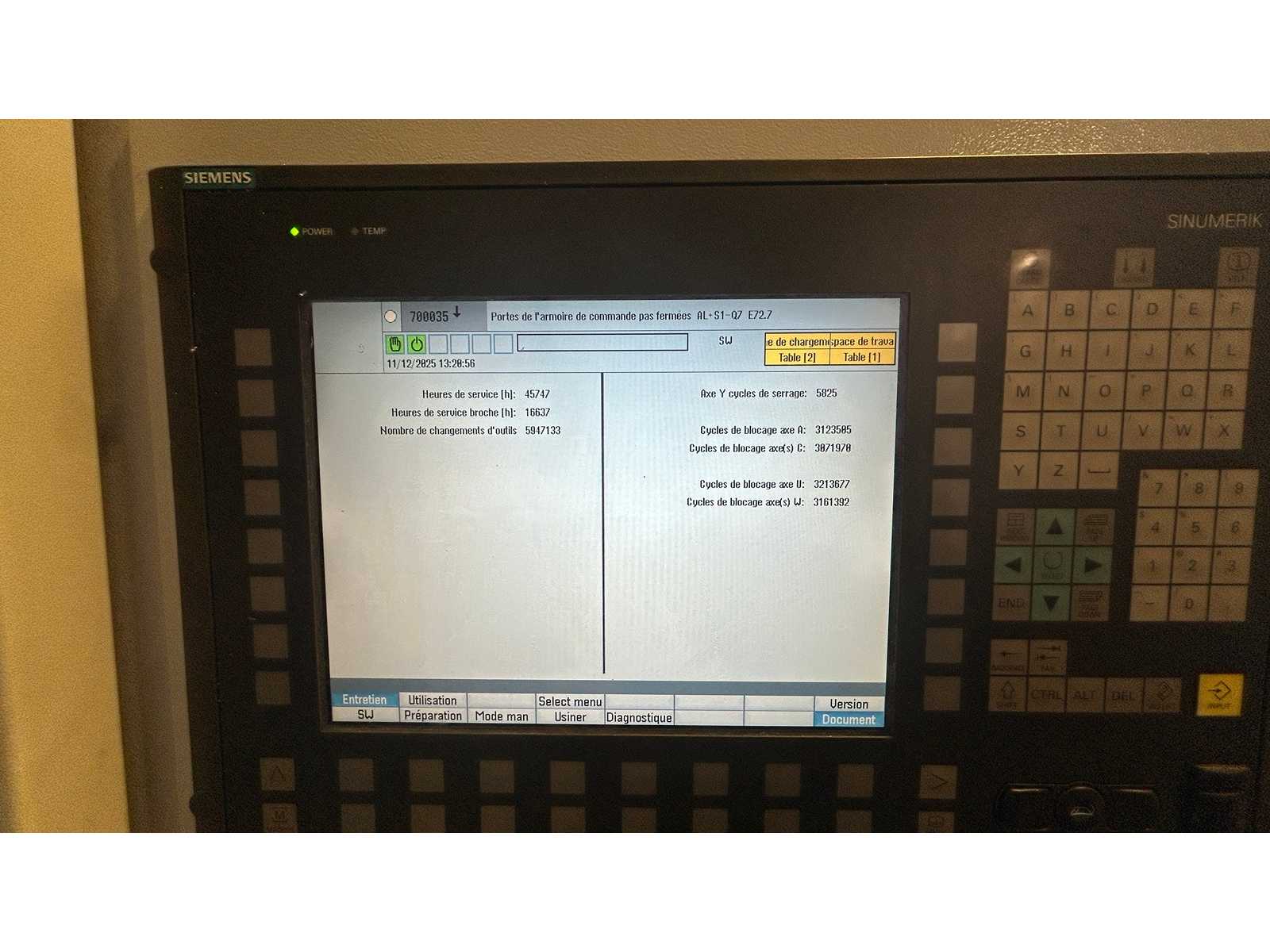

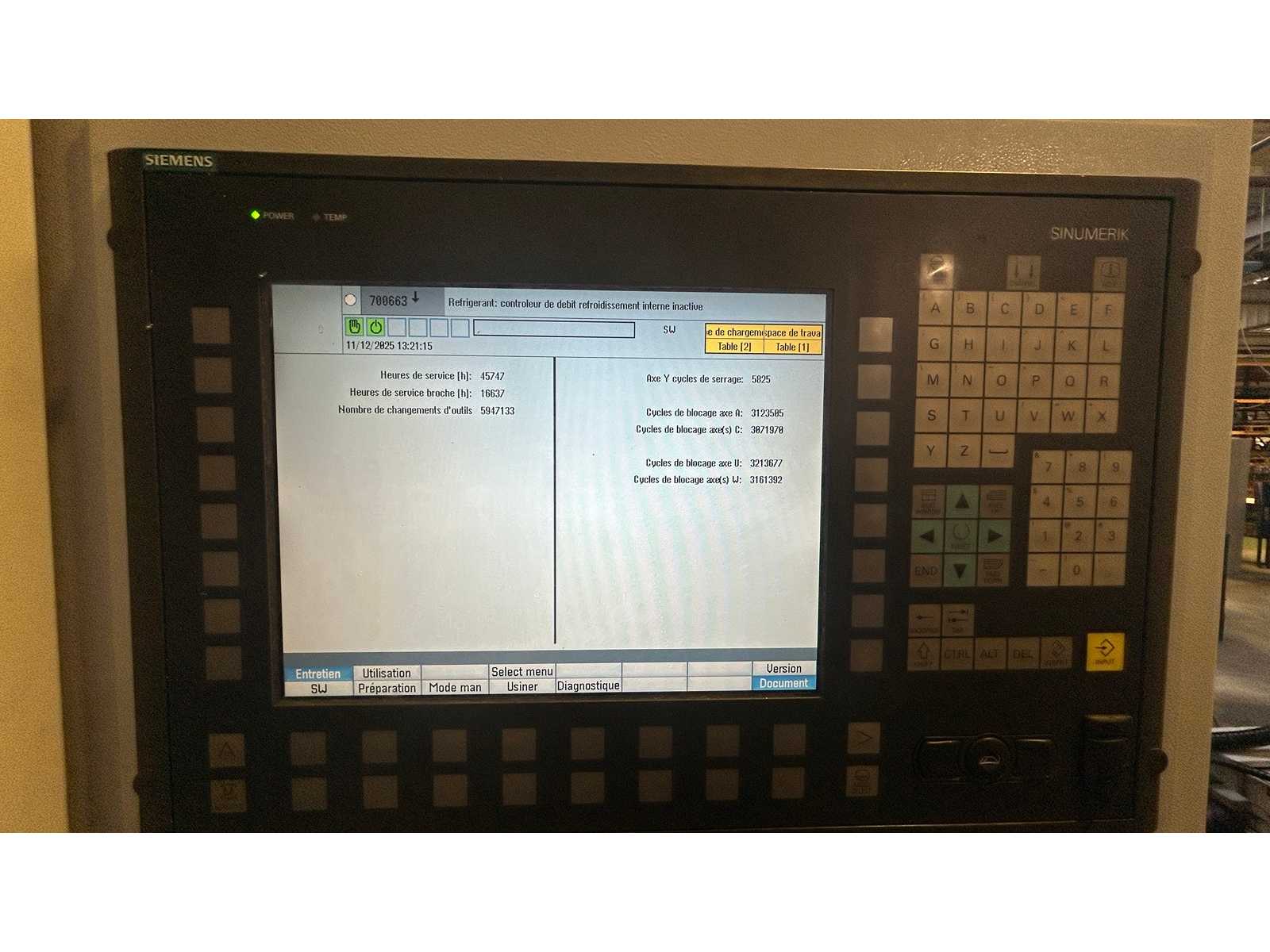

Description	5-axis twin-spindle horizontal CNC machining center – SW BA322 Year 2015 – Siemens Sinumerik 840D Solution Line control – Serial No. 2330194 • Architecture: HSK-A63 dual spindle, 5 simultaneous axes, two workstations • Speed: 17,500 rpm • Strokes: X 300 mm / Y 450 mm / Z 375 mm • Fast feeds: 65 / 75 / 75 m/min • Accelerations: X/Y 10 m/s² – Z 15 m/s² • Tool magazines: 2 × 32 positions • Position tolerance: ± 0.008 mm • Clamping force: 100 kN – Pressure: 6 bar • Installed power: 400 V – 50 Hz – 123 A (125 A fuse) • Chip conveyor: KNOLL 550 K-1 (2015) – flat version with integrated filtration • Rigid mineral cast structure – Central lubrication and cooling • Control: Siemens Sinumerik 840D Solution Line • Made in Germany – Machine in excellent condition Dimensions (mm) : 2750 × 3650 × 3550 Weight (kg) : 10,000
