SW (SCHWÄBISCHE WERKZEUGMASCHINEN) BA322 Horizontal CNC Machining Center Double Dynamic High Dynamic 5 Axis – Solution Line

Last recorded bid	€0,00
Time left	00 dagen 00 uren 00 min 00 sec
Location	France
Auction house

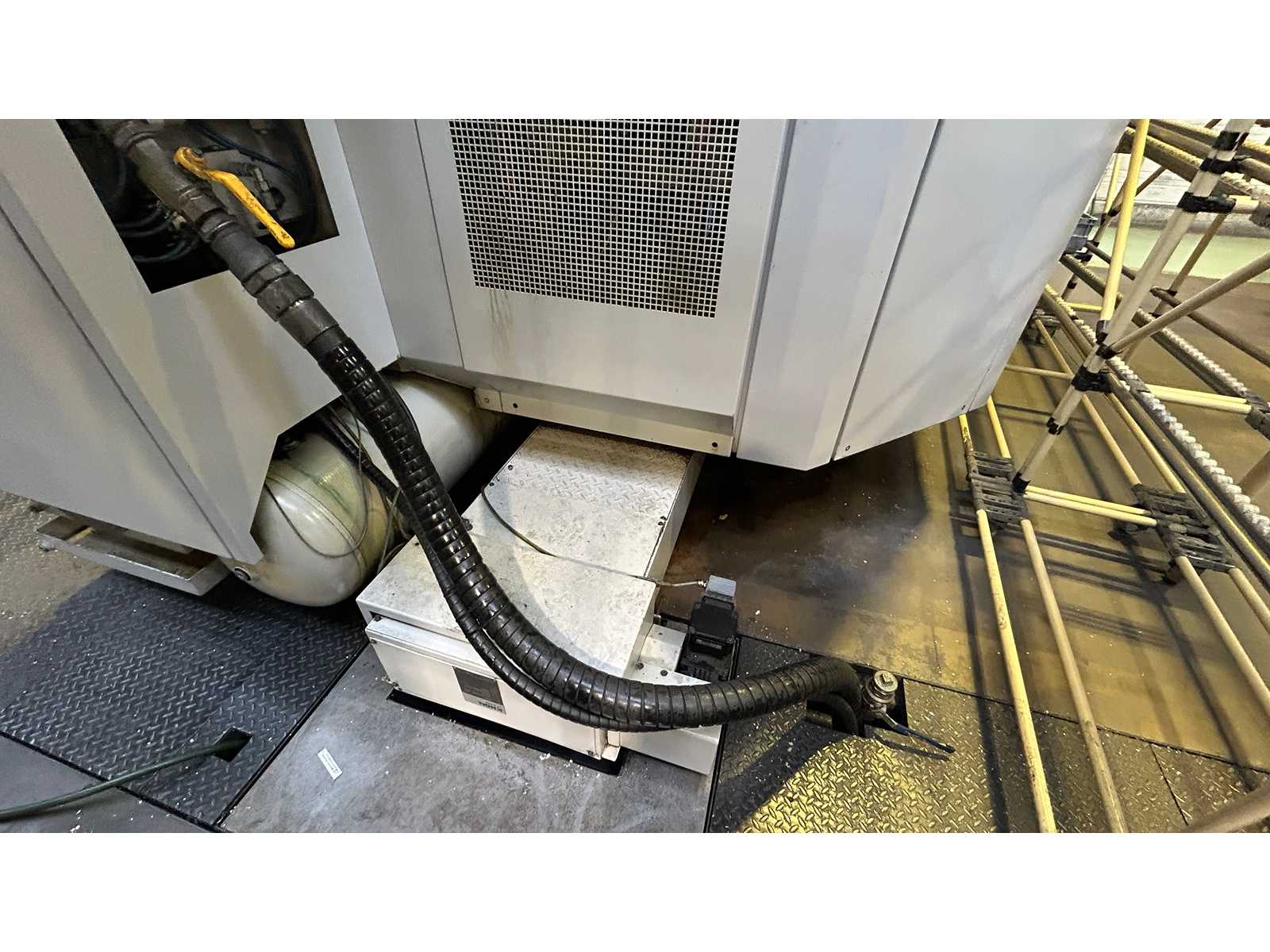

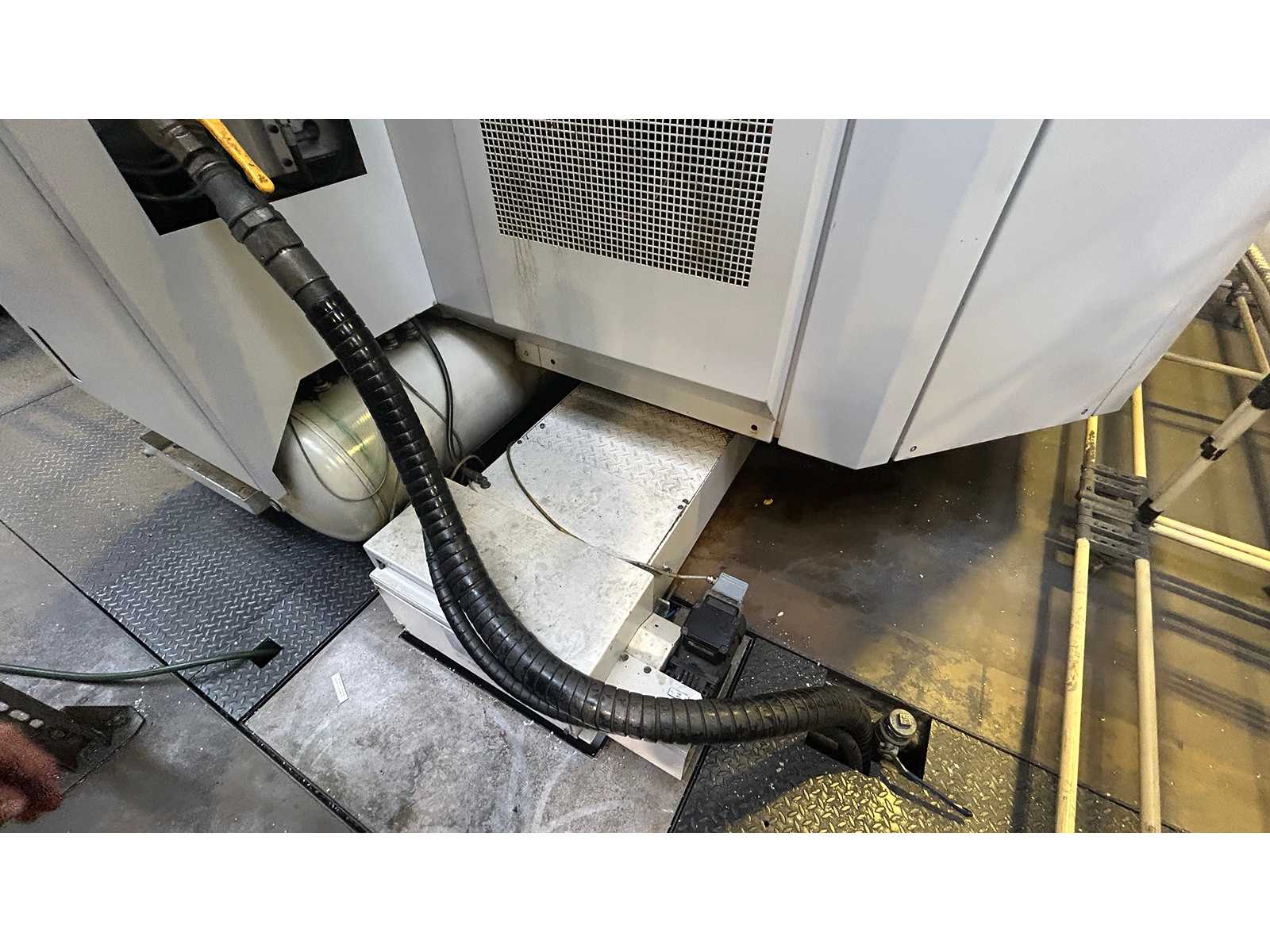

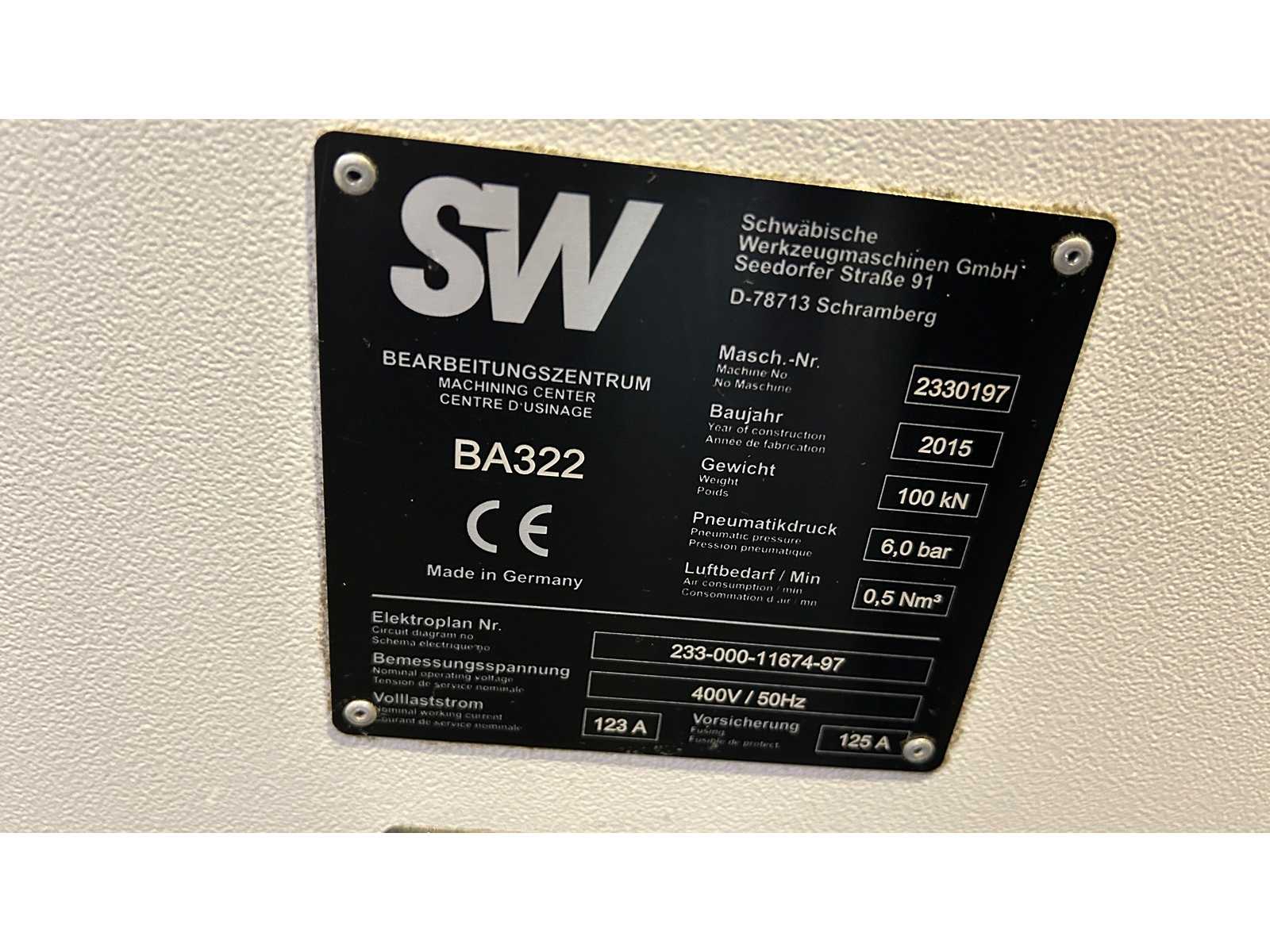

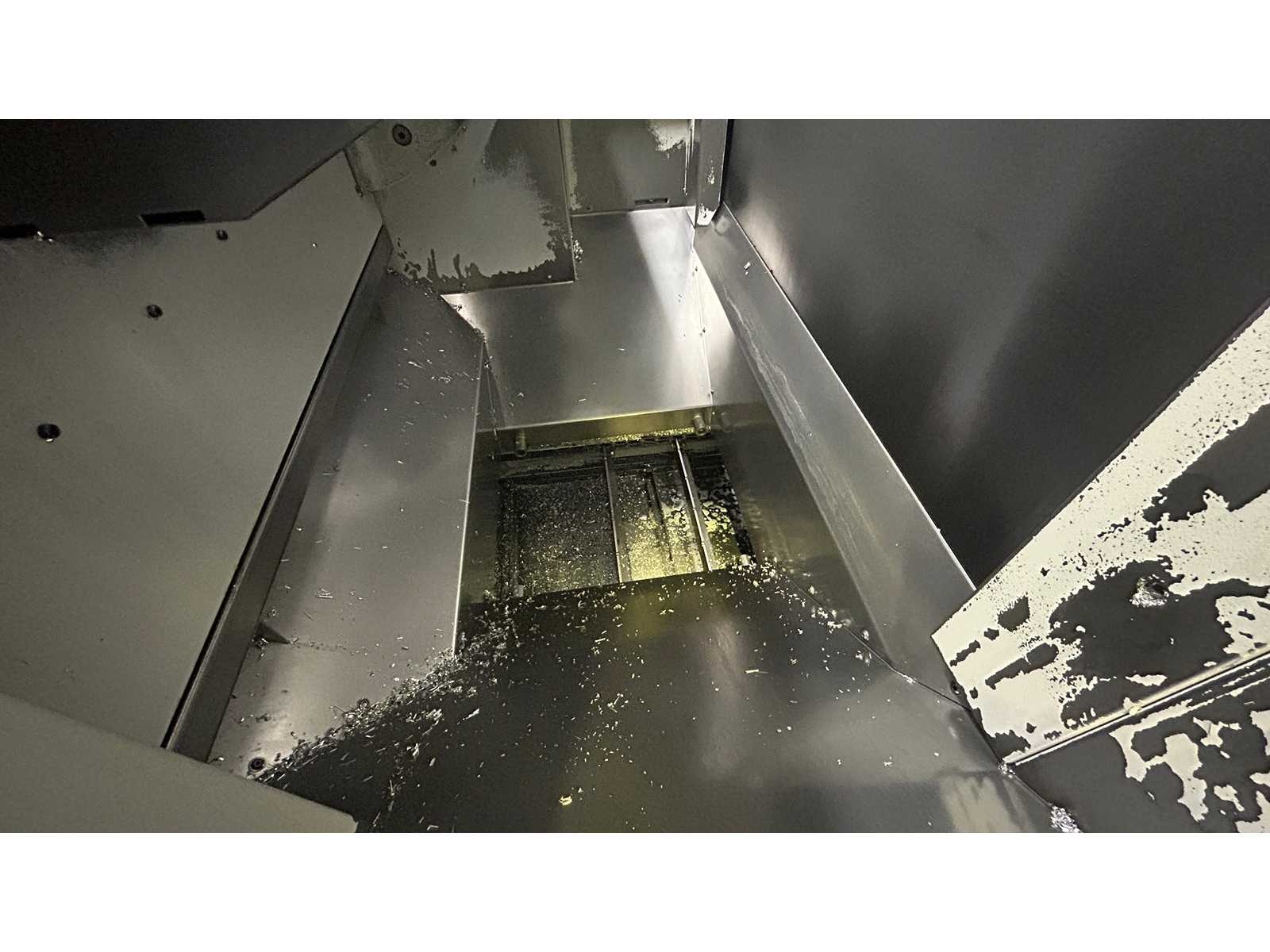

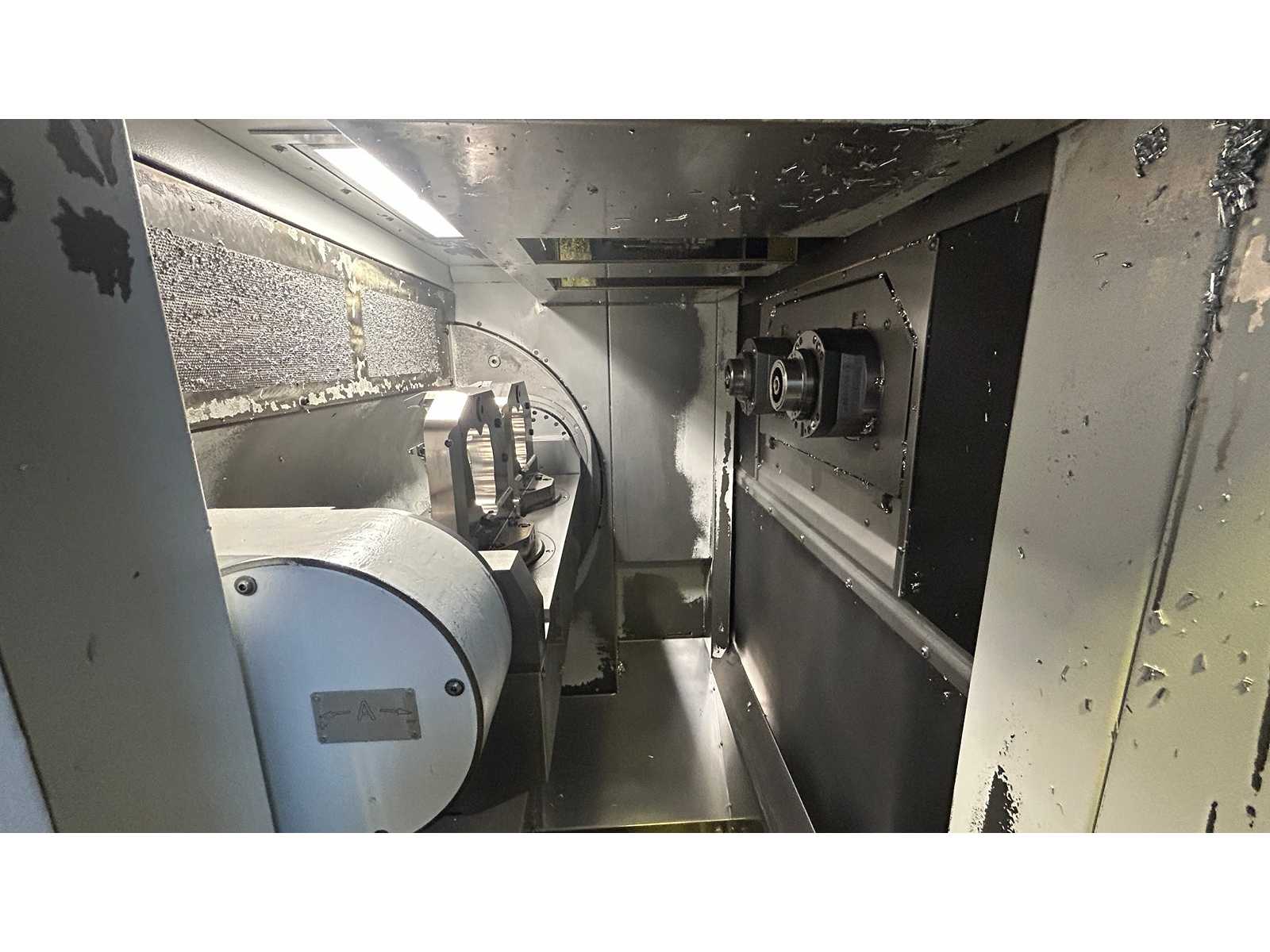

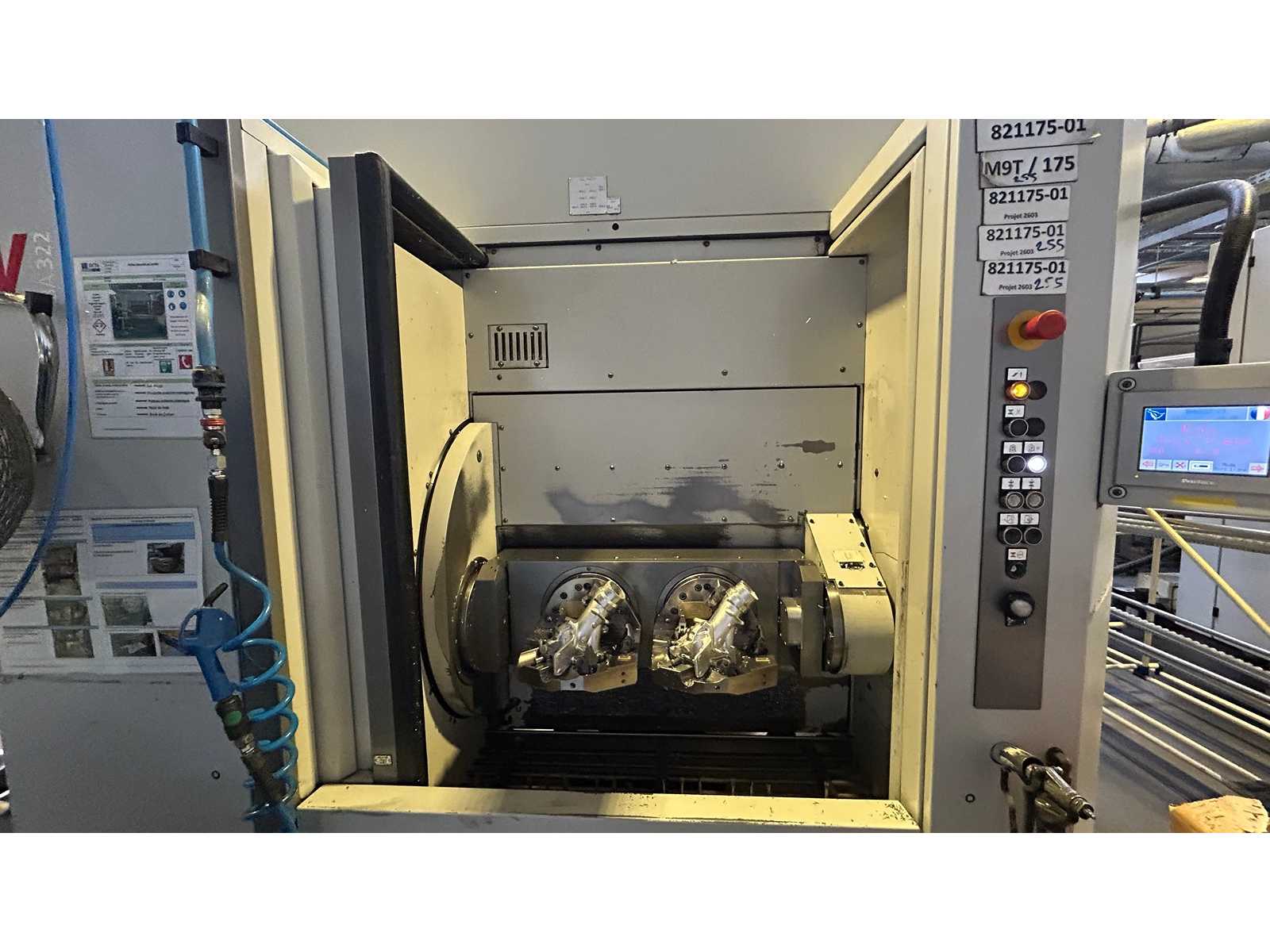

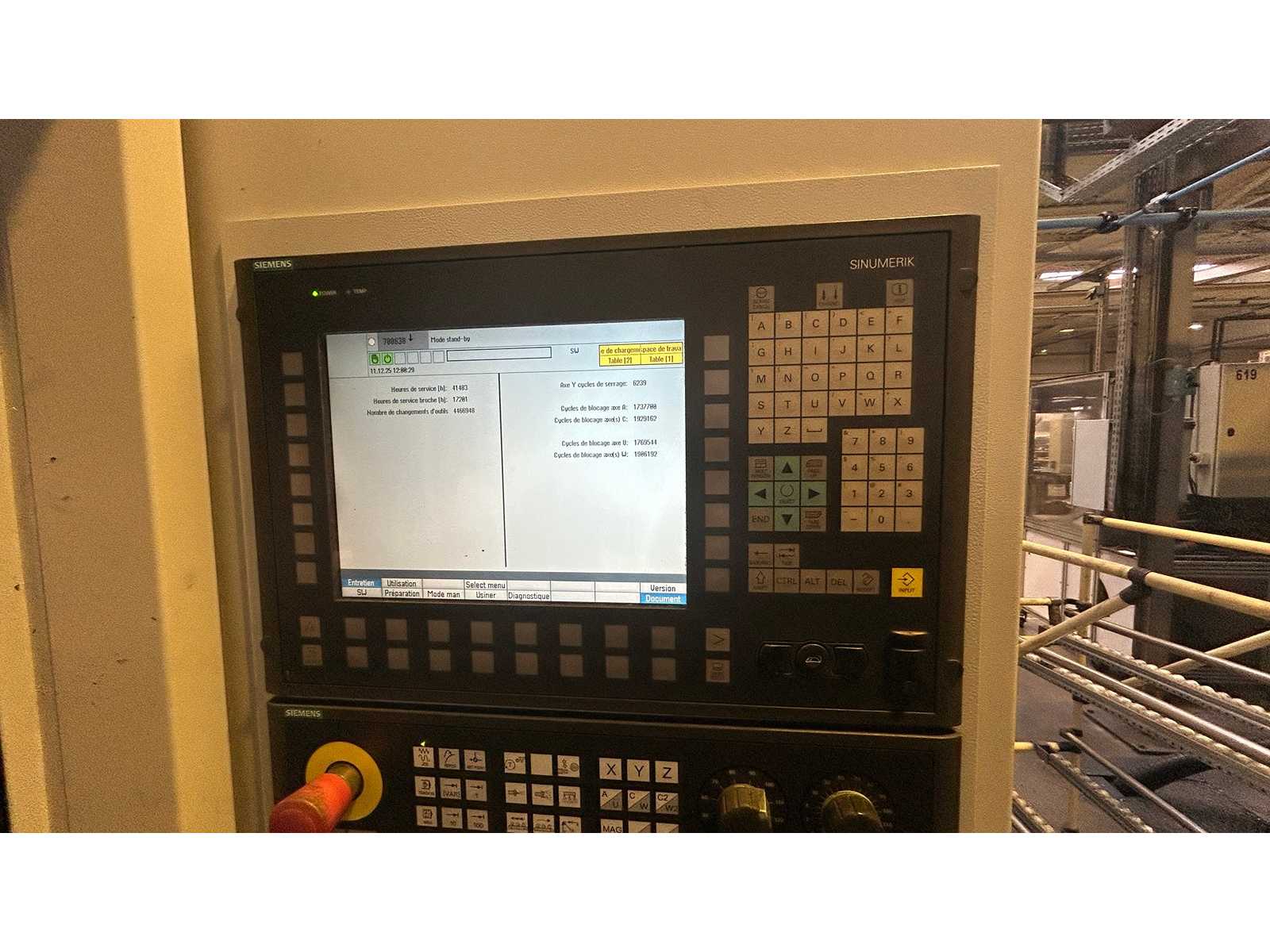

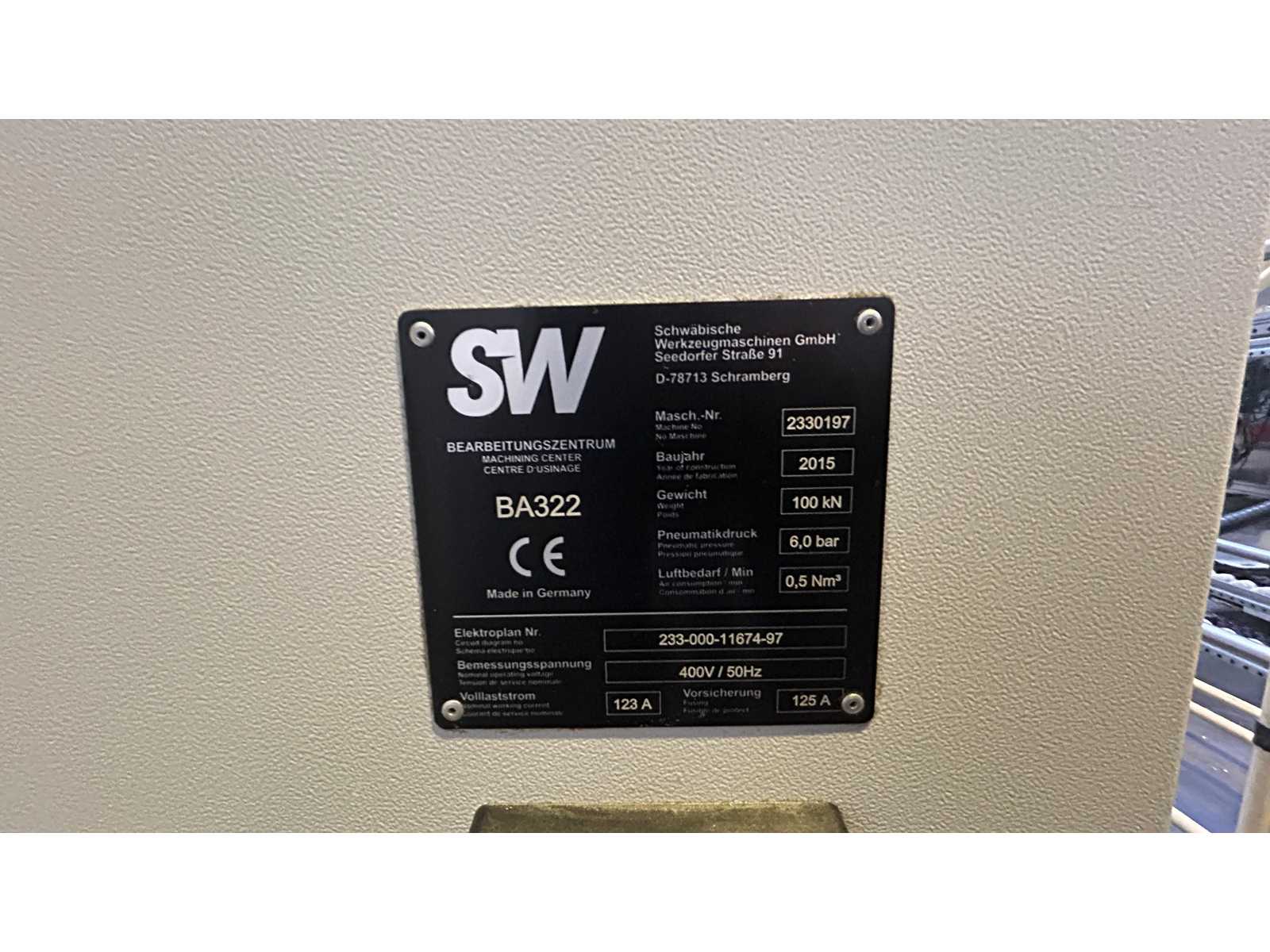

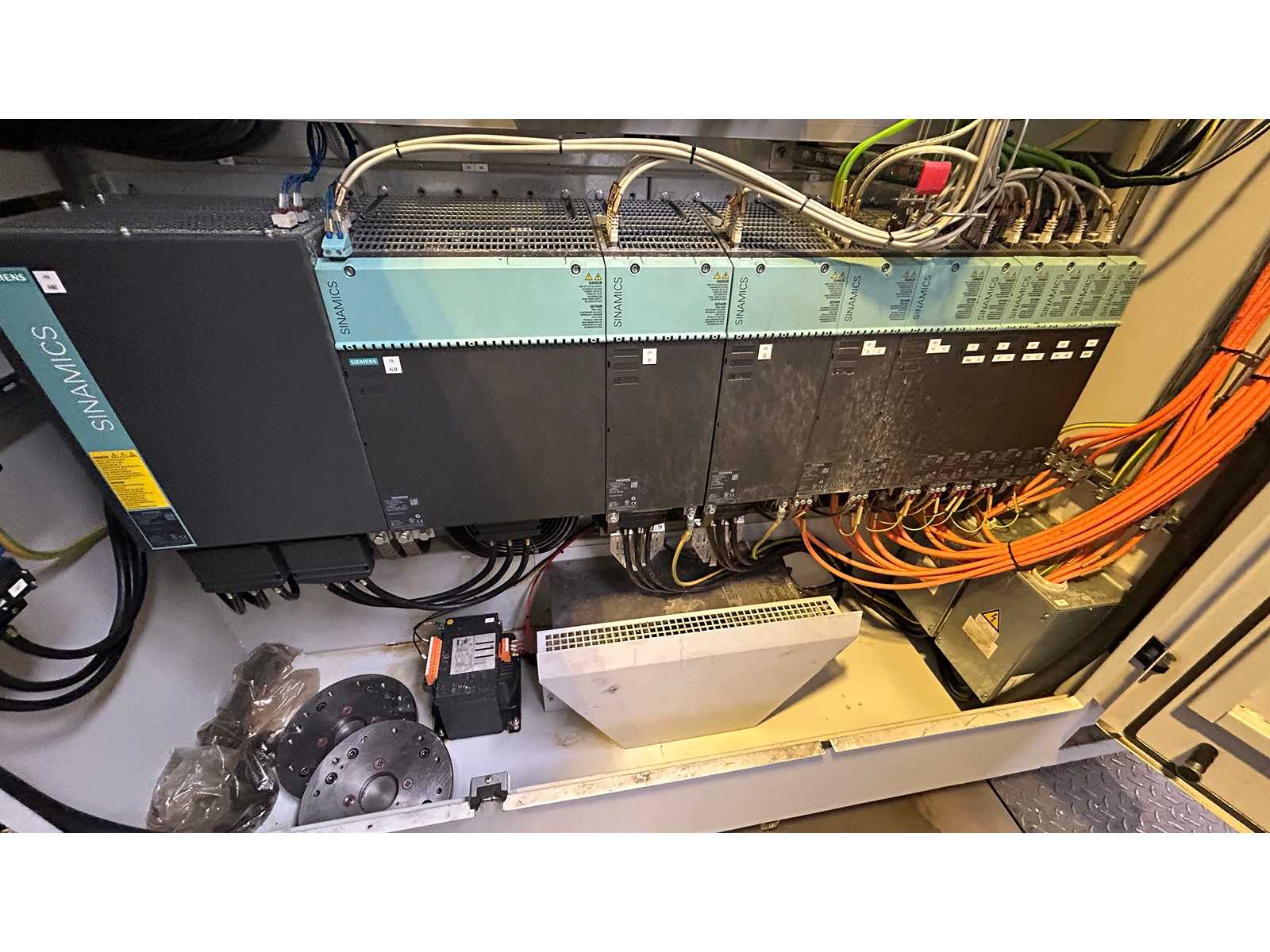

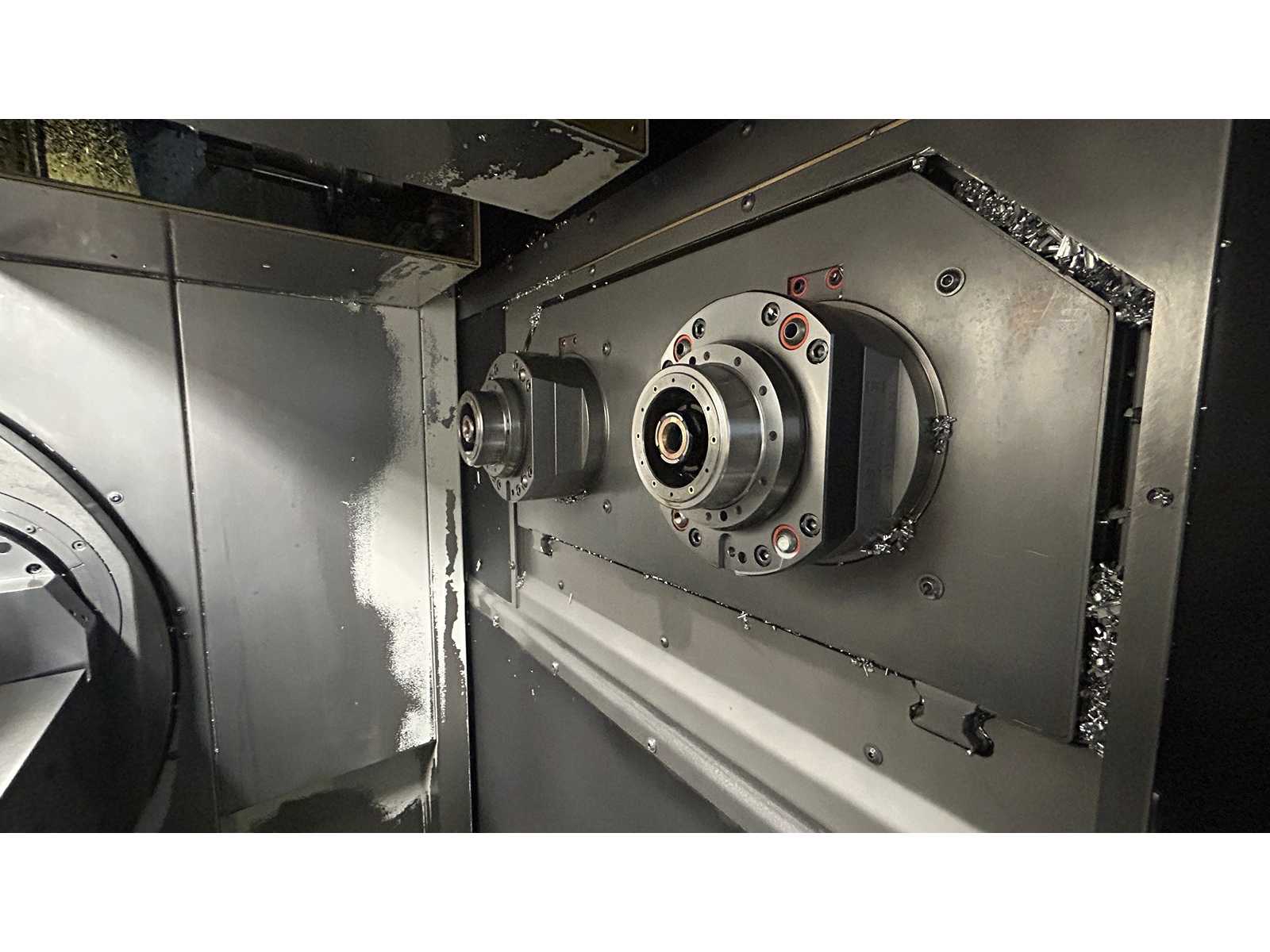

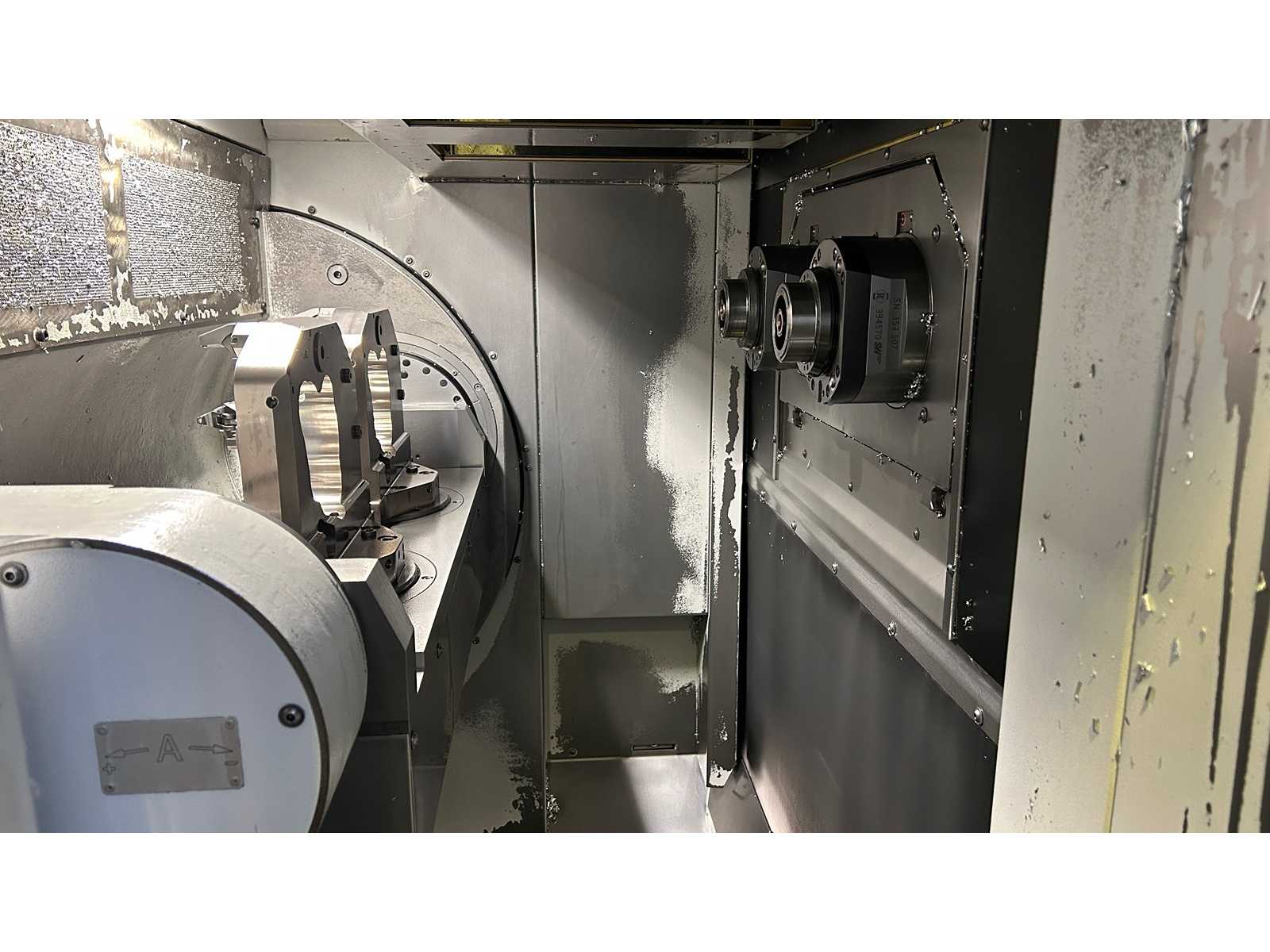

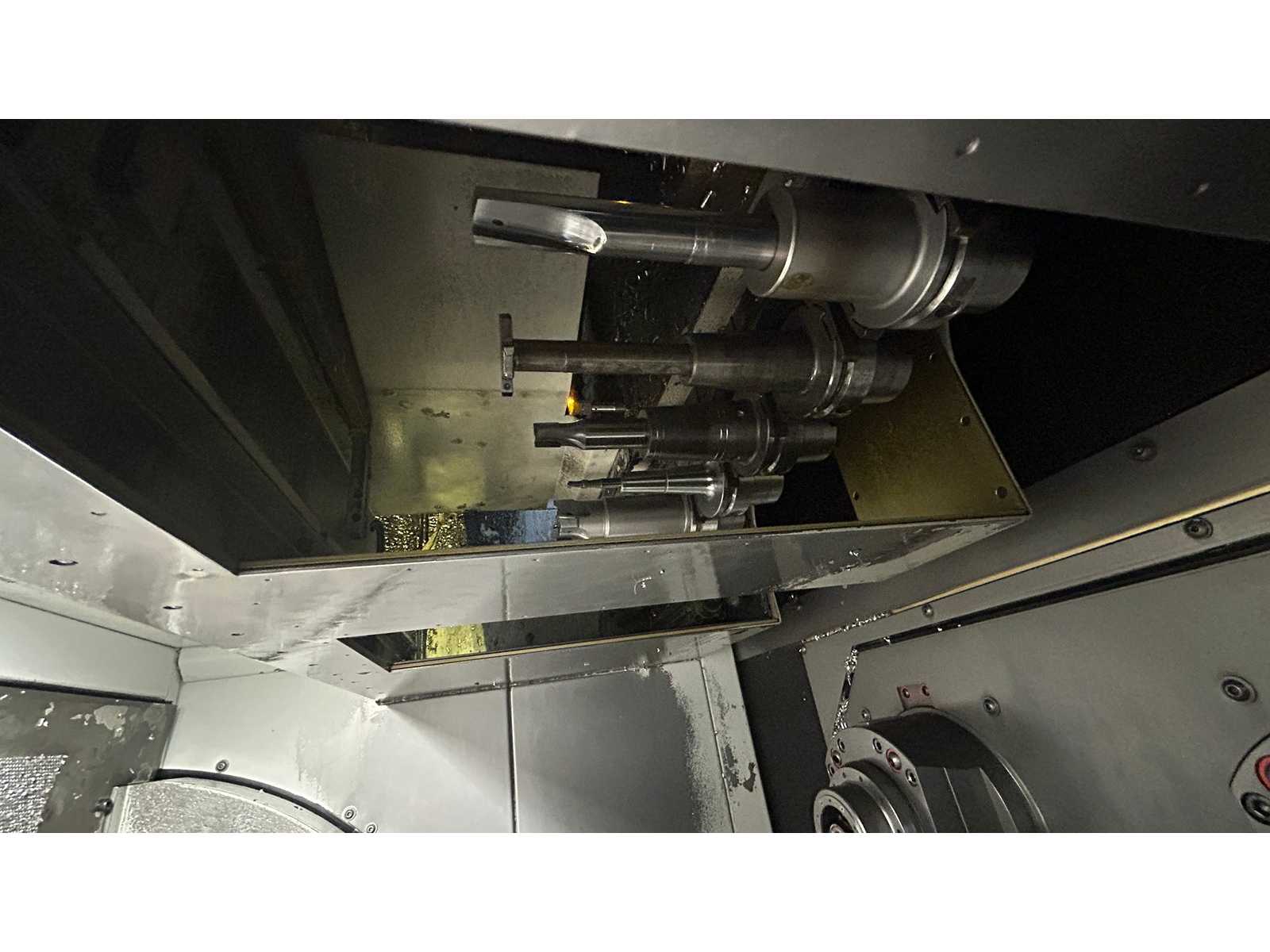

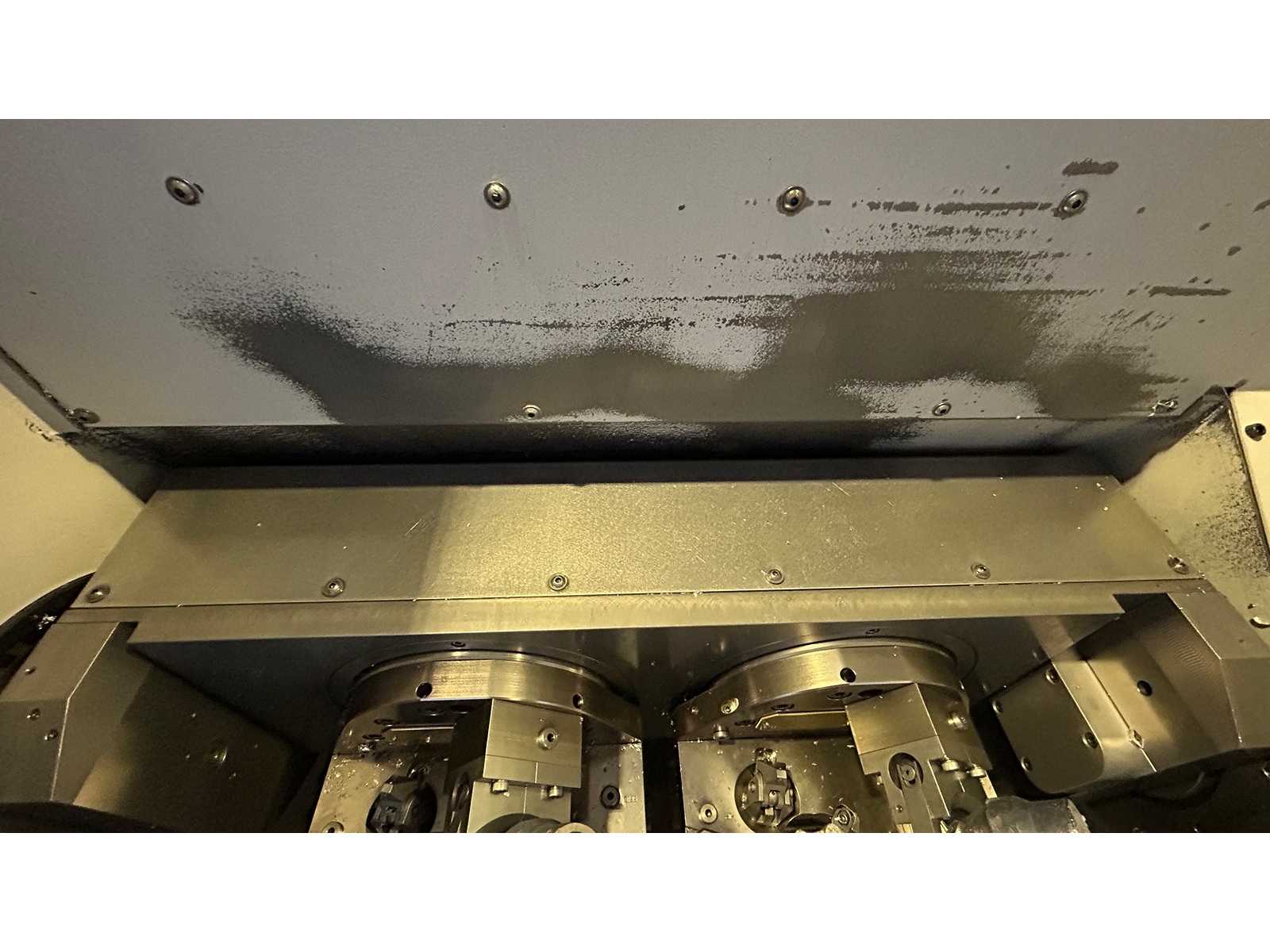

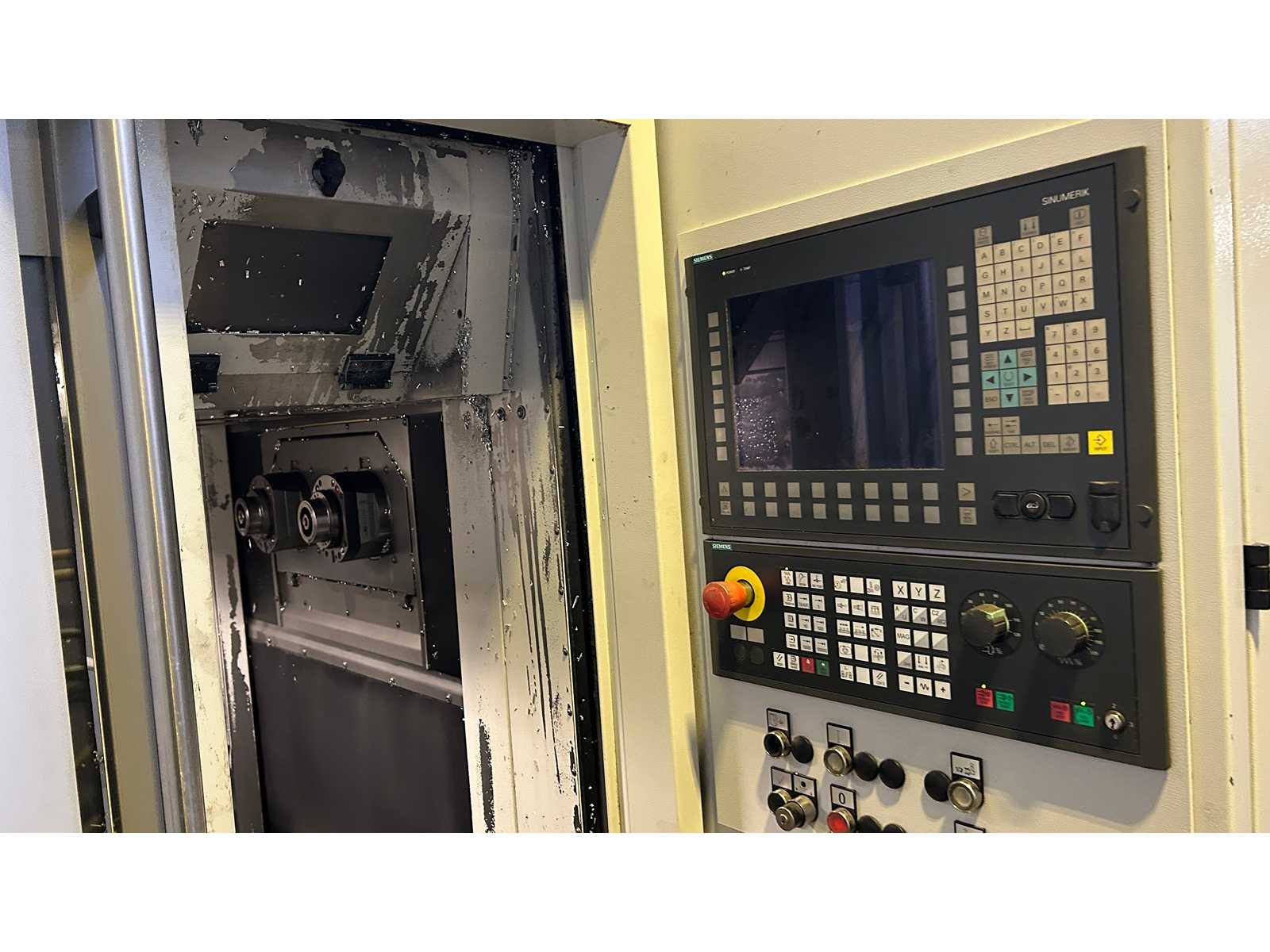

Description	5-axis twin-spindle horizontal CNC machining center – SW BA322 Year 2015 – Siemens Sinumerik 840D Solution Line control – Serial No. 2330197 • Architecture: HSK-A63 dual spindle, 5 simultaneous axes, two workstations • Speed: 17,500 rpm • Strokes: X 300 mm / Y 450 mm / Z 375 mm • Fast feeds: 65 / 75 / 75 m/min • Accelerations: X/Y 10 m/s² – Z 15 m/s² • Tool magazines: 2 × 32 positions • Position tolerance: ± 0.008 mm • Clamping force: 100 kN – Pressure: 6 bar • Installed power: 400 V – 50 Hz – 123 A (125 A fuse) • Chip discharge: KNOLL 550 K-1 conveyor (2015) – flat / gooseneck • Rigid structure made of mineral casting – Central lubrication and cooling • Order: Siemens Sinumerik 840D Solution Line • Made in Germany – Machine in excellent condition Dimensions (mm) : 2750 × 3650 × 3550 Weight (kg) : 10,000
