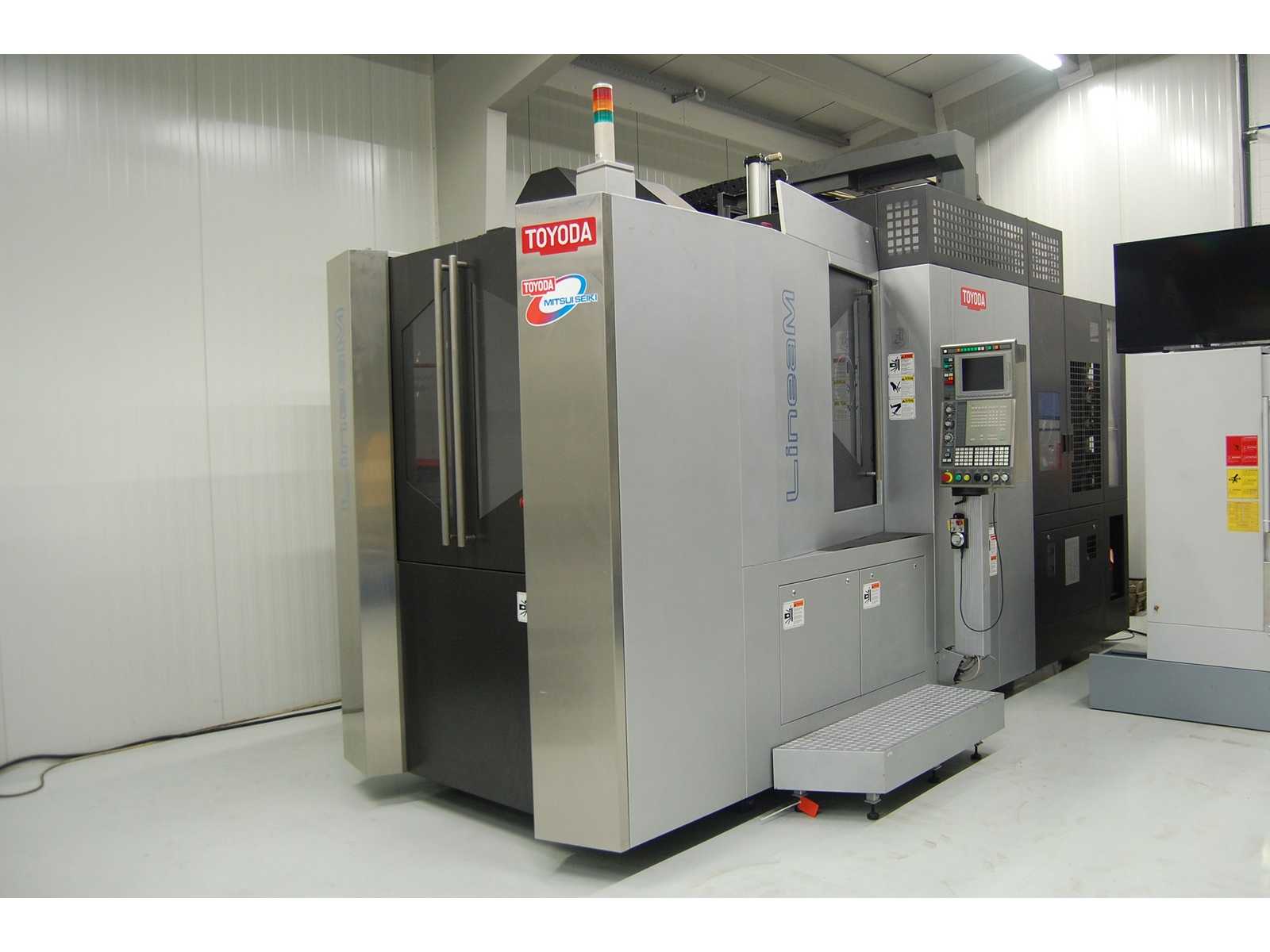

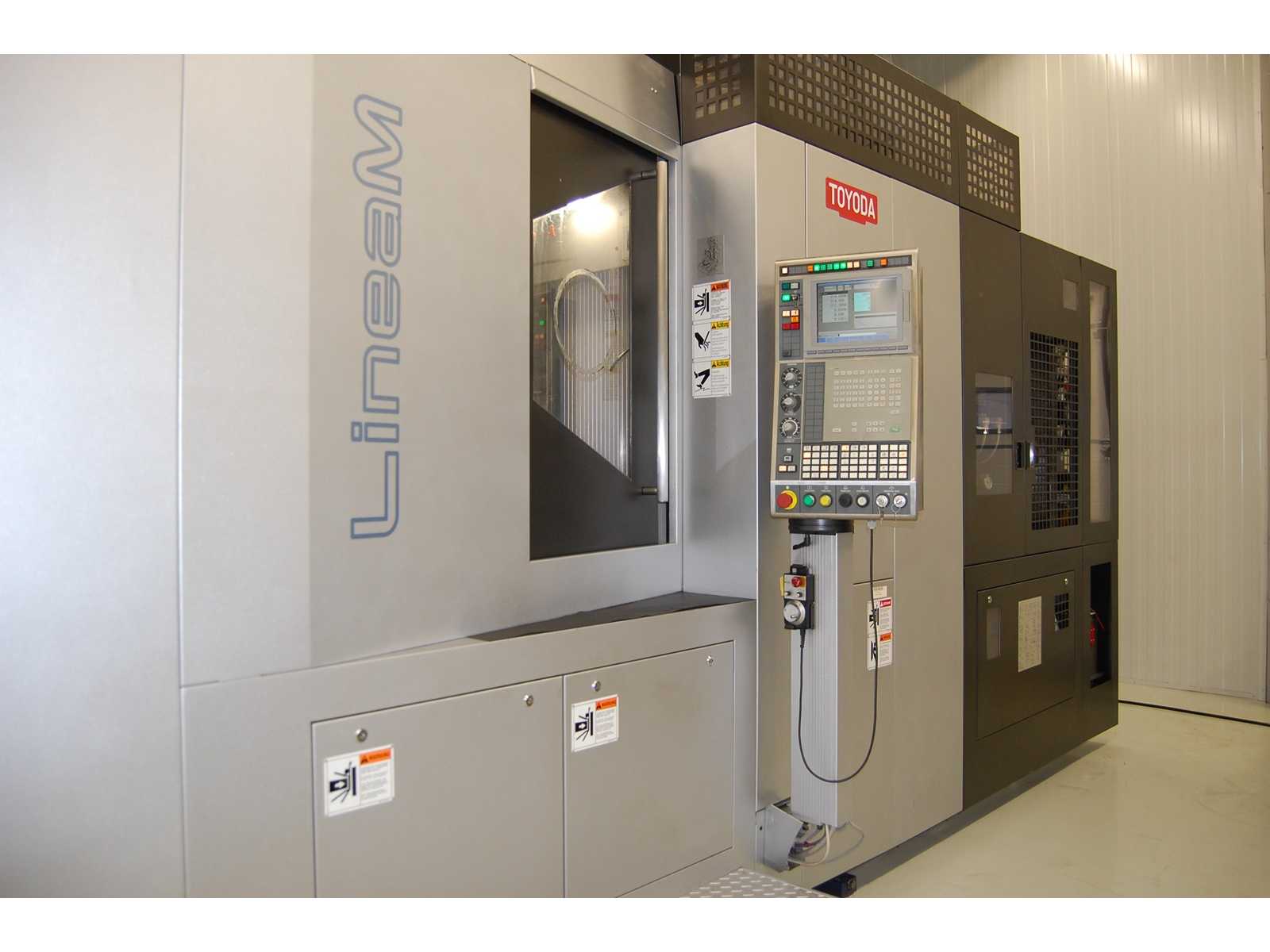

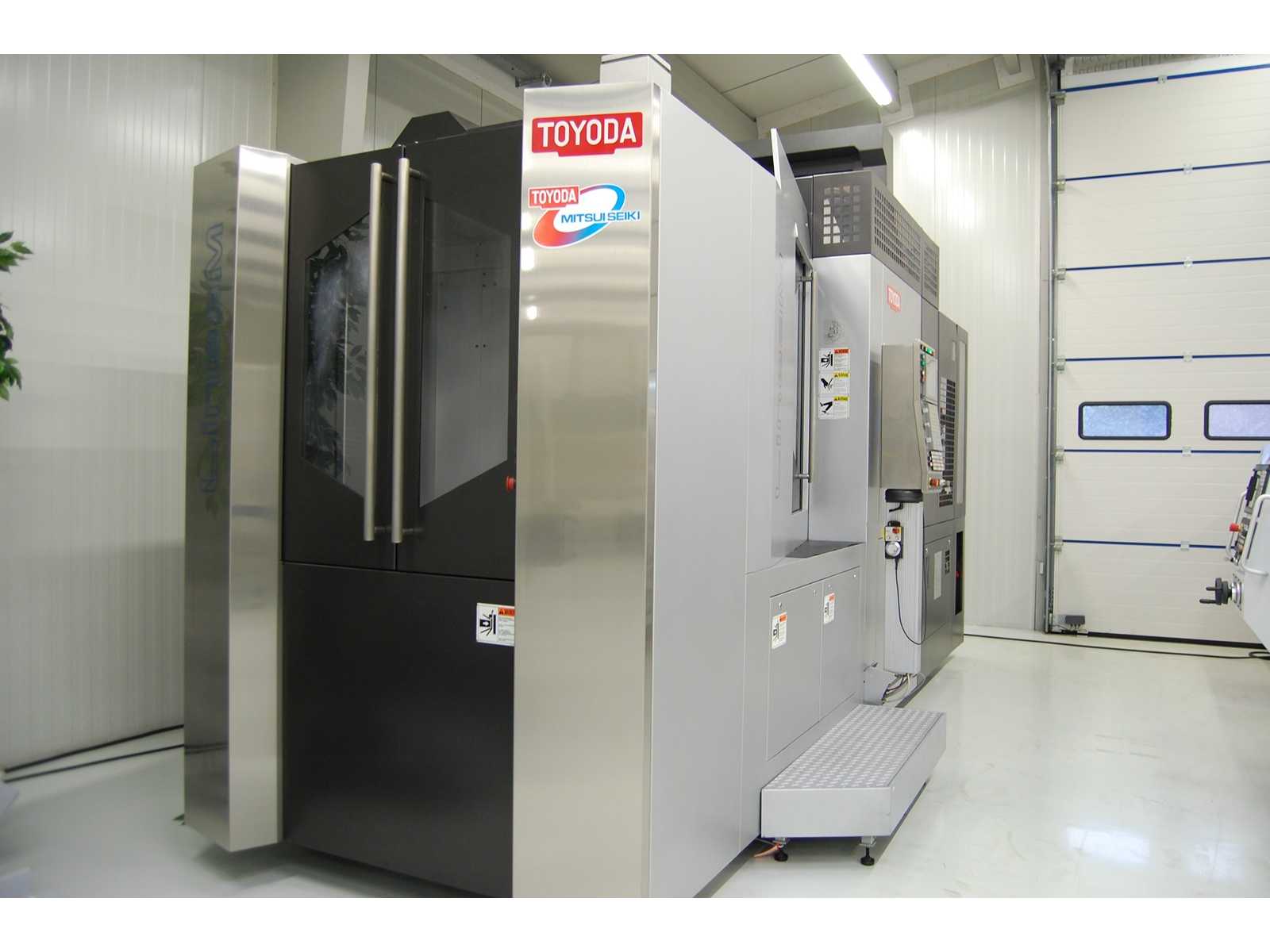

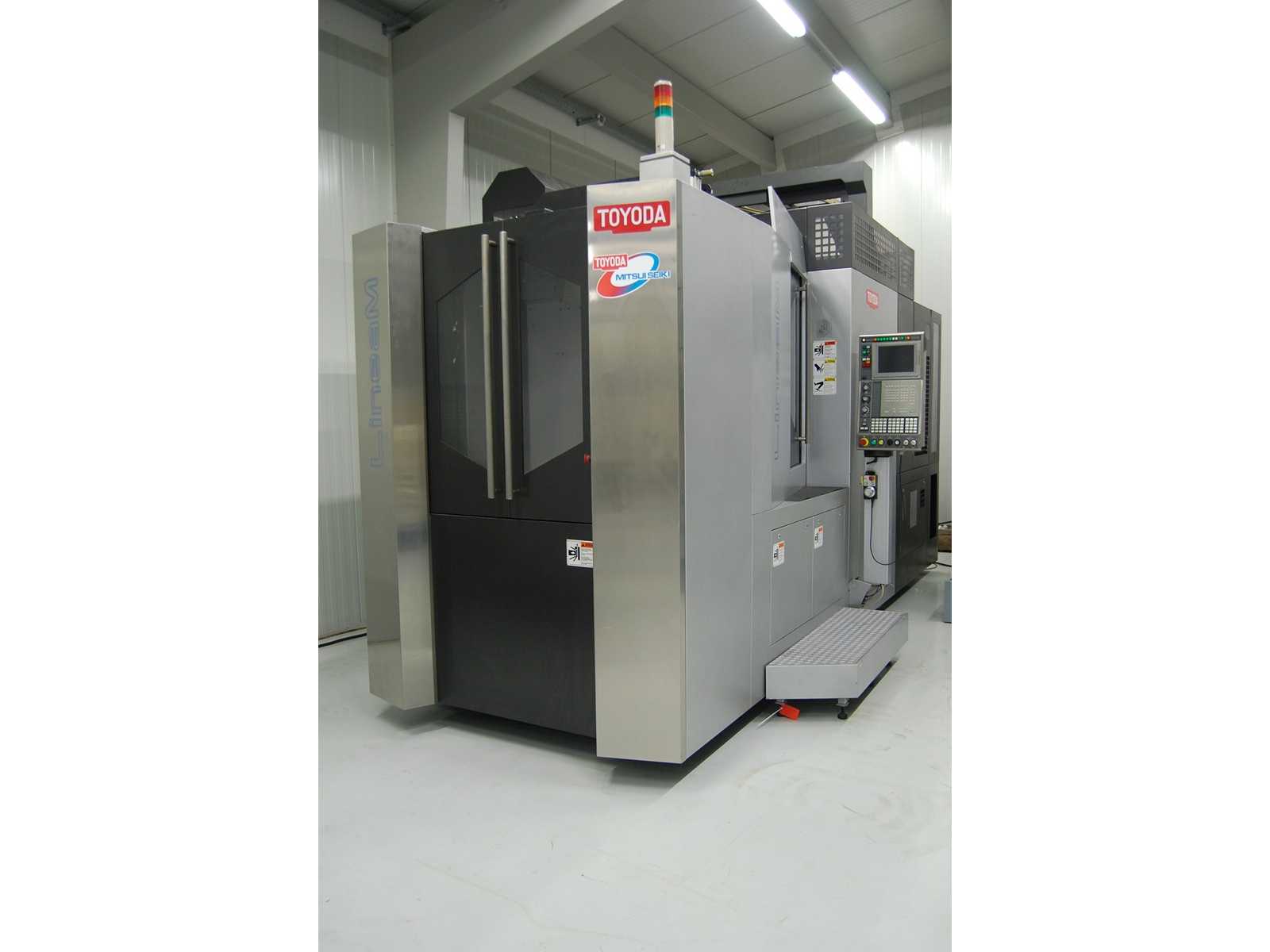

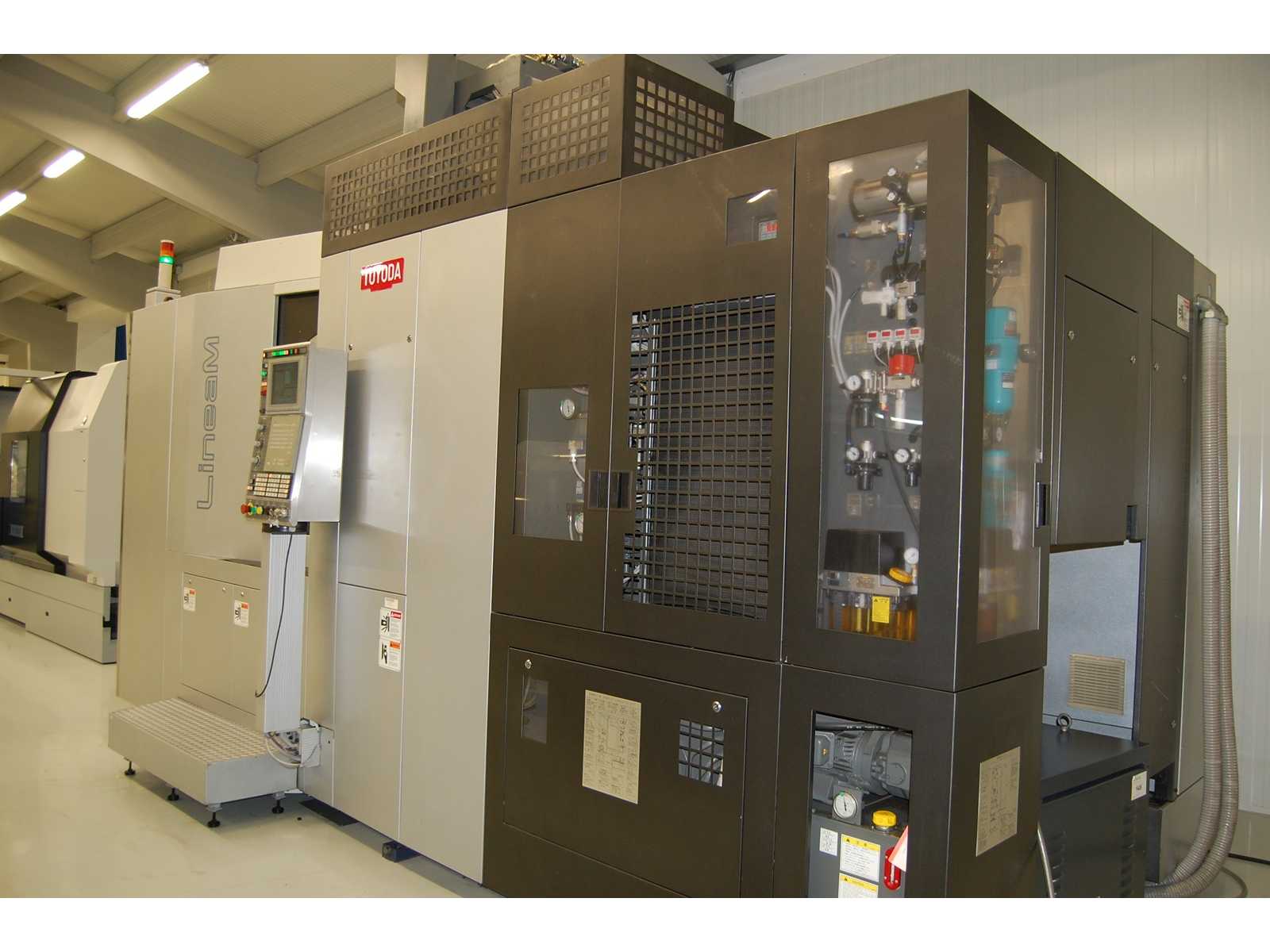

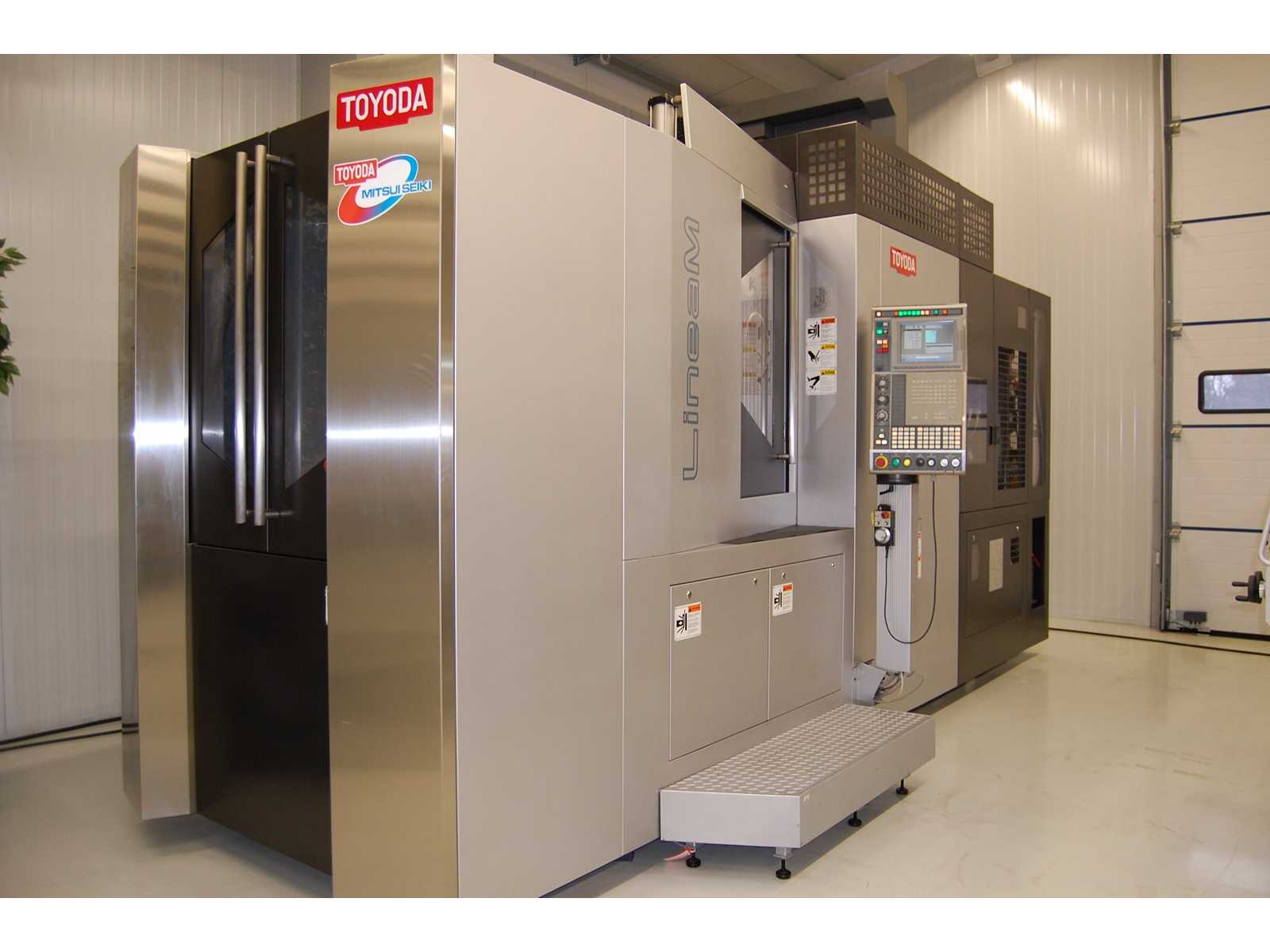

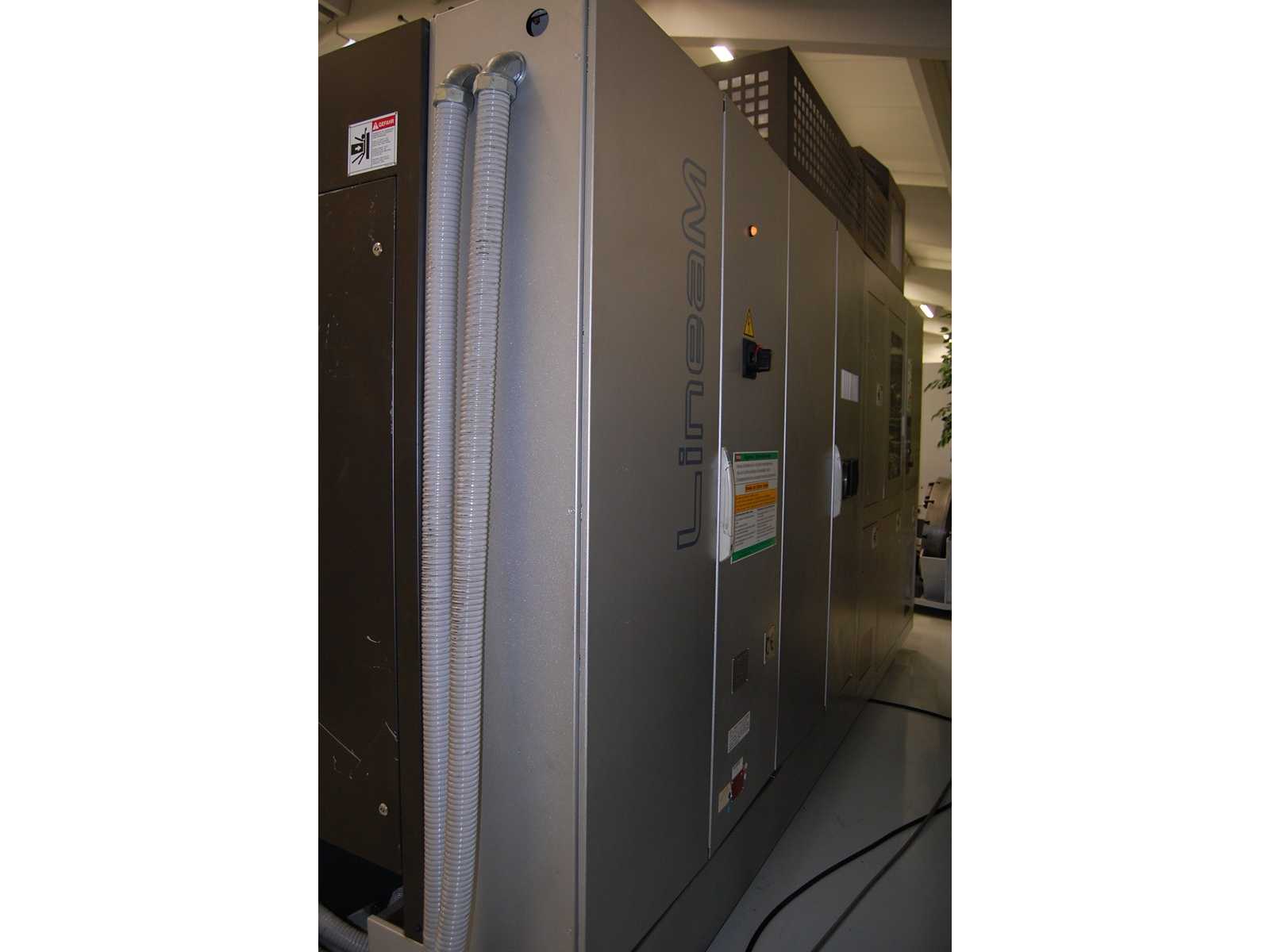

TOYODA – 2004 – LINEAM III – Horizontal CNC Machining Center

CNC HORIZONTAL MACHINING CENTER
Inv. No. 12.178MM

Make TOYODA
Model LINEAM III

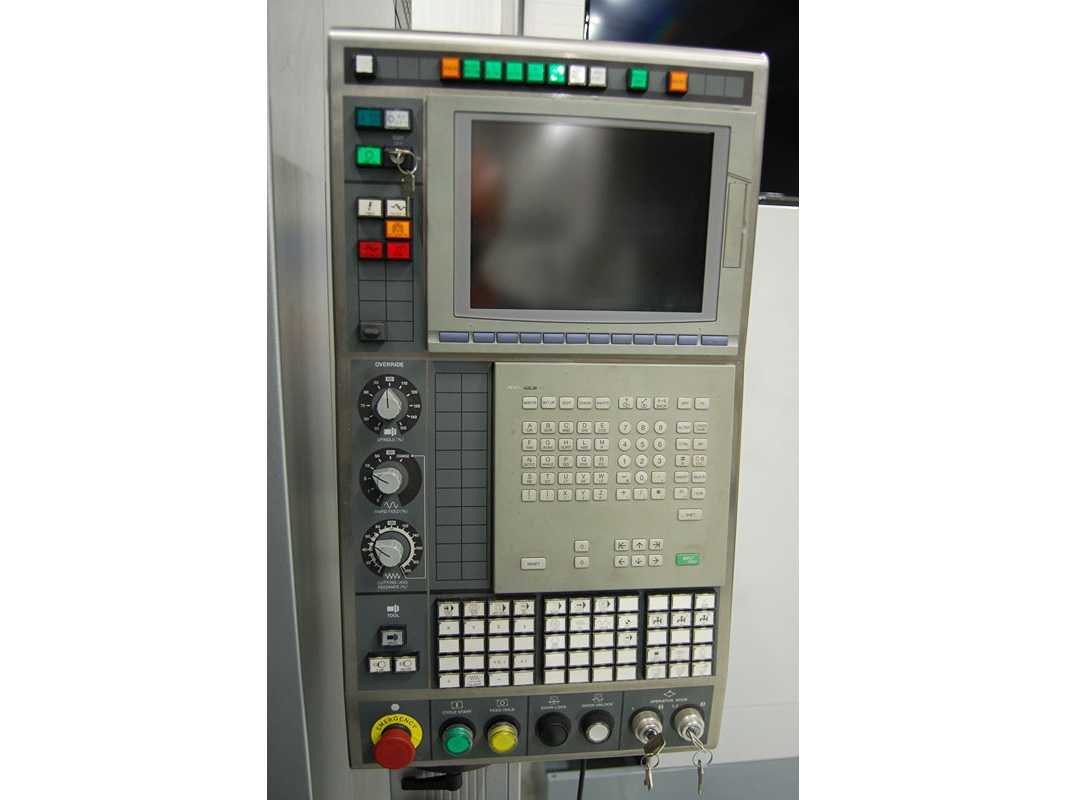

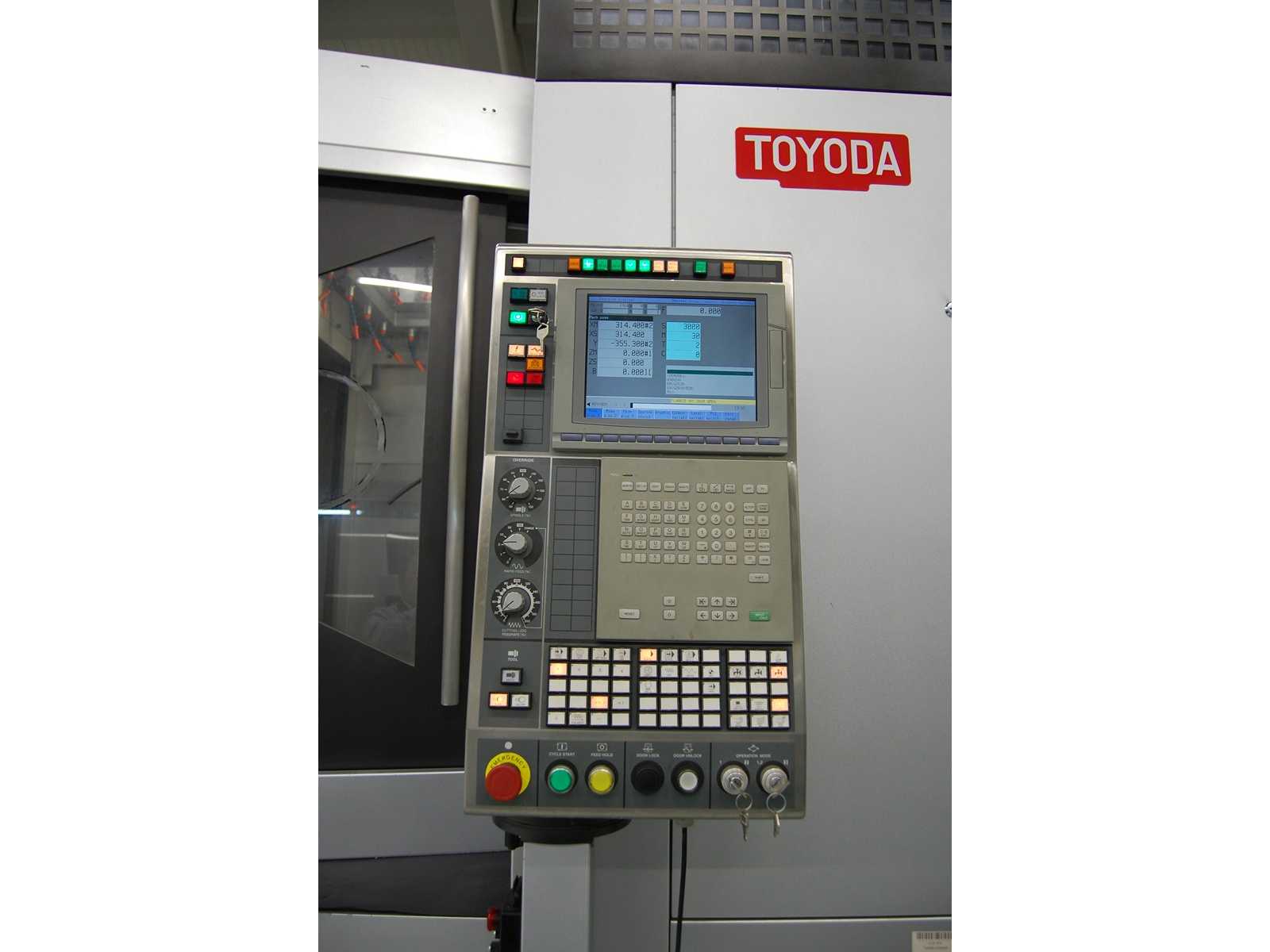

Control MELDAS M650
Year 2004

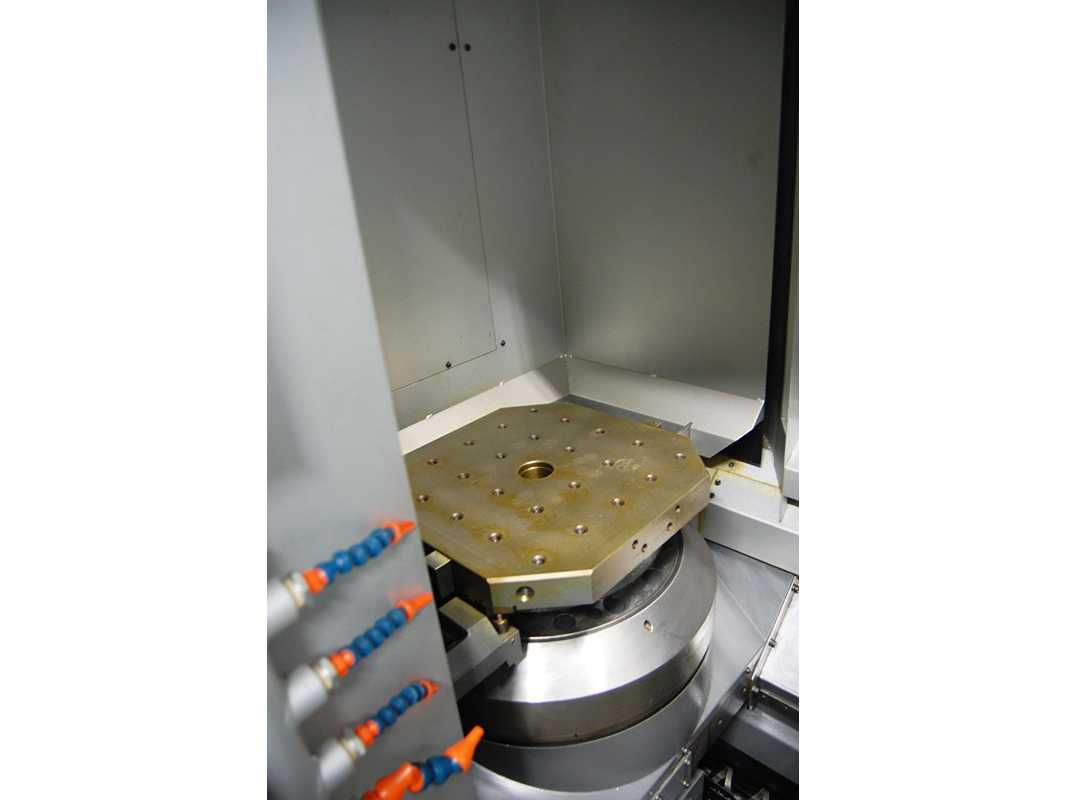

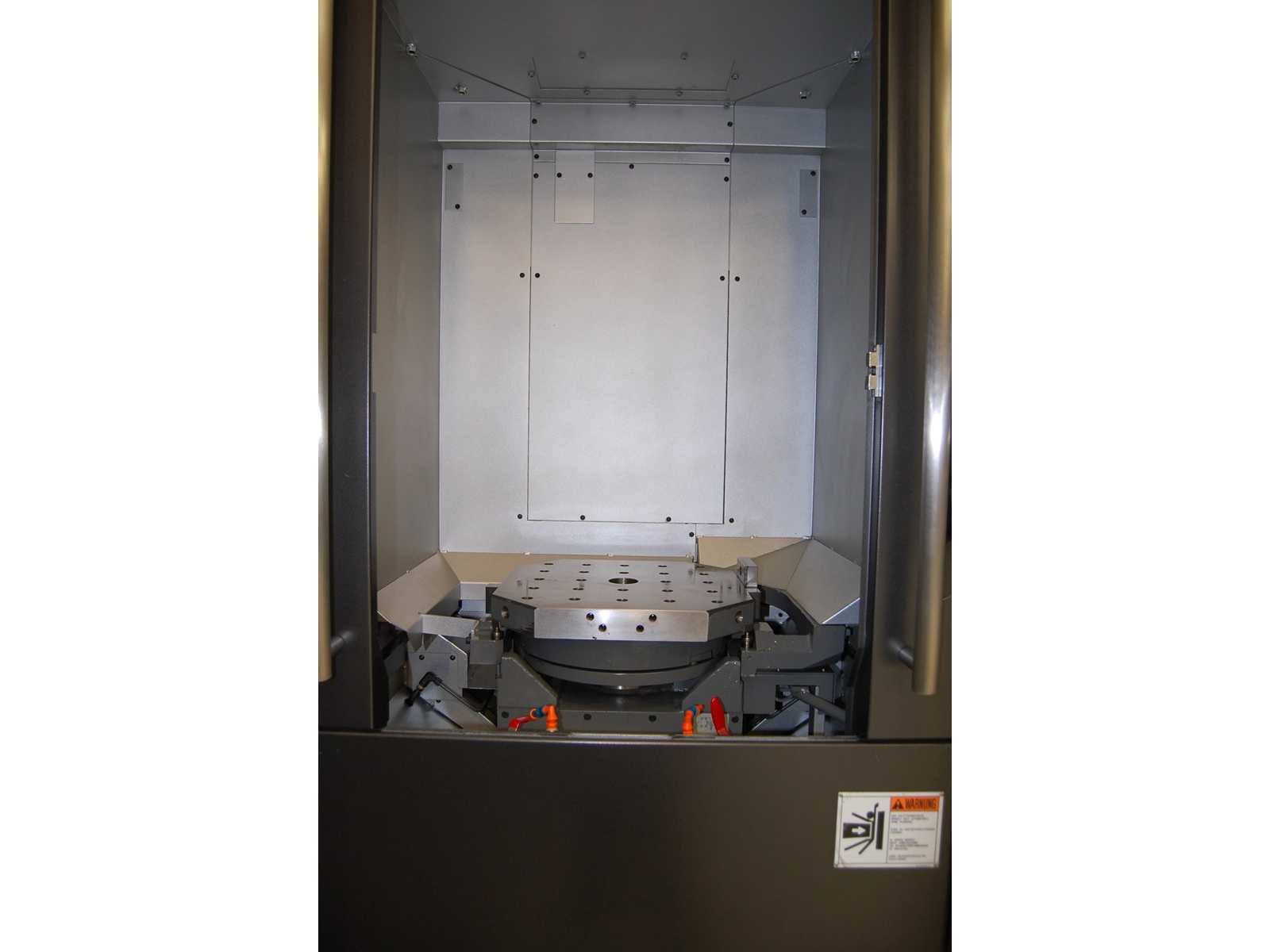

TABLE
Pallet size 450 x 450 mm
Max. load on pallet 400 kg
Table indexing increment 0.001 degrees

STROKE
X-Axis stroke 630 mm
Y-Axis stroke 630 mm
Z-Axis stroke 700 mm
Distance from spindle center to top of pallet 50 – 680 mm
Distance spindle nose /center rotary index table 50 – 680 mm

FEED RATE
Rapid feed rate X,Y 120 m/min
Rapid feed rate Z 60 m/min
Rapid feed rate B 120 m/min
Cutting feed rate X,Y,Z 0,1 – 60 m/min

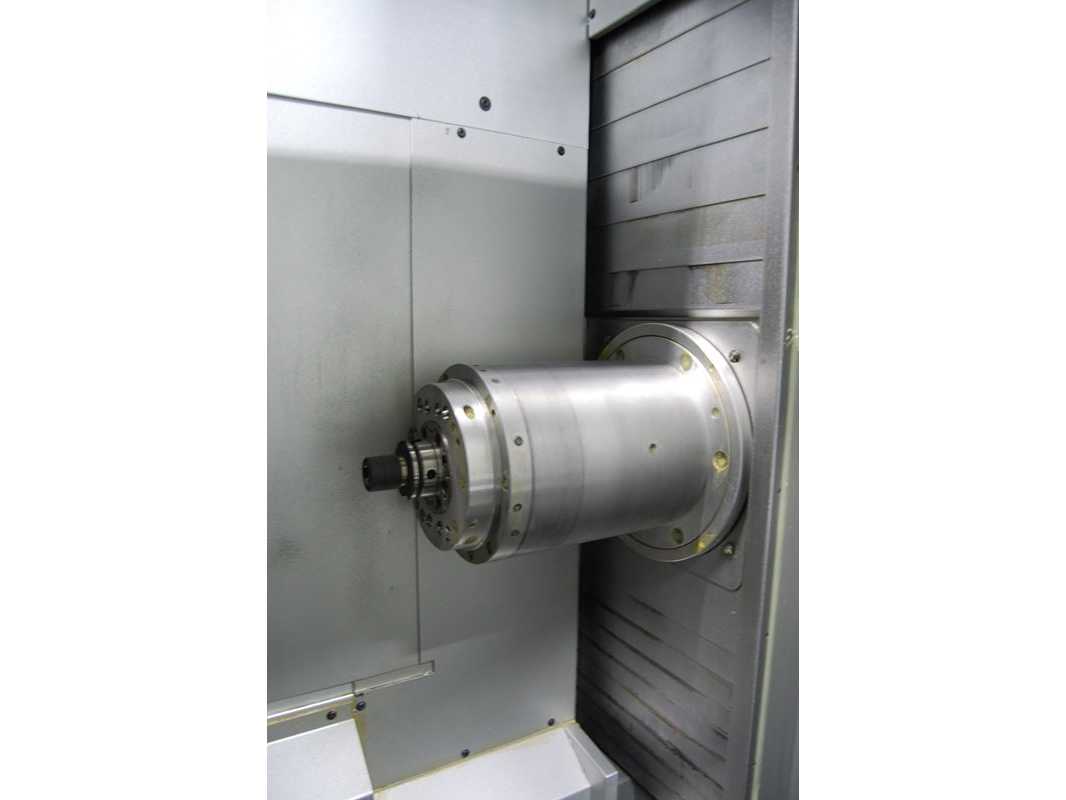

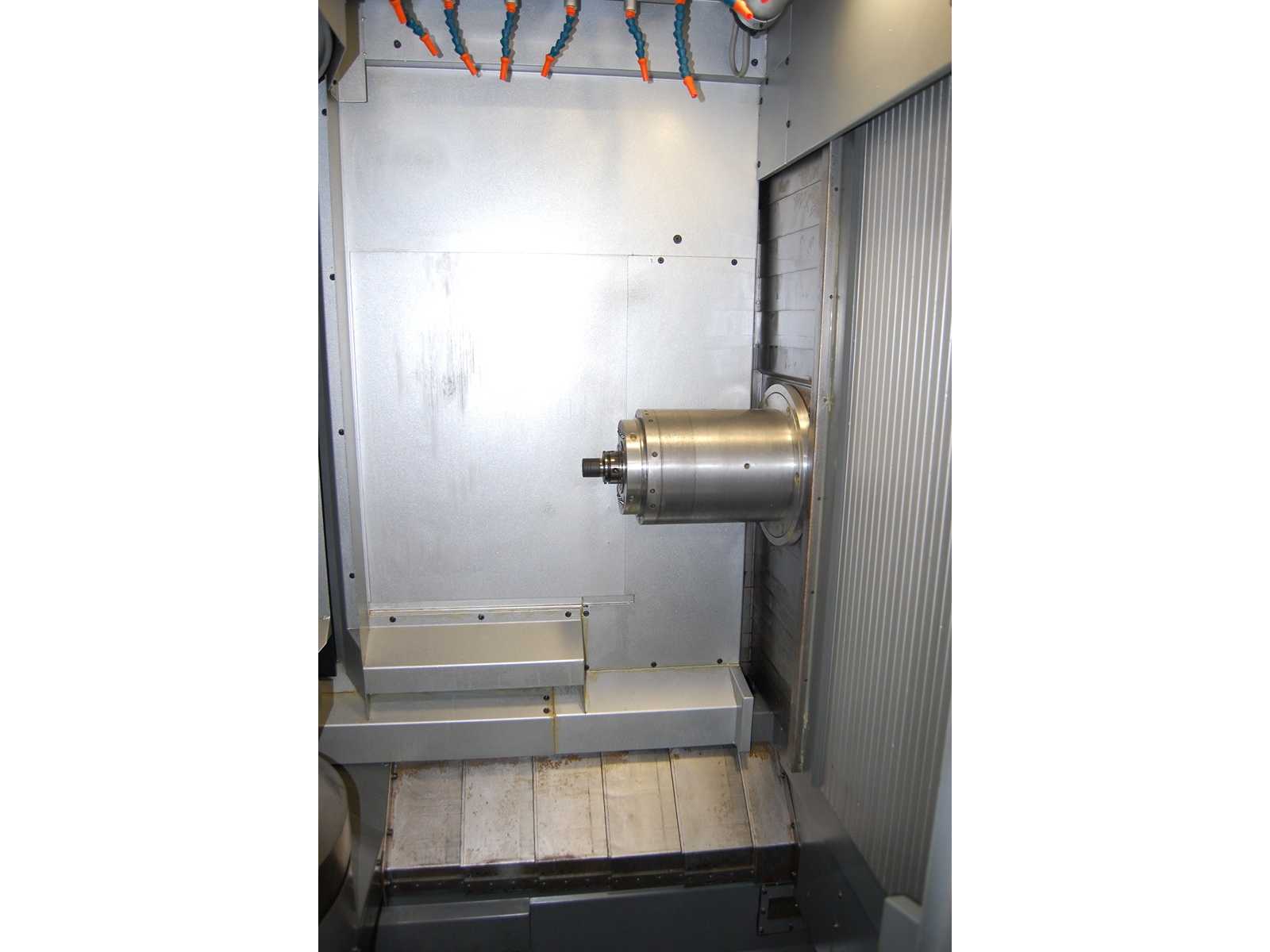

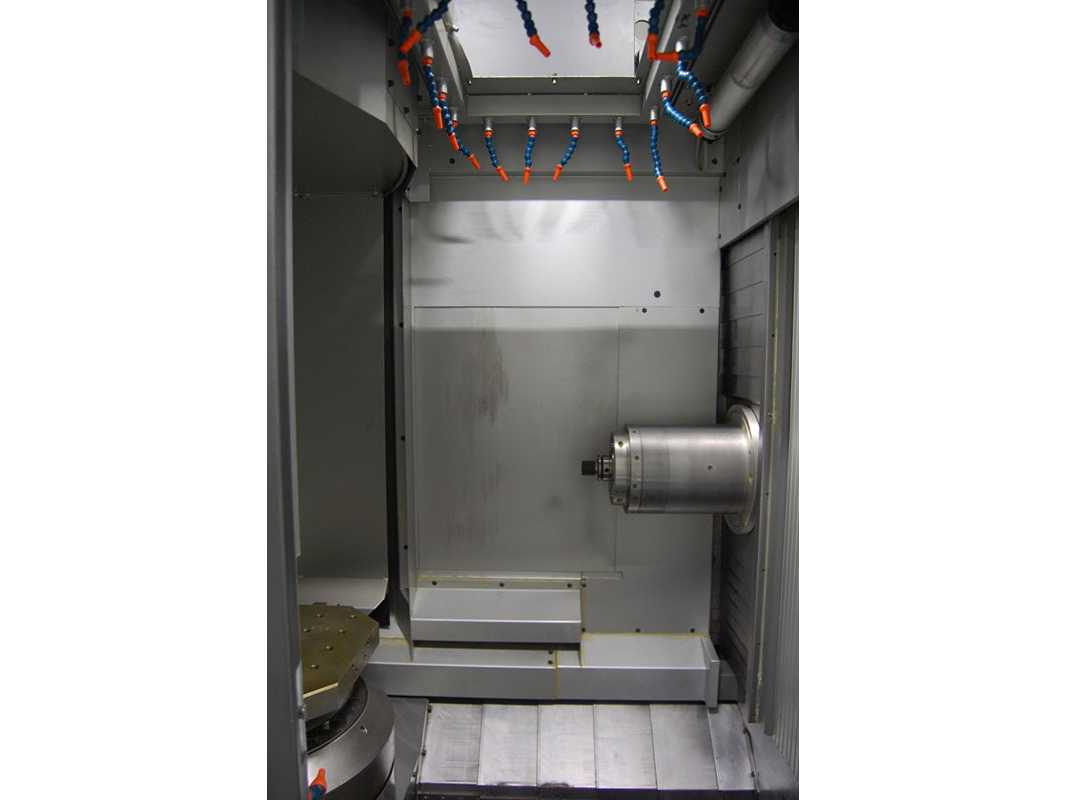

SPINDLE
RPM spindle 300 – 20,000 min-1
Spindle taper HSK-A63
Coolant Through spindle

ATC
Tool holder Special HSK-A63 2 Face contact tool

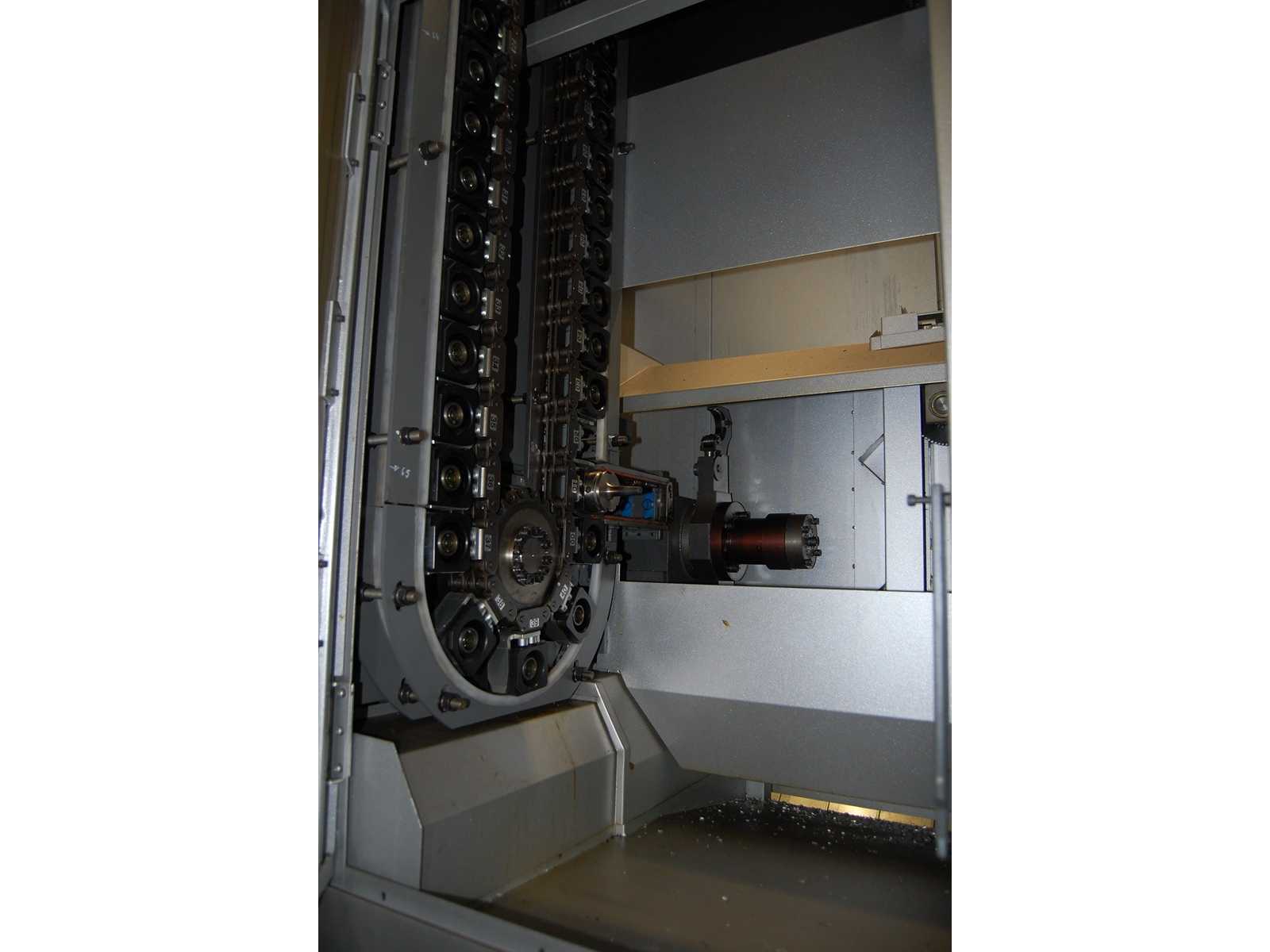

Tool magazine storage 40 pcs
Tool change time 2.5 sec.

DRIVE MOTOR
Spindle drive motor Ac 45/30 kW

MACHINE WEIGHT & POWER REQUIREMENTS
Machine weight 15.000 kg
Power requirement 96 kVA

ACCESSORIES:
Spindle linear motor cooling unit
Spindle orientation
Spindle air blow

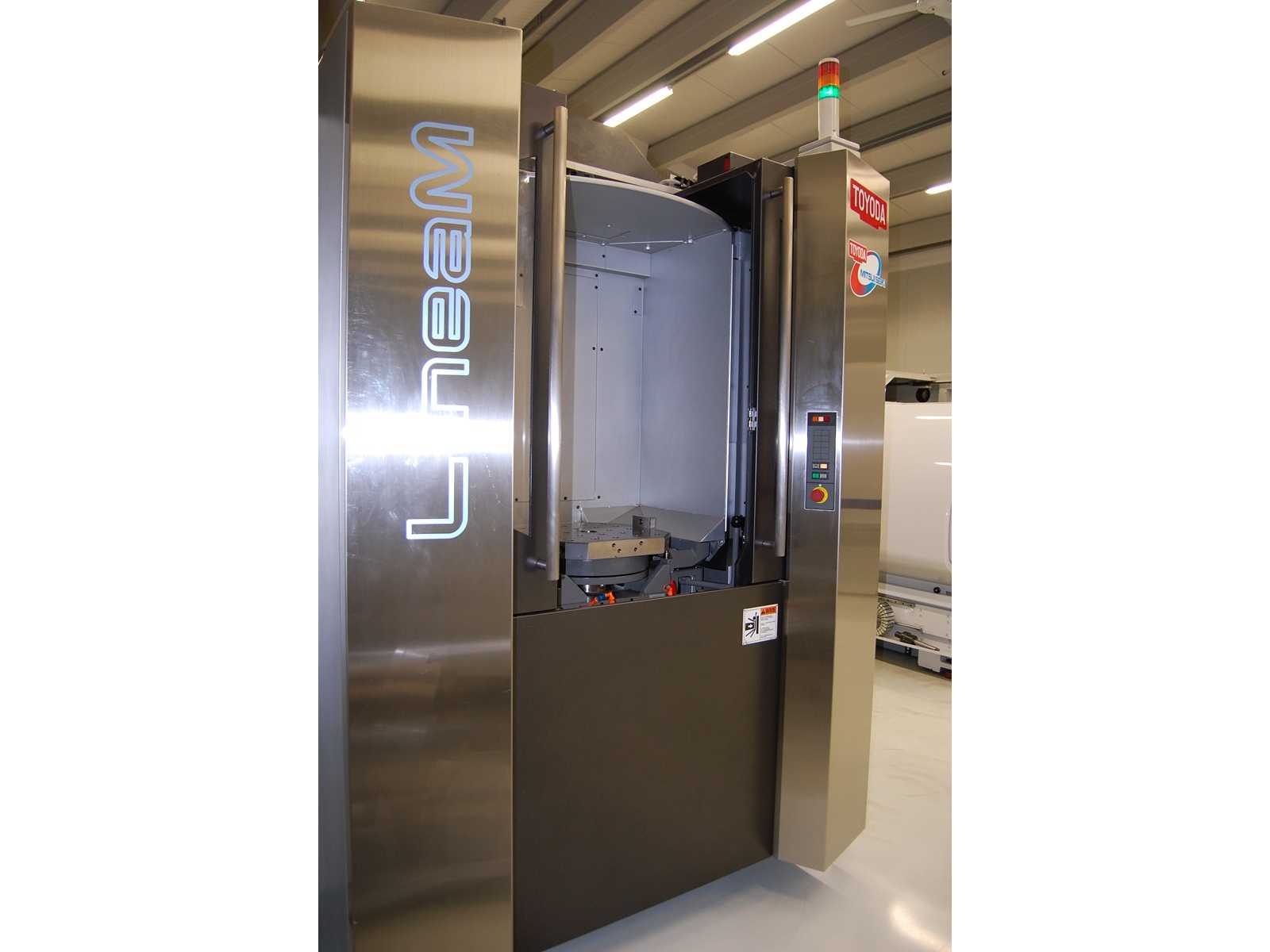

Splash guard – House type w ith rotary door
Pallet
