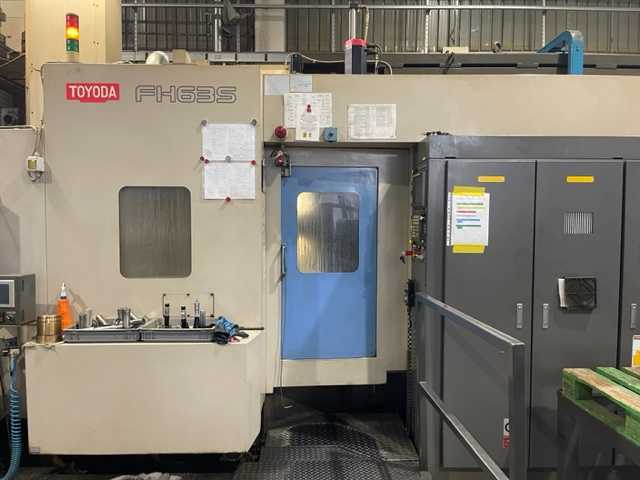

TOYODA FH63S 4-axis horizontal machining center

X AXIS STROKE 1000 mm
Y-AXIS STROKE 850 mm
Z AXIS TRAVEL 750 mm
SPINDLE NOSE DISTANCE TABLE TABLE 50 – 900 mm
RAPID FEEDS X-Y-Z 30 m/min
SPINDLE 15000 rpm; 30 kW; ISO 50 – BT
INDEXED PALLET; N.15 ; 630×630 mm
HIGH PRESSURE 70 Bar
CHAIN TOOL MAGAZINE; 225 POS
MAX TOOL DIAMETER 120 mm
MAX TOOL LENGTH 500 mm
MAX TOOL WEIGHT 27 Kg

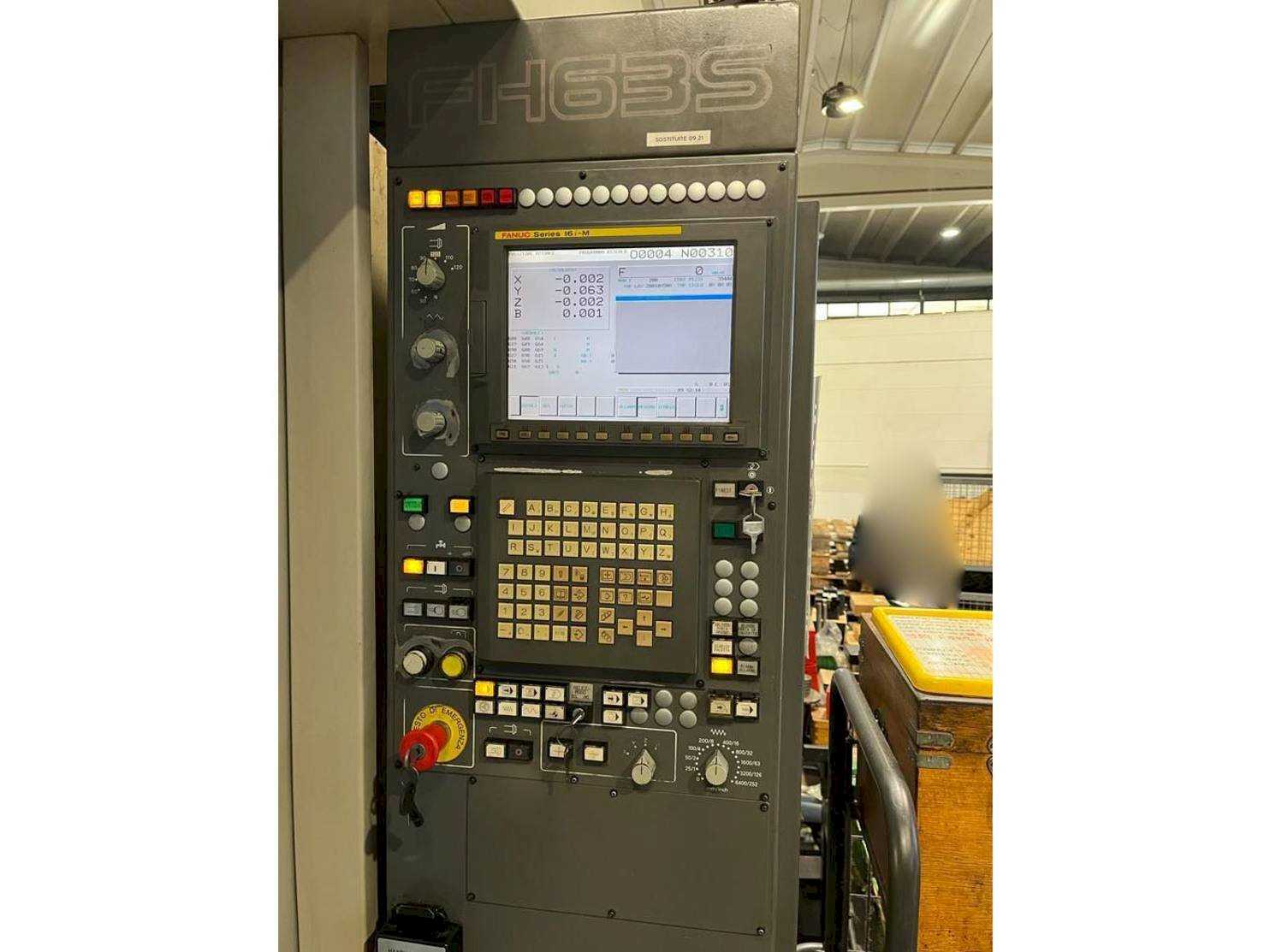

FANUC 16i-M
CONTROL
CHIP EVACUATOR ACCESSORIES; TOOL SETTING ; WORKPIECE PROBE
