ZERBST – DP05/W08 – Head lathe – 1985-2010

Machine data:
Stock number: 2026-1376
Machine Type: Head Lathe
Make: ZERBST
Type: DP05/W08
Year of construction: 1985 – 2010
Control Type: CNC

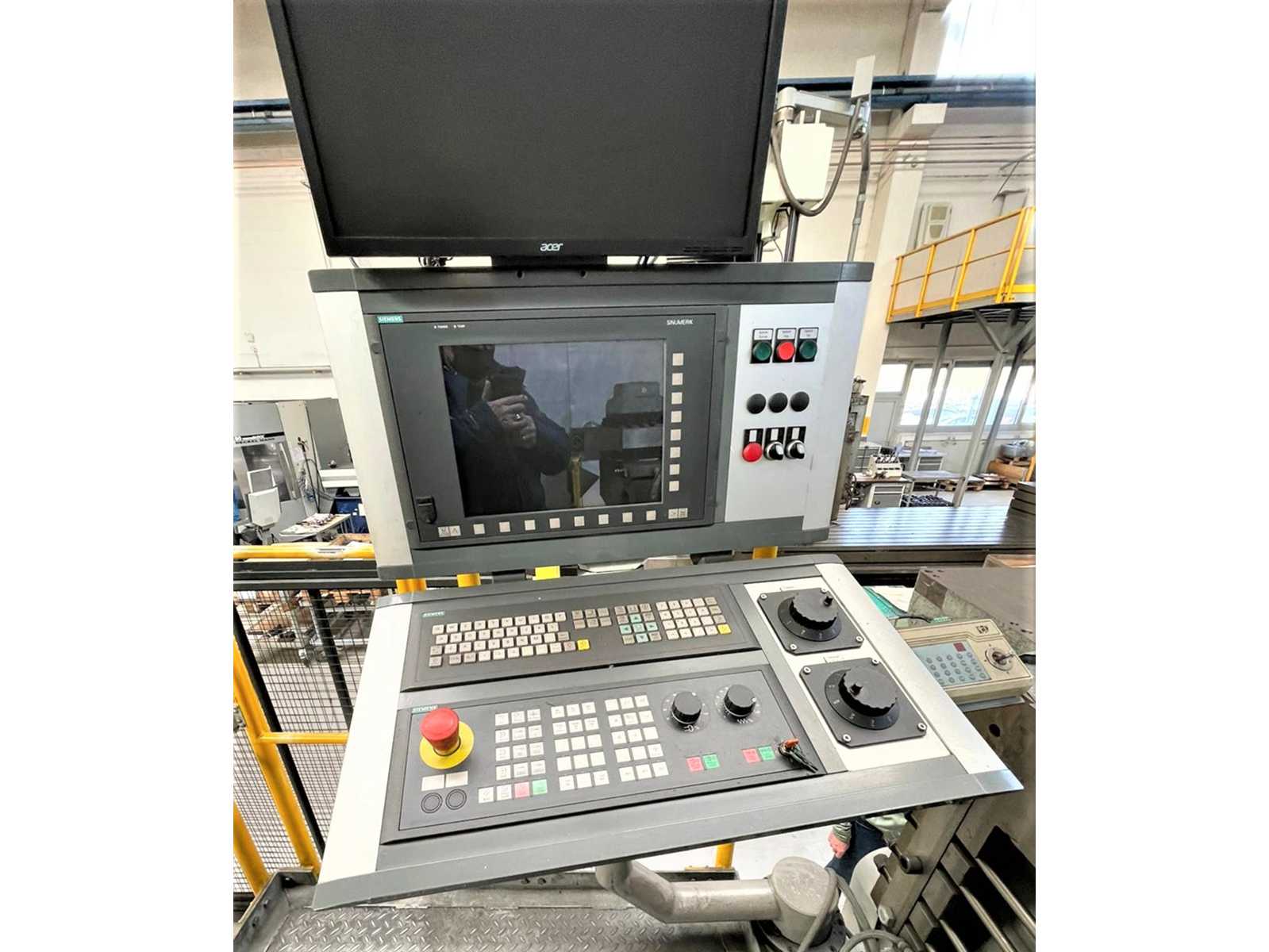

Control: Siemens Sinumerik 840D-sl
Location: Camp Hattingen
Country of origin: Germany
Delivery time: by arrangement

Technical details:

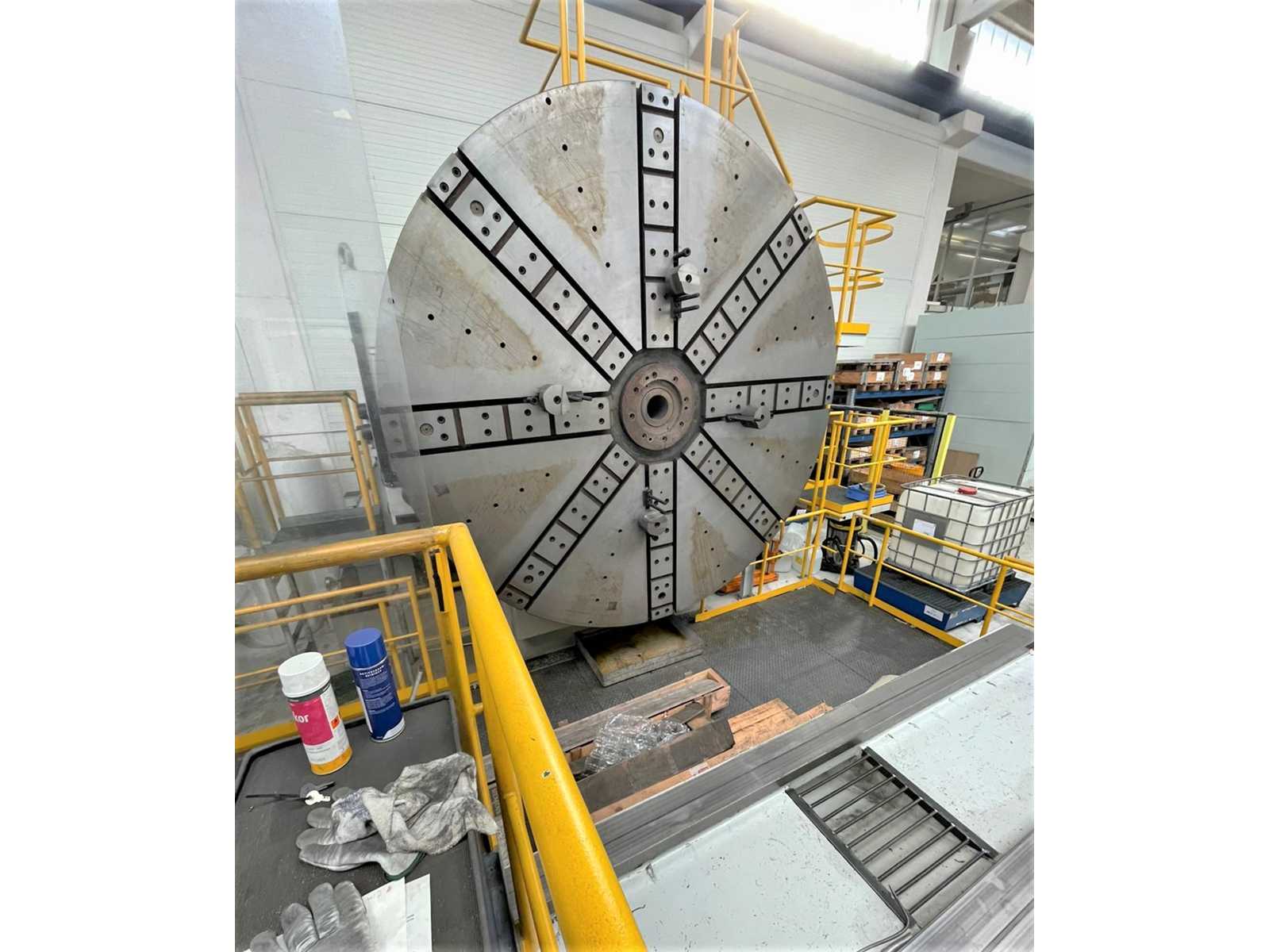

Face plates diameter: 4,000 mm
X-axis travel: 4,500 mm
Travel Z-axis: 600 mm
Control: Siemens Sinumerik 840D-sl
Feed range: 0 – 8,000 mm/min
Speed level 1: 1.0 – 7.5 rpm
Speed level 2: 2.8 – 22.4 rpm
Speed level 3: 2.1 – 56 rpm
Tool holder: Sauter

Scope of delivery:
– Chip conveyor
– Hydraulic power unit

The ZERBST DP05/W08 was retrofitted in 2010.
Modernization/overhaul 2010

The machine is in neat condition.

Attention:
The machine is already dismantled!
